brand new and high quality

Module description:
PWM output can set frequency and duty cycle respectively.
Frequency is divided into four areas: automatic switching:
1.XXX (without decimal point): the smallest unit is 1Hz, and the value is 1Hz~999Hz;The minimum unit of
2.X.XX (decimal point in 100 bits) is 0.01Khz, and the value is 1.00Khz~9.99Khz;
3.XX.X (decimal point in ten places): the smallest unit is 0.1Khz; and the is 10.0KHz~99.9KHz.
4.X.X.X (decimal point in ten bits and 100 bits): the smallest unit is 1Khz; and the is 1KHz~150KHz.E.g. frequency display: 100 indicates PWM output 100Hz pulse;1.01 represents the pulse of PWM output 1.01K.54.1 represents the pulse of PWM output 54.1KHz.1.2.4 indicates the pulse of PWM output 124KHz.Duty cycle:0~;All settings are saved by power down.

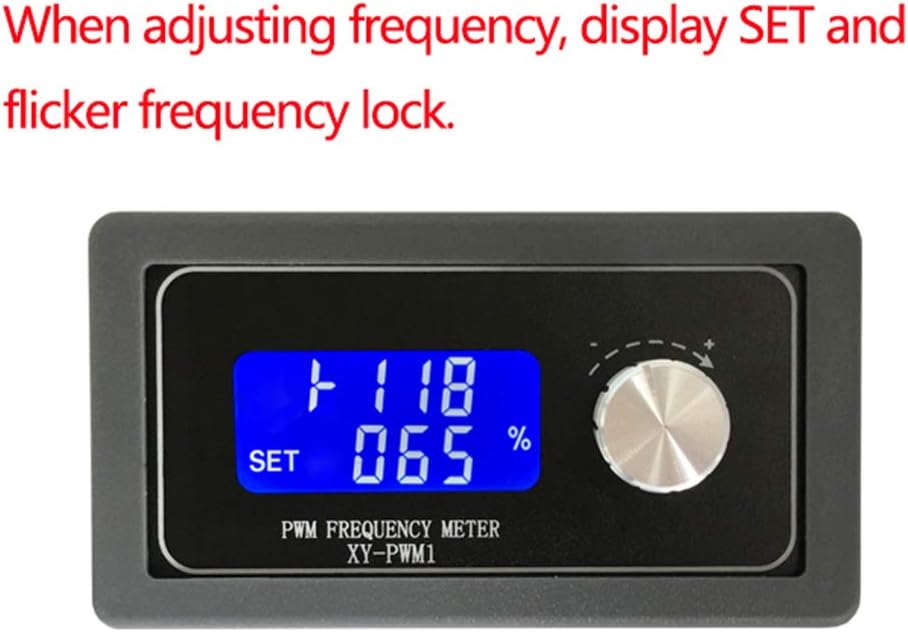

Parameter setting:
Module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (quickly increase or decrease), very simple, set the parameters automatically save, power loss is not lost.
Scope of application:
1.is used as a square e signal enerator to enerate square e signals for perimental development.
2.is used to enerate square e signals that control motor drives.
Specification:

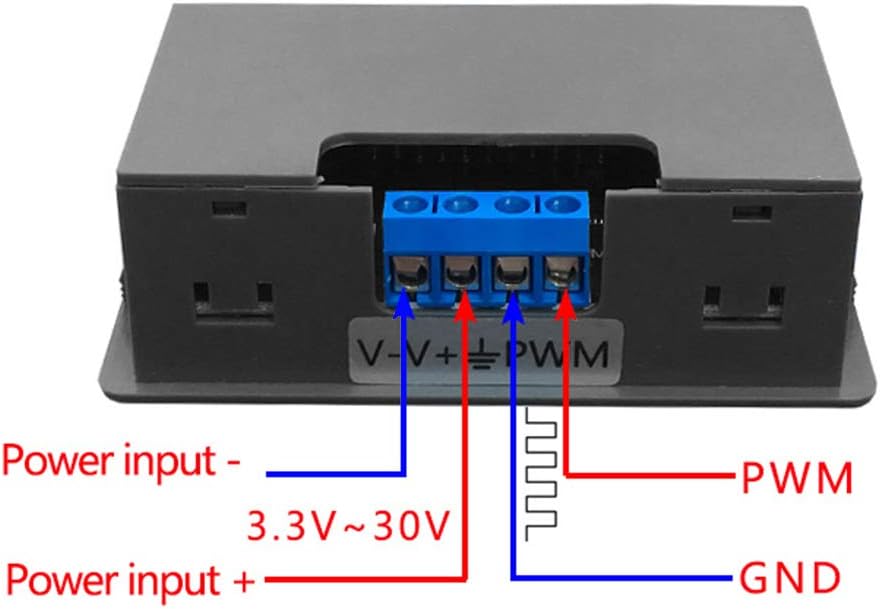

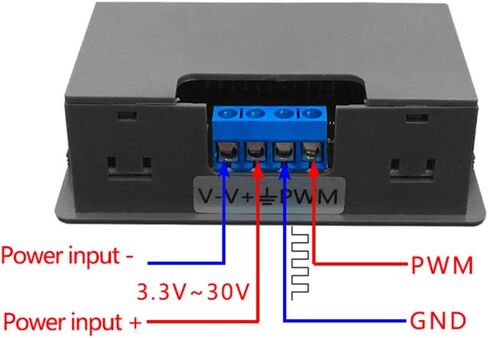

Working voltage: 3.3~30V
Frequency : 1Hz~150KHz
Frequency accuracy: accuracy is about 2% in ach
Signal load capability: output current can be around 5~30mA
Output amplitude: PWM amplitude is qual to supply voltage
nt temperature: -20~+70℃

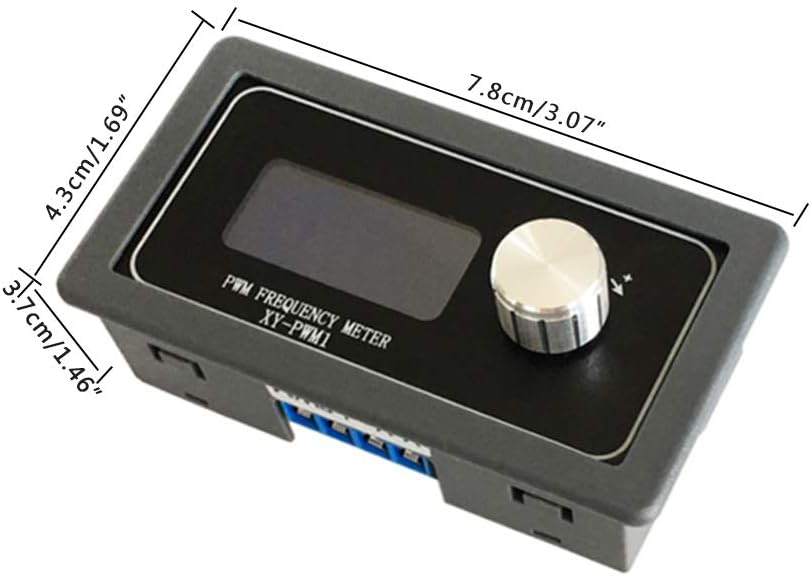

Dimensions: 3.7x4.3x7.8cm/1.46x1.69x3.07inch
Color: Black
Quantity: 1 Pc
Package includes:
1 Y-PWM1 Signal enerator Module
