What is this?

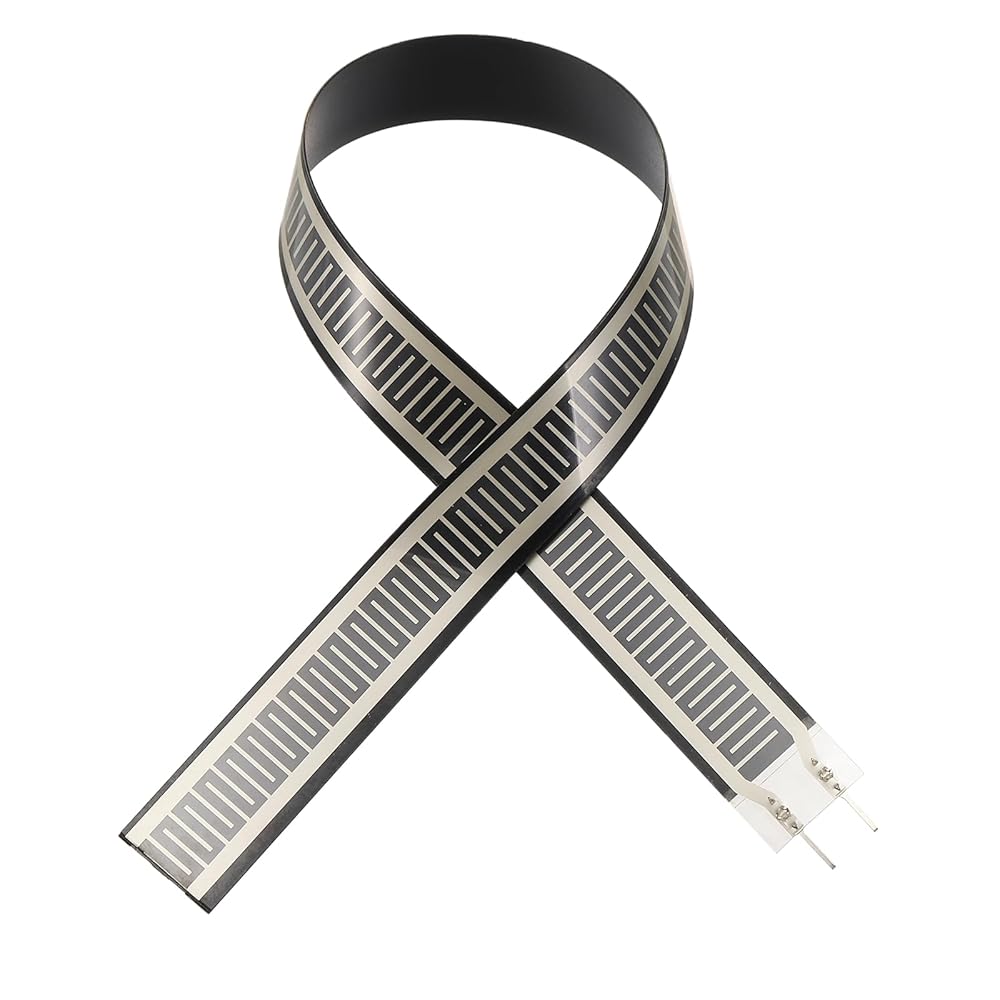

This thin film pressure sensor is flexible and designed for precise pressure measurement in various applications. It is suitable for accurate industrial measurement and control, as well as DIY intelligent seats, beds, musical instruments, and other devices.

What will I get?
Model: FSR408-ST.
Shape & tail: rectangle, short tail.
Dimension: 290 x 12mm / 11.42 x 0.47in.
Thickness: 0.45mm / 0.02in.
Trigger force: 3g.
Pressure sensing range: 3g-10Kg.
Test voltage: typical DC3V.
Response time: less than 10ms.
Recovery time: less than 15ms.
Package list: 1 Pcs.

Is there any advantages of the product?
This pressure sensor offers high accuracy and sensitivity with a rapid response. Its foldable, flexible, and ultra-thin design allows for easy integration into various surfaces and equipment. This sensor demonstrates consistent performance over more than one million usage cycles and maintains stability across a temperature range from -40°C to 85°C, ensuring reliability in diverse environments.

How to use it?
1. Attach the sensor to the desired surface with adhesive backing, ensuring the sensing area is positioned to receive the applied force.
2. Connect the two pins to the measurement circuit.
3. Read the output voltages for further processing.

What should I notice?
1. Please install on a solid, flat, and smooth surface.
2. Please use a protective covering from keen-edged objects.
3. The sensor is not recommended for direct liquid contact.
4. Over-range operation will not damage the sensor. It will resume normal operation after the force returns within the range.
8. Please use soft rubber or a spring as part of the trigger if the sensor is applied to some movement mechanism.
