Isolation

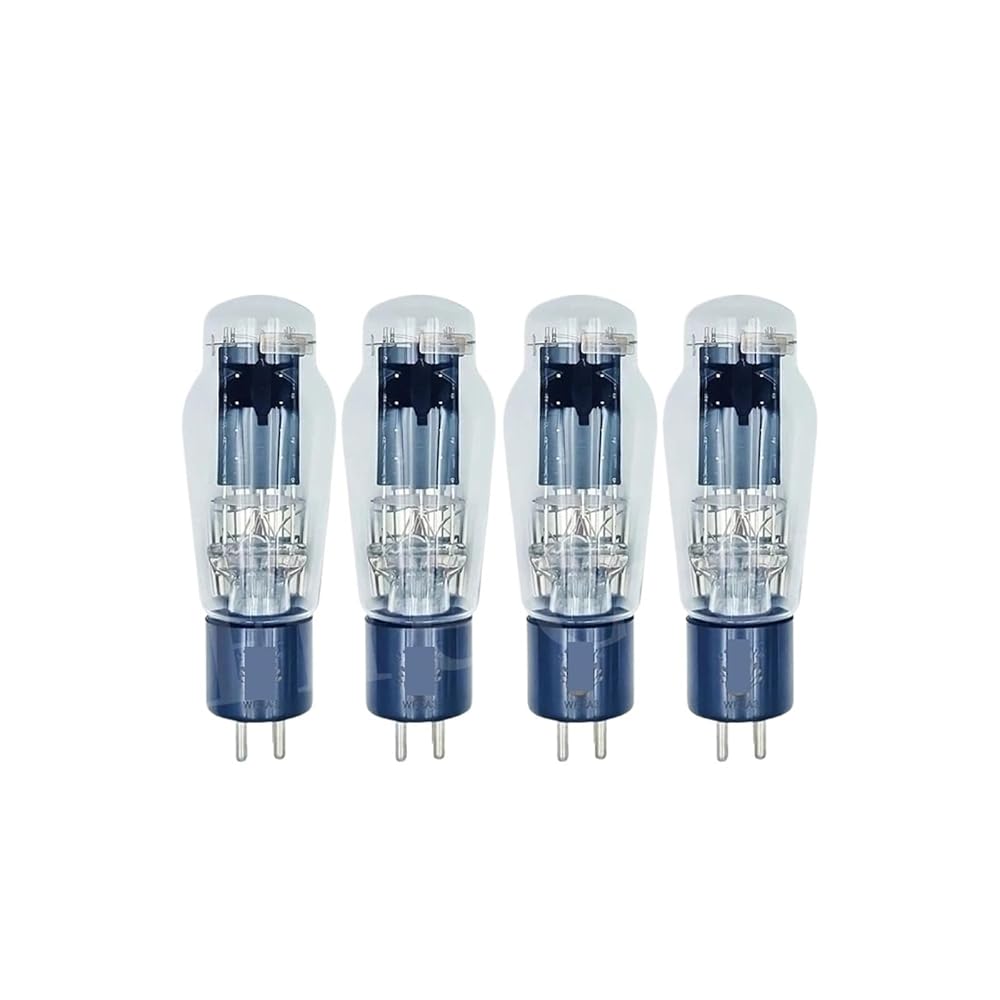

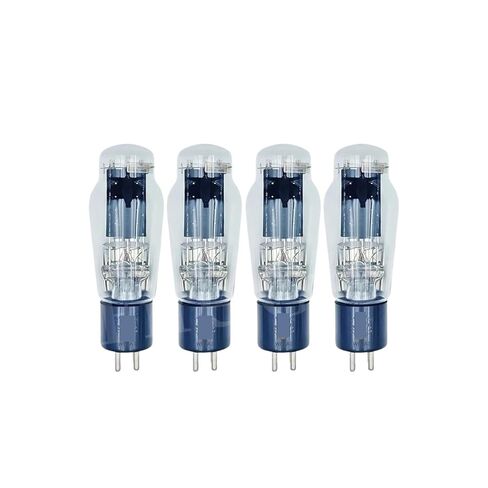

WR2A3
Filament Heating
Voltage source....................2.5 V
If ............... 2.5A
Static parameters
UA........................250V
- Uh............ - 45V
Current........................60 mA
Gm................................................5.25 mA/V
Li......................... 800
You…………………………4.2
Output power................................3.5W
Extreme Rating
Anode voltage..................300V
Anode power dissipation.........15W
Interelectrode capacitance
Gate-anode capacitance................12PF
Grid filament capacitance................6.8PF
Anode filament capacitance..................3.2PF

Channels: 1
Model: WR2A3
Maximum power per channel: No power supply
