Features:
1. Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.

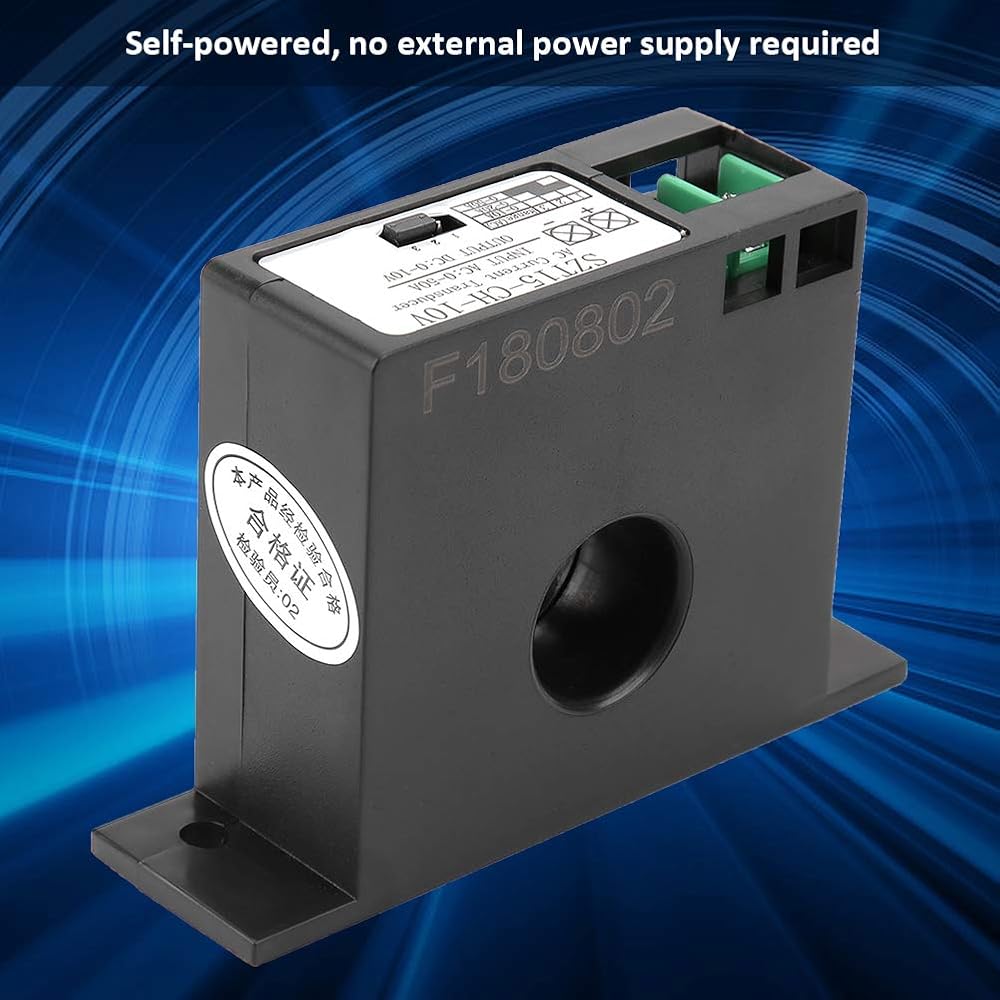

2. Self-powered, no external power supply required.
3. Easy to install and use, no need to connect DC into the circuit when measuring.

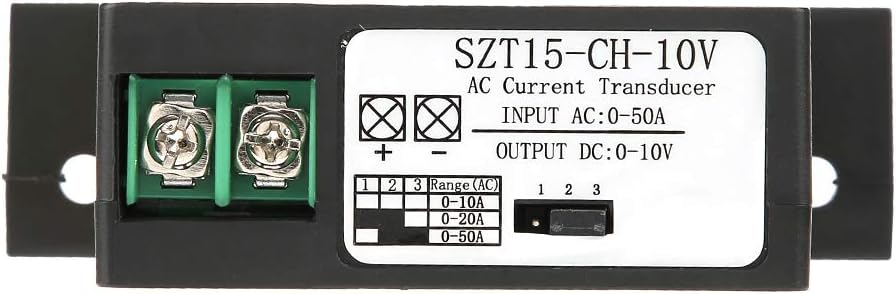

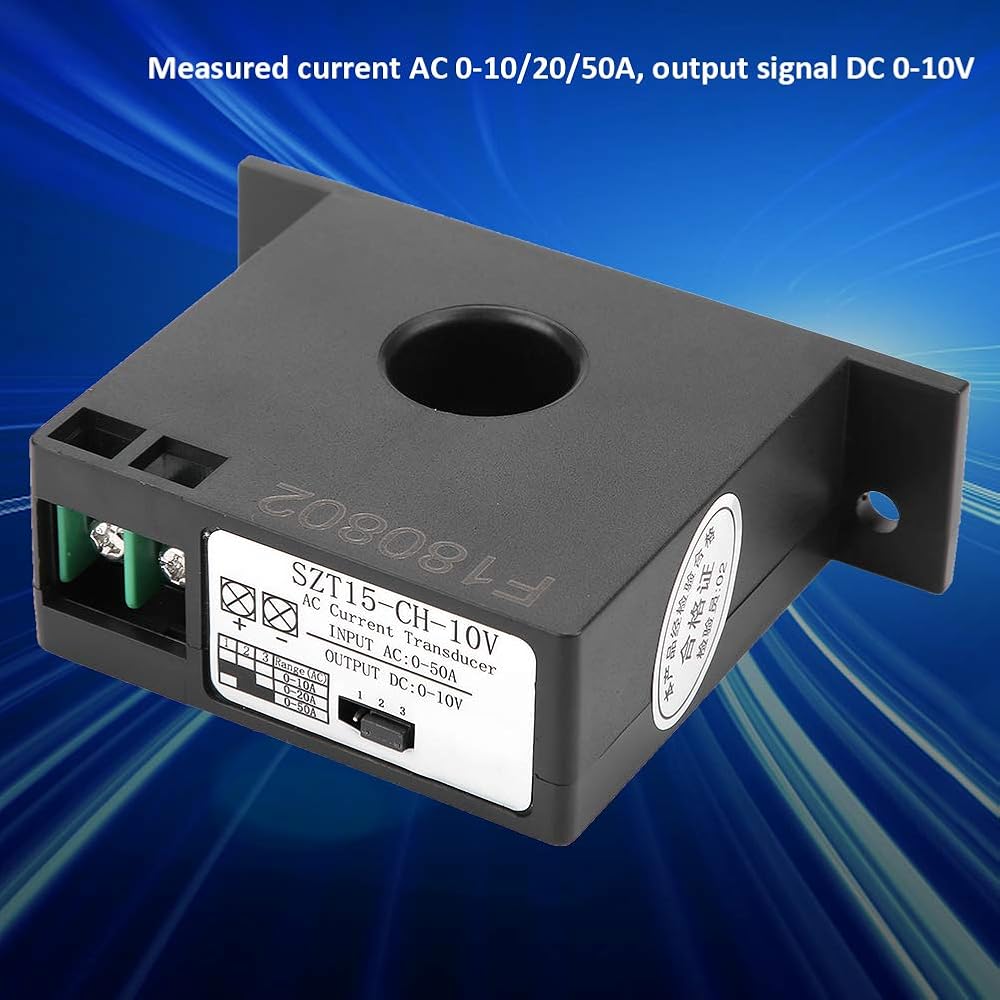

4. Measured current AC 0-10/20/50A, output signal DC 0-10V.
5. Straight-through structure design, isolation withstand voltage up to 2000V.
6. Hysteresis is less than 1% and can be used under strong conditions.
7. The outer casing is made of self-extinguishing material ABS.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Specification:
Model: SZT15--10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working : -20~60℃, 5-95%RH

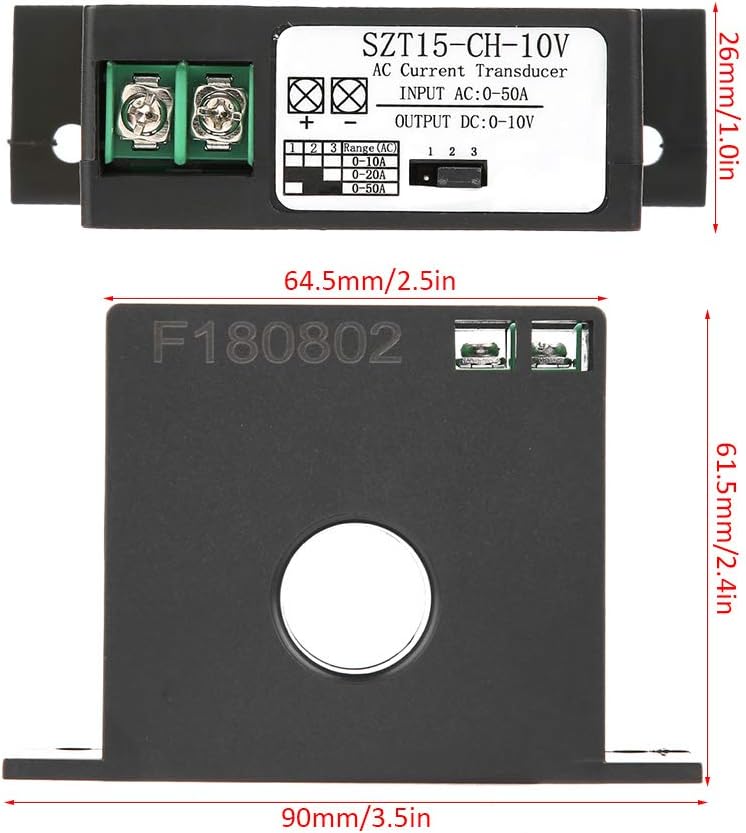

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 107g/3.8oz

Package list:

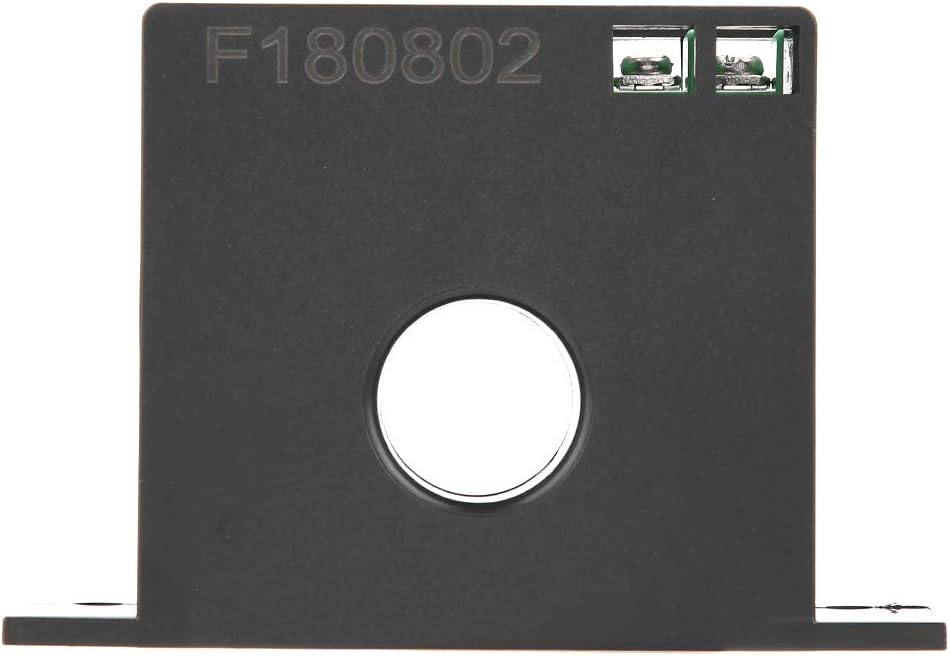

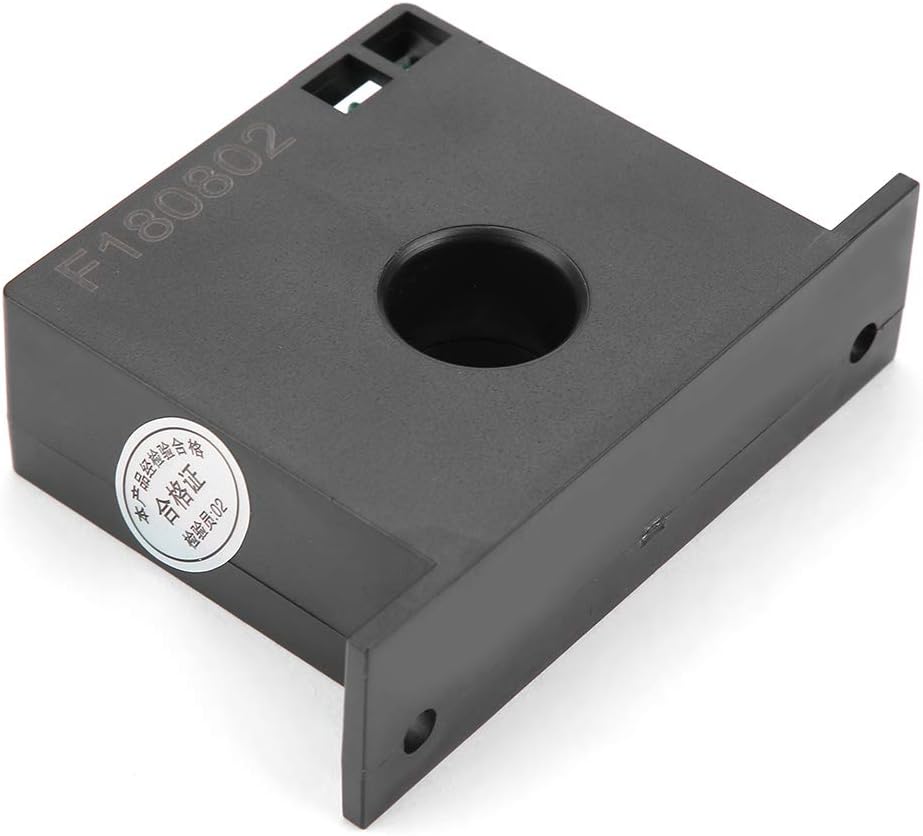

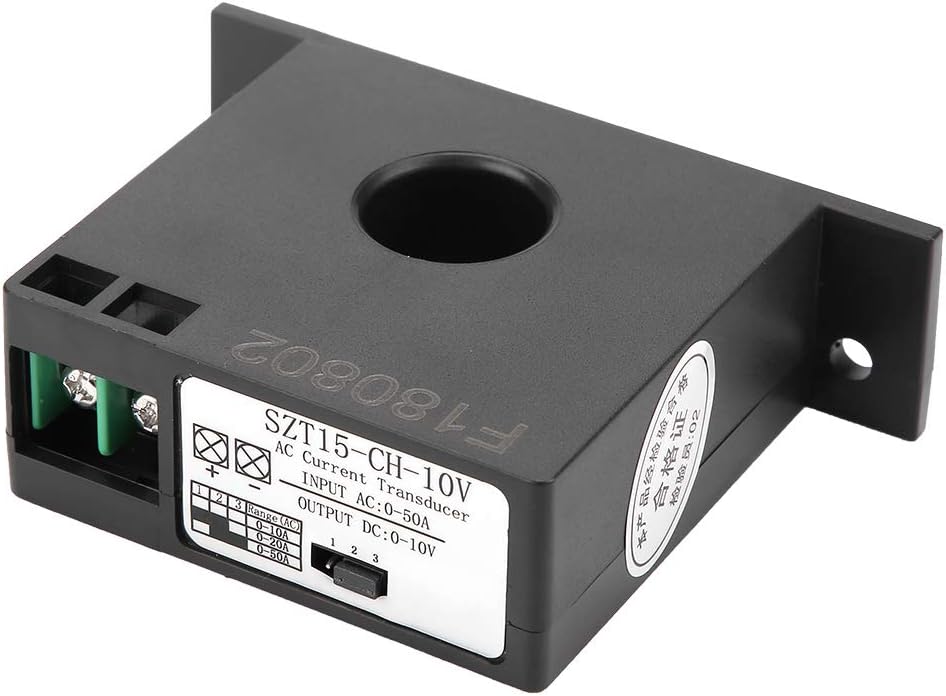

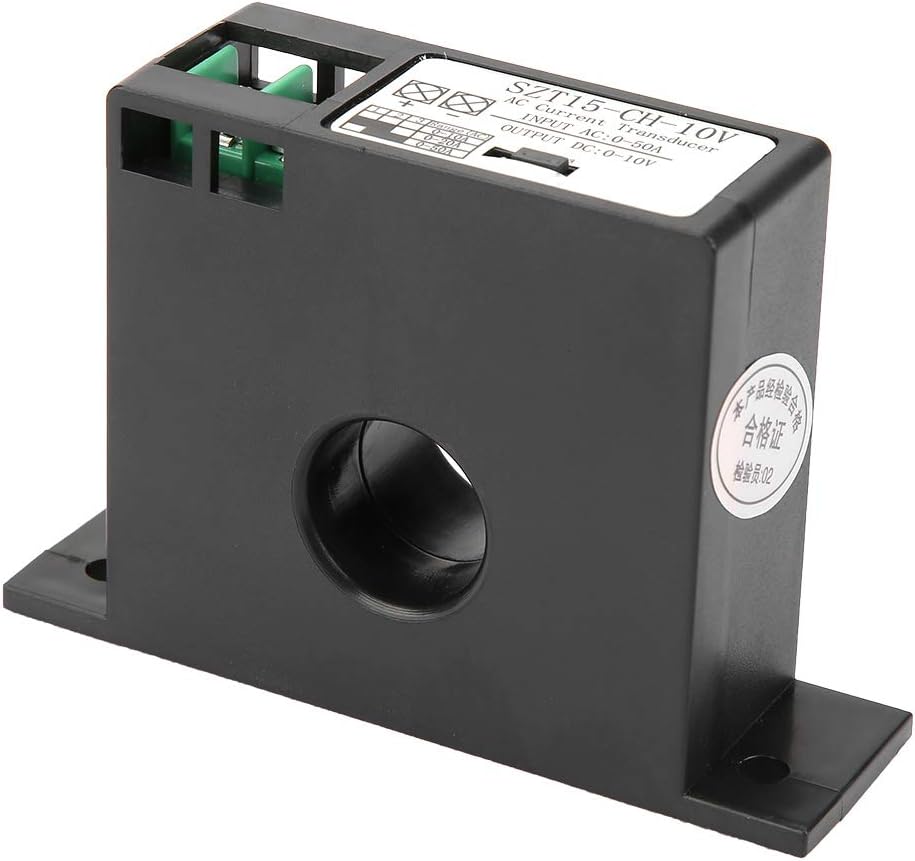

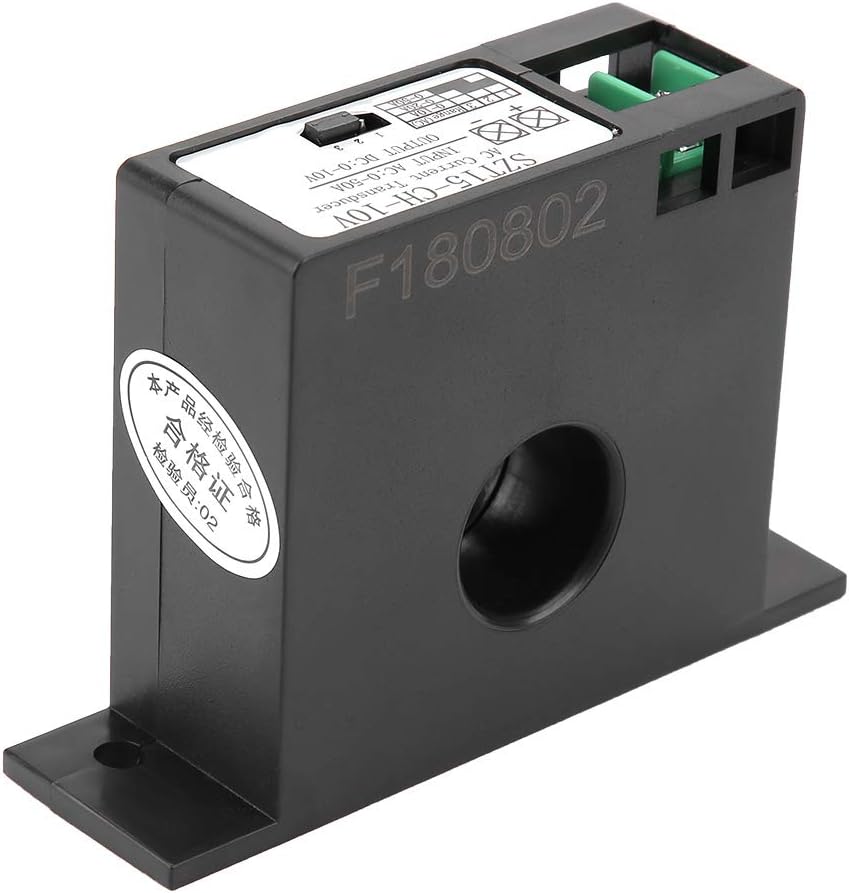

1 * AC Current Transmitter

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. .

Package List：
1 * AC Current Transmitter
