Thin-Section Ball Bearings
TECHNICAL SPECS

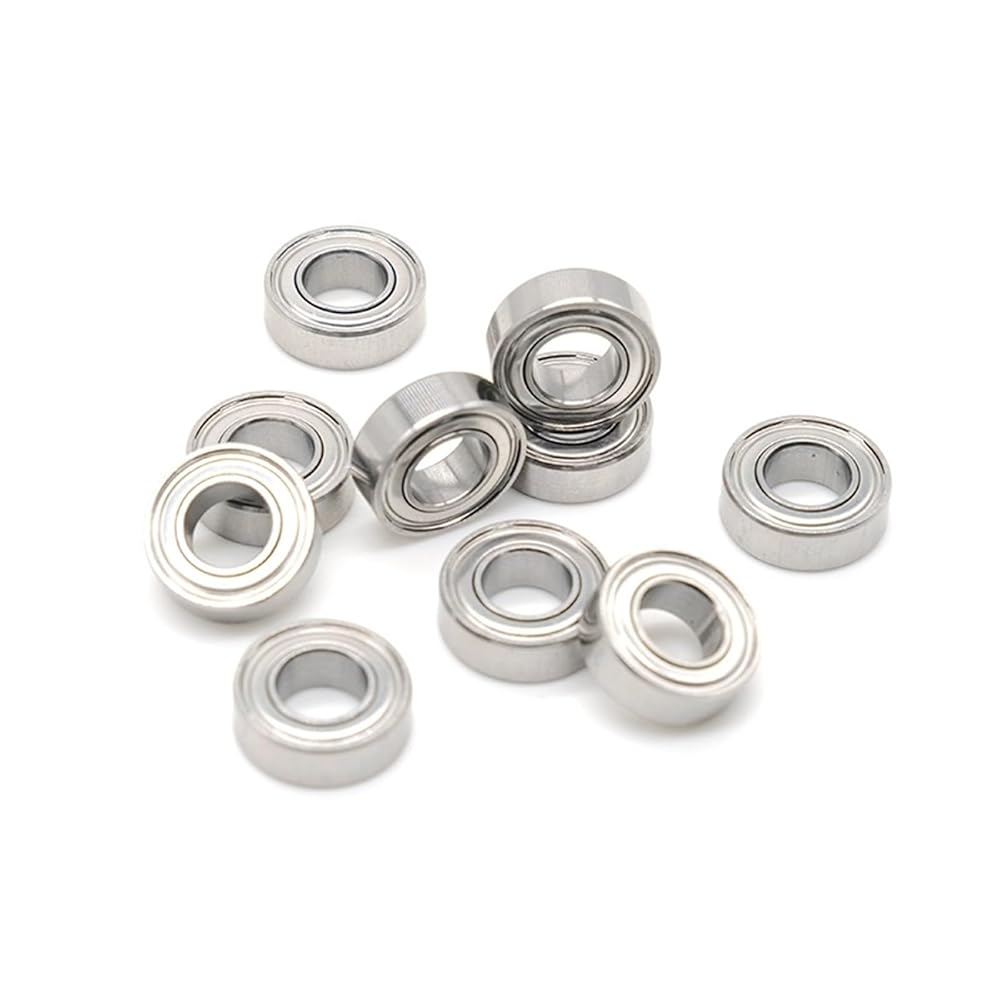

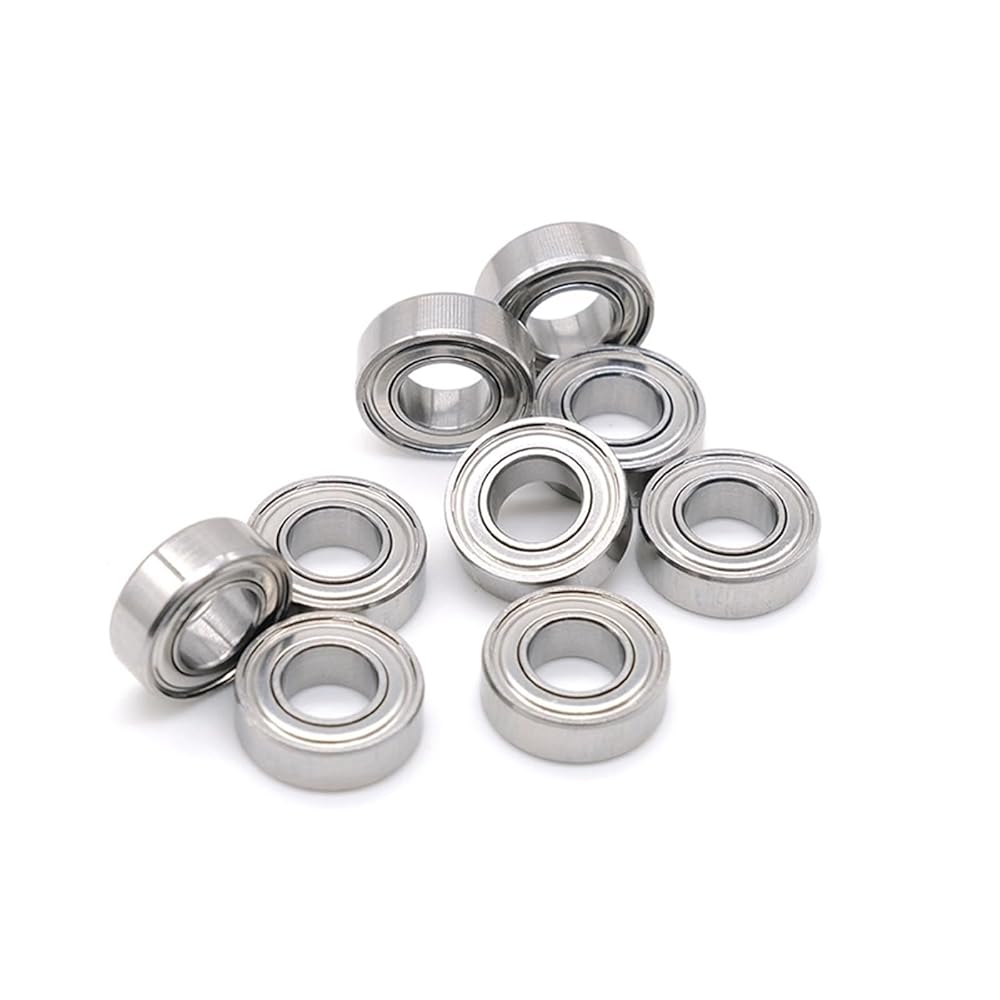

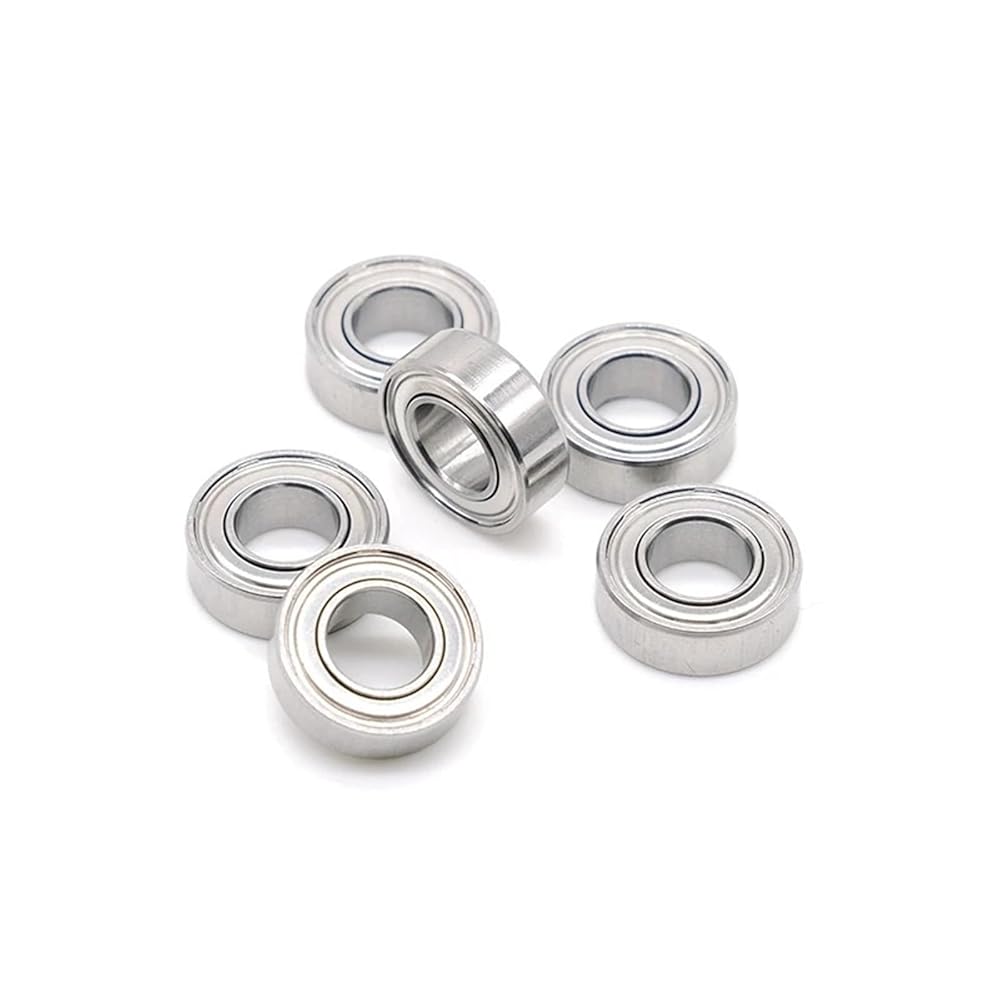

MR126ZZ Bearing Specifications (Metric)
Bearing Type: Shielded
Bore Dia (d): 6.000 mm
Outer Dia (D): 12.000 mm
Width (B): 4.000 mm
Radius (min) (rs): 0.15 mm
Dynamic Load Rating (Cr): 474 N
Static Load Rating (Cor): 144 N
Max Speed (Grease): 50,000 rpm
Max Speed (Oil): 57,000 rpm
Max. Shaft Shoulder Dia. Inner (Ui): 4.4 mm
Min. Housing Shoulder Dia., Outer (Uo): 7.25 mm
Ball Dia (Dw): 1.588 mm
Weight (g): 0.8 grams
Precision: ABEC-7
Standard Clearance: C0/(K25)
