ترس ترس محرك فولاذي شديد التحمل 1:90 1M 90T ترس دودي من الفولاذ المقاوم للصدأ مقاوم للاهتراء مجموعة نسبة تخفيض كبيرة (طول العمود 72 مم) in Saudi Arabia

طول العمود 93 ملم

SAR 487
مقاسطول العمود 93 ملم
– 1 +

مميزات خاصة

  • 1. Each pinion is equipped with a fixing screw for easy installation.
  • 2. The spur gears are wear-resistant, produce less noise, and roll more smoothly.
  • 3. Widely used in various electric grinding machines, gearboxes, reducers, and gear reducers.

وصف

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.

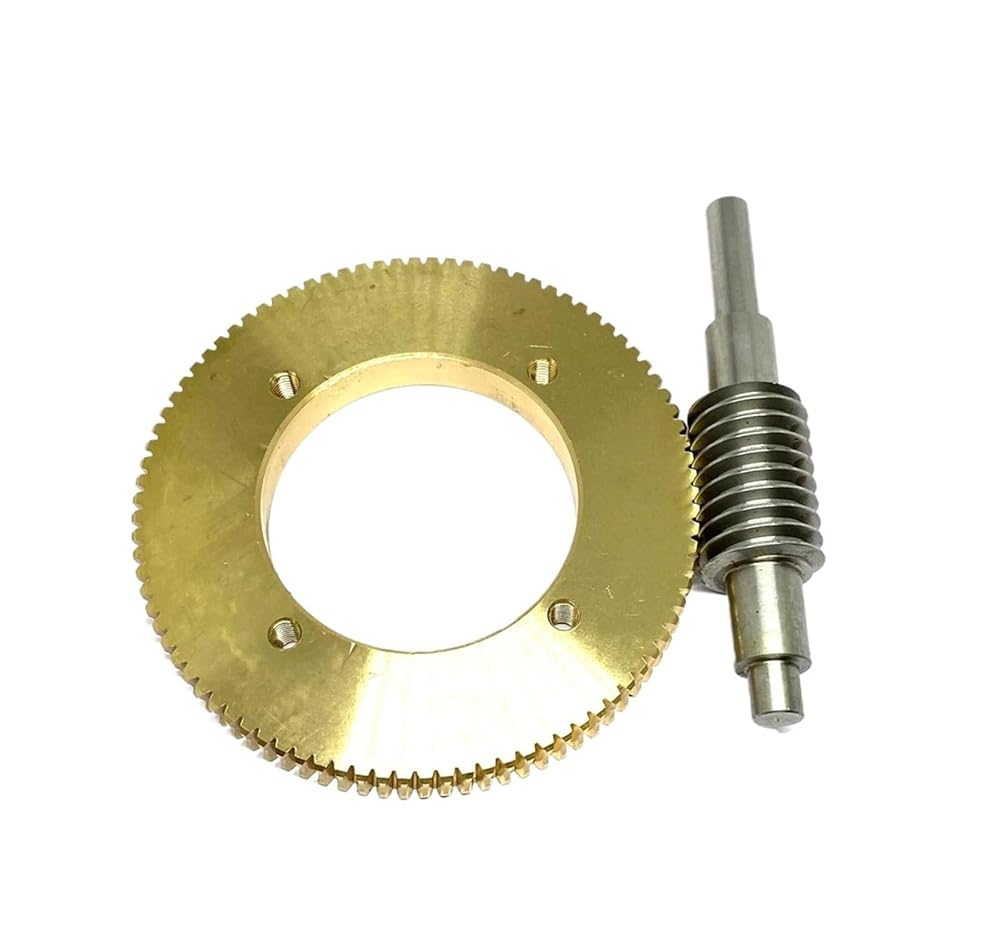

1:90 Wear-resistant Gear Set
Material:
Worm = stainless steel, gear = tin bronze
Number of gear teeth: 90T
Gear outer diameter: 93mm
Tooth depth: 2.25mm
Number of worm teeth: 1
Matching center distance:
50mm with 72 mm long shaft; 54mm with 93mm long shaft
Length: 93mm:Outer diameter: 20mm,The outer diameters of steps at both ends are 8mm and 12mm respectively.
Worm Length 72mm Specifications:
