Steel Heavy Duty Motor Pinion Gear 1pcs 2M 10Teeh 45 Degree Left-Handed Helical Gear Steel Keyway Bore 10/12/14/15/17/19mm(14mm (Keyway 5mm)) in Saudi Arabia Steel Heavy Duty Motor Pinion Gear 1pcs 2M 10Teeh 45 Degree Left-Handed Helical Gear Steel Keyway Bore 10/12/14/15/17/19mm(14mm (Keyway 5mm)) in Saudi Arabia

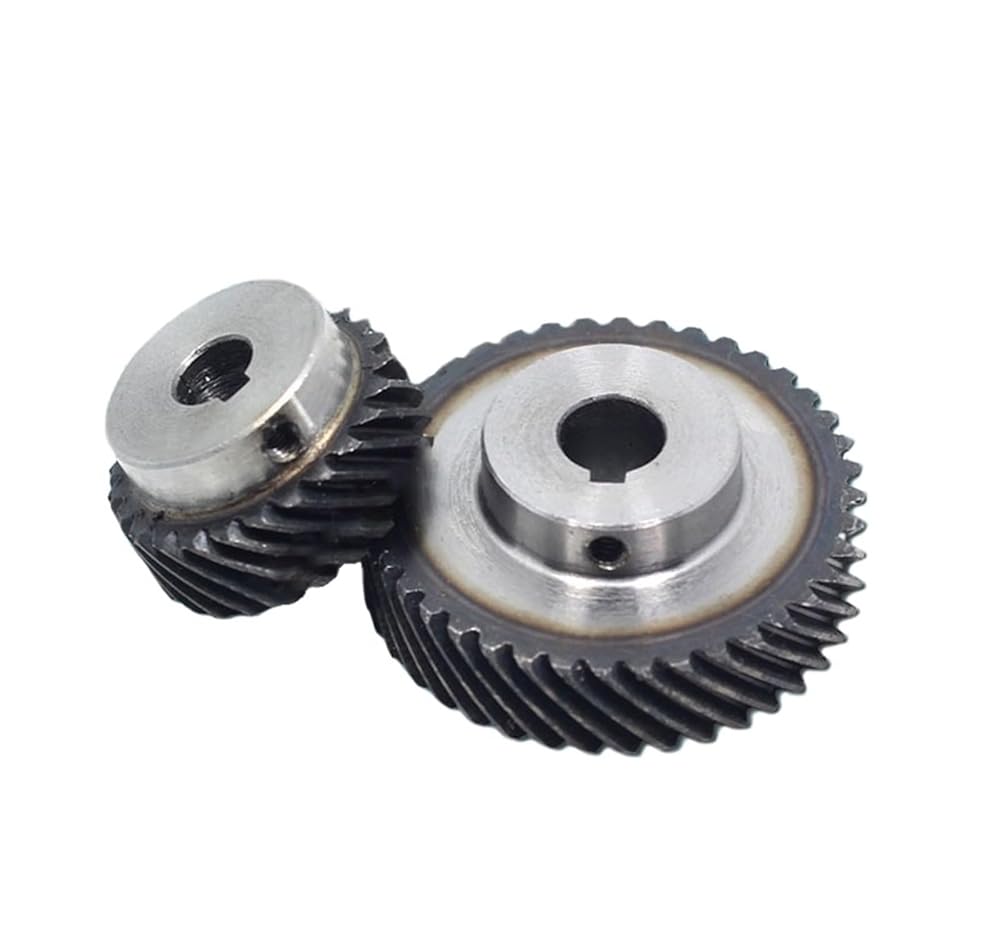

Steel Heavy Duty Motor Pinion Gear 1pcs 2M 10Teeh 45 Degree Left-Handed Helical Gear Steel Keyway Bore 10/12/14/15/17/19mm(14mm (Keyway 5mm))

SAR 176
Brand
RIHATAP
Size14mm (keyway 5mm)
– 1 +

Special Features

  • 1. Each pinion is equipped with a fixing screw for easy installation.
  • 2. The spur gears are wear-resistant, produce less noise, and roll more smoothly.
  • 3. Widely used in various electric grinding machines, gearboxes, reducers, and gear reducers.

Description

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Specification:
Name: 2M 45 Degree Left-handed Helical Gear
Material: 45# Steel
Model Number: 2M
Tooth Profile: Helical Gear
Direction: Left Hand
Pressure Angle: 20°
Helix Angle: 45°
Teeth Number: 10Teeth
Bore: 10/12mm (keyway 4mm) 14/15/17mm(keyway 5mm) 19mm (keyway 6mm) (Keyway Hole)
Features:
1.High torque and low noise. Torque is 3 times higher than bevel gear.
2.Strong and durable, strong wear resistance.
