This vibration sensor is designed for detecting movement, tilt, or shock in electronic circuits. It is commonly used in small household appliances, digital products, sports equipment, anti-theft devices, electronic scales, and other projects that require a motion-triggered switch to activate a circuit or security system.

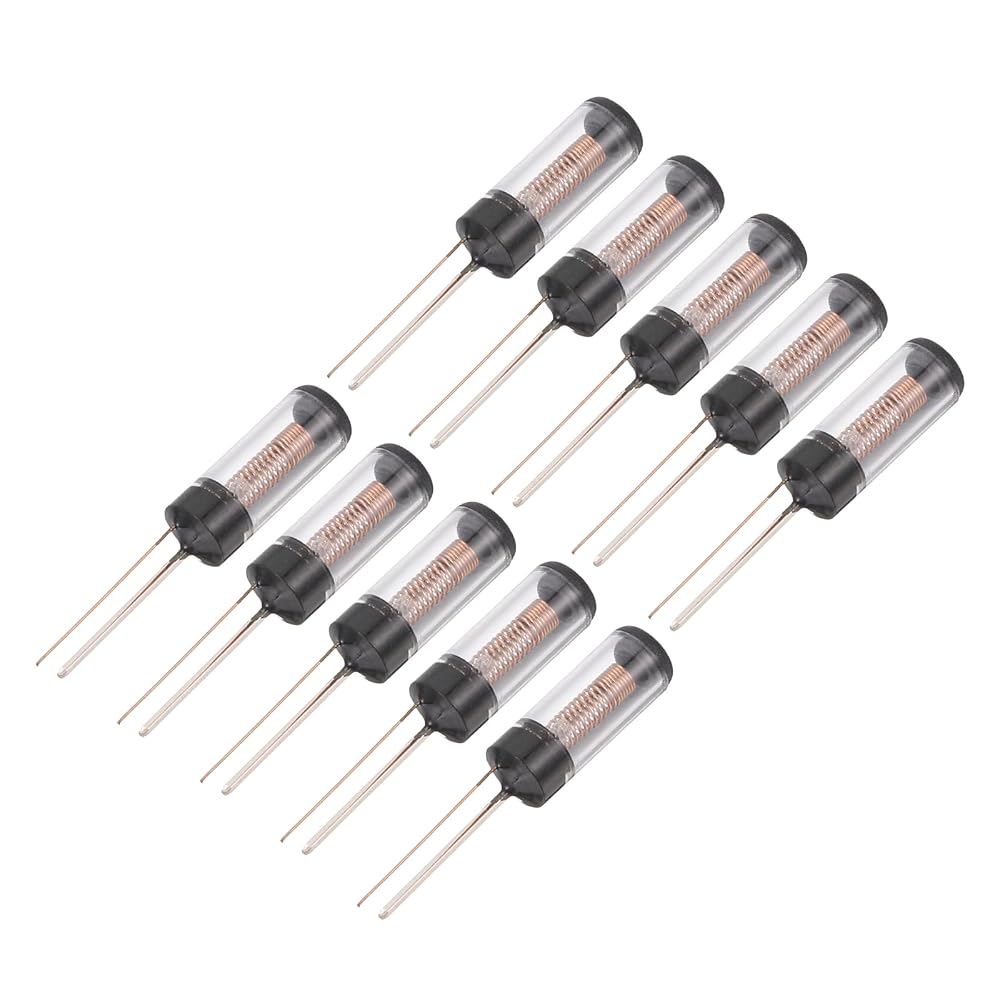

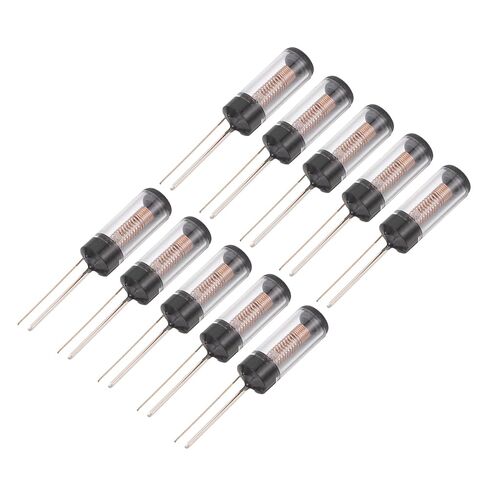

You will get 20 Pcs x Vibration Switch; Model Number: SW-18030; Sensitivity: High Sensitivity; Voltage: 12V; Resistance: 10M ohms; Rated Thermal Current: 5mA; Temperature Resisting: 100℃; Body Size: 11 x 4mm / 0.43 x 0.16 inch(L*D); Total Length: 23cm / 0.91 inch
Precise Sensitivity: This spring sensor switch is made of excellent metal, featuring low power consumption, stable operating voltage, and long service life. Its unsealed structure provides good sensitivity and is suitable for dry indoor environments. Vibration sensor boasts high sensitivity and non-directional, triggering at any angle, providing reliable vibration or tilt response for low-current circuits.
Solder the sensor pins into the circuit according to your circuit diagram, oriented as required. The switch is normally in the open state and will temporarily close when sufficient vibration or tilt is detected. Test the sensor response before use to confirm its trigger sensitivity.
This product is a low-current switch and is not suitable for directly controlling high-power devices. Due to its unsealed design, this product is not suitable for high humidity or dusty environments.
