Bearings
Bearings
Type: FY506038
External materials: Chrome Steel
Inner Diameter: 50 mm
Outer Diameter: 60 mm
Thickness: 38 mm
Weight:212g
Roller needle type: Pointy roller needle
Type: FY606840
External materials: Chrome Steel
Inner Diameter: 60 mm
Outer Diameter: 68 mm
Thickness: 40 mm
Weight:268g
Roller needle type: Pointy roller needle
Type: FY707832
External materials: Chrome Steel
Inner Diameter: 60 mm
Outer Diameter: 68 mm
Thickness: 40 mm
Weight:315g
Roller needle type: Pointy roller needle

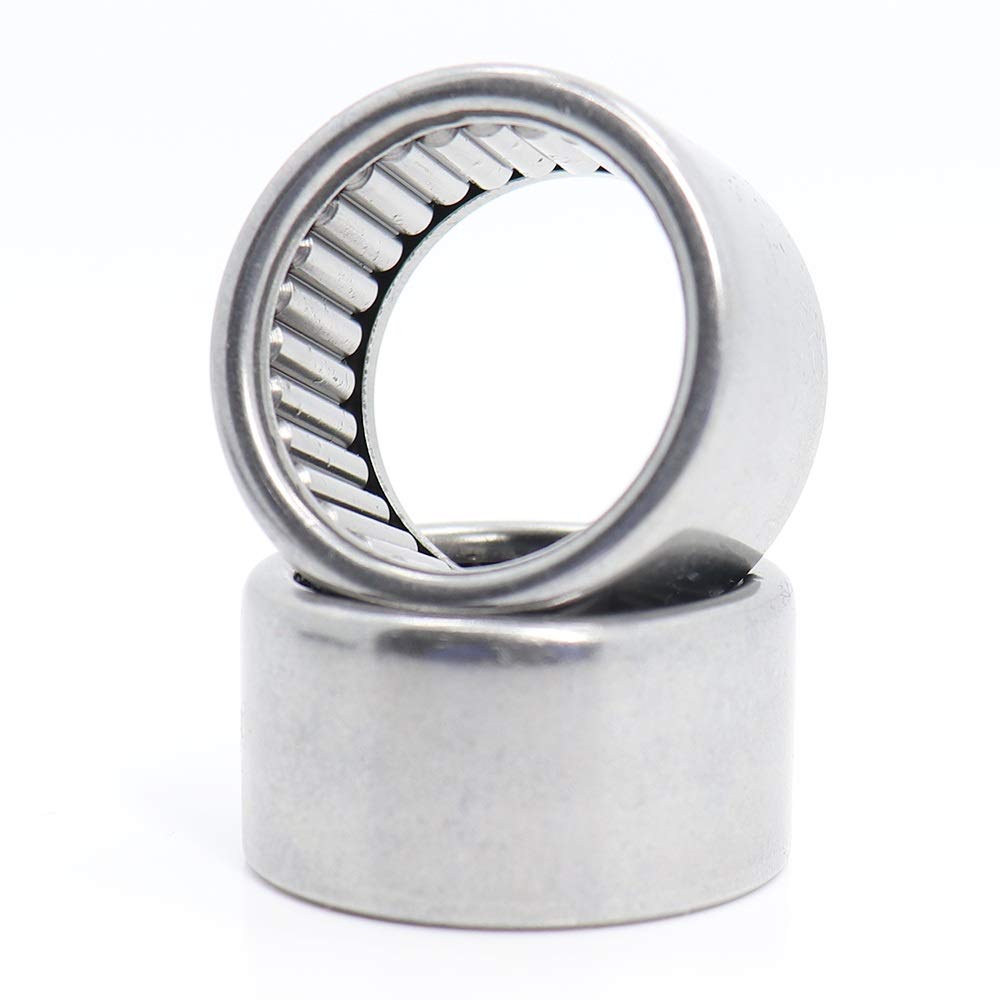

Drawn Cup Needle Bearing Series
The drawn cup needle roller bearing, employs a full complement of rollers. The full complement drawn cup bearing combines maximum capacity and low cost with the advantages of the drawn outer ring.
The inward turned lips of the cup are used to mechanically retain the full complement of needle rollers to provide positive radial retention of rollers even though it may be necessary to remove the shaft repeatedly during the servicing of the mechanism employing the bearing. Needle bearings need to run on harden shafting or harden inner rings.
Features:
Needle bearings are roller bearings with cylindrical rollers. The advantages of needle roller bearings are small radial cross-sectional dimensions and high radial loads. Suitable for use in restricted installation spaces.
Steel cage guides and evenly spaced rollers reduce friction, vibration and noise. Heat resistant and durable under heavy loads.
