Pulse Generators

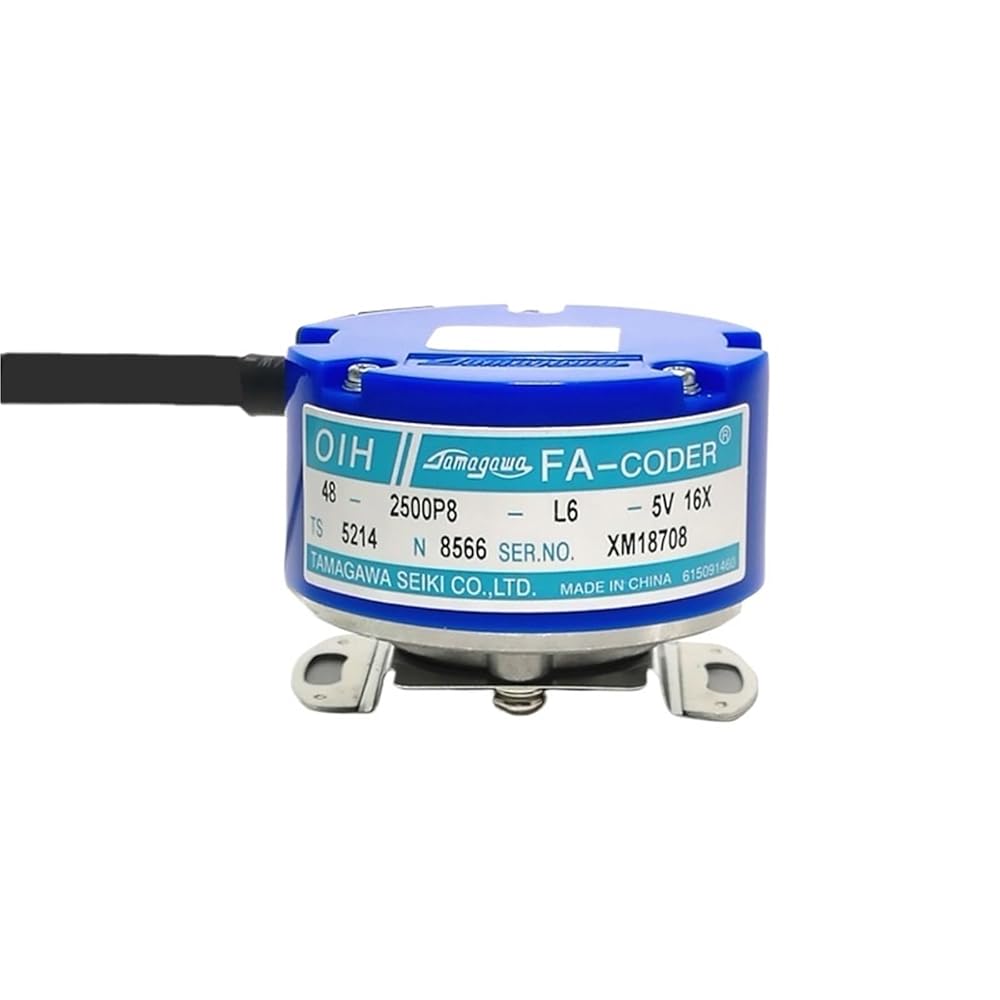

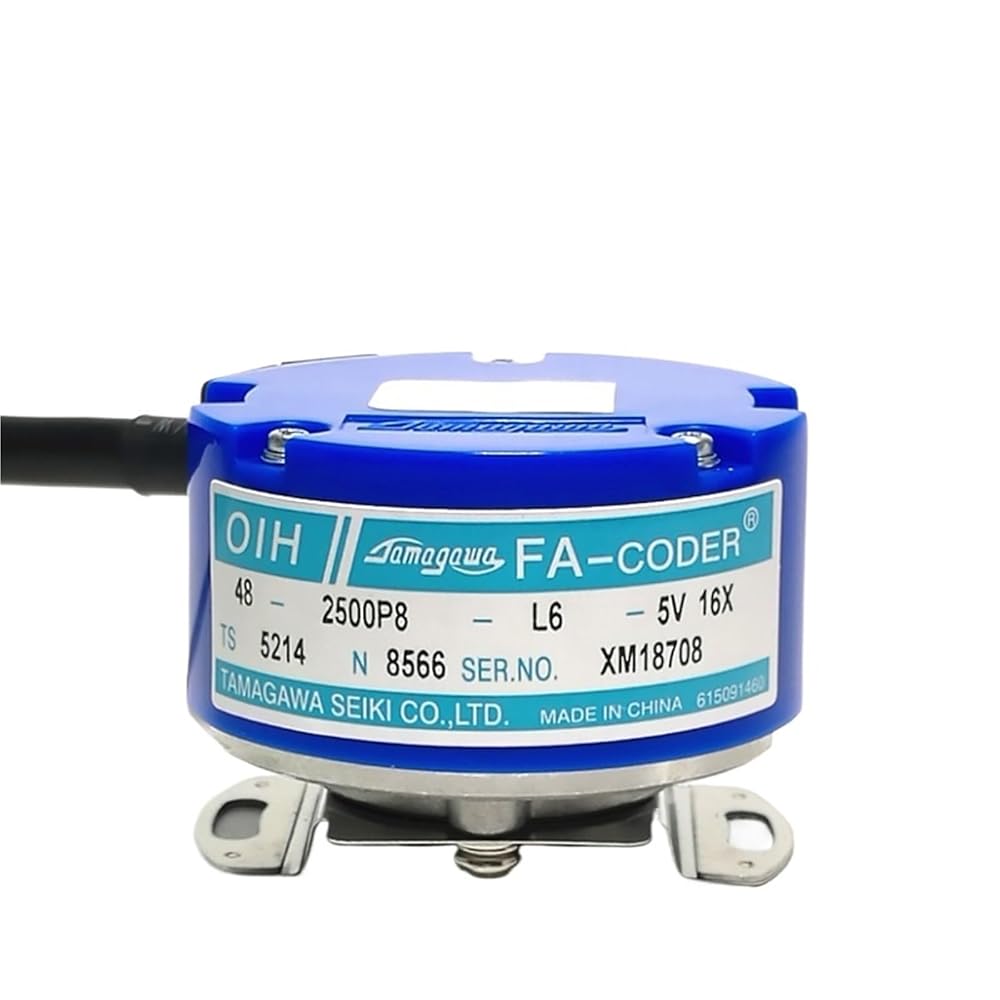

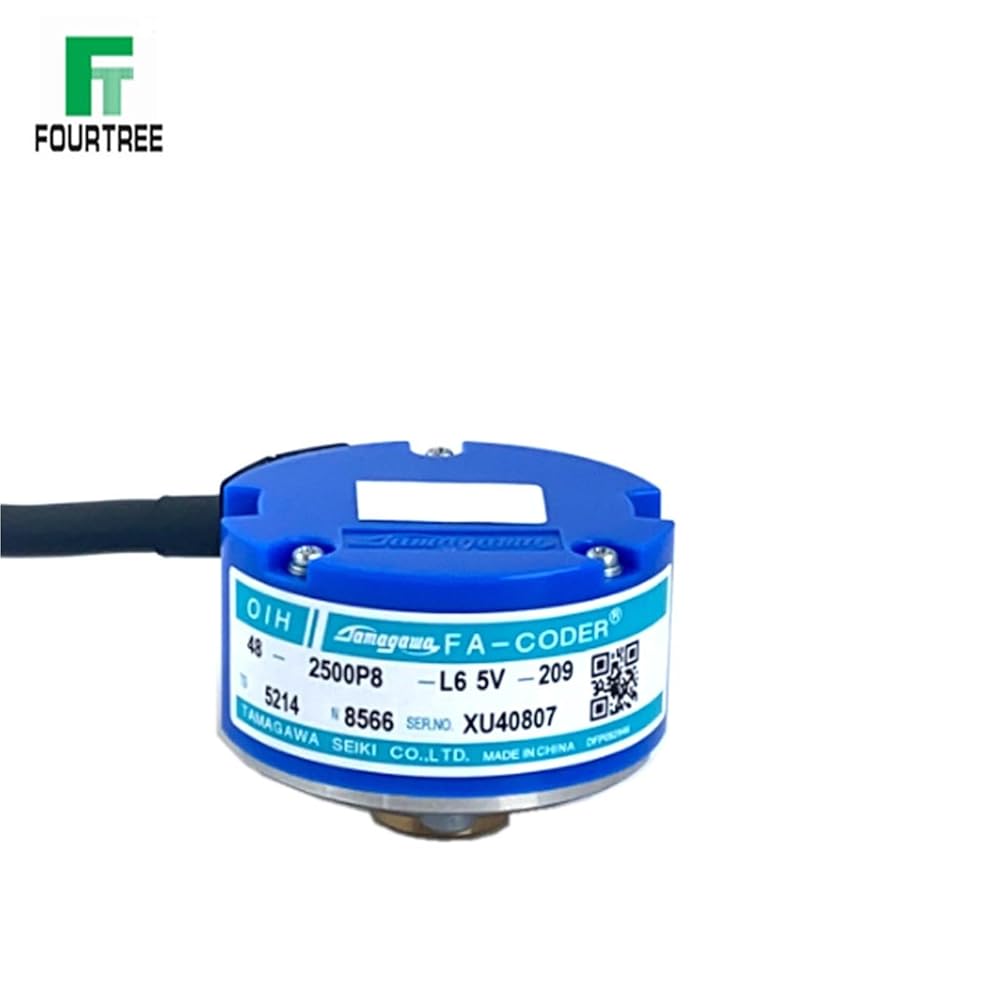

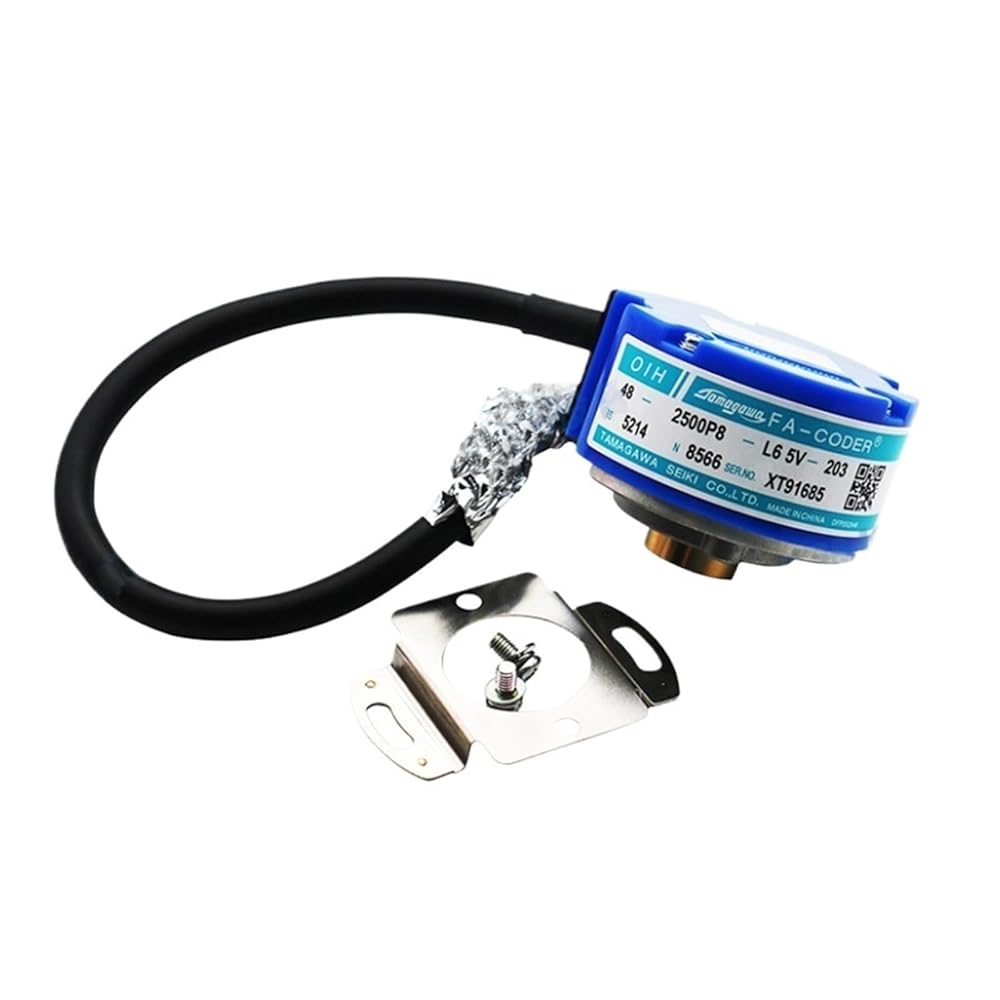

Product model: TS5214N8566 OIH48-2500P8-L6-5V
Outer diameter: 48mm

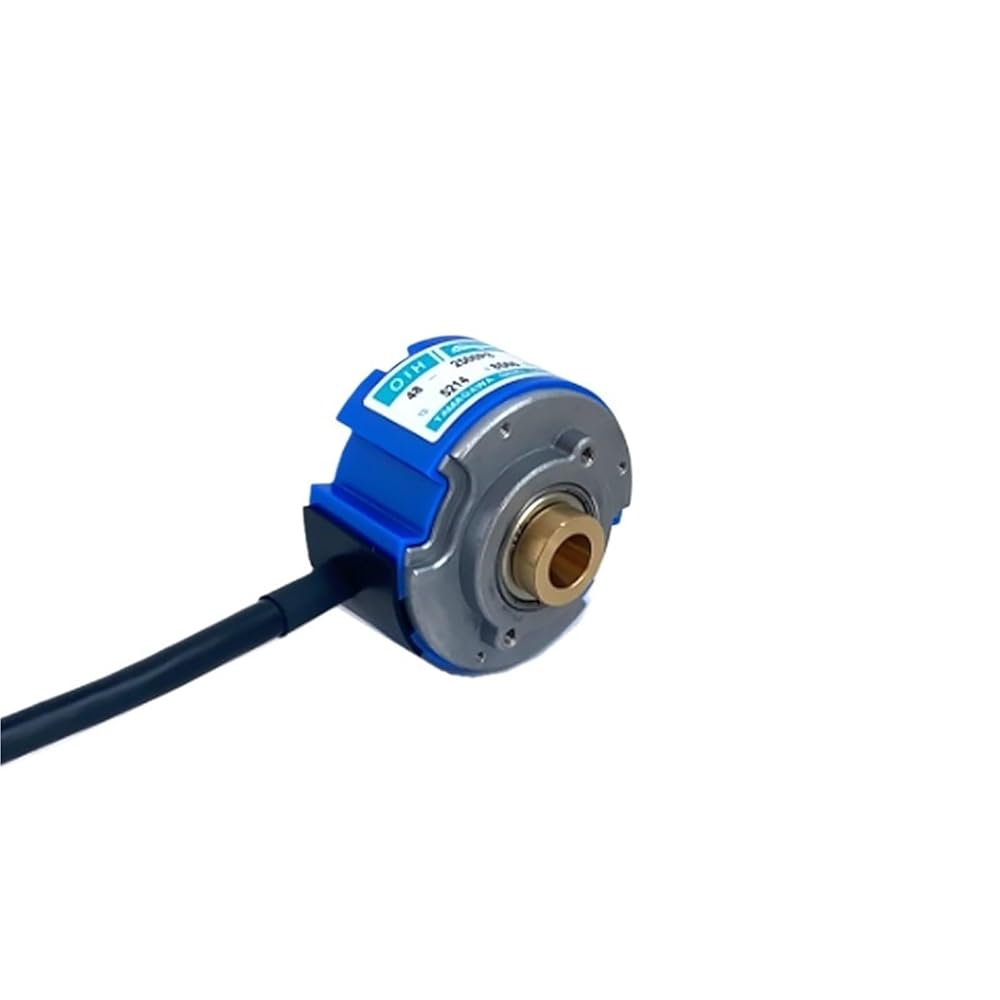

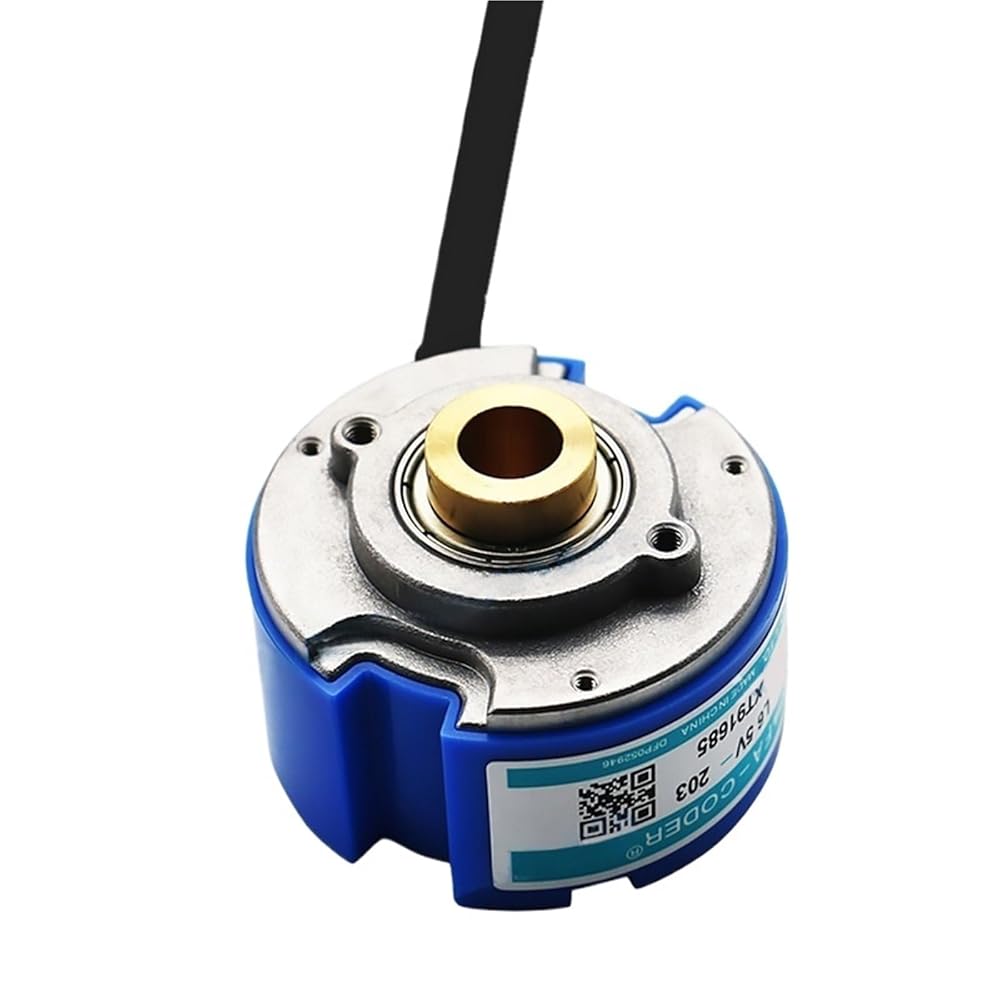

Hole diameter: 9.0-7.5MM (hollow cone shaft)
Output mode: long-line drive (incremental)
Working voltage: DC5V
Pulse: 2500P/R
Number of poles: 8 poles
Output phase: A, B, Z, A/, B/, Z/ with U, V, W, U/, V/, W/ Response frequency: 200kHz
Wire length: 0.22M
Temperature range: -20-+85°C during operation -25-+85°C during storage (no icing)
Protection level: IP40
Wiring instructions: red black blue green yellow blue black green black yellow black mesh
+-A B Z A/ B/ Z/ shield
Brown gray white brown black gray black white black
U V W U/ V/ W/
==========
Model Number : TS5214N8566
Item Type : SWITCHES
Is Smart Device : no
Product model: : TS5214N8566 OIH48-2500P8-L6-5V
Outer diameter: : 48mm
Output mode: : long-line drive (incremental)
Working voltage: : DC 5V
Pulse: : 2500P/R
Number of poles: : 8 poles
