Isolation
Hot wire voltage:
Uh...6.3 volts
Current... ...
Static parameters:
Ua........................90 250V
Uh...0-8V
Ia ...................................... 10 9 mA
...................................... 3 2.6 mA/V
Ri ............................ 6.7 7.7 k
......................... 20 20
When Ug=-12.5V, Ia_1.3mA
When Ia=-10uA, Ug - 7 -18V
Limit rating:
A1 magnification (each side)
UA........................450V
Ik......................-20mA
Pa.................................5w
Pa (No. 1+No. 2)............ 7w
Rg ................................ 1m
Voltage fluctuation range....±100V

Channels: 1

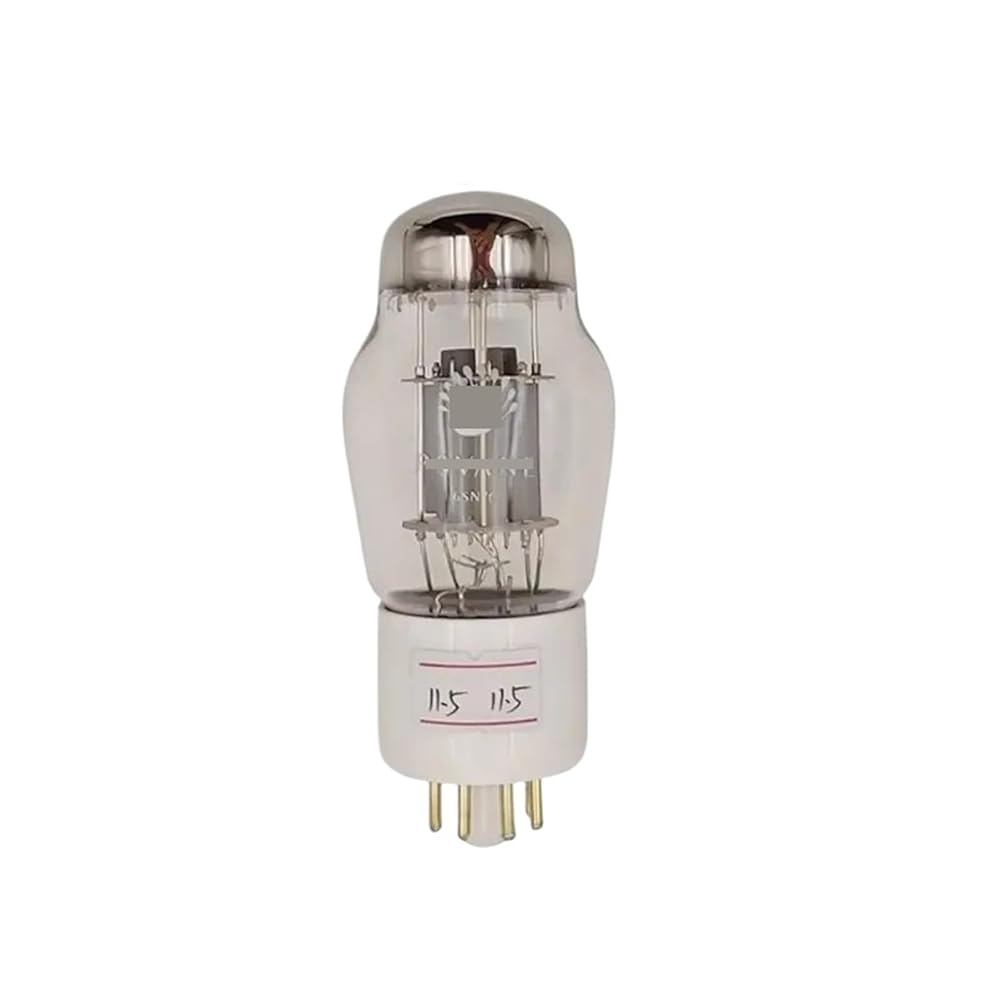

Model: 6SN7C
Maximum power per channel: No power supply
