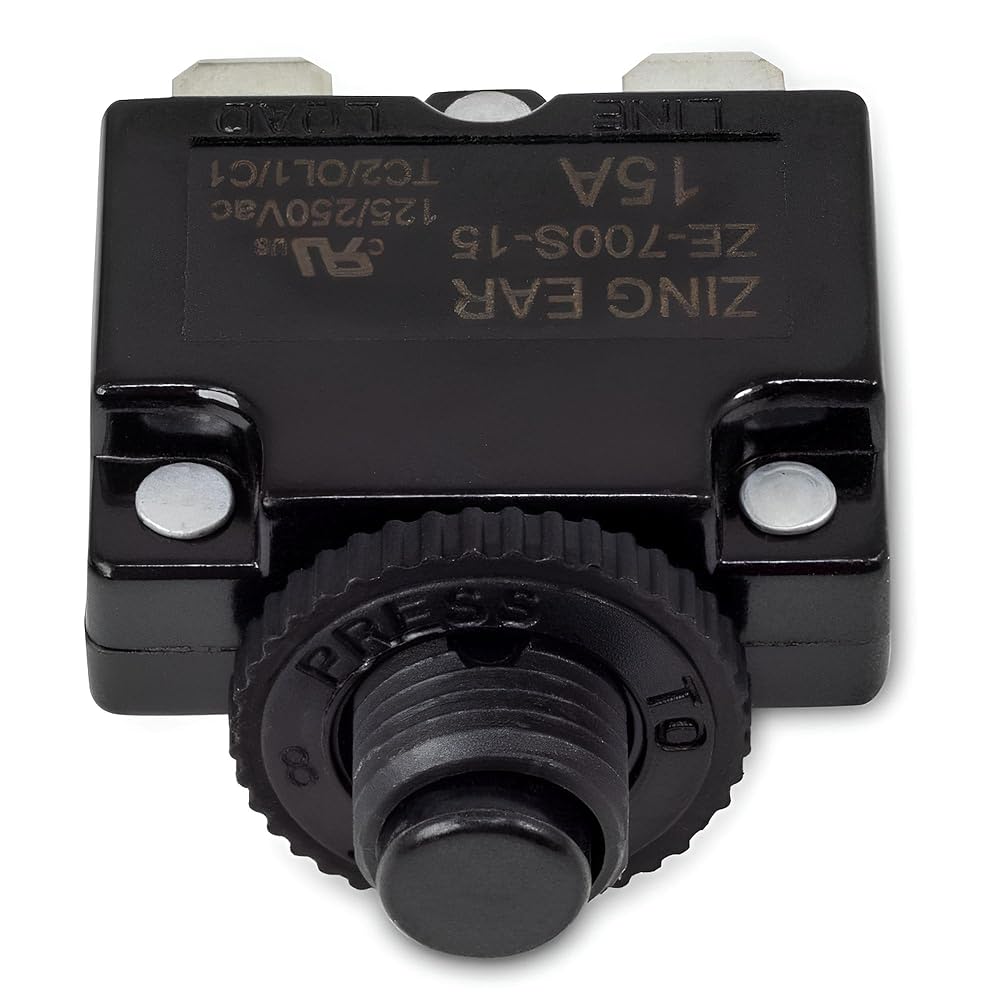

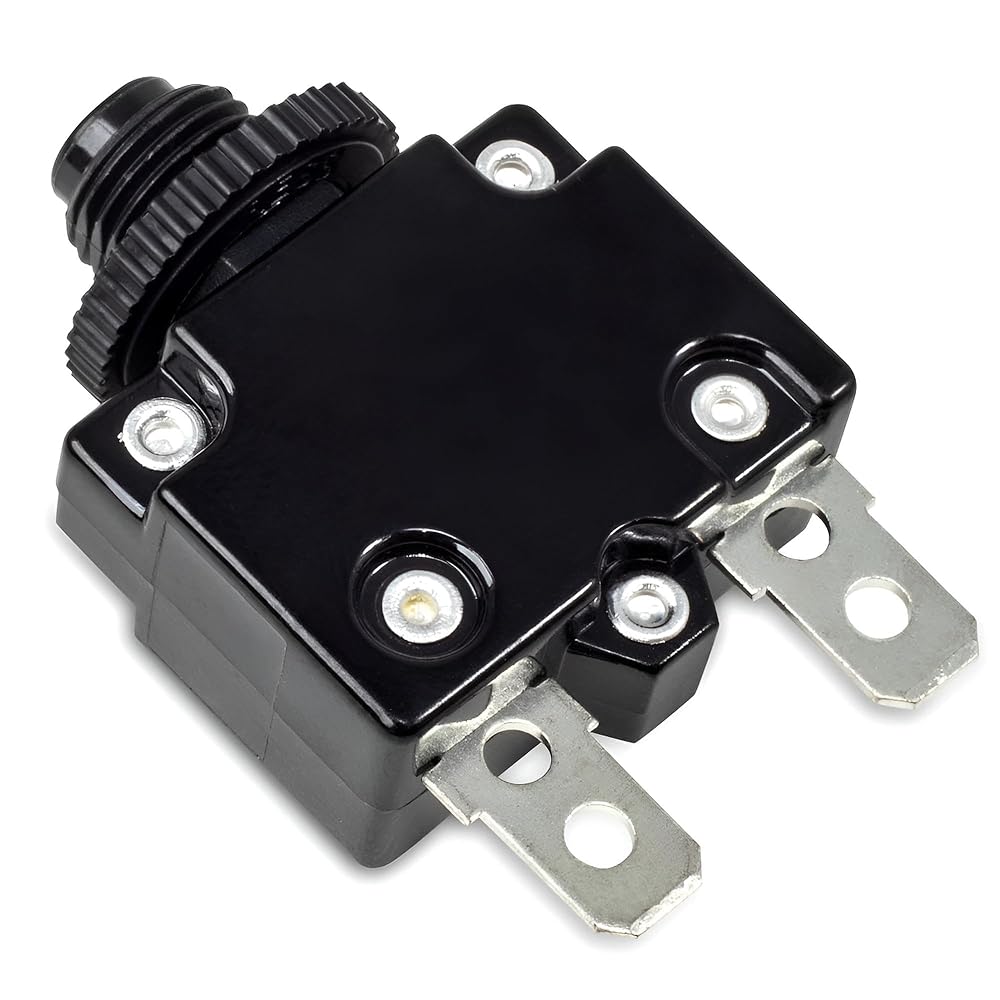

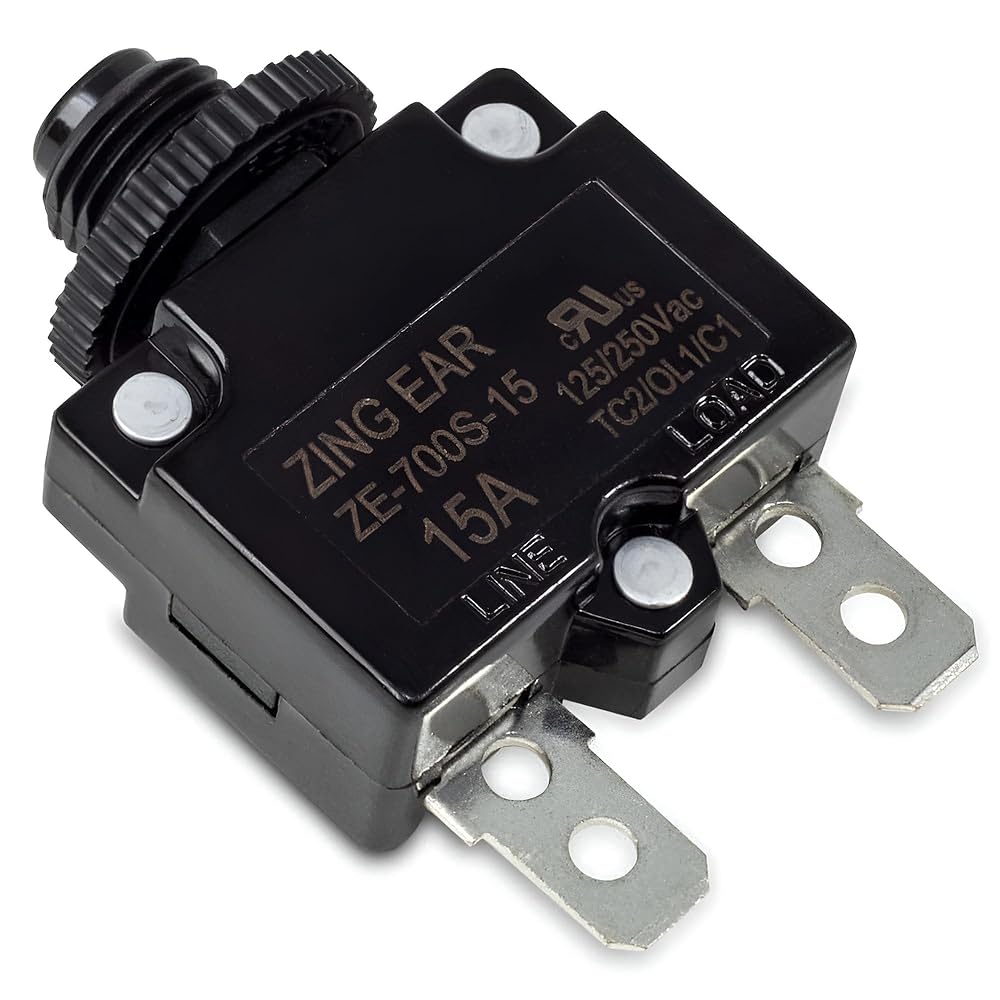

ZE-700S-15 Thermal Push Button Circuit Breaker – 15A, 125/250VAC
Protect equipment from overloads with the ZE-700S-15 miniature thermal circuit breaker. It trips automatically on overload and restores power with a simple manual push-to-reset. Compact, panel-mount design fits a 0.430" (11 mm) hole, making it a fast drop-in replacement in appliances, power tools, and commercial equipment.
Key Benefits
Reliable protection: Thermal trip with manual push-to-reset for quick recovery and minimal downtime.
Compact install: Panel mounts in a 0.430" (11 mm) hole; miniature size saves space in tight enclosures.
Easy replacement: Replaces similar miniature breakers (match ratings/fit).
Versatile use: Suitable for tools, appliances, exercise equipment, transportation, telecom, marine, medical, and power supplies.
Product Specifications
Model: ZE-700S-15
Current Rating: 15 A
Voltage Rating: 125/250 VAC
Dielectric Strength: 1500 VAC for 1 minute
Insulation Resistance: >100 MΩ
Contact Endurance: 125 VAC × 150% of rated current – 500 cycles

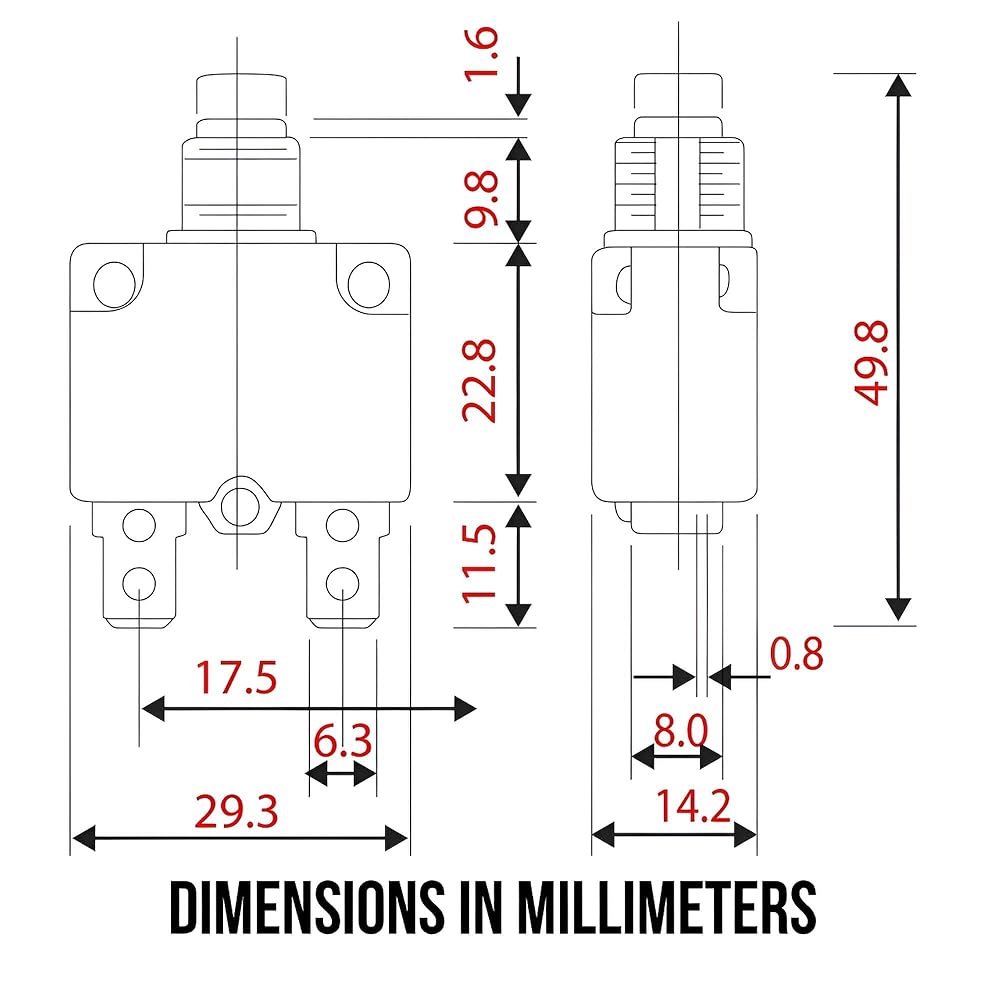

Mounting: Panel mount, 0.430" (11 mm) hole
Function: Thermal trip; manual push-to-reset
Usage & Compatibility
Power tools: table saws, shapers, routers, bench saws
Exercise equipment; household & commercial appliances
Transportation, telecommunications, marine, medical, power supplies
Package Contents
1 × ZE-700S-15 thermal push button circuit breaker
FAQ
Q: Is this a fuse?
A: No. It is a resettable thermal circuit breaker that trips on overload and restores power with a push-to-reset button.
Q: Will it fit my panel?
A: It mounts in a 0.430" (11 mm) panel hole. Confirm your cutout and clearance before ordering.
Q: Can I use it at 125 VAC and 250 VAC?
A: Yes. It is rated 15 A at 125/250 VAC; always observe the equipment's load requirements and local electrical codes.
