1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion.
2. ABS material Cover, to high temperature and impact, can be used for a long time.
3. Standard 35mm rail installation, easy installation and disassembly, and does not take up space.
4. Realize isolation of input, output, power supply and casing, strong anti-interference ability and high reliability.
5. It has excellent insulation, -proof, anti-leakage, anti-vibration, anti-aging, anti- performance, etc.

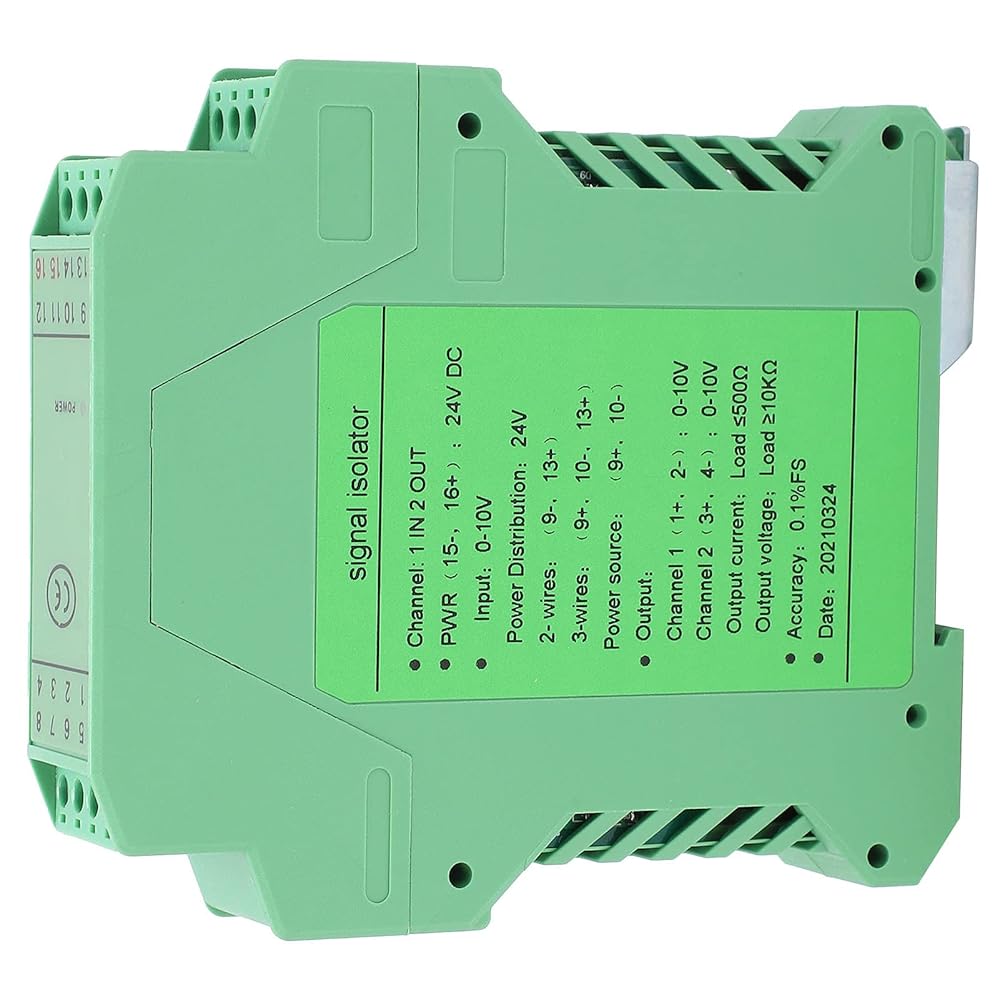

Specifications:
Item Type: Signal Isolator
Material: ABS
Model: GLG
Channel: 1 input 2 outputs
PWR (15-, 16+): 24 VDC
Input: 0-10V
Distribution voltage: DC 24V
2-wire: (9-, 13+)
3 cables: (9+, 10-, 13+)
Power supply: (9+, 10- )
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output current: Load≤500Ω
Output voltage: Load≥10KΩ
Accuracy: 0.1%FS
Working temperature range: -20-+55℃
Electromagnetic compatibility: Complies with GB/T 18268 (1EC61326-1)
Applicable field equipment: 2-wire, 3-wire transmitter, current source
Product Description:
DC24V power supply, provides isolated power distribution for the transmitter on site and at the same time isolates and transmits the current signal generated by the transmitter. from site to control room, PLC, DCS and other input terminal interface current source, 2-wire, 3-wire transmitter General purpose; Internal use of high-efficiency magnetic isolation technology, isolation between input, output and power supply, with high , high linearity, low temperature drift and other characteristics.

How to use it:
Installation method: 1. For the installation of 35mm rails, pay attention to the stability and firmness of the bayonet during installation.2. Install it as vertically as possible to facilitate heat dissipation inside the instrument.

Packing List:
1 x signal isolator.

Notes:
The installation location should not have strong vibrations and the electromagnetic interference intensity of the signal terminal, power supply terminal and space exceeds the third category of the IEC61000-4 series of industrial field electromagnetic interference, and the use environment should not be harmful to metal and plastic parts. substance.
