[WEAR- AND SLIP-] The drag chain is designed for high-speed performance, reducing and ensuring smooth movement.
[TEMPERATURE ] Constructed from nylon 66, this cable drag chain can withstand temperatures ranging from -25℃ to 100℃.
[FLEXIBLE AND ADJUSTABLE] The nylon drag chain can be disassembled and combined at any length to cater to specific work requirements.
[HIGH-QUALITY MATERIALS] Precision processed with top-grade materials, this flexible drag chain boasts an extended service life.
[LOW NOISE DESIGN] The silent series ensures minimal working noise, creating a quieter and more comfortable work environment.

Spec:

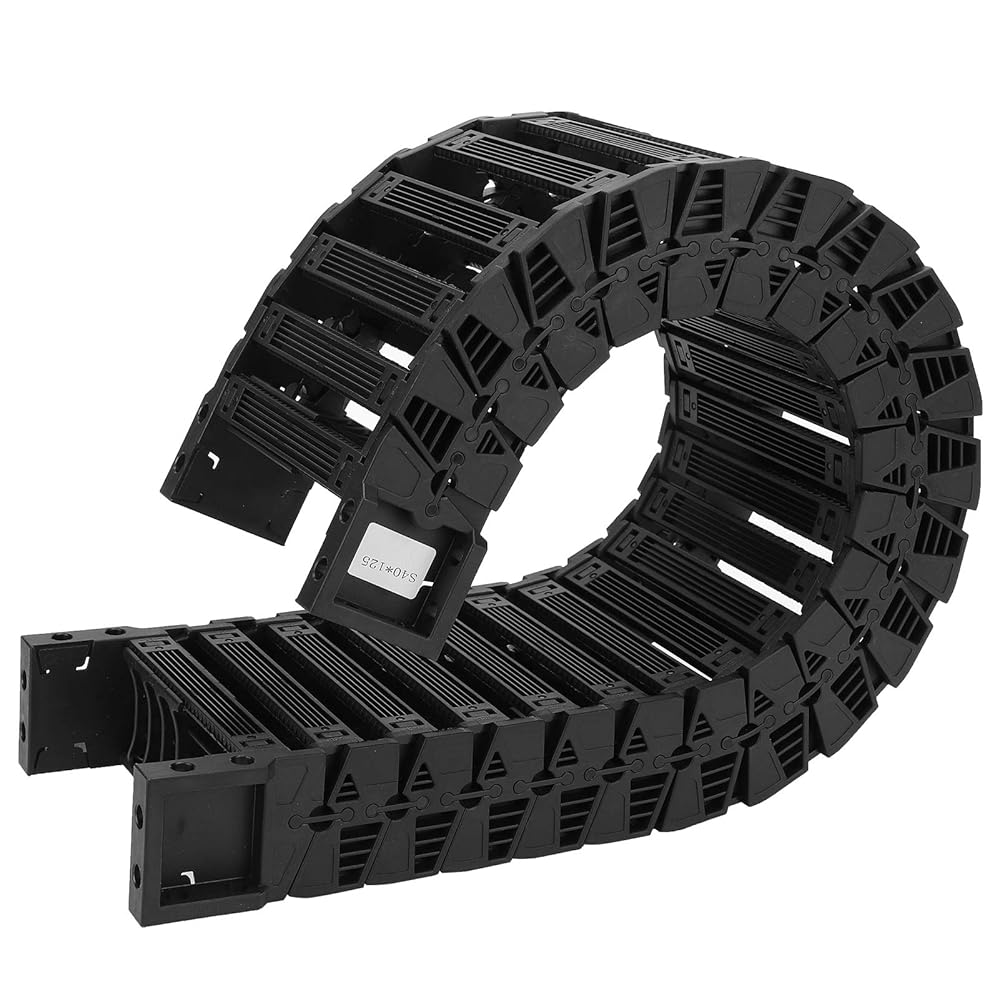

Item Type: Drag Chain

Material: Nylon 66
Application: Suitable for engraving machines, CNC machine tools, robotic arms, professional cable protection accessories
Series: Silent Series
Working Temperature: -25~100℃
Length: Approx. 0.7meter / 2.3ft,1meter / 3.3ft (can be disassembled and assembled at any length)

Model Inner Height x Inner Width(Approx.) Outer Height x Outer Width(Approx.) Turning Radius(Approx.) Joint Length(Approx.) Pitch(Approx.)
S40 x 38 40 x 38mm / 1.6 x 1.5in 55 x 58mm / 2.2 x 2.3in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S40 x 50 40 x 50mm / 1.6 x 2in 55 x 70mm / 2.2 x 2.8in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.8in 33mm / 1.3in
S40 x 57 40 x 57mm / 1.6 x 2.2in 55 x 77mm / 2.2 x 3in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.9in 33mm / 1.3in
S40 x 60 40 x 60mm / 1.6 x 2.4in 55 x 80mm / 2.2 x 3.1in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.10in 33mm / 1.3in
S40 x 75 40 x 75mm / 1.6 x 3in 55 x 95mm / 2.2 x 3.7in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.11in 33mm / 1.3in
S40 x 77 40 x 77mm / 1.6 x 3in 55 x 97mm / 2.2 x 3.8in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.12in 33mm / 1.3in
S40 x
