Isolation
Filament Heating
Voltage....................5V
If ............... 2.5A
Restrict Rating
Peak anode reverse voltage............1550V
Peak anode current.........750mA
Recommended working conditions
Anode power supply voltage 2×500V
Impedance per arm 75
Load impedance 2000
Filter capacitor 4F
Rectification current 220mA
==========

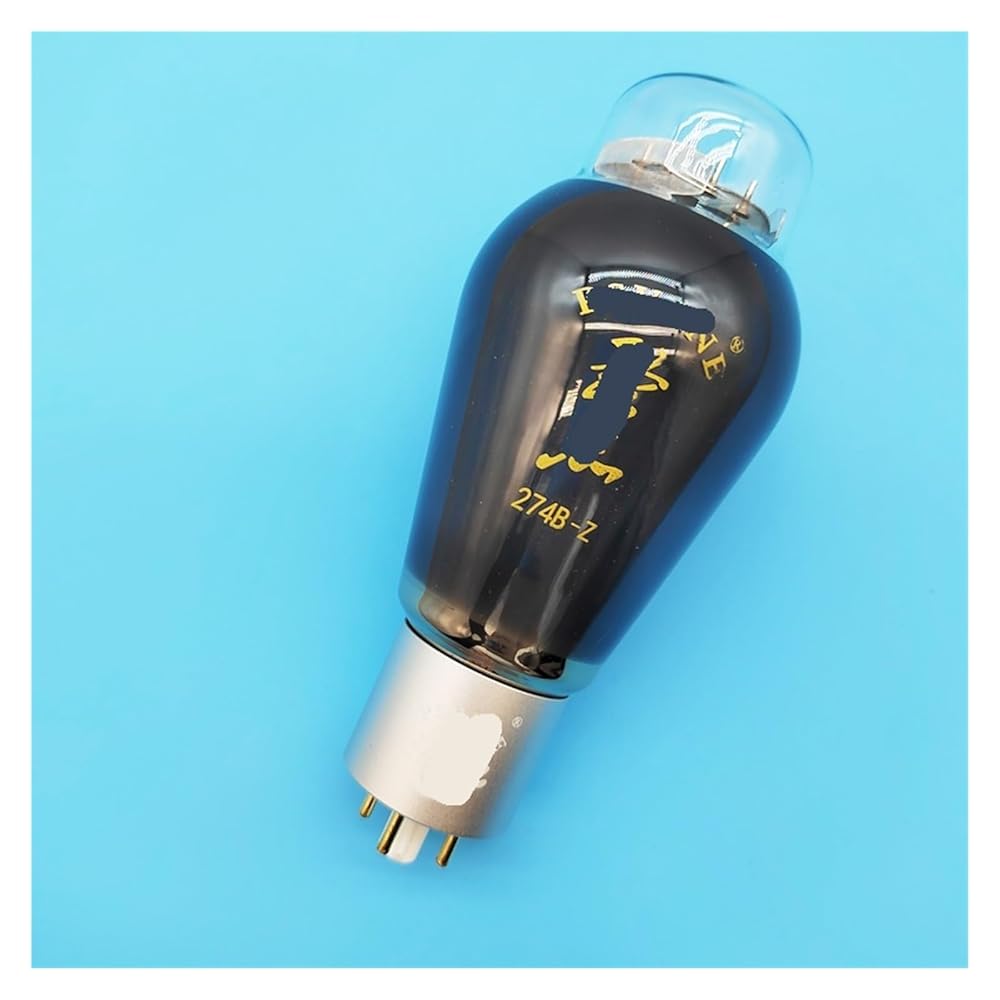

Model: 274B-Z
Maximum power per channel: No power supply
Origin: Mainland China
Certification: CE
Product Type: Vacuum tube, electron tube
Replacement: 274B 5U4G 5Z3P 5R4GY 5AR4 GZ34 U52 5V4 5Z4P
Application: tube amplifier, HIFI amplifier, DIY audio amplifier accessories
Note: pairing
