Pulse Generators

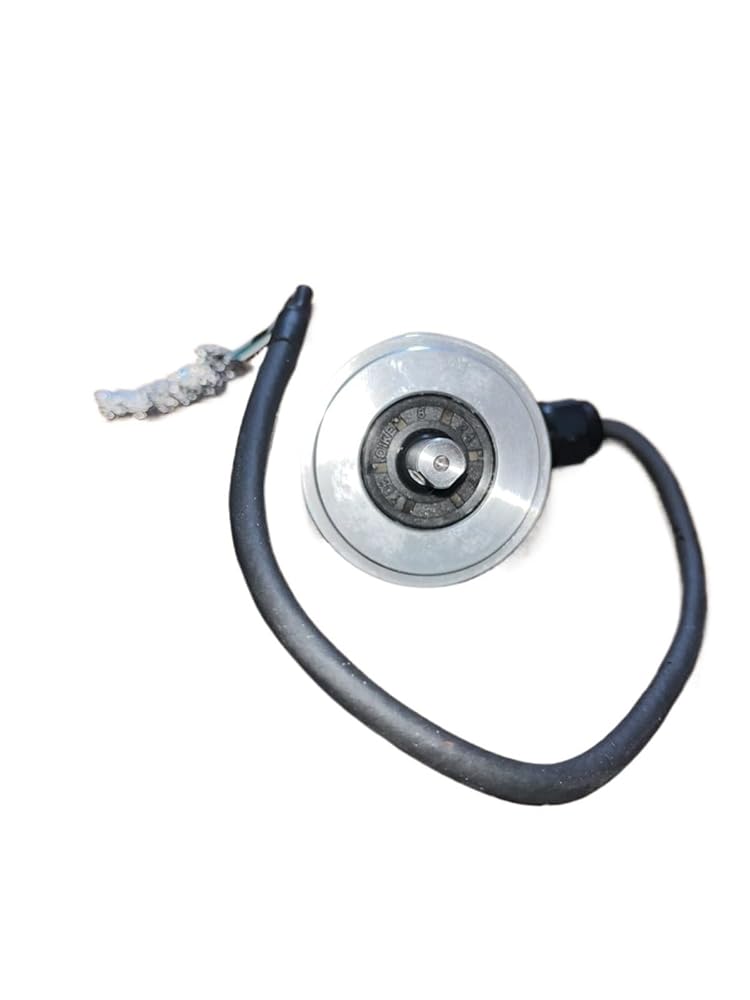

Optics A-WXJ-1 series of absolute value grating rotary encoders, capable of measuring angular displacement, and the measured results in the form of natural binary code output. The use of impact-resistant metal code plate and anti-interference ability ASIC grating, making the electromagnetic compatibility of the encoder, the use of a wide range. Small size, diameter 45mm, shaft diameter 8mm, coupled with humanized strobe LED, odd, even parity. Widely used in domestic and imported brands of lathes, machining centers, car milling complex carving and milling equipment vertical, horizontal type structure of electric knife, hydraulic knife. There are 4, 5, 6, 8, 12, 16 stations to choose from.

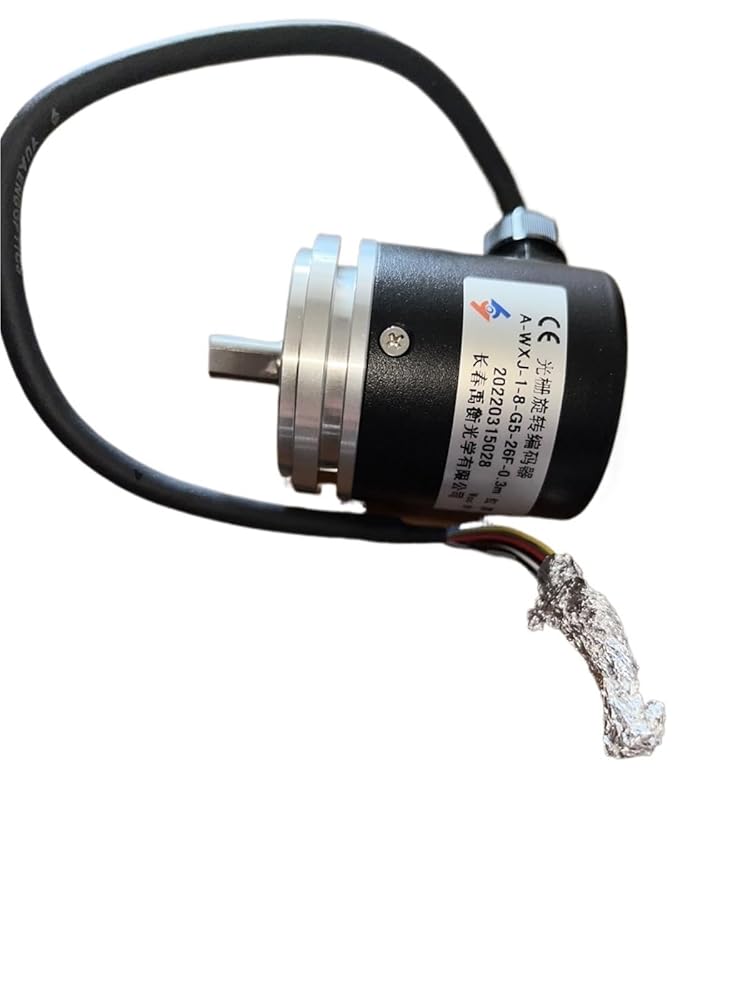

Encoder type A-WXJ-1-8-G5-26F-0.3 metres
Power supply
DC 5V ~ 26V ± 5%
Number of stations
8 output method
Complementary output
Measuring range
0 to 360 degrees
The output code system natural binary code
Mechanical speed
5000 rpm Max
The output signal "VH" Vcc-1.5V Min Operating environment -20 ~ +85
"VL" 1V Max storage environment
-30 ° C to + 95 ° C
Response frequency 1KHz Max Protection class IP65
Lead color and signal definition
Red Vcc
Black 0V
White
TP
green
Purple
Blue
Yellow
gray
EP
Shielding shell
Friendly reminder: more than the specified voltage range, wrong polarity or load short-circuit power supply may damage, burn the encoder.

Precautions:
Encoder and the measured shaft is connected, as far as possible the use of flexible coupling connection.
