A-CHA series incremental solid shaft encoder. Code plate with metal, glass, two kinds of material optional, glass disc can do 5000 lines, metal code disc can do 1024 lines. Grating part of the ASIC optoelectronic devices, high reliability, long life, wider use of ambient temperature range. Lead wire adopts twisted shielded cable, anti-jamming performance is stronger. Widely used in automatic control, automatic measurement, remote control, computer technology, packaging and printing, machine tools and other types of automated equipment to do angle, speed, length, coordinate measurement.

Encoder model number

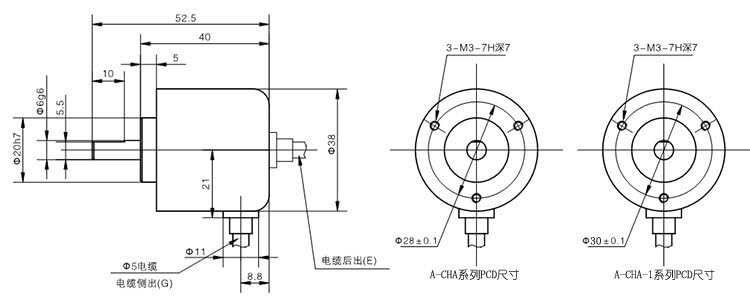

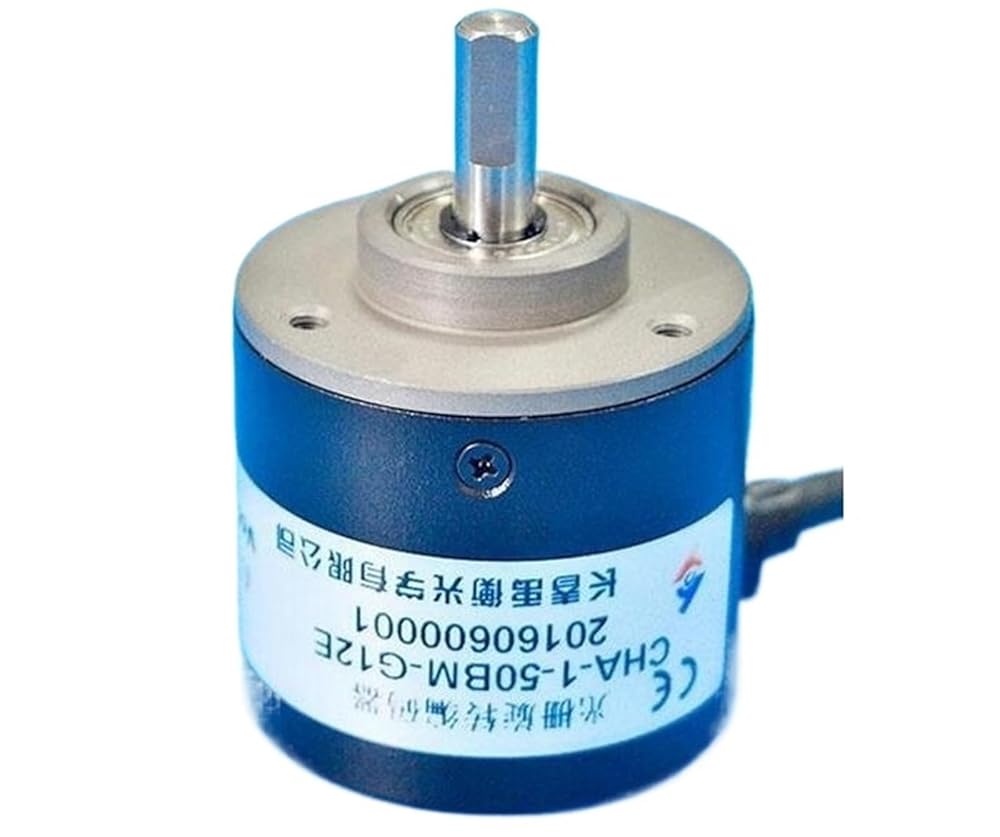

CHA-1-50BM-G12E
Output pulse 500P / R outer diameter 38mm
Power supply DC 10.8 ~ 13.2V Shaft diameter 6mm
Output circuit voltage output Mechanical speed 5000 Rpm Max
Output signal "1" Vcc-2.5V min Working environment -30 ~ +85
"0" DC 1V Max Storage Environment -35 ~ + 95
Response frequency 300KHz Max Protection class IP54

Definition of outgoing color
White (WHT) DC10.8 ~ 13.2V
Black (BLK) 0V
Red (RED) A
Green (GRN) B
Yellow (YEL) Z
Copper mesh (SHIELD) N.C.

To avoid unnecessary losses, please refer to the wiring symbol on the main body of the encoder when wiring.
