Globe Valves
Product specifications:

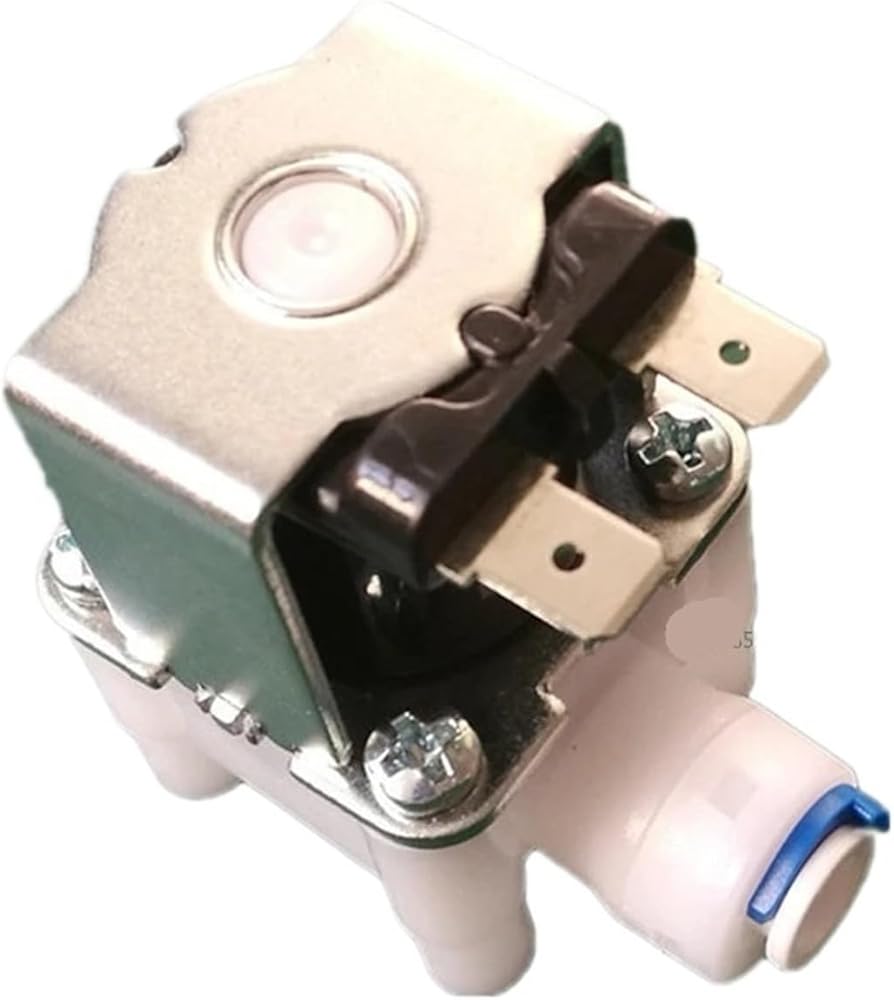

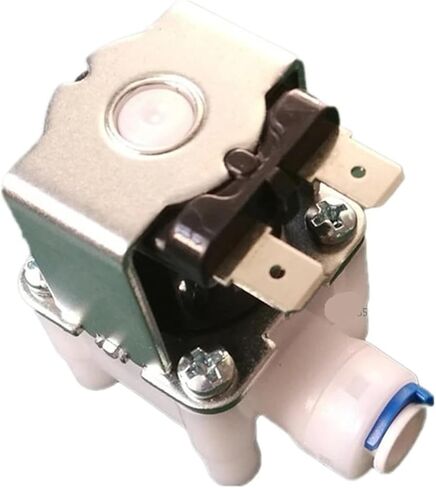

Name: Quick Connect Water Solenoid Valve Accessories Type: Water Purifier Valve Material: Copper POM Shell Capacity: 1 Model: 1/4 Quick Connect Usage Location: Outdoor Water Machine: Water Purifier Water Purifier Material: Metal + Plastic Voltage: DC 12V product usage: water solenoid valve and high-pressure water pump are connected in parallel on the computer board. When the system is filled with water or flushed, the water inlet solenoid valve is opened and the high-pressure pump is working; during standby, the water outlet solenoid valve is closed and the high-pressure pump is stopped. The function of the water inlet solenoid valve is to open the water source when water is incoming or flushing, and to close the water source during standby or power outage, so that the pure water machine can work normally without wasting water. Technical parameters: Rated voltage: DC24V Coil resistance: 37±0.25 (at 20℃) Switch type: DC continuous Working pressure: 0Mpa-0.8Mpa / 0Mpa-0.5Mpa (randomly sent) Medium temperature: 1°-75° Response on Time: 0.15s, off 0.3s. The strength between the conductor and non-conductor should be able to withstand AC2500V voltage without breakdown or arcing for 1 minute. Flow characteristics: 0.02Mpa 3 L/min 0.1Mpa 12 L/min 0.8 Mpa 35 L /min Number of coils is 2500 turns Life span is 200,000 times Usage: Water Please note, not suitable for use with feeding systems
