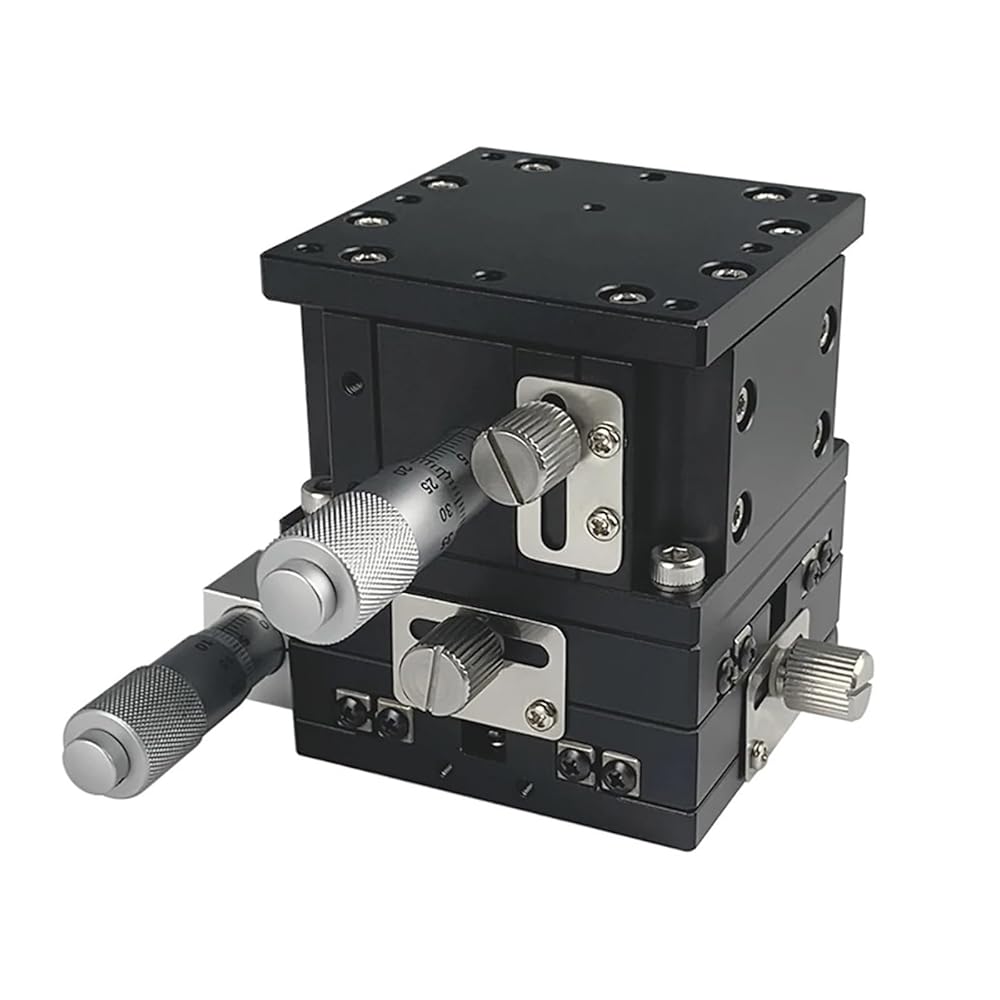

XYZ محور 60*60 مللي متر LD60-LM-2 منصة النزوح اليدوية الشريحة عالية الدقة السكك الحديدية الأفقية المزدوجة
مميزات خاصة
- Roller Tables
- Robust V-shaped guide system: equipped with V-shaped guide rail (crossed roller guide) and Z-axis double cross guide
- High-Precision Linear Stage: The LD60 LM2 is designed for accuracy, providing a minimum reading of 0.01 mm and a straightness of 0.01 mm
- DURABLE ALUMINUM ALLOY CONSTRUCTION: The LD60 LM2 platform is constructed from sturdy aluminum alloy and can withstand heavy loads up to 58.8N (6kgf).
- Compact and lightweight design: Weighing only 0.87 kg, the LD60 LM2 combines portability with a 60mm*60mm slider range.
- Multifunctional XYZ axis motion: LD60 LM2 has three degrees of freedom in XYZ axis
وصف
Roller Tables
feature:

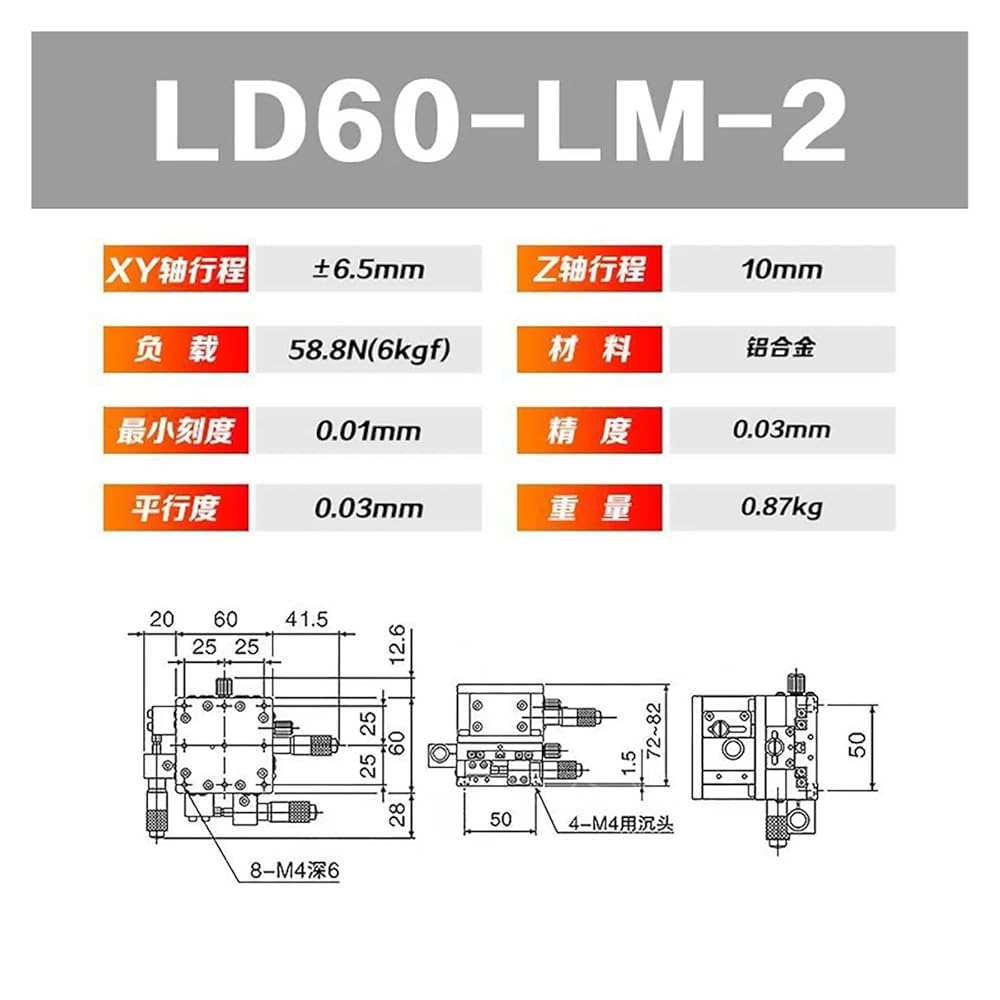

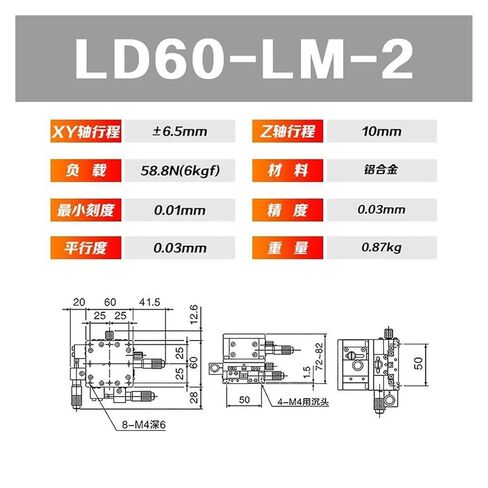

1. Product model: LD-60-LM-2
2. Movement direction: three degrees of freedom in XYZ axis
3. Z-axis adopts double horizontal rail structure
4.Material: aluminum
5. Slider range: 60mm*60mm
6. Stroke: XY axis: ±6.5mm, Z axis: ±10mm
7. Load: 58.8N (6kgf)
8. Guide rail type: V-shaped guide rail (crossed roller guide rail), Z-axis: double cross guide rail
9. Minimum reading: 0.01mm
10. Straightness: 0.01mm
11. Weight: 0.87kg
