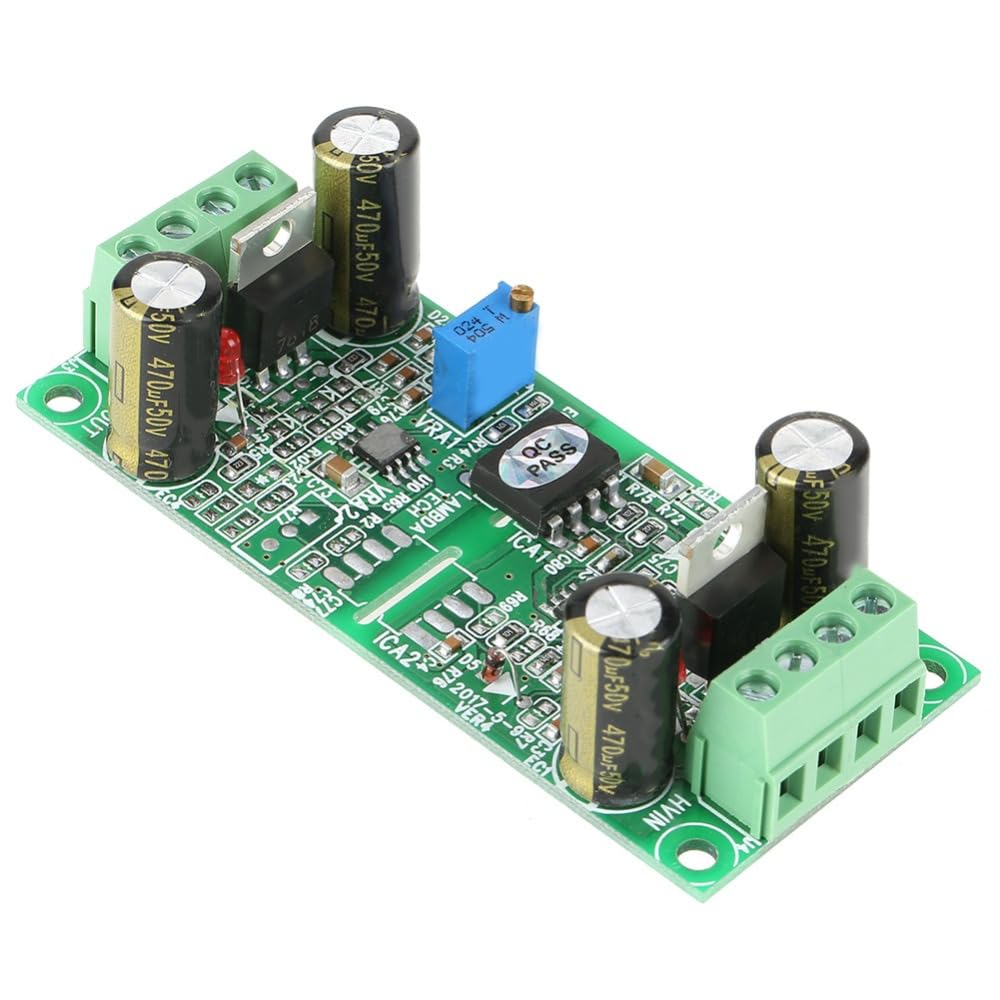

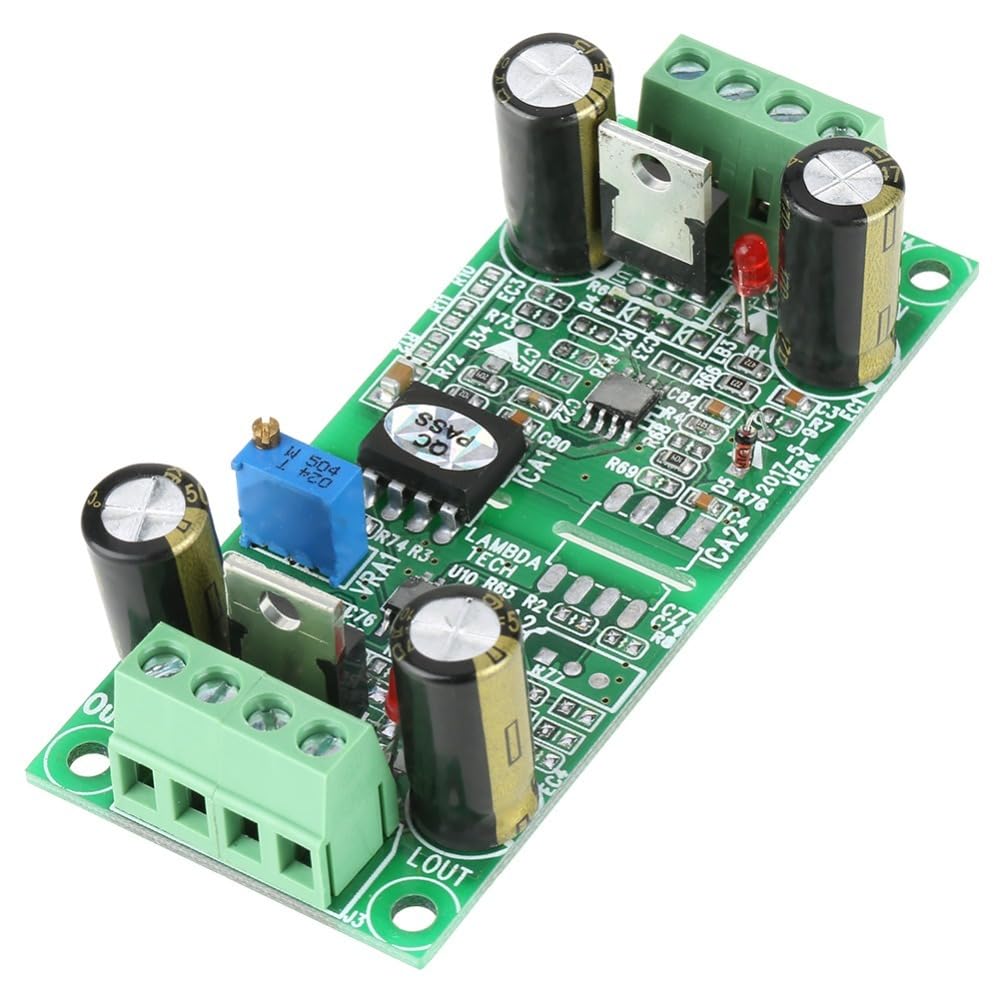

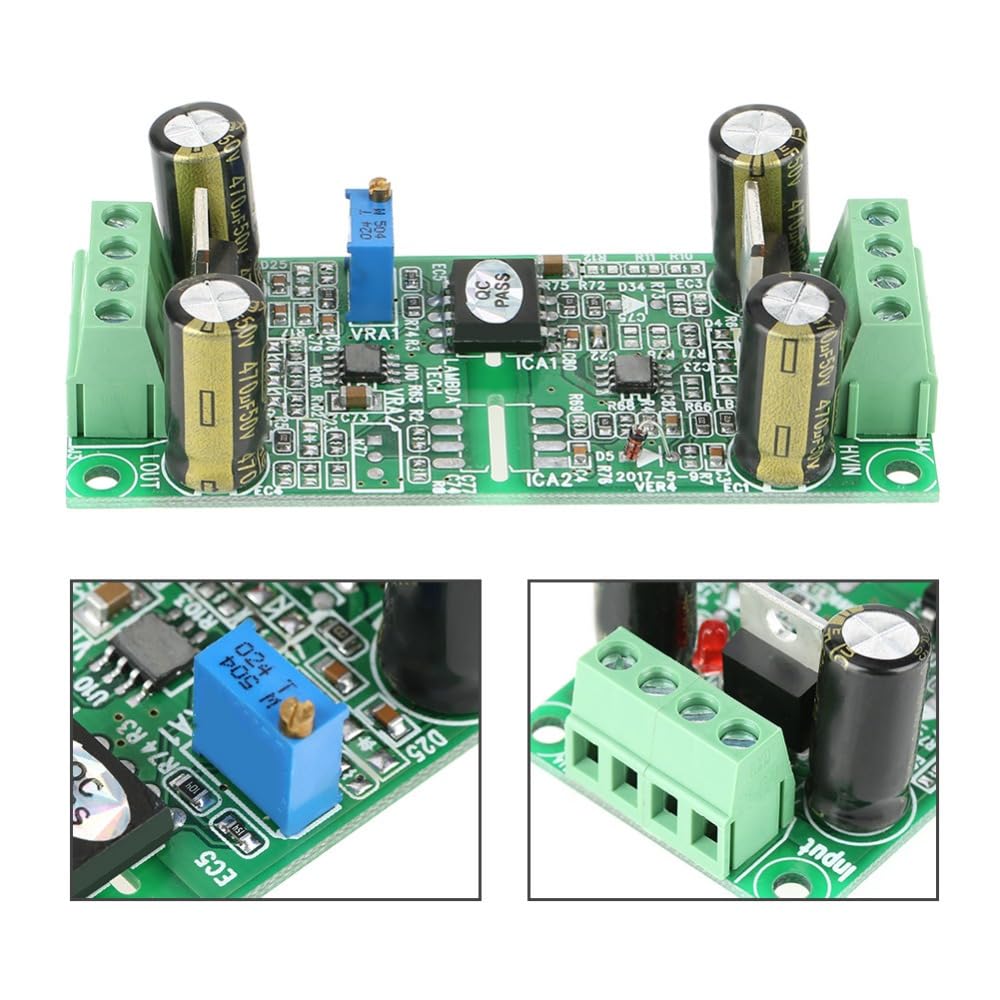

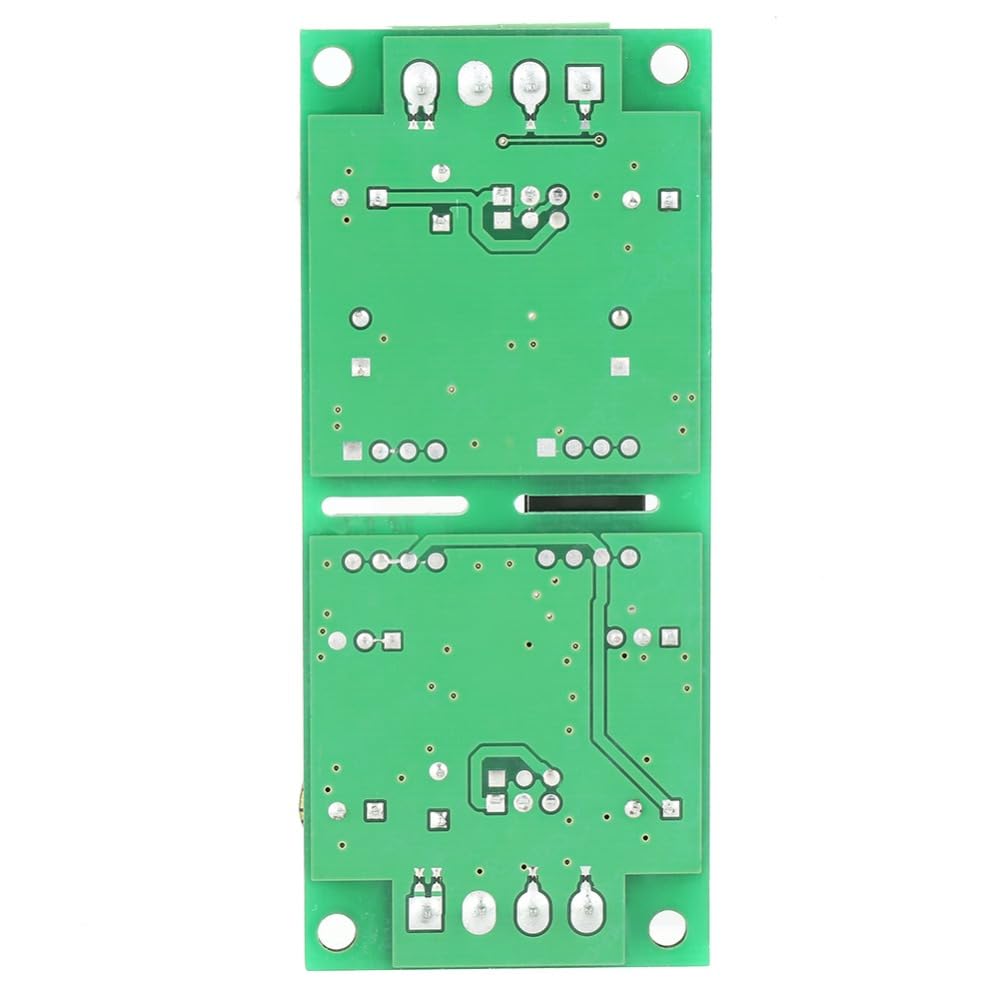

This 0-10V analog voltage signal isolation module provides reliable signal conversion for PLC and MCU systems. It isolates high-voltage or interference-prone signals to ensure system stability and anti-interference performance. Ideal for industrial automation and control applications requiring clean signal transmission

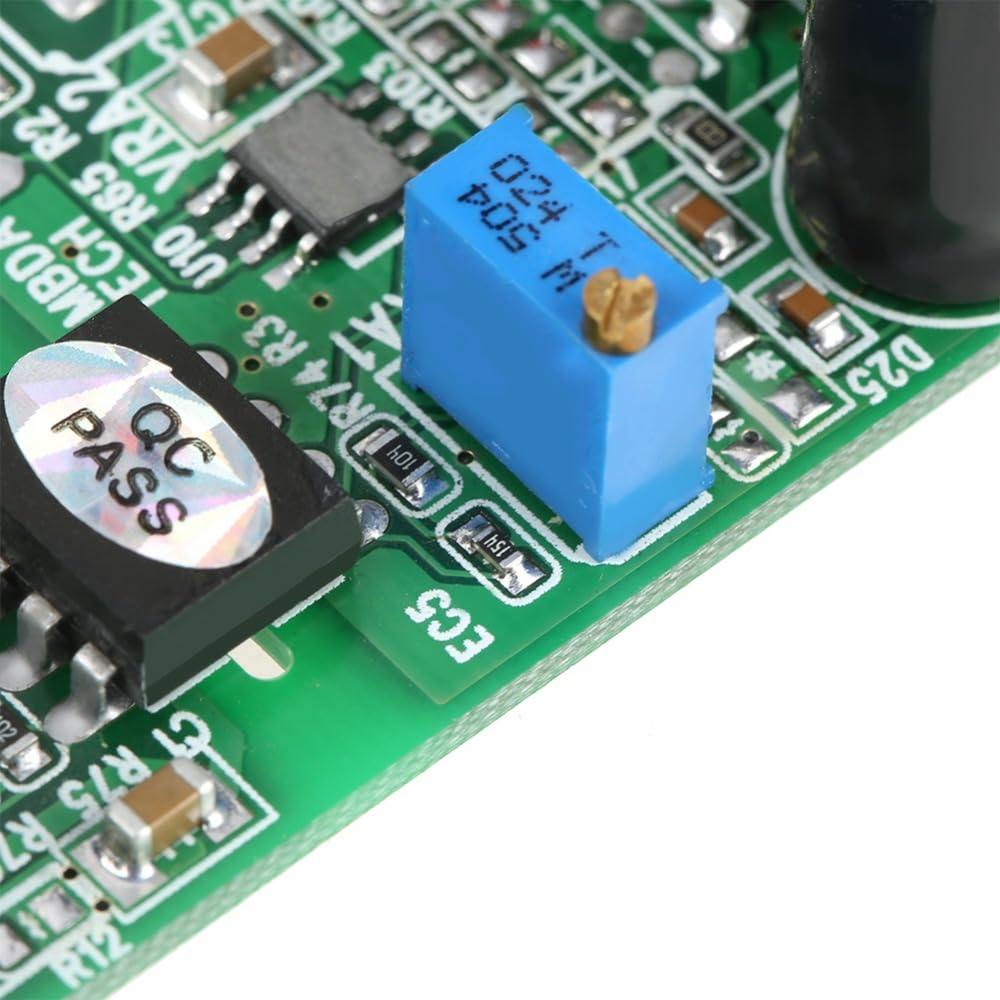

Connect two independent 12-32V DC power supplies to designated terminals. Wire input signals to AI1/AI2 channels and receive isolated outputs via A1O/A2O ports. For optimal performance, mount the module and controller in a grounded metal enclosure. Use the built-in potentiometer for precise output calibration if needed
Specifications:
Model: S-10V10V (single channel input)
Power Supply:12V-32VDC
Input: 0-10V analog voltage signal
Output: 0-10V analog voltage signal
Conversion Accuracy: ±3%
Conversion Speed: ≥200MS

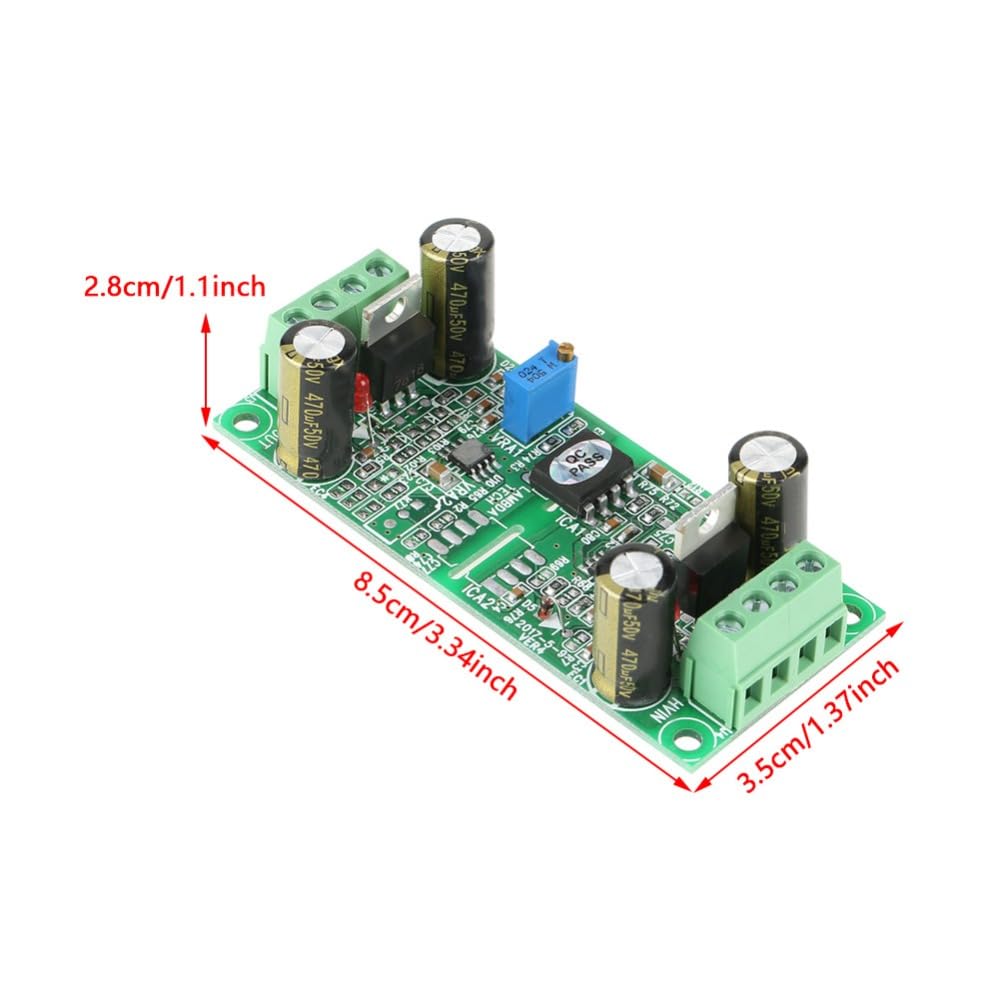

Size:8.5*3.5*2.8cm/3.3*1.4*1.1in
Weight: 39g(approx.)
Wiring:

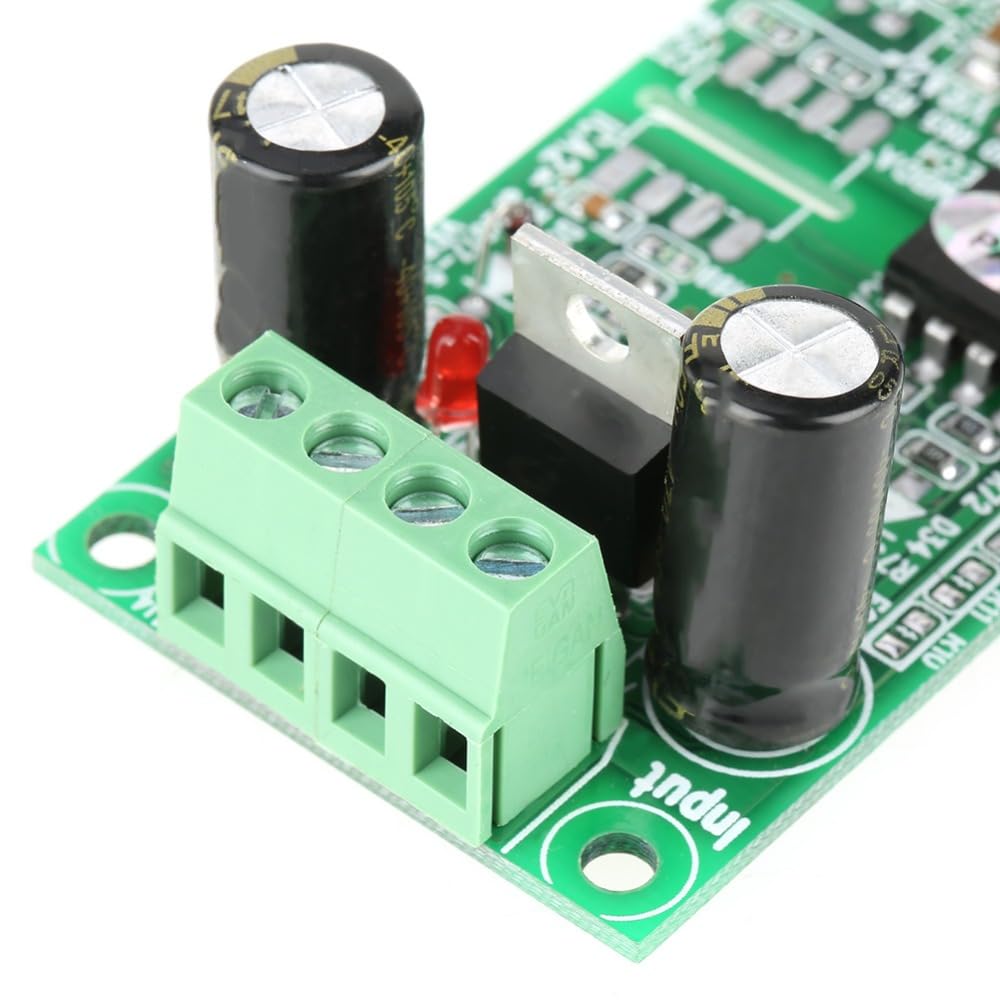

1) Input Voltage Terminals:
HVIN: 12V-32V power supply positive
HGND: 0V power supply negative
AI1: Analog input first channel (0-10V voltage)
AI2: Analog Input second channel (0-10V voltage)
2) Output Voltage Terminals:
VIN: 12-32V power supply positive
GND: Power supply negative
A1O: Analog output first channel (0-10V voltage)
A2O: Analog output second channel (0-10V voltage)
Package Includes:
1 x Isolation Module
