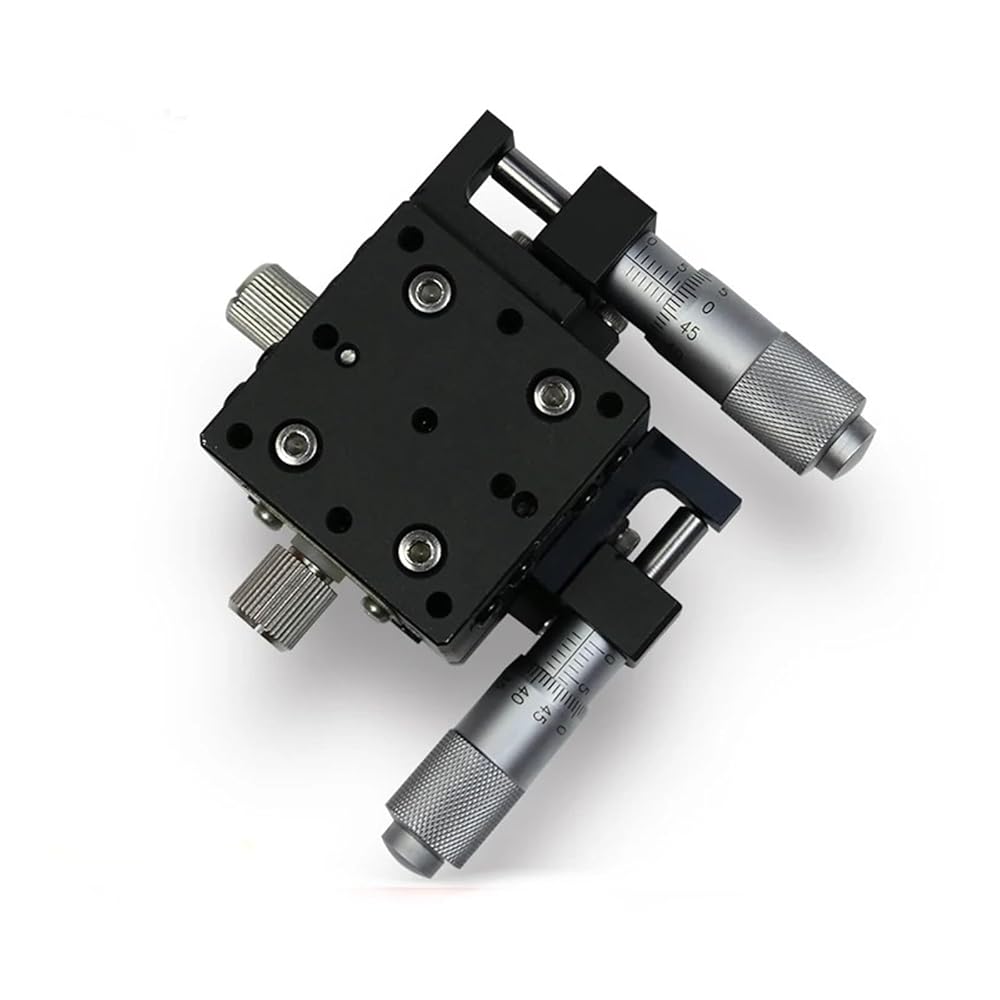

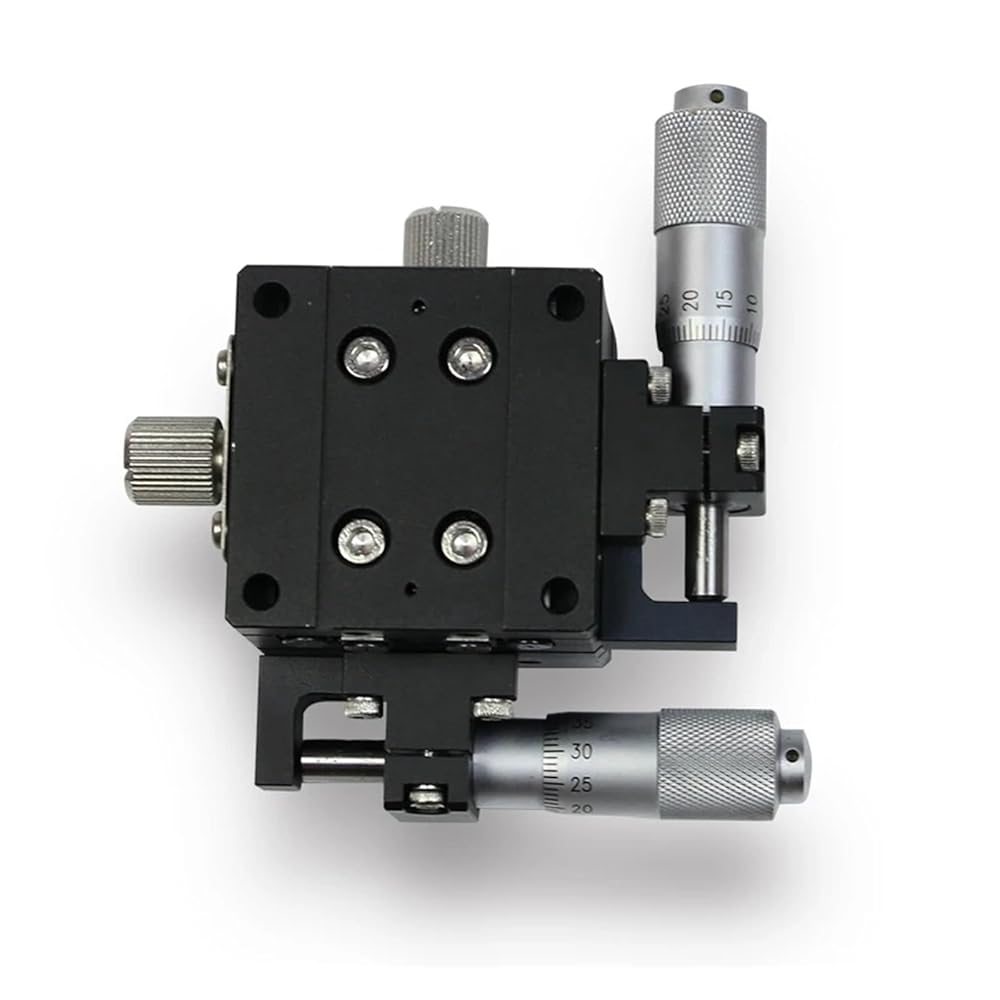

طاولة منزلق دقيقة الضبط XY40-R-30 ذات محورين عالي الدقة
مميزات خاصة
- Roller Tables
- Cross rail displacement, load: 29.4N (3kgf)
وصف
Roller Tables

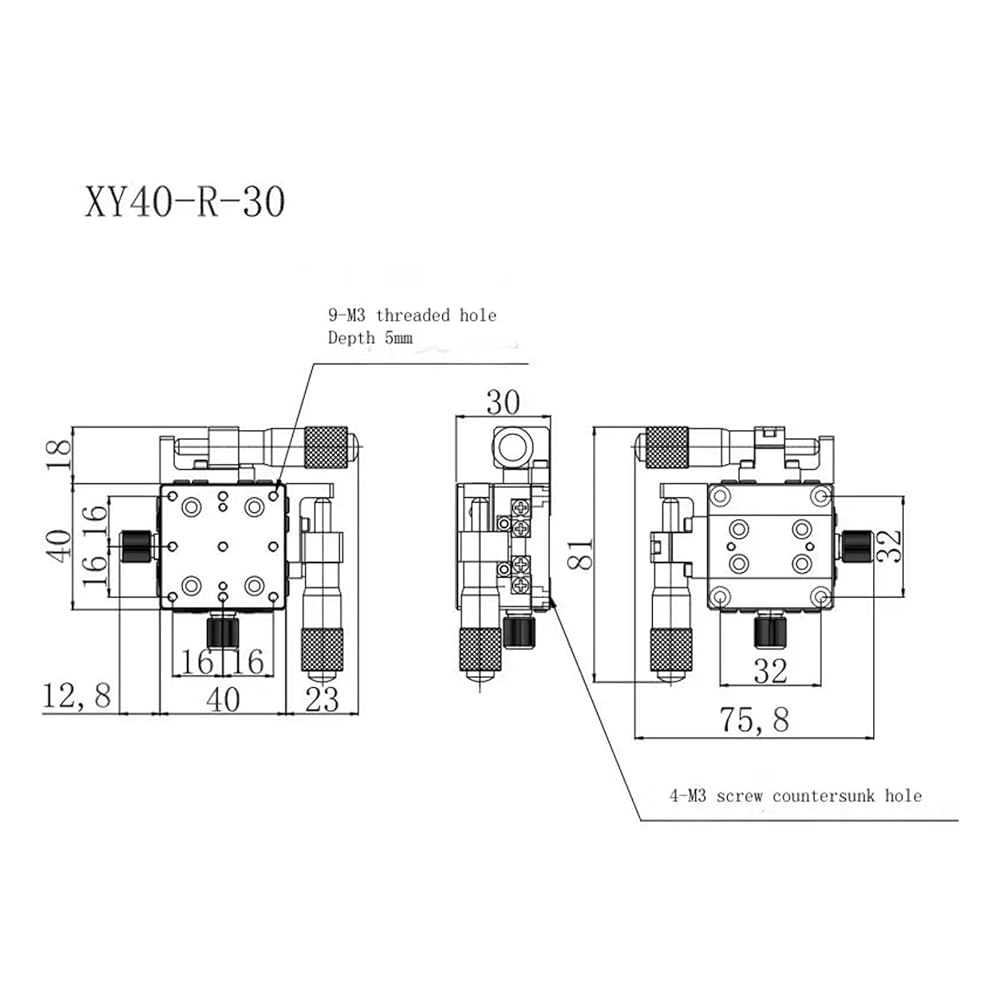

Product model specifications: XY40-R-30
Achievable: Linear adjustment of linear displacement in two directions
Material: Aluminum alloy (surface black anodized)
Guide rail type: V-type precision crossed roller guide rail
Workbench size: 40mm×40mm
Movement amount: X-axis ±6.5mm, Y-axis ±6.5mm
Workbench thickness: 30mm
Driving method: micrometer
Minimum reading of micrometer knob: 10um/scale
Load: 29.4N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.26KG
