SDC15-100A 200A 300A 1NO (مفتوحة عادة) مفاتيح الاتصال 6V 12V 24V 48V 72V DC المقاولين لآلات الهندسة الكهربائية 1 قطعة (100A، 12V) in Saudi Arabia SDC15-100A 200A 300A 1NO (مفتوحة عادة) مفاتيح الاتصال 6V 12V 24V 48V 72V DC المقاولين لآلات الهندسة الكهربائية 1 قطعة (100A، 12V) in Saudi Arabia

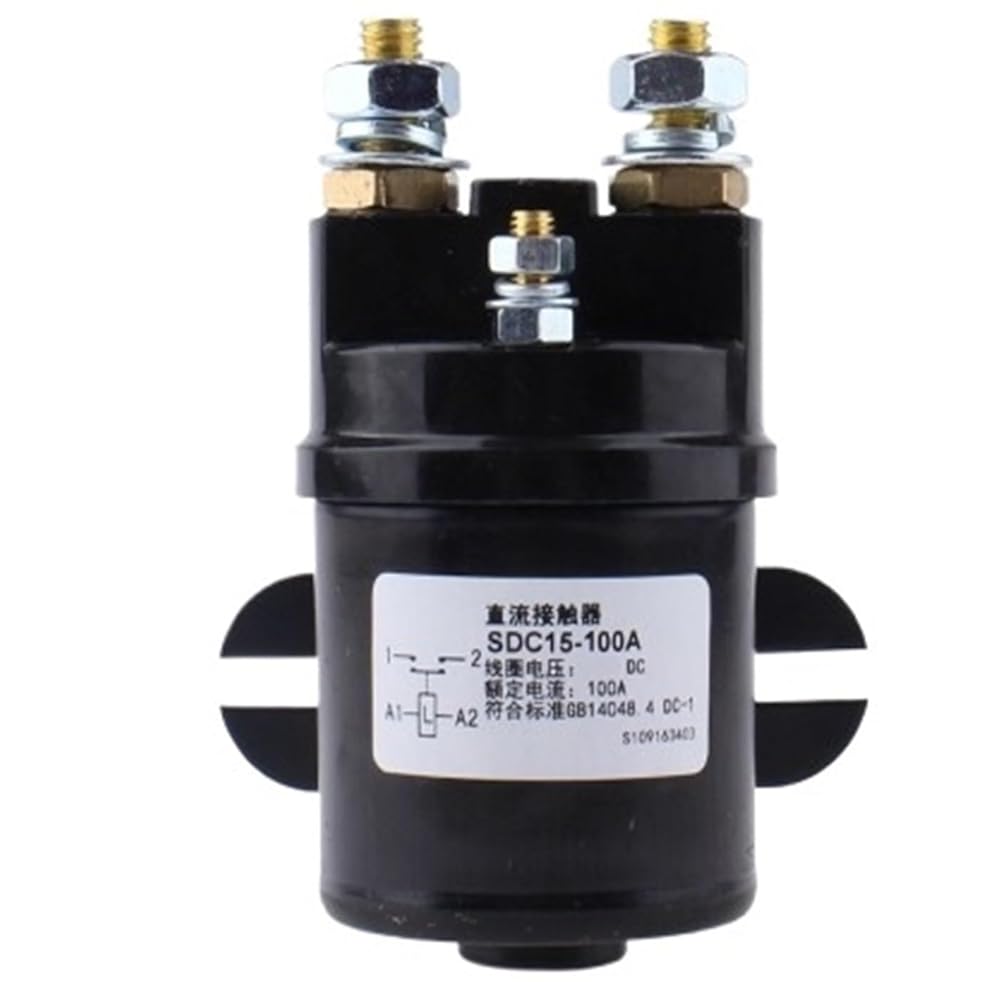

SDC15-100A 200A 300A 1NO (مفتوحة عادة) مفاتيح الاتصال 6V 12V 24V 48V 72V DC المقاولين لآلات الهندسة الكهربائية 1 قطعة (100A، 12V)

SAR 150
ماركة
IEEWAMZ
وزن
202 g
اللون100 أ
مقاس12 فولت
– 1 +

مميزات خاصة

  • Model: SDC15-100A 200A 300A
  • Coil Rated voltage(DC V): 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, 220V
  • Contact voltage(DC V): 80V
  • Insulation: Equipped with a robust insulation resistance of 20MΩ, the contactor resists electrical stress, ensuring safe operation
  • Low Voltage Drop: With a typical voltage drop of ≯80mV, the contactor maintains high efficiency even at high currents, minimizing energy loss

وصف

SDC15-100A 200A 300A 1NO (Normally Open) Contact Switches 6V 12V 24V 48V 72V DC Contactor For Electric Engineering Machinery 1pc
Product name: DC contactor
Model: SDC15-100A 200A 300A
Contact form: 1 NO
Coil Rated voltage(DC V) 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, 220V etc.
Contact voltage(DC V): 80V
Typical voltage drop across contacts per 100A: 80mV
the cooling pull-in voltage at (20±5) (V): 70%
the cooling drop-out voltage at (20±5)(V):35%,5%
Working voltage range of 40 degrees coil: 0.8-1.2Us
Drop-out time(n/o contacts to open): 30ms
Pull-in time (n/o contacts to close): 5ms
connect the maximum contact bounce time: 10ms
Disconnect the maximum contact bounce time: 3ms
Insulation Resistance: 20M
Electric strength to resist: 50Hz/60Hz 1000VAC 1minute
Coil power (W): 18-30
Temperature rise of coil (K): 85
Temperature rise on outgoing terminal (K): 65
Electric life: 20000 times
Mechanical life: 300 thousand times
Work specification: Intermittent
Contact material :AgCdO
Load terminal type: M8 Rose
Coil terminal type: M5 Rose or 6.3mm spade terminals
Model Number : SDC-100A/SDC-200A/SDC-300A
Main Circuit Rating Current : 100A200A300A
Main Circuit Rating Voltage : 12v24v36v48v72v6v120v150v220v
Electricity Type : DC
Certification : CE
