Overview
This product is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-C6-WROOM-1-NX series module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 16MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-C6-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the products.

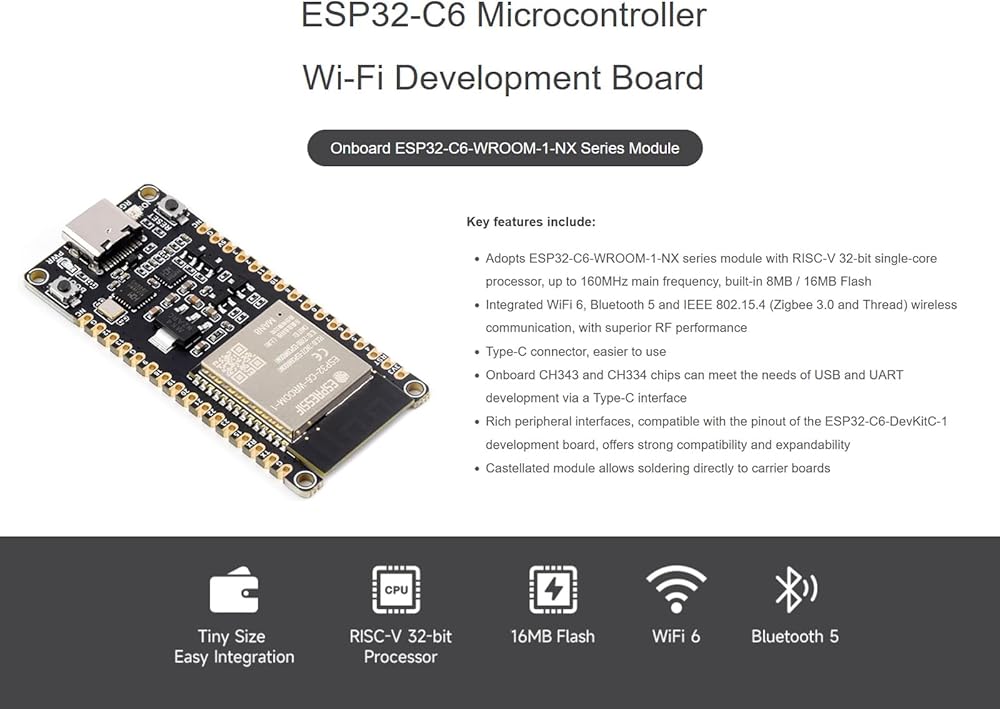

Features
Adopts ESP32-C6-WROOM-1-NX series module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 16MB Flash

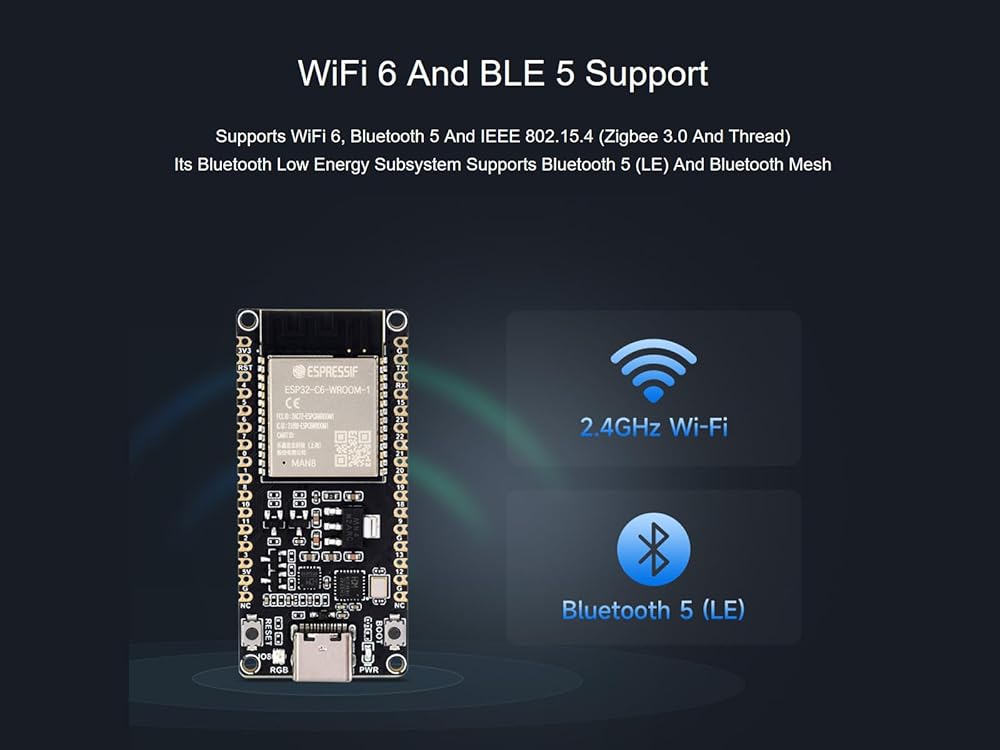

Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Type-C connector, easier to useb
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

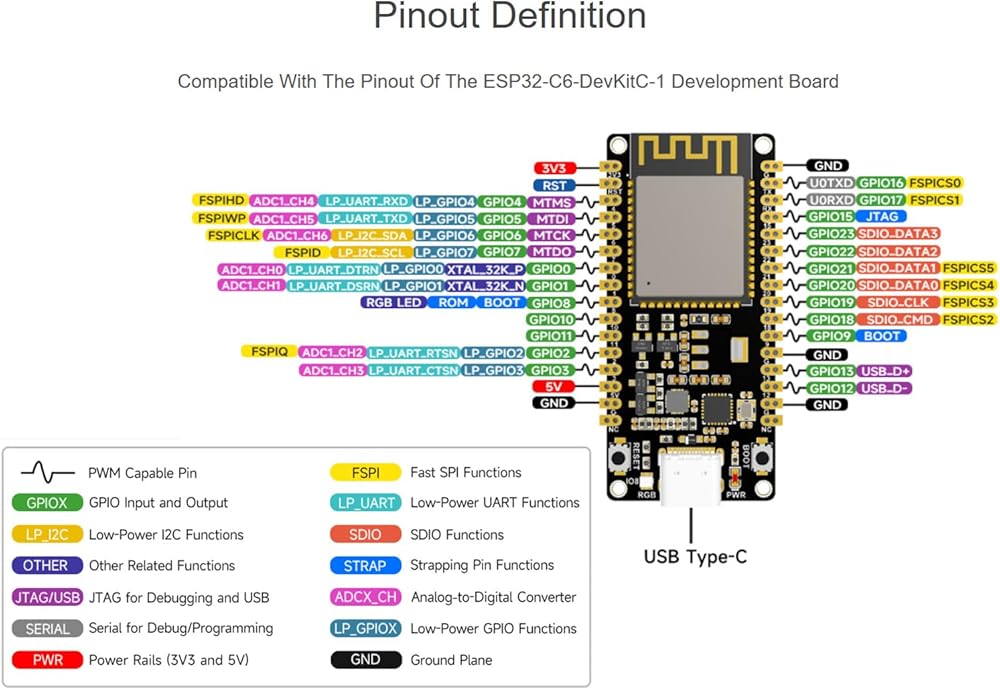

Rich peripheral interfaces, compatible with the pinout of the ESP32-C6-DevKitC-1 development board, offers strong compatibility and expandability
Castellated module allows soldering directly to carrier boards

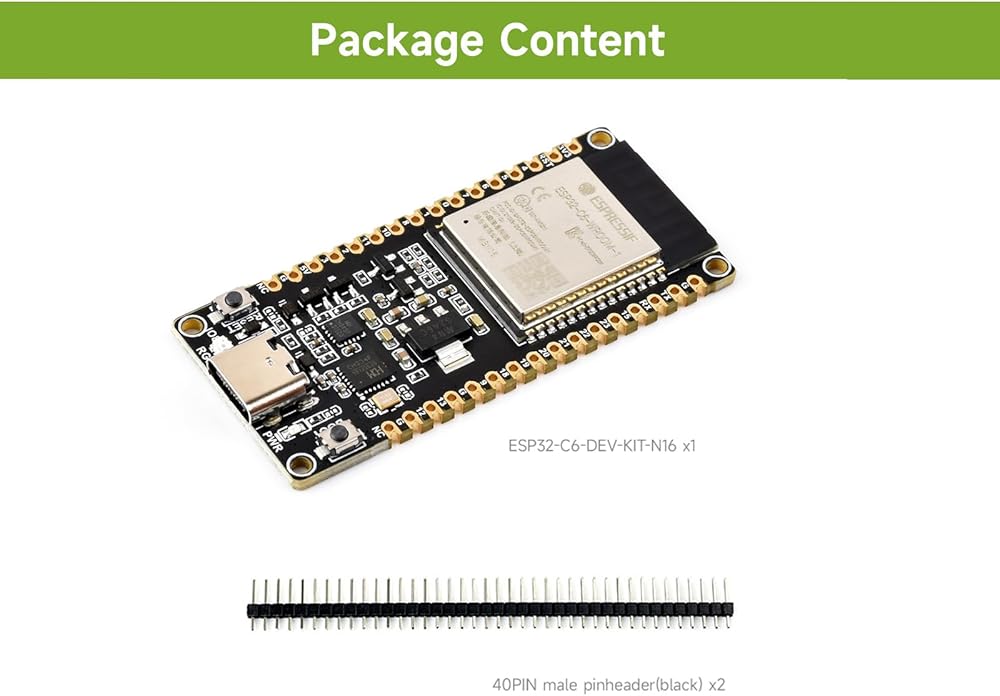

Package Content
ESP32-C6-DEV-KIT-N16 x1
40PIN male pinheader(black) x2

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
