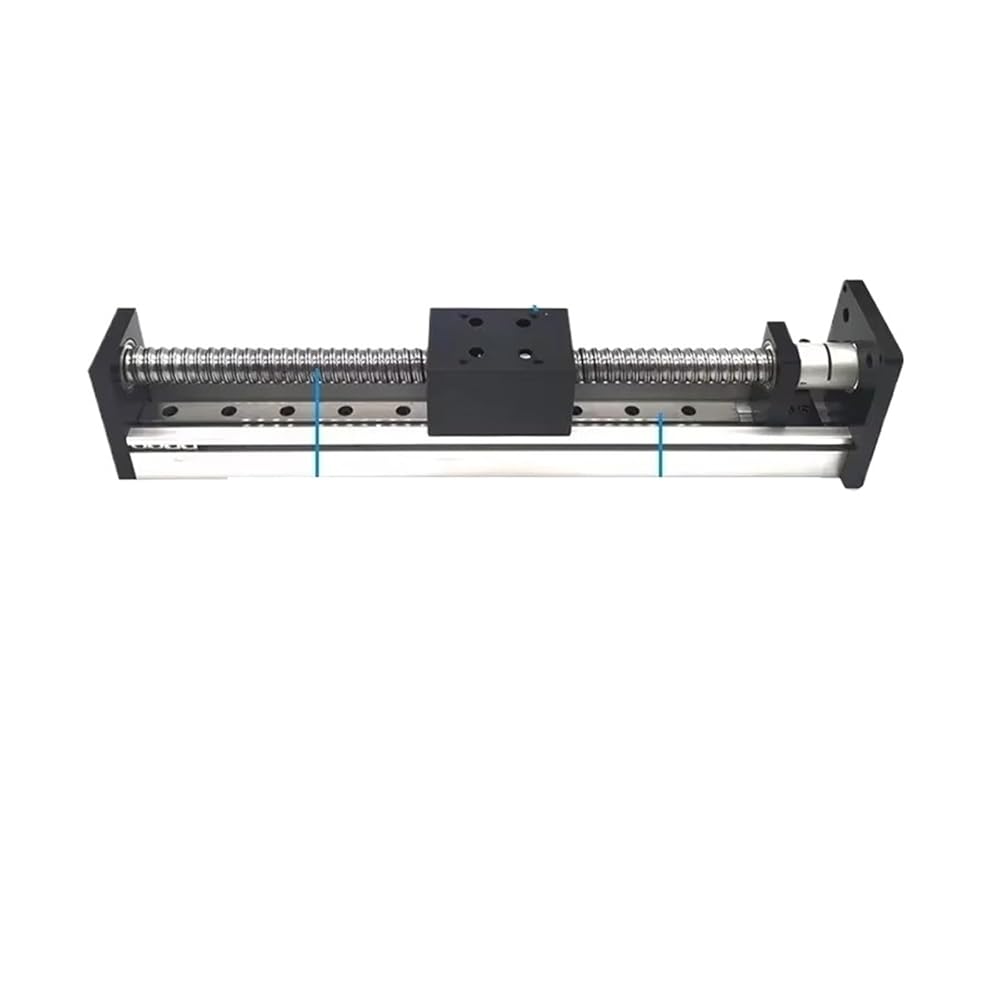

Cross Roller Guides
1
Model: DXG6042-1204-100-57/8
Rail width or diameter: 12mm
Origin: Mainland China
Certification: CE
Ball screw type: SFU1605/SFU1204/SFU1610
Ball screw accuracy: C7
Effective stroke: 100mm-1200mm optional
Slider Type: MGW12R
Maximum speed: 500mm/s
Repeat positioning accuracy: 0.02mm-0.03
Horizontal load: 60KG (maximum)
Vertical load: 30KG (maximum)
