Brief description:
High Temperature Pressure Transmitter adopts imported thermost ability sensing element, make the transmitter work stability under 200.And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently. pressure sensitive core adopt high performance silicon piezo resistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output modle can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work incorrosive environment. The product is easy to installand has high anti-vibration and anti-impact performance. It is widely used in processes control, aviation, aerospace, automobile, equipment, HVAC and other fields.
Selection Table:
3.3v output automotive air boiler room electronic hydraulic water pipe pressure sensor
Details:

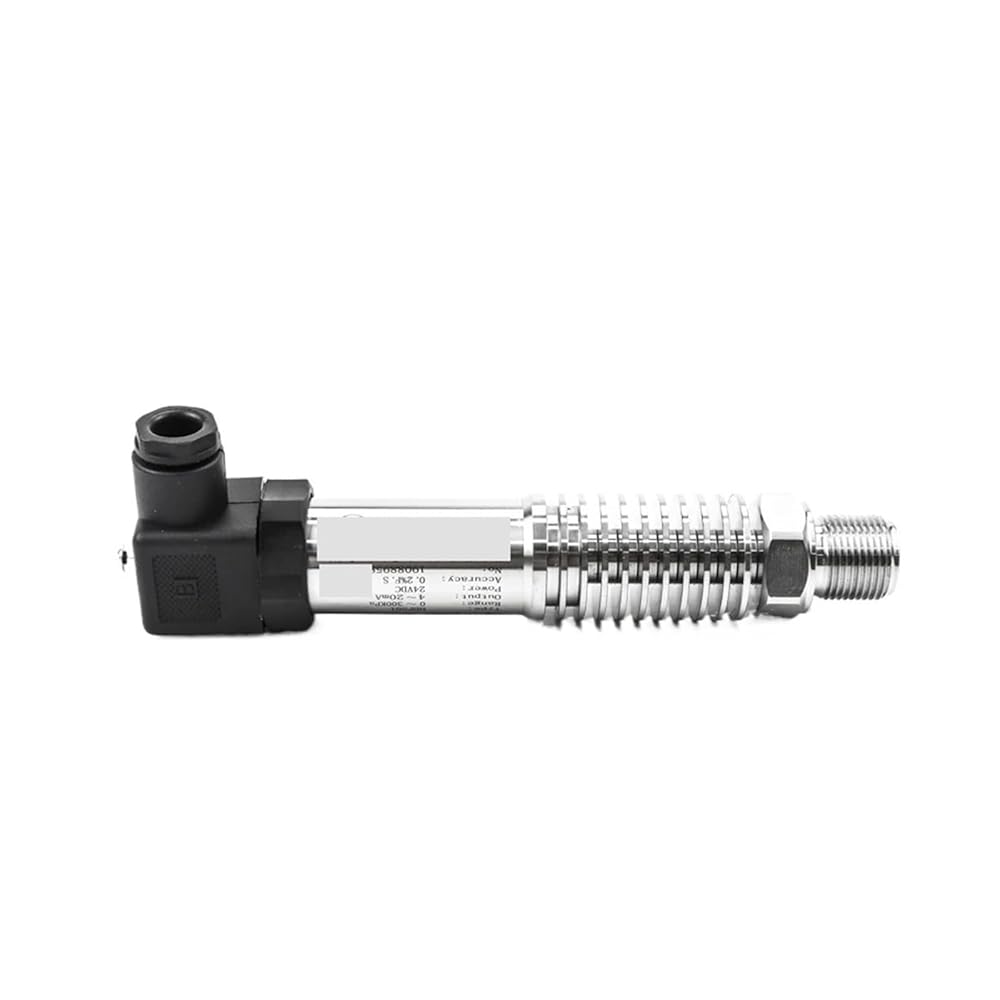

If your temperature over 300°, then can add Heat sink. See picture below.
1 circle can resist 50 degrees.
Mainly technical parameters:
Model
HDP501
Power supply
24VDC
Output signal
4~20mA,1~5V,0~10V,RS485
Measuring range
-0.1...0...100Mpa
Compensation temperature
-10~70
Medium temperature
-40~300
Environment temperature
-40~85
Measuring media
Gaseous, Liquid, Water
Pressure type
Gauge pressure, Absolute pressure
Accuracy
0.1%F.S, 0.25%F.S, 0.5%F.S (standard)
Zero tempe drift
±0.03%F.S/
Sensitivity temperature drift
±0.03%F.S/
Overload
200%F.S
Long-term stability
0.2%F.S/year
Inherent
5kHz~650kHz
Protection grade
IP65
High Temperature type High temperature digital display Type
Model Number : HDP501
Max Measuring Range : 400 Bar & Above
Origin : Mainland China
