[PREMIUM ALUMINUM CONSTRUCTION] Engineered from high-grade aluminum alloy, this linear stage offers exceptional durability while remaining lightweight. The black anodized finish provides resistance, making it ideal for demanding environments. Its scratch-and drop-proof design ensures long-lasting performance in laboratories and industrial settings.

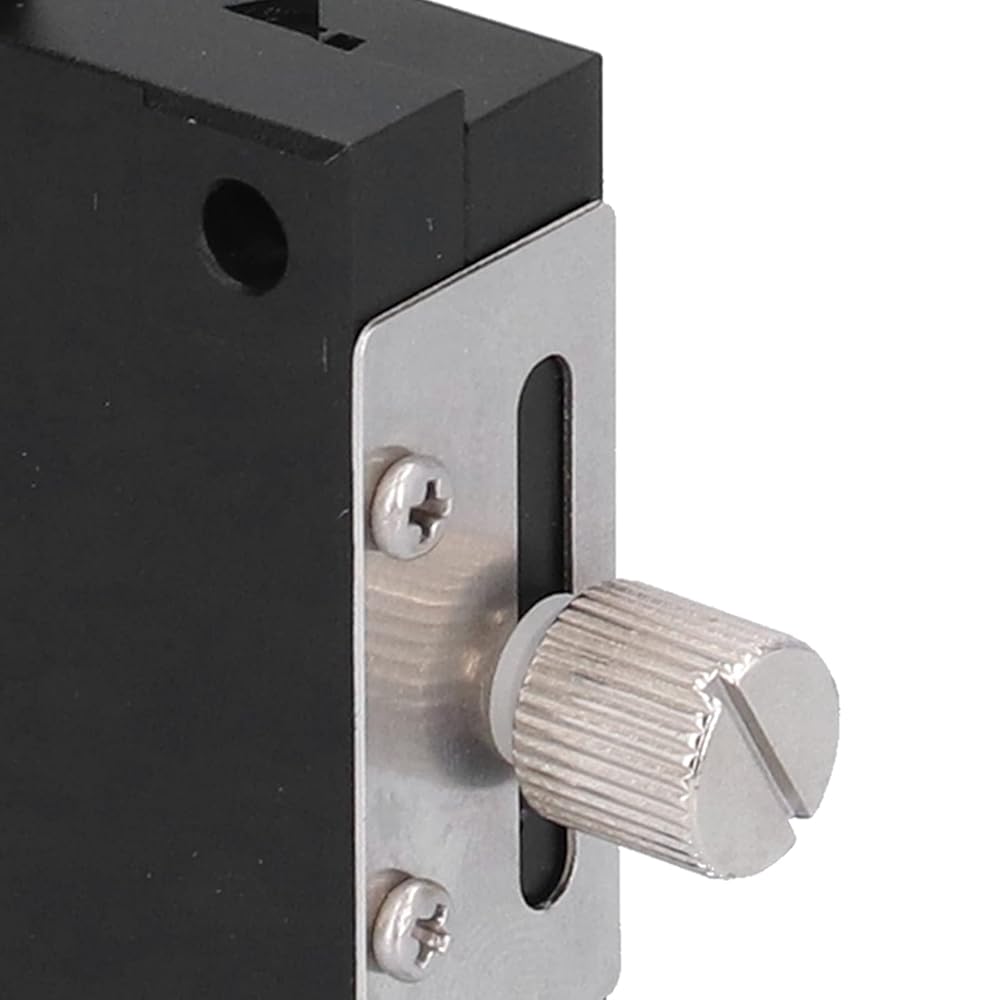

[PRECISION MOVEMENT CONTROL] Featuring a manual feed screw mechanism with dovetail guide, this stage delivers unparalleled accuracy with 0.01mm minimum reading and 0.03mm straightness. The smooth screw advancement enables precise positioning, while the high load capacity (29.4N) maintains stability during operation.
[ENHANCED SAFETY FEATURES] Designed with operator safety in mind, this linear stage incorporates R-angle protection to prevent injuries during use. The carefully engineered edges eliminate sharp corners, creating a safer working without compromising on performance or functionality.
[VERSATILE APPLICATIONS] Perfectly suited for optical equipment, semiconductor manufacturing devices, measuring instruments, and testing machines. Its compact 60x60mm size with ±8mm stroke makes it ideal for microscope positioning, photographic equipment adjustments, and various precision laboratory applications.

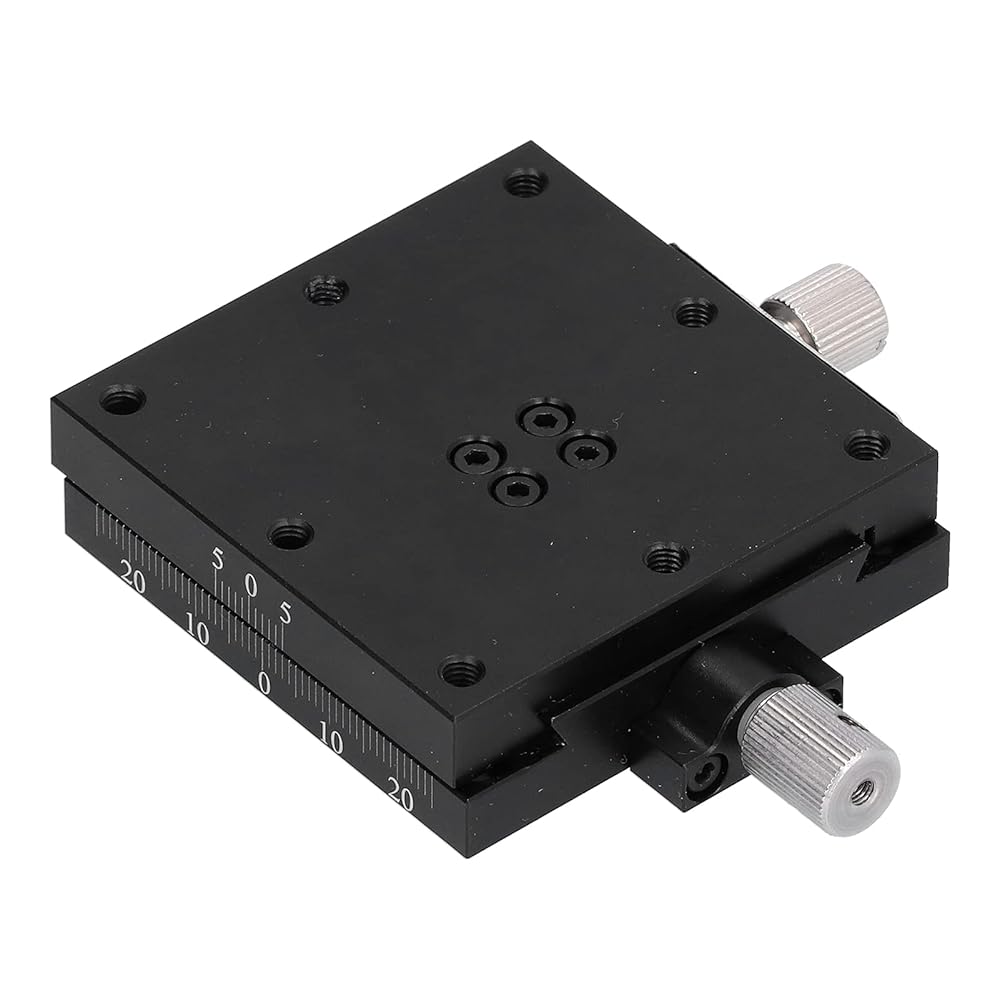

[ROBUST DESIGN DETAILS] Features 8 M4mm threaded mounting holes (6mm depth) for secure installations. The dovetail rail system ensures smooth, friction-movement, while the black anodized surface enhances both durability and professional appearance. This stage combines high performance with reliable construction for technical applications.
وصف
Item Type: X‑Axes Linear Stage
Model: HTG-A60

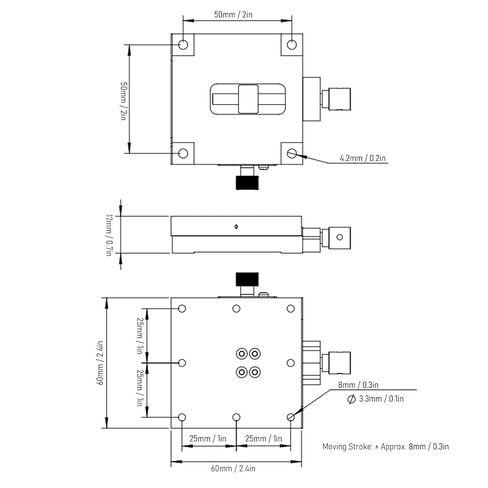

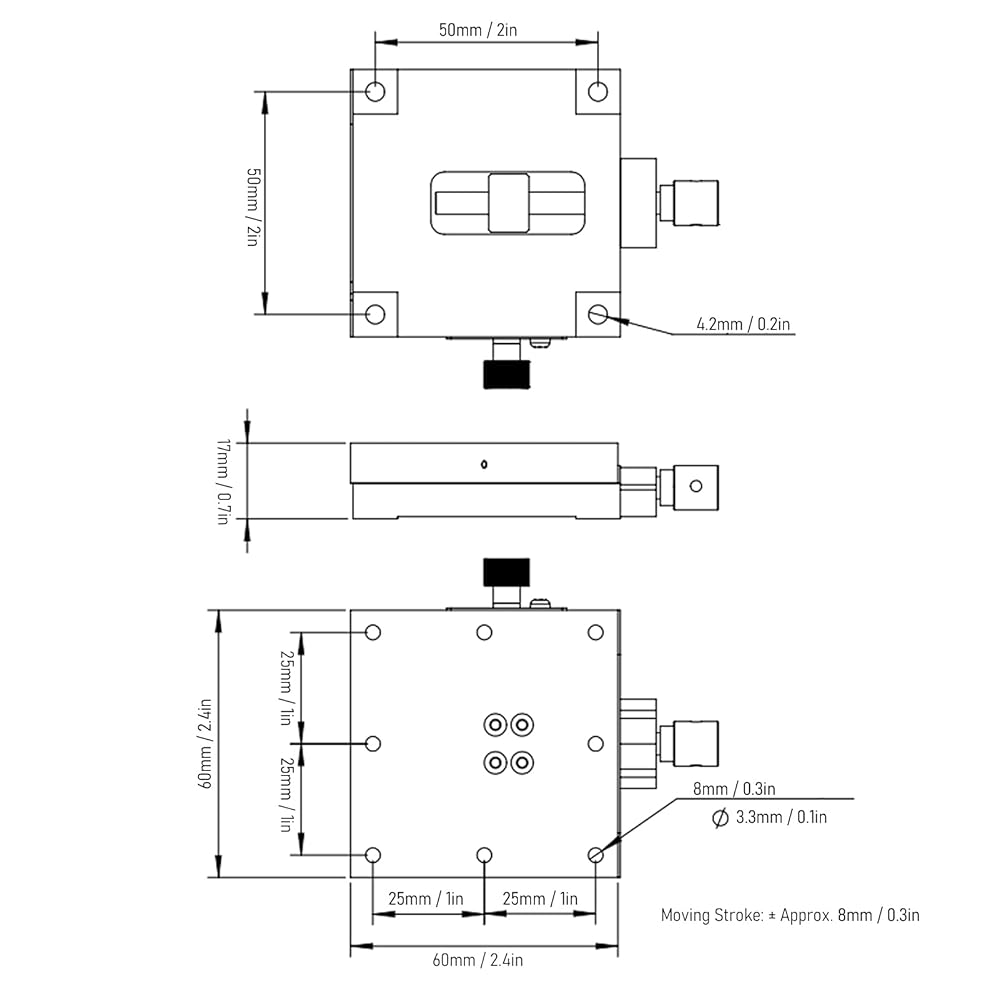

Table Size: Approx. 60 x 60mm / 2.4 x 2.4in
Moving Direction: X axes 1 direction
Body Material: Aluminum alloy (black anodized)
Drive Mode: Feed screw (manual)

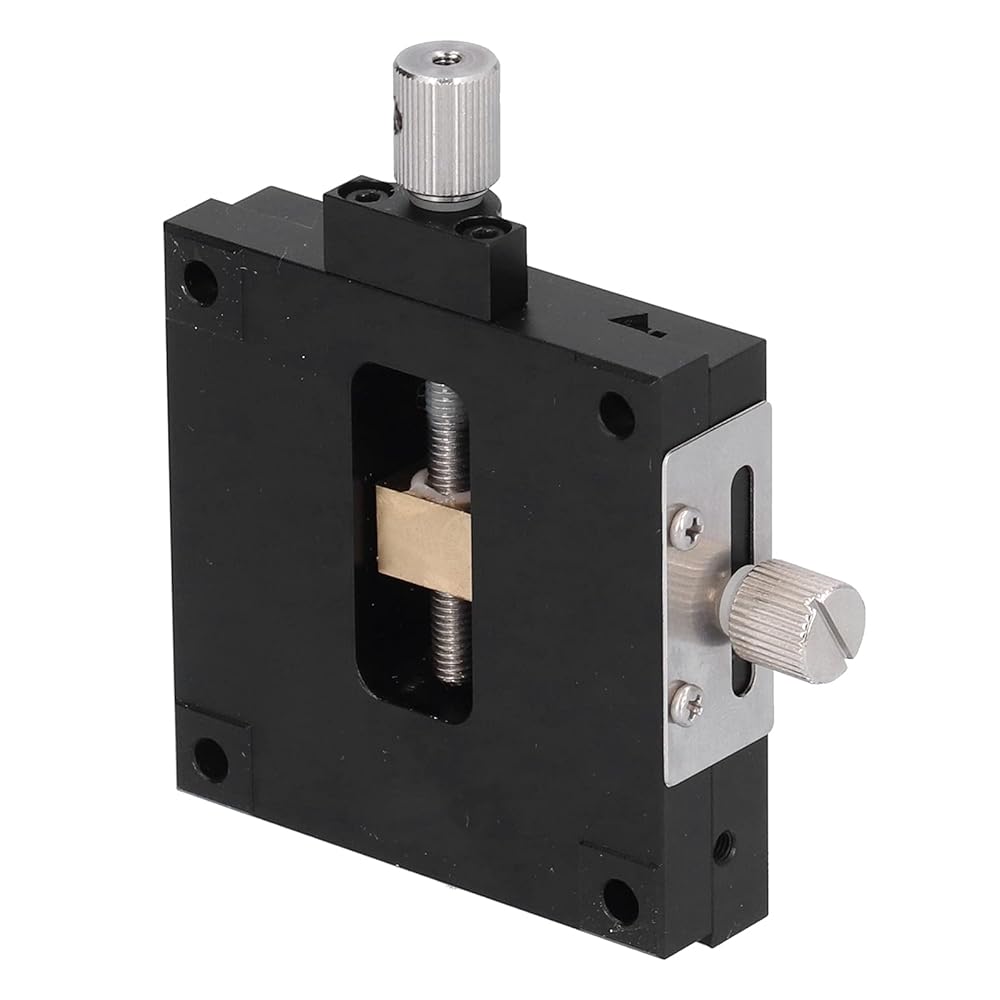

Sliding Track: Manually rotate the screw to advance (screw + nut)
Rail Type: Dovetail groove
Number of Threaded Mounting Holes on the Countertop: 8
Threaded Mounting Hole Diameter: 8-M4mm
Depth of Threaded Mounting Hole: 8-6mm
Vertical Load Resistance: 29.4N (3Kgf)
Moving Stroke: ± Approx. 8mm / 0.3in
Minimum Reading: 0.01mm
Straightness: 0.03mm
Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and others
