Miniature Bearing Types & Features
Miniature and instrument ball bearings can be divided into two basic types deep groove and angular contact The first deep groove can also be classified as "Open", "Shielded", or "Sealed" depending on the existence and type of seal or shield. Deep groove ball bearings have two inherent advantages;
they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.

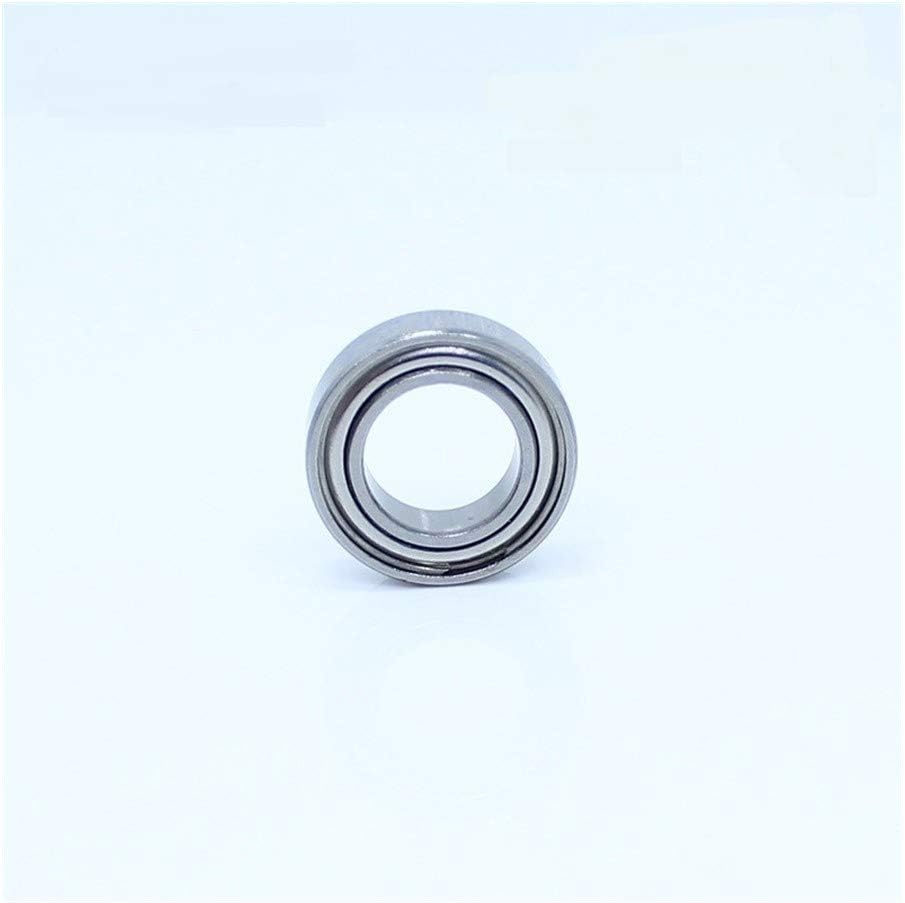

Item: MR62zz
Type: Deep groove ball bearing
Closures: 2Shielded
Bore Dia (d): 2 mm
Outer Dia (D): 6mm
Width (B): 2.5mm
Lubrication: Grease
ABEC Rating: ABEC-5
Radial Clearance Trade No.: C0
Weight (grams): 0.33
Quantity: 1 Lot = 10 Pcs
Item: MR105zz
Type: Deep groove ball bearing
Closures: 2Shielded
Bore Dia (d): 5 mm
Outer Dia (D): 10mm
Width (B): 4mm
Lubrication: Grease
ABEC Rating: ABEC-5
Radial Clearance Trade No.: C0
Weight (grams): 1.00
Quantity: 1 Lot = 10 Pcs
Item: MR106zz
Type: Deep groove ball bearing
Closures: 2Shielded
Bore Dia (d): 6 mm
Outer Dia (D): 10mm
Width (B): 3mm
Lubrication: Grease
ABEC Rating: ABEC-5
Radial Clearance Trade No.: C0
Weight (grams): 0.66
Quantity: 1 Lot = 10 Pcs
Item: MR117zz
Type: Deep groove ball bearing
Closures: 2Shielded
Bore Dia (d): 7 mm
Outer Dia (D): 11mm
Width (B): 3mm
Lubrication: Grease
ABEC Rating: ABEC-5
Radial Clearance Trade No.: C0
Weight (grams): 0.8
Quantity: 1 Lot = 10 Pcs
Item: MR126zz
Type: Deep groove ball bearing
Closures: 2Shielded
Bore Dia (d): 6
