[Easy installation] 35mm standard guide rail installation, takes up minimal space.
[High-quality ABS material] The shell ensures long-term use with high temperature and shock resistance.
[Strong Insulation] Insulates the input, output, power supply and housing with high reliability and anti-interference ability.
[Conformal coating] Protects circuit boards from erosion caused by environmental factors.
[Excellent insulation] Provides resistance, anti-leakage, anti-vibration, anti-aging and anti-performance.

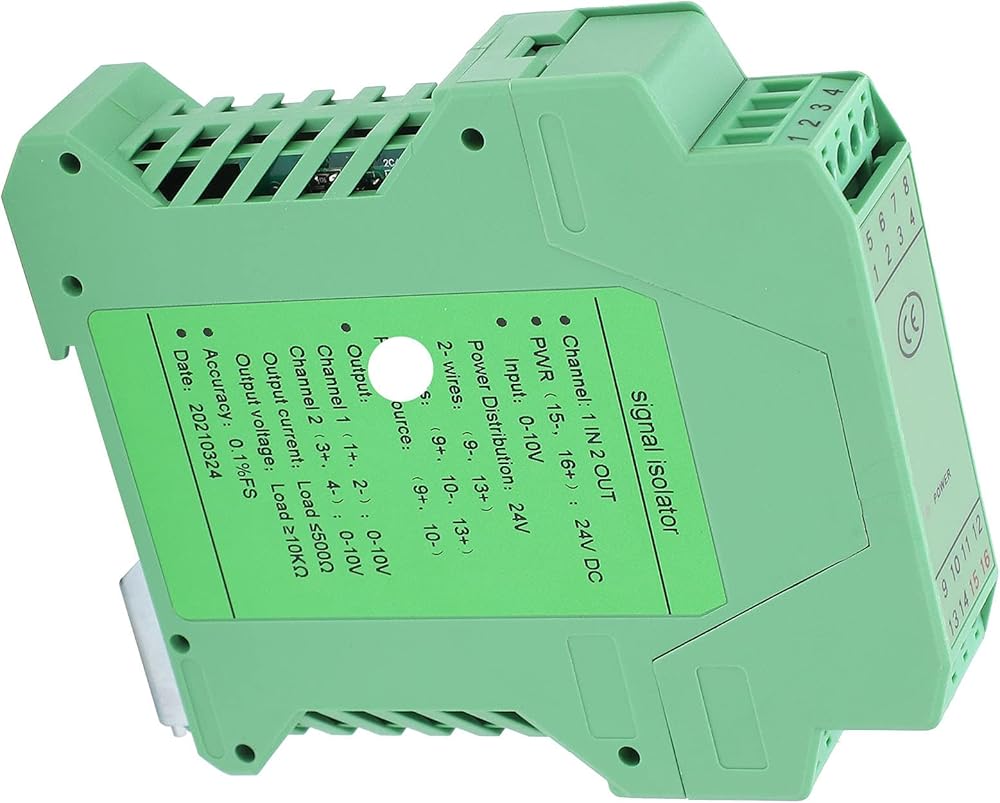

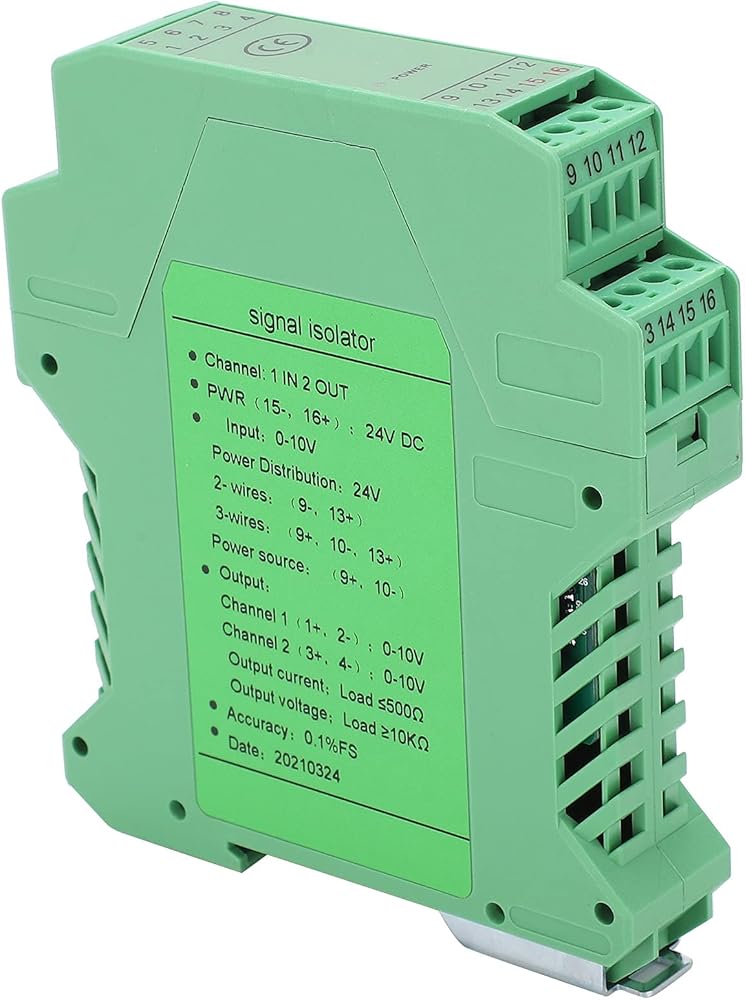

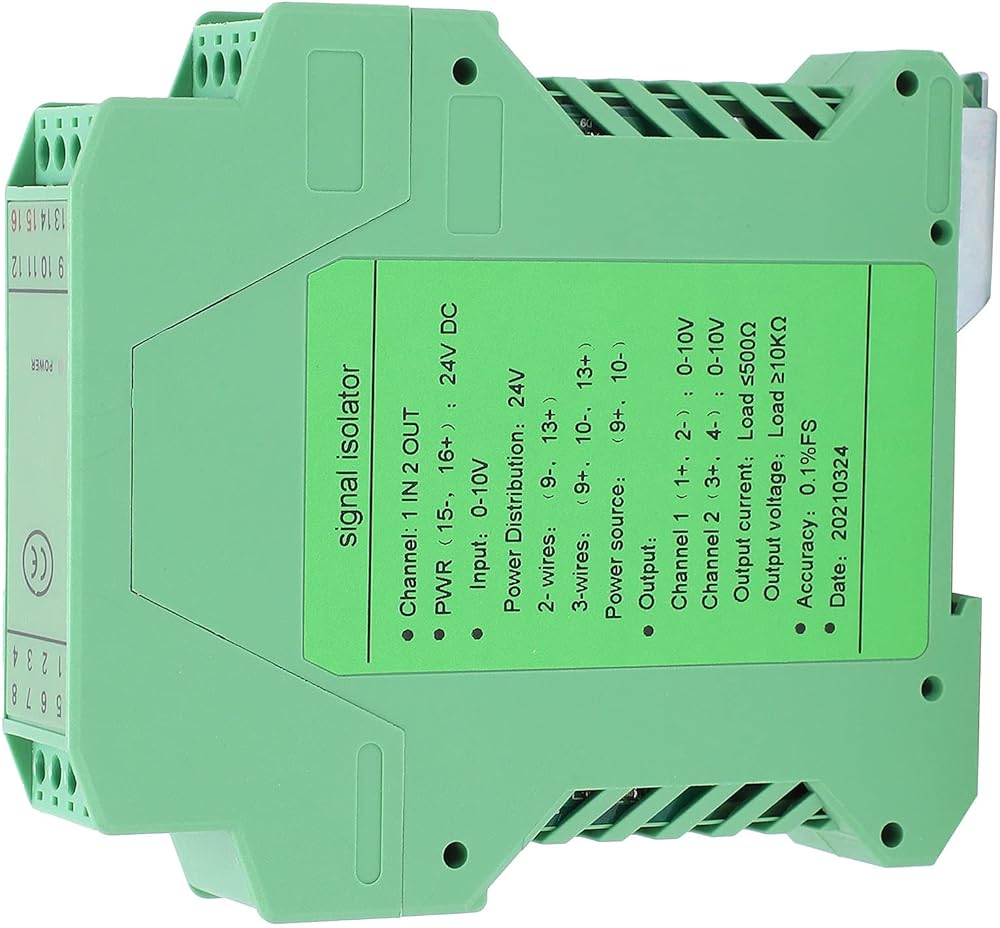

Specifications:

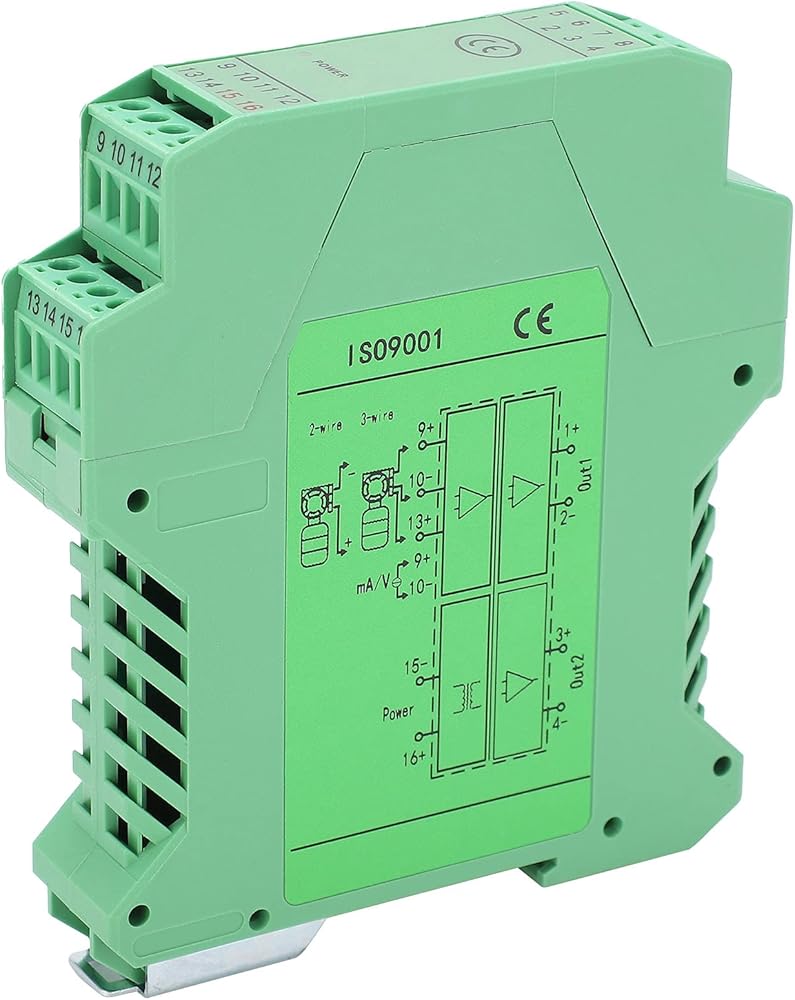

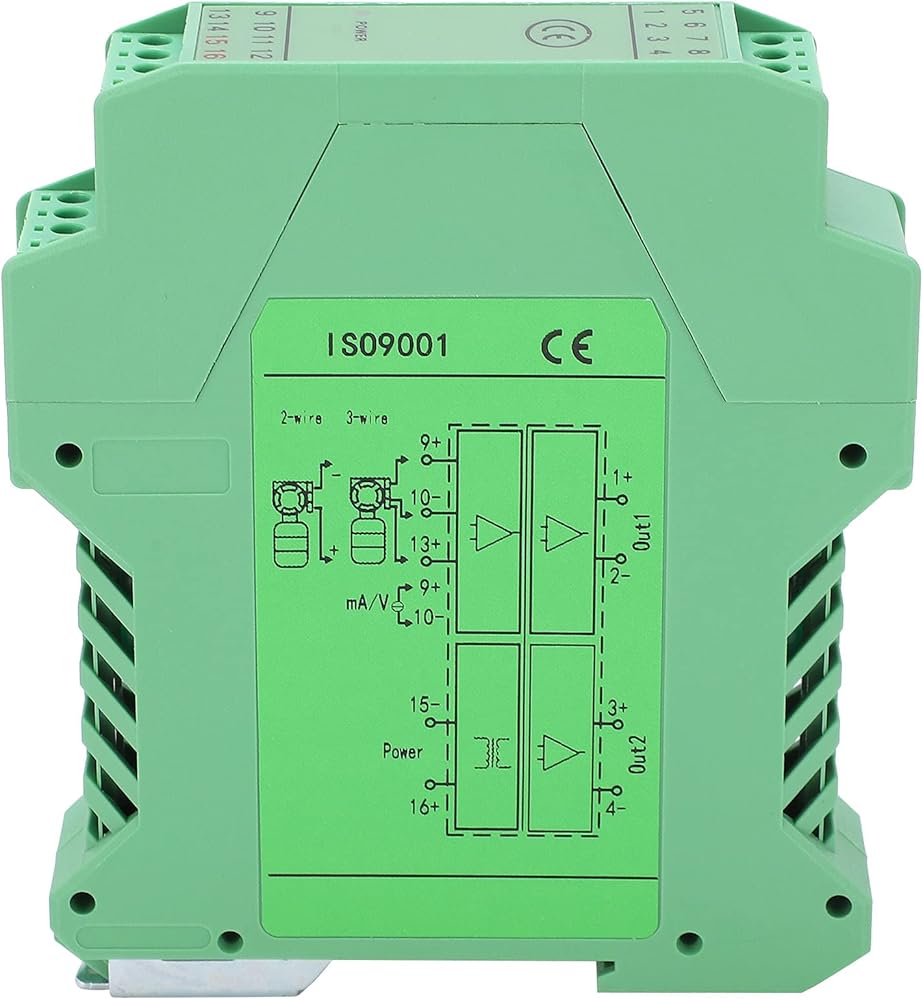

Item Type: Isolator
Material: ABS
Model: GLG

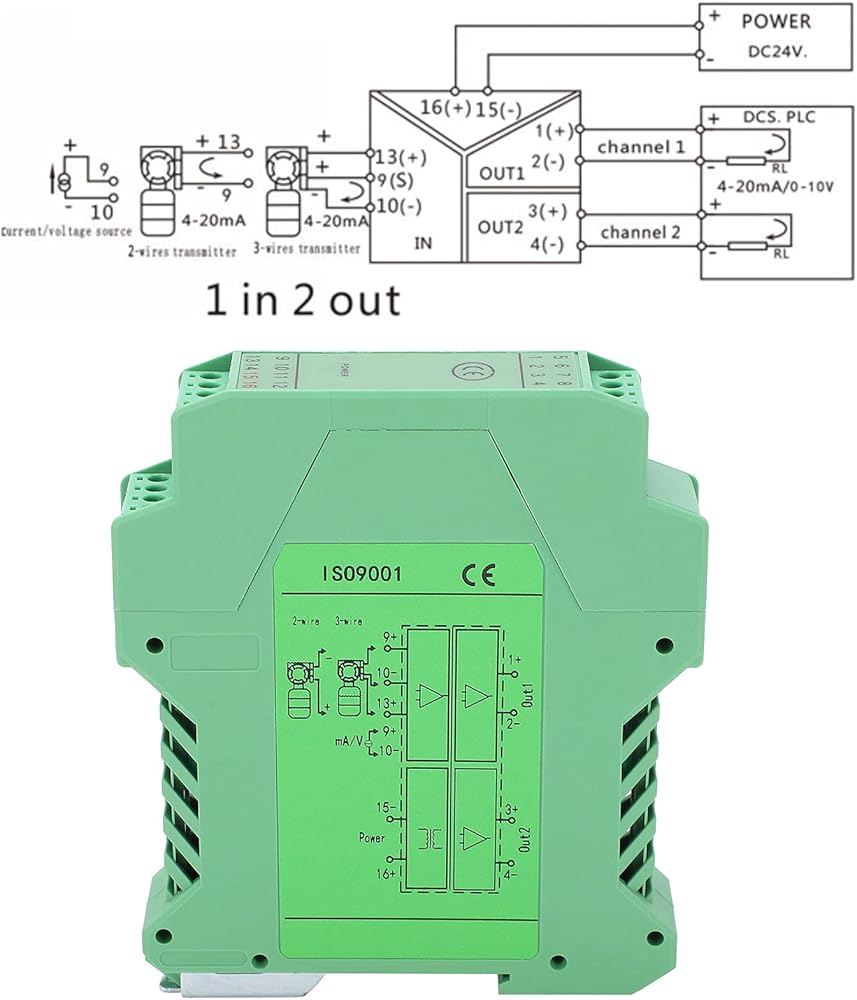

Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
2-wire system: (9-, 13+)
3-wire: (9+, 10-, 13+)
Power supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output current: load ≤500Ω
Accuracy: 0.1% FS
Working temperature range: -20- +55°C
Electromagnetic compatibility: Conforms to GB/T 18268 (1EC61326-1)
Applicable field equipment: 2-wire, 3-wire transmitter, power source

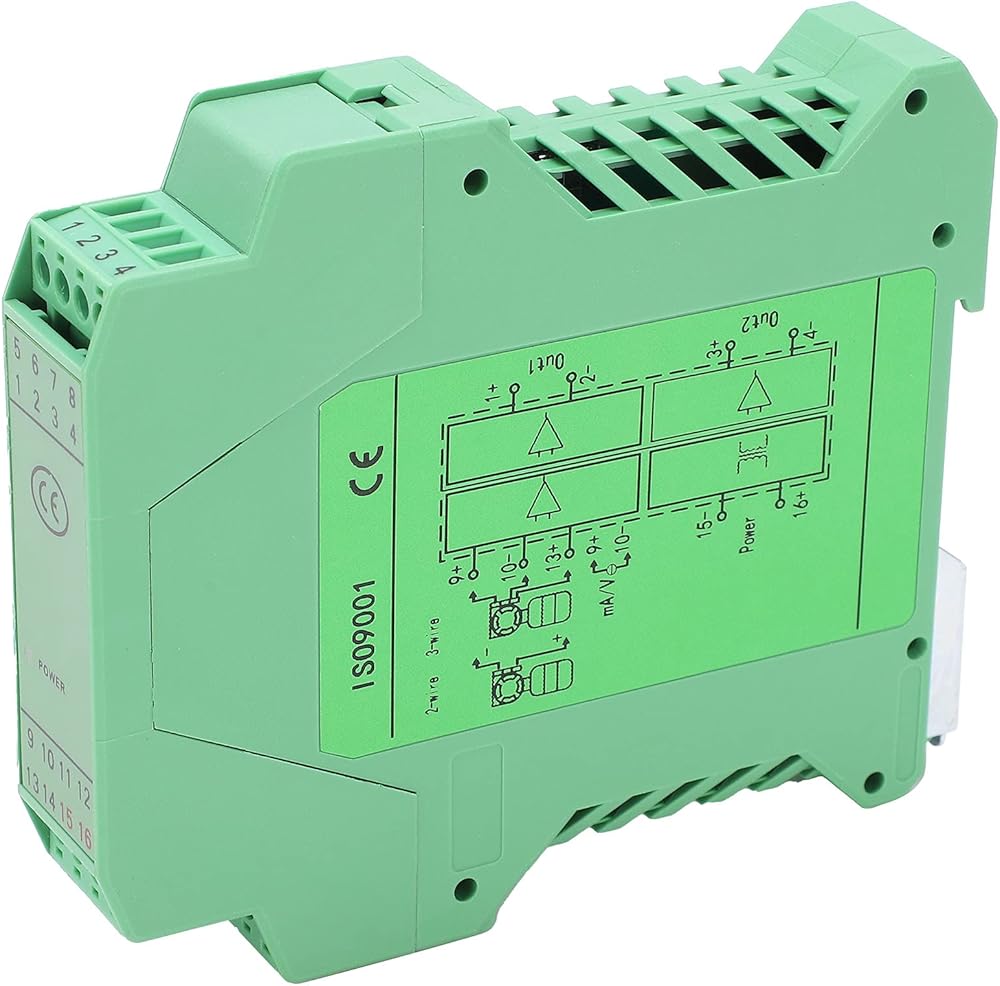

Product description:
DC24V power supply, provides isolated power distribution for the on-site transmitter, and simultaneously isolates and transmits the transmitter generated power from the site to the control room, PLC, DCS and other power source of the input terminal interface, 2-wire system, 3-wire system transmitter General use; internal use of high-efficiency magnetic insulation technology, isolation between input, output and power supply, with high accuracy, high linearity, low temperature drift and other characteristics.

Package List:
1 x Isolator

How to use:
Installation method:
1. When installing on a 35 mm rail, pay attention to the stability and strength of the bayonet during the
