1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.

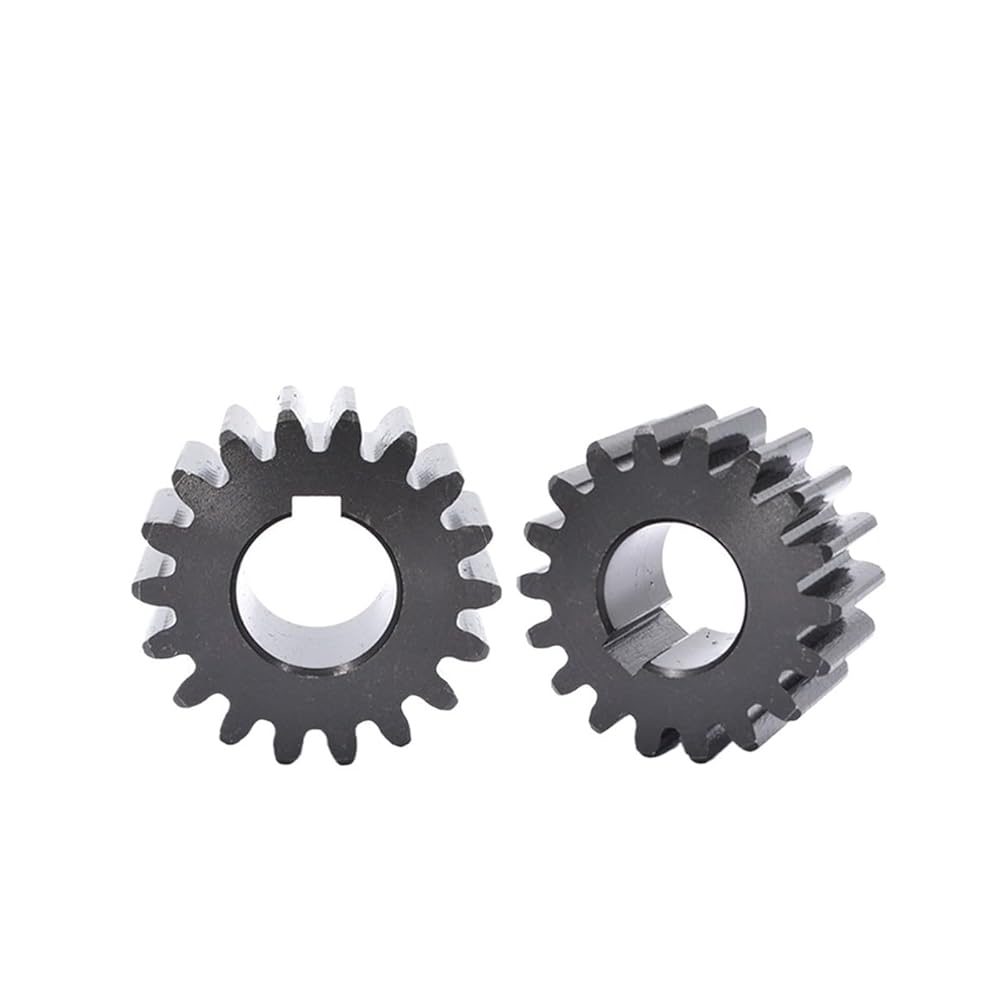

Name: Spur Gear
Module: 2M
Material: 45# Steel
Surface Treatment: Blackened
Pitch: 6.28mm
Thickness: 20mm
Number of Teeth: 24 Teeth
Keyway Bore:
14mm-keyway 5x2.3mm
15mm-keyway 5x2.3mm
16mm-keyway 5x2.3mm
18mm-keyway 6x2.8mm
20mm-keyway 6x2.8mm
22mm-keyway 6x2.8mm
24mm-keyway 8x3.3mm
25mm-keyway 8x3.3mm
Tooth Surface Hardness: Hardened Tooth Surface
E.g.: 24 Teeth (OD 52mm) (OD=Outer Diameter)
