Specification:

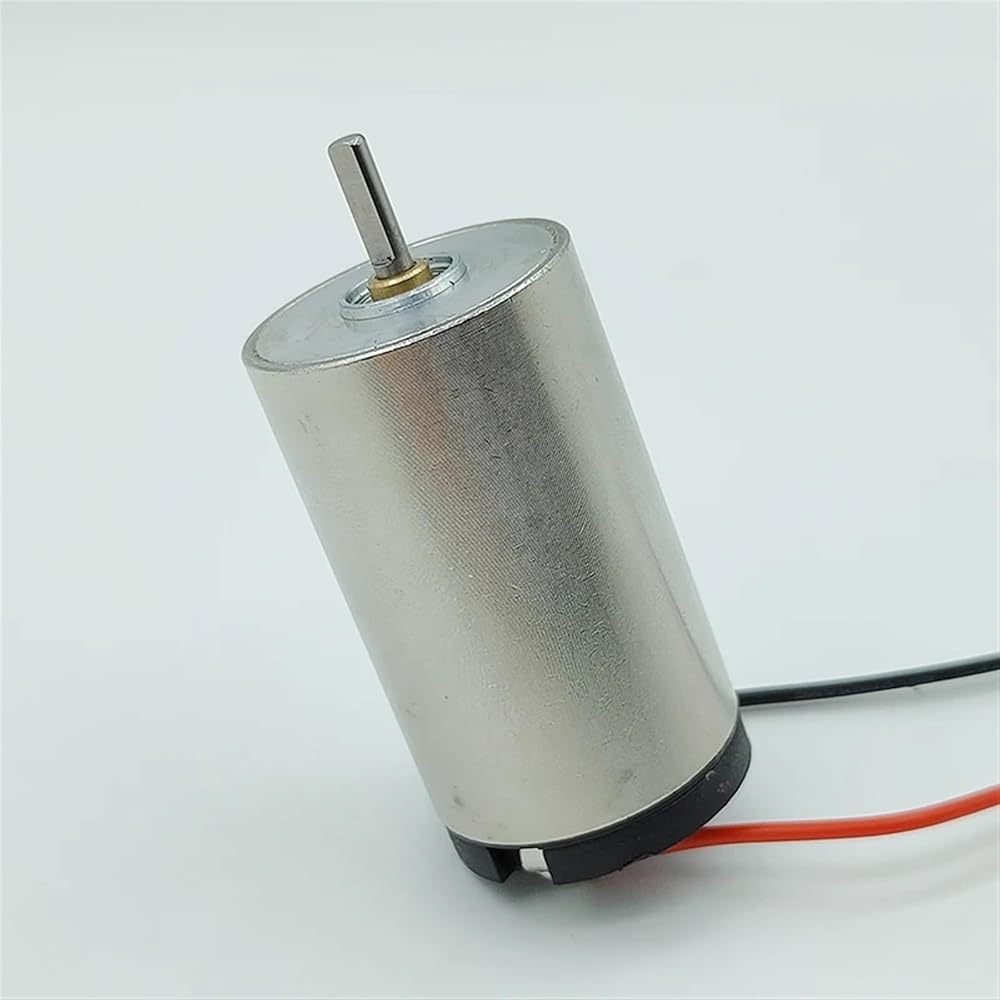

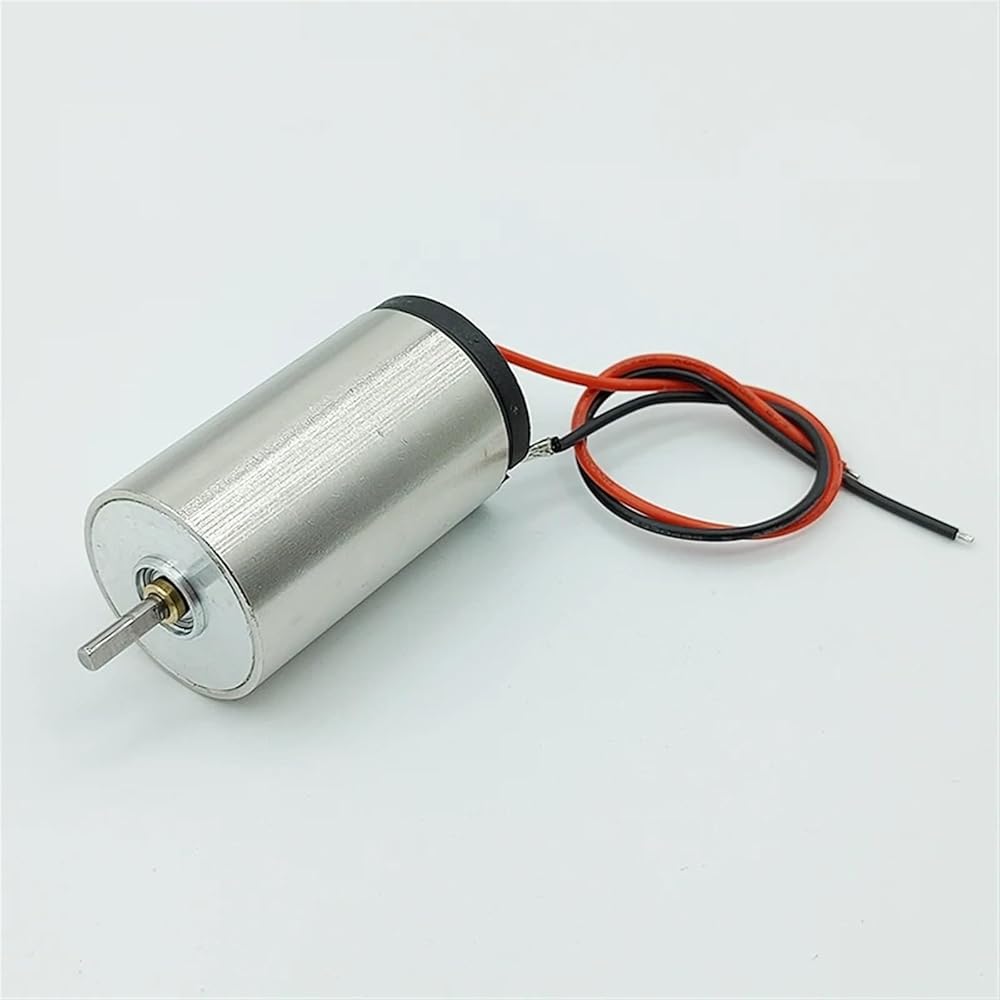

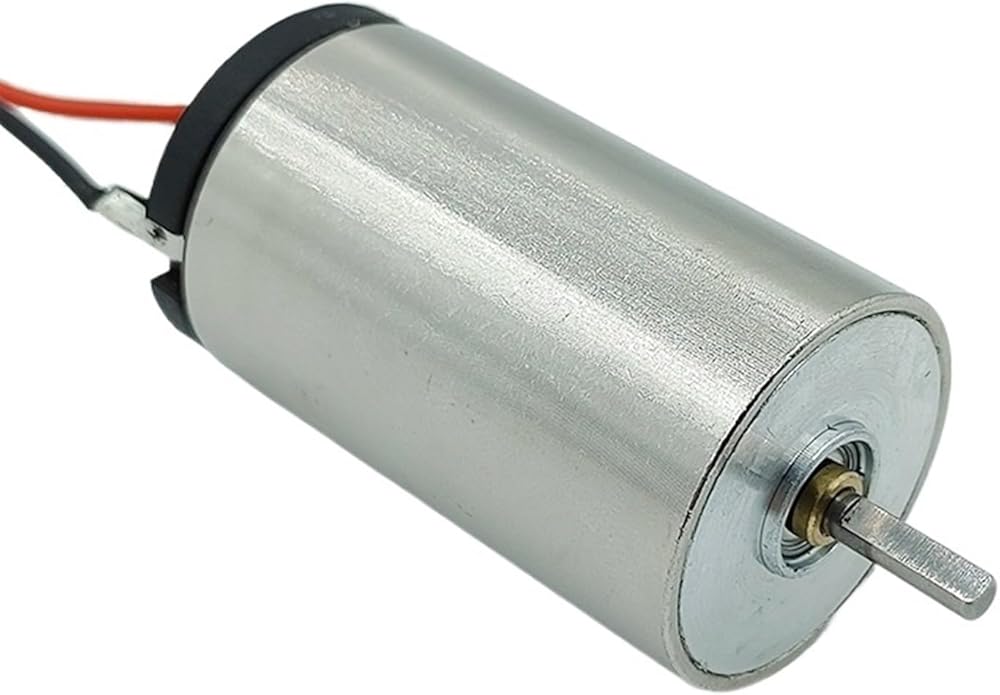

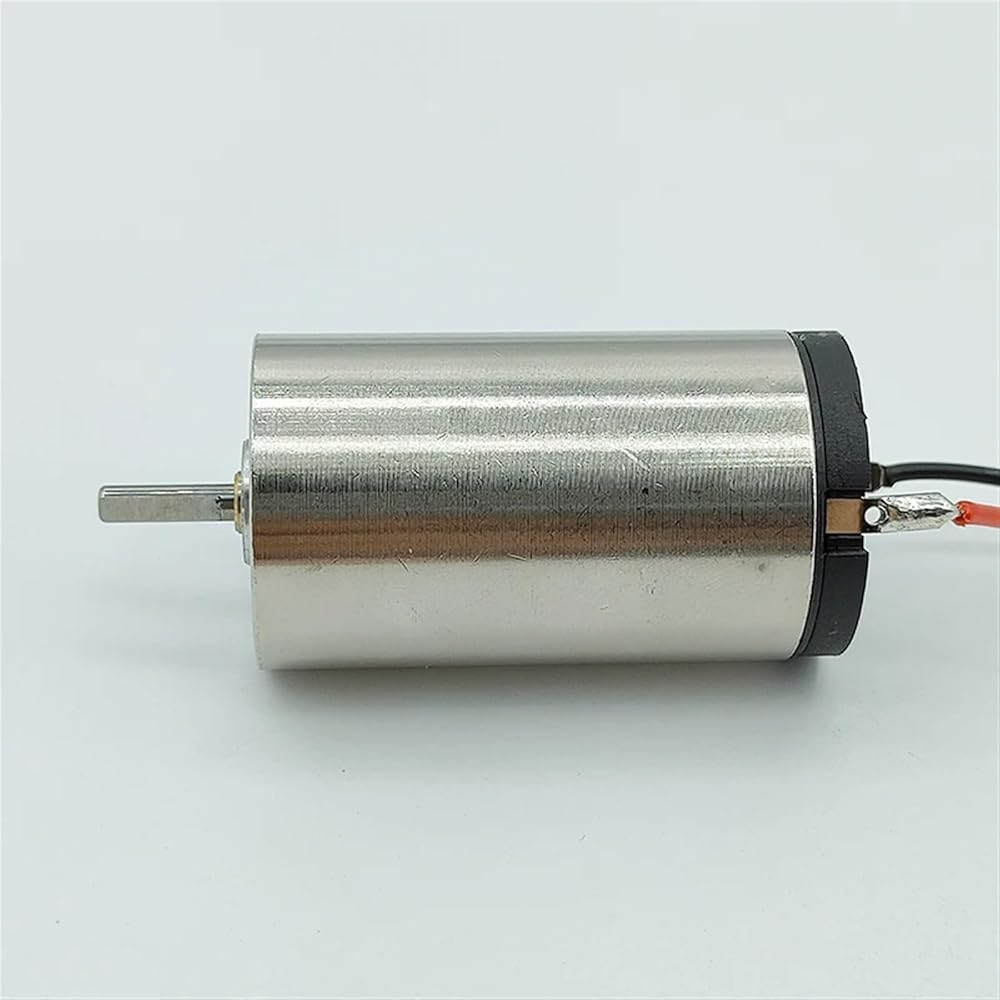

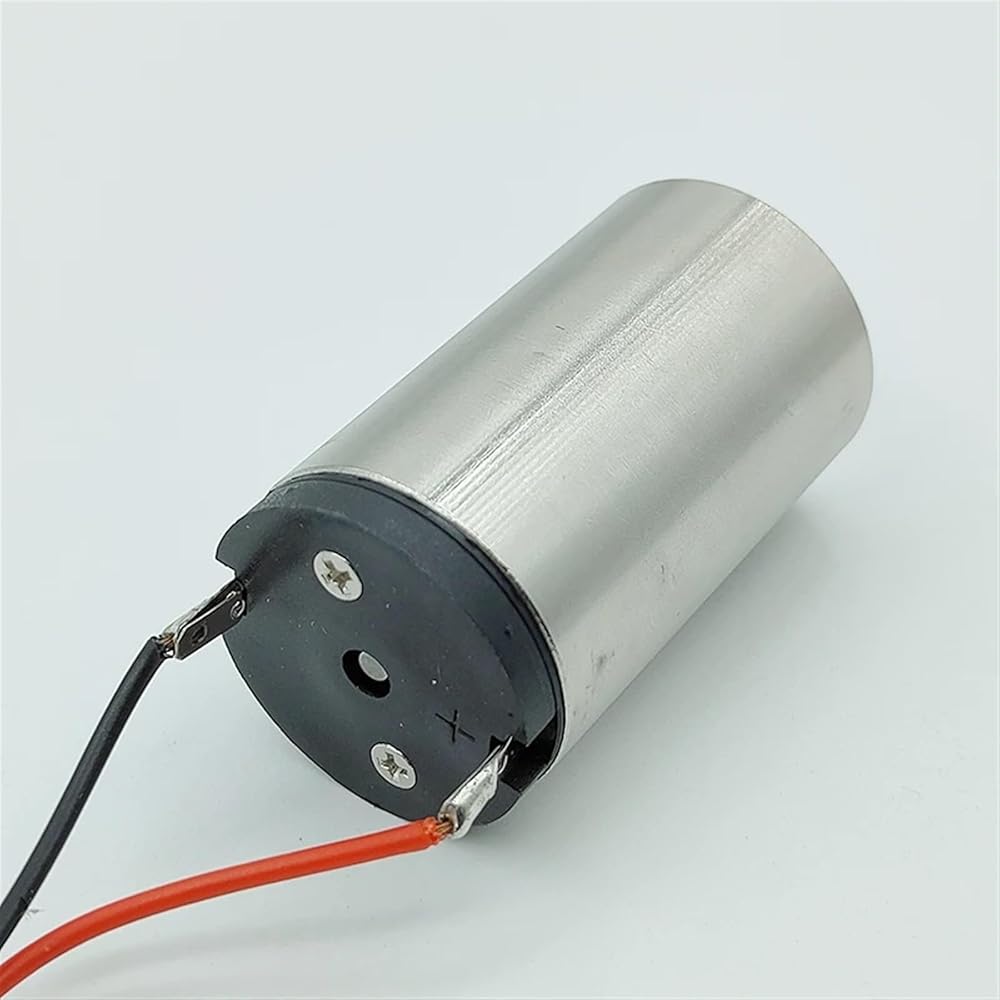

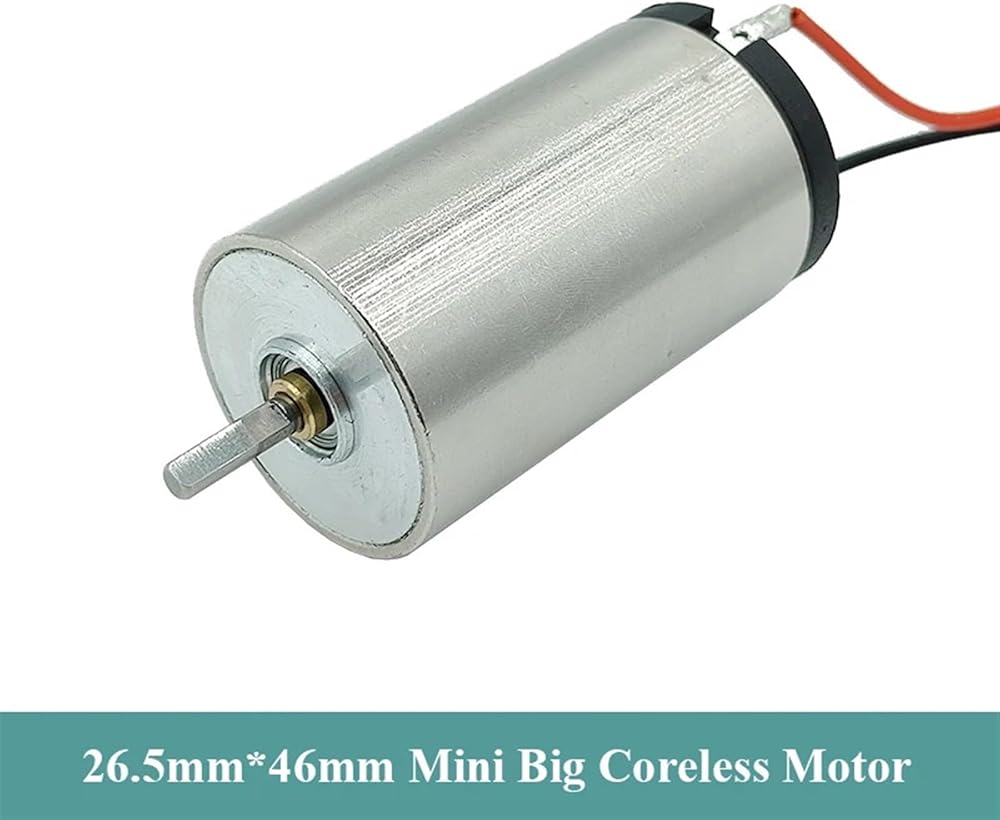

The high-speed hollow cup motor with a diameter of 26.5 mm, neodymium strong magnetic stator, double ball bearings, special-shaped compensated carbon brushes with spring coils, and high copper content wear- type are in stock. This motor is a high-speed high-power motor with relatively strong power.
The hollow cup motor is generally better than the motor of the same specification in terms of energy saving efficiency and response. It is a high-end motor with high efficiency and high response. This motor is used in the for automobiles, but it is measured that if the 12V voltage is too high, it will generate heat.
It is estimated that it will work for a short time under 12V voltage. It is recommended to use it within 8V.
It is not too to use it for half an hour without load when testing 8V. The 5V service performance is also good.
The speed can 12000 rpm, and the locked rotor current can 9A, The 8V locked rotor current is 13A, and the rotating speed is 19000 rpm. The test is for reference only. It is recommended not to use locked rotor frequently, or the coil will be damaged if it is overheated.
The measured no-load speed and no-load current of the motor are as follows:
Voltage: 5.0V no-load current: 0.40A no-load speed: 12000 rpm.
Voltage: 8.0V no-load current: 0.45A no-load speed: 19000 rpm.
Voltage: 12V no-load current: 0.50A no-load speed: 30000 rpm (Not Recommended)
=============================================================================
Package List:
Motor x 1pcs
