Reducers
Description
Type: Motor
Usage: Home Appliance
No load Speed: 4000-15600RPM
Model Number: R390
Output Power: 8-30W
Voltage: 6-24V
Features:
- The rotor is made of silicon steel, with low finished current, large and stable .
- The casing is made of high-density steel pipe, with strong internal magnetic and large motor .
- 8 Advantages: High , Low noise, Stable performance, Strong power, Small size, High efficiency, Speed block, and Energy saving.
-Suitable for DIY toys, small appliances, electric tools, hair dryers, massage chairs, floor sweepers, children's electric vehicles, etc.
- and !
- All copper movement, cold rolled steel sheet, low temperature rise, high efficiency and sufficient power.
- Advanced technology, fine specifications of finished products, small tolerance, high bearing fit and stable .
Product Type: DC Motor
Rated Voltage: DC 12V
Operating Range: DC 6-24V
No Load Speed: 4000RPM(6V), 7200RPM(12V), 15600RPM(24V)
Locked Rotor: 3.8/A
Output Shaft Diameter: 2.3mm
Output Shaft Length: 12mm

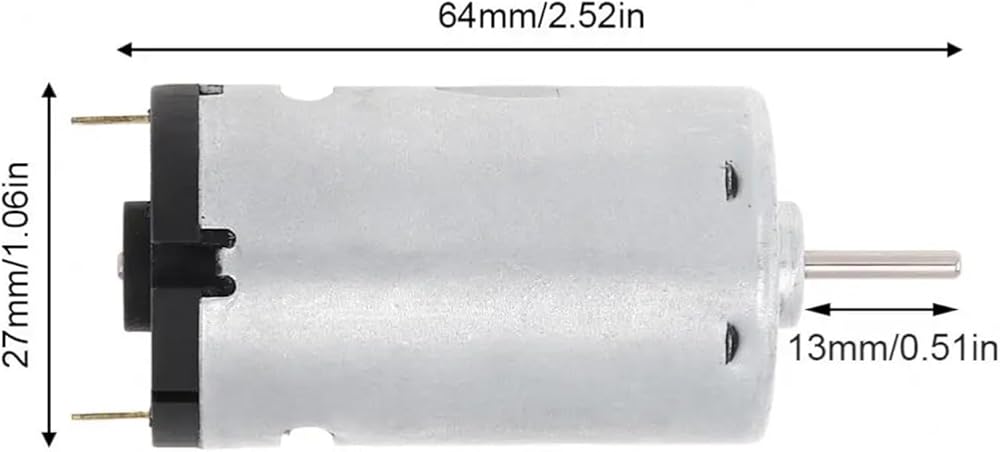

Motor Body Diameter: 27.7mm
Motor Body Length: 47mm
Fix Hole Screw: use M2.5
Fix Hole Pitch: 16mm
Product Weight: 88 G / 3.10 Ounces
Product Dimensions (L*W*H): 65*28*28 MM / 2.56*1.10*1.10 Inches
Package Weight: 88.0 G / 3.10 Ounces
Package Dimensions (L*W*H): 65*28*28 MM / 2.56*1.10*1.10 Inches
Retail Packaging: No, No Packing
Package include
Package Including:
1 x DC Motor
