Thermowells

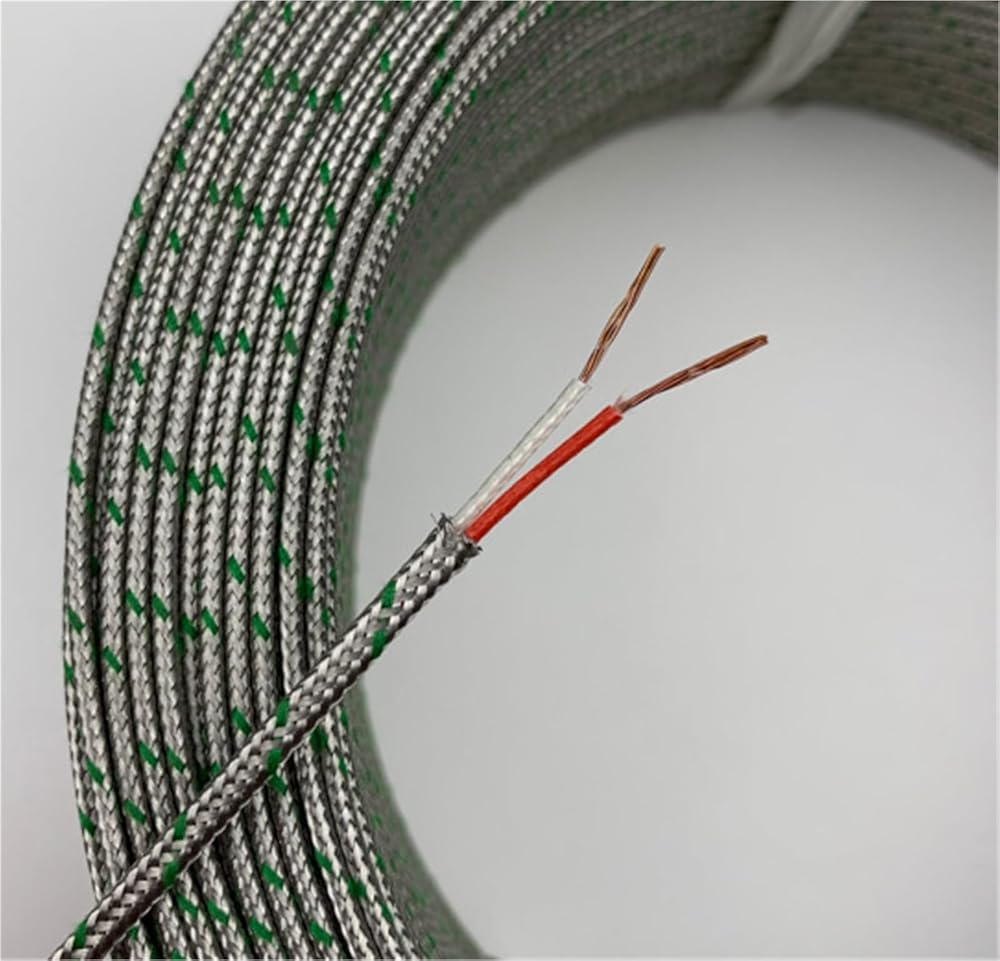

I .Name: Compensation Wire
Graduation number: R/S
Sheathing: stainless steel shield
Insulation: fiberglass
Conductor diameter: 2*7*0.2mm
Red positive, white negative
Fits all our temperature controllers.
Quotations of different lengths of lead wires are available upon request.
This item has been tested in good working condition before auction.
Wholesalers are welcoe
II .Name: Compensation Wire
Graduation number: R/S
Sheathing: PTFE
Insulation: PTFE
Conductor Diameter:
EXTT-RS-24(2*0.5mm)
EXTT-RS-20(2*0.8mm)
Red negative, black positive
III. Platinum Rhodium thermocouple compensation wire
1.Sheath:PTFE Green ()
2.Temperature resistance 260°C
3.Structure: 7 / 0.3mm Outer diameter: 3.5mm
4.Shielding: high-density tinned copper mesh woven
5.Insulation: PTFE Temperature resistance 260 °C
6.Conductor: copper-copper-nickel
7.Positive black negative red
8.ANSI/ASTM E-230 United States standard, type S and type R universal wire
IV.
Platinum Rhodium thermocouple compensation wire
sheath: PTFE Orange (IEC) temperature resistance 260°C
structure: 7 per share 0.3mm outer diameter: 3.5mm
Shielding: high-density tinned copper mesh weaving
insulation: PTFE
Temperature resistance 260°C
Conductor: copper-copper-nickel positive orange negative white
IEC-58 EU international standard, S type and R type universal wire
==========
High-concerned chemical : None
Theory : Thermocouple Thermometer
Model Number : RS
Use : Industrial
Name : Fiberglass Thermocouple wire
Type : RS
Insulation : Fiberglass
Sheath : Stainless Steel Shield
Roll : 100M Per Roll
