Roller Tables

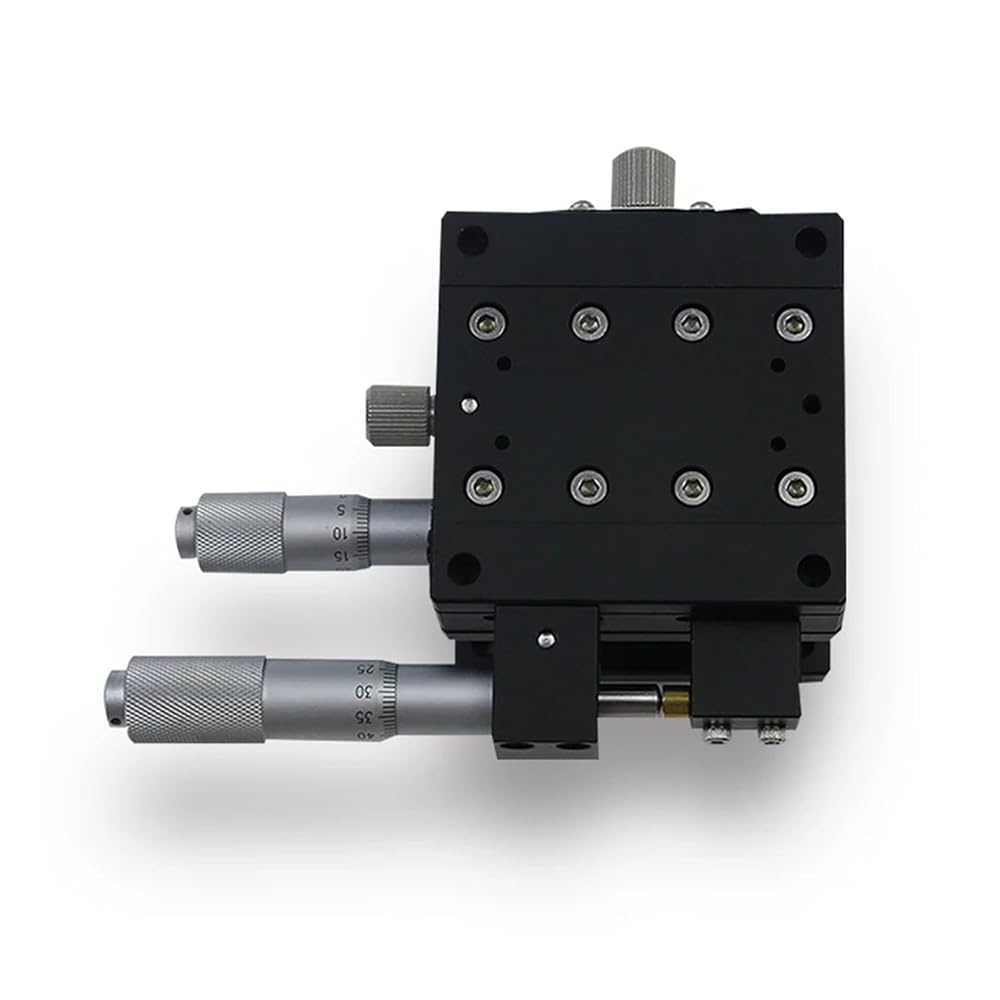

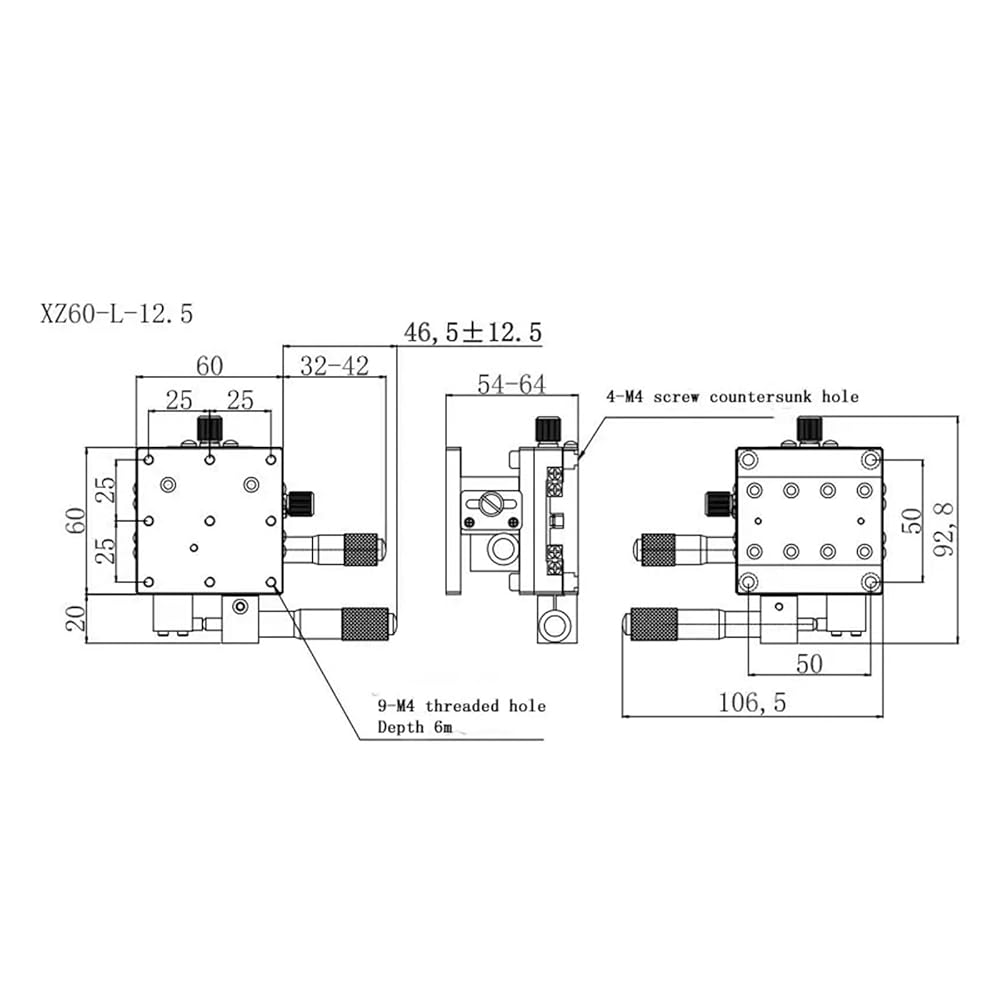

Product model specifications: XZ60-L±12.5
Movement direction: XZ axis two degrees of freedom
Achievable: linear displacement fine-tuning + horizontal lifting fine-tuning
Material: Aluminum alloy (surface black anodized)
Workbench size: 60mm×60mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: X axis ±12.5mm, Z axis 10mm
Table thickness: 54mm-64mm
Micrometer minimum reading: 10um/scale
Load: 24.5N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.51KG
