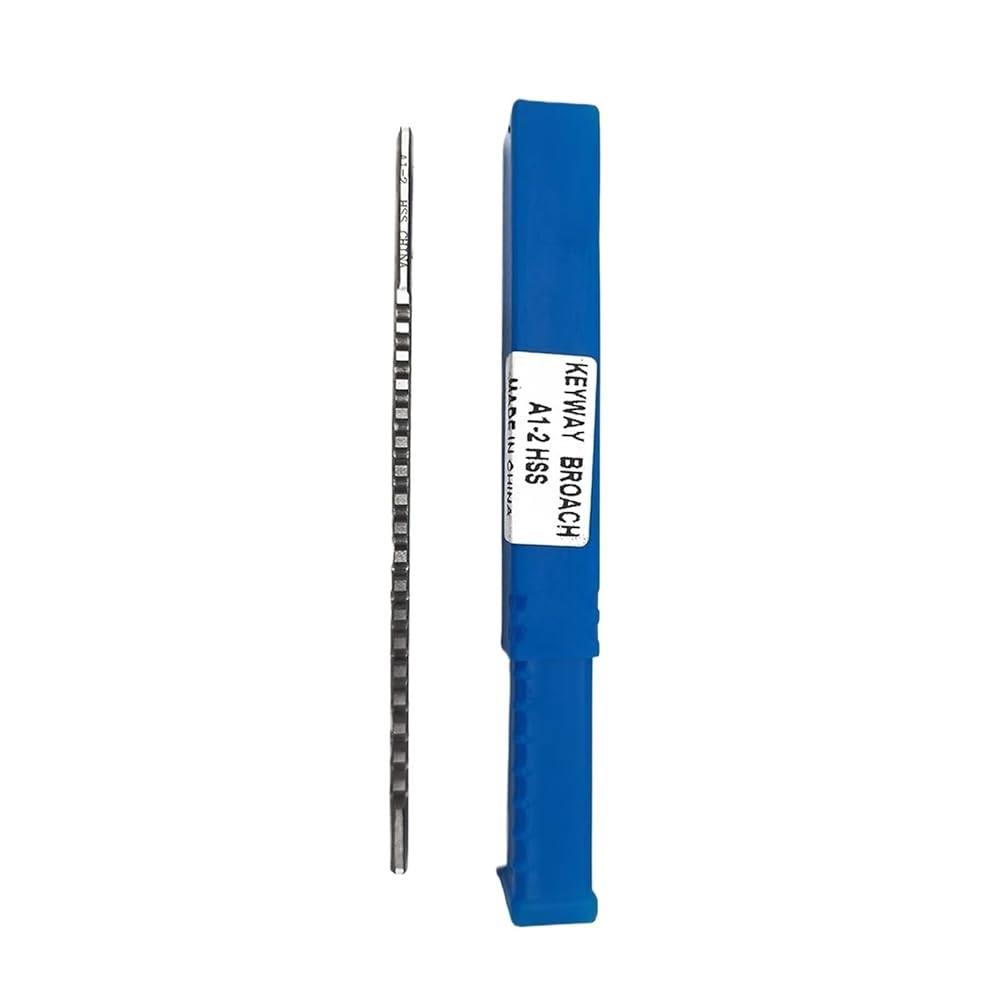

1PC 2/3/4/5/6/8/10/12/14mm A1/B1/C1/D1 Type Push Type Keyway Broaches HSS Keyway Tools for CNC Machine Tool
Broach Size
Style
Correction height(mm)
Leading height(mm)
Broach Dimensions*(mm)
Keyway Width(mm)
Length of Cut * min.-max.
Shims(pcs)
2mm
A1
6.2
5.105
3.26X127
b=2.012
13/64 - 1 1/8
0
3mm
A1
5.7
4.92
3.26X127
b=3.01
13/64 - 1 1/8
1
4mm
B1
10.8
9.66
6.45X171.5
b=4.01
19/64 - 1 11/16
1
5mm
B1
10.8
9.66
6.45X171.5
b=5.01
19/64 - 1 11/16
1
5mm
C1
16.38
15.15
9.64X298.5
b=5.01
25/64 - 2 1/2
1
6mm
C1
16.64
15.02
9.64X298.5
b=6.01
25/64 - 2 1/2
1
8mm
C1
15.95
14.62
9.64X298.5
b=8.01
25/64 - 2 1/2
2
10mm
D1
23.84
22.3
9.64X298.5
b=10.02
1-6
2
12mm
D1
23.63
21.98
9.64X298.5
b=12.02
1-6
2
14mm
D1
23.63
21.98
9.64X298.5
b=14.02
1-6
2
16mm
Origin : China
