R/C Color Bearing Series
After more heavy day of bashing, racing, crawling, or whatever kind of driving you like,
It's important to update your bearings to prepare for your next session!
This is the RC racing bearing series,
More colorful colors,
More reasonable structure,
To give you a better update experience for RC cars,
If you have any questions, please contact us before purchase.
We also offer a full range of bearing update custom services for different RC car types,
Build RC Dream.

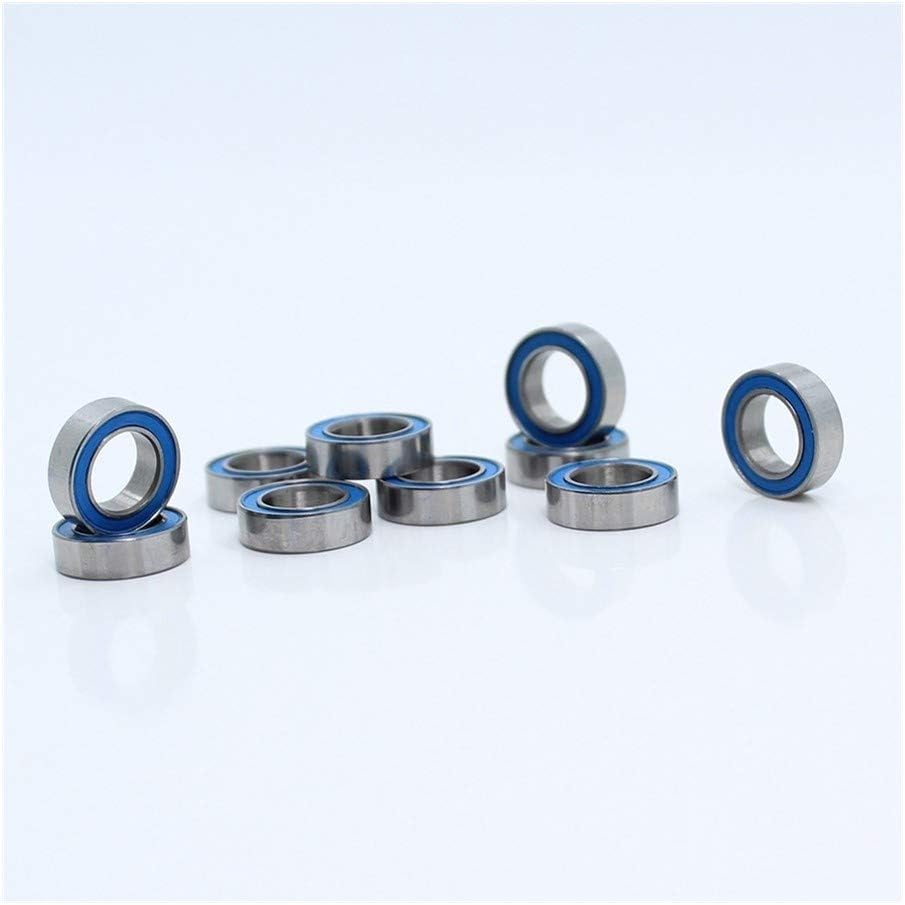

Model Number: MR106-2RS
Torque Capacity: 6x10x3 MM
Surface Roughness: Ra 0.05
Structure: Deep Groove Ball
Material: STEEL
Coatings: 52100 Chrome Steel
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Sealed
Part Number: MR106 2RS
For Shaft Diameter: 6mm

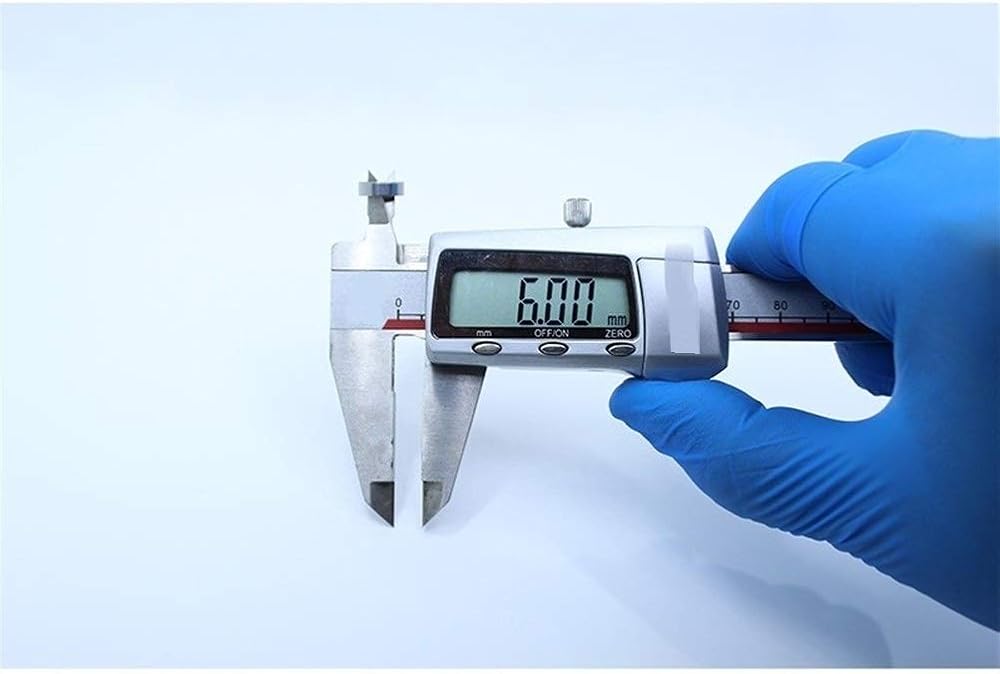

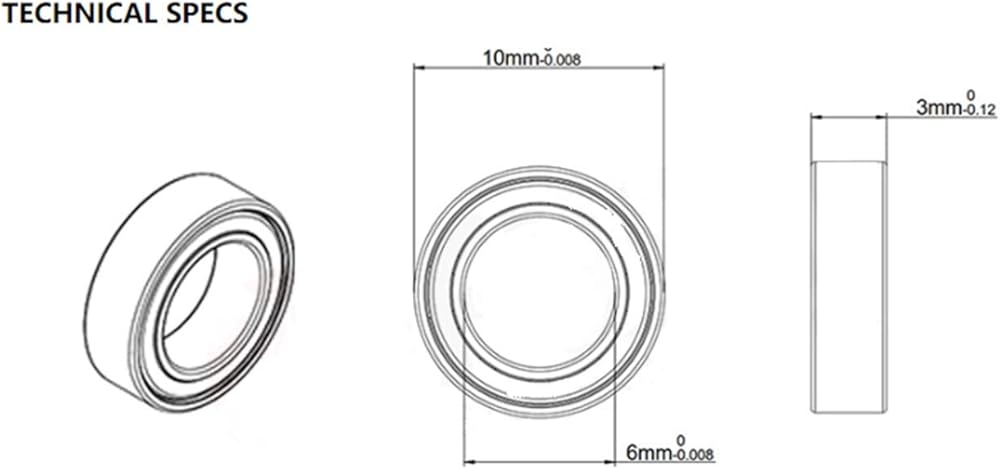

Bore Dia (d): 6mm
Bore Dia Tolerance: -0.008mm to 0
For Housing ID: 10mm

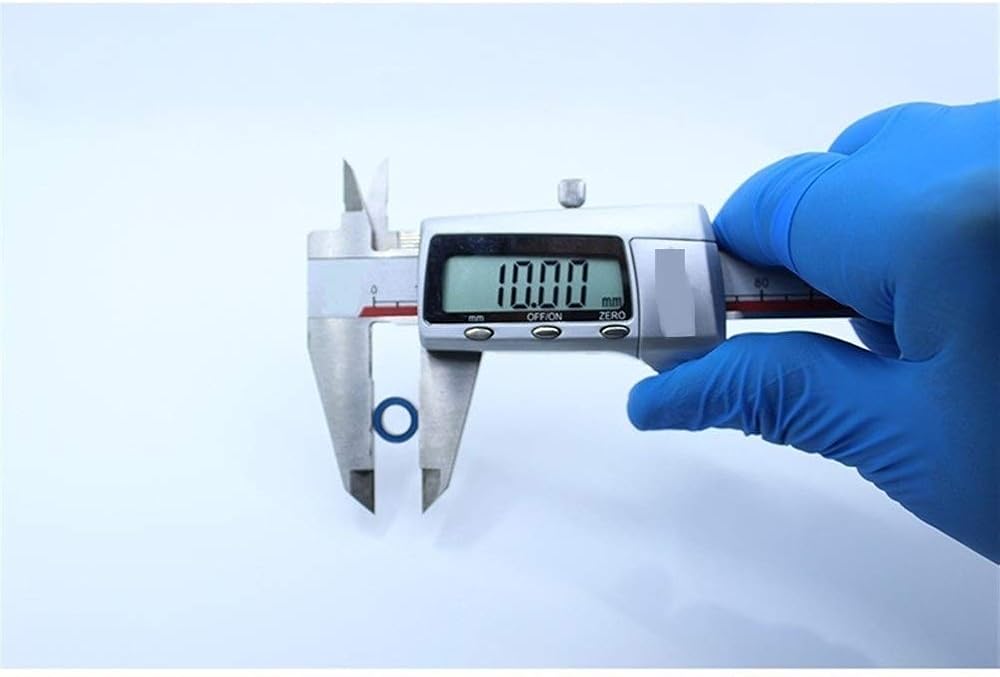

Outer Dia (D): 10mm
Outer Dia Tolerance: -0.008mm to 0

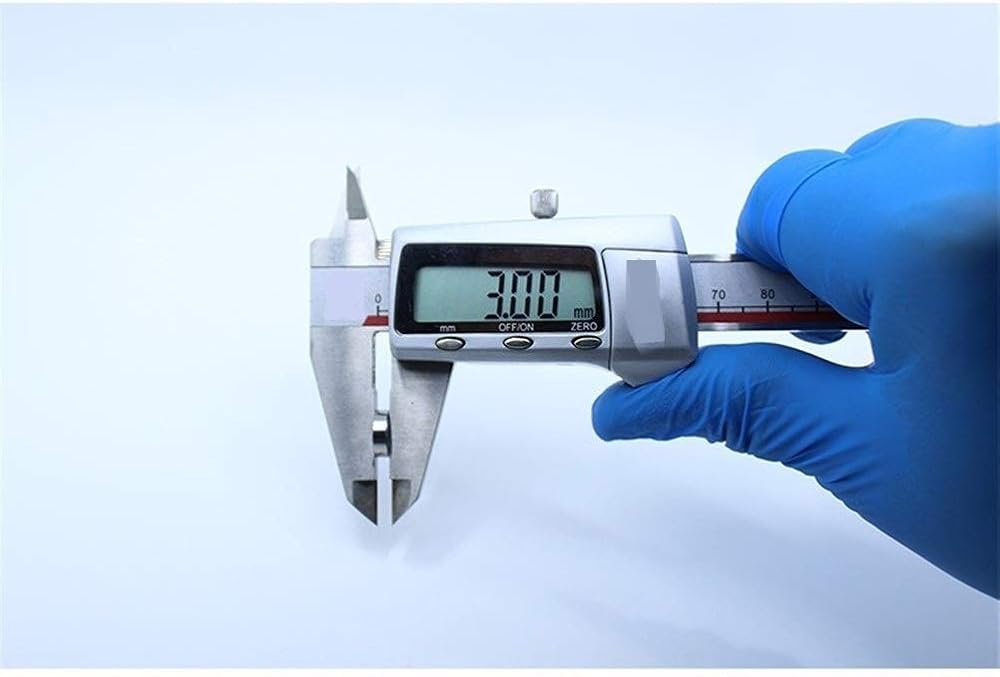

Width (B): 3mm
Width Tolerance: -0.12mm to 0
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: 300 Series Stainless Steel

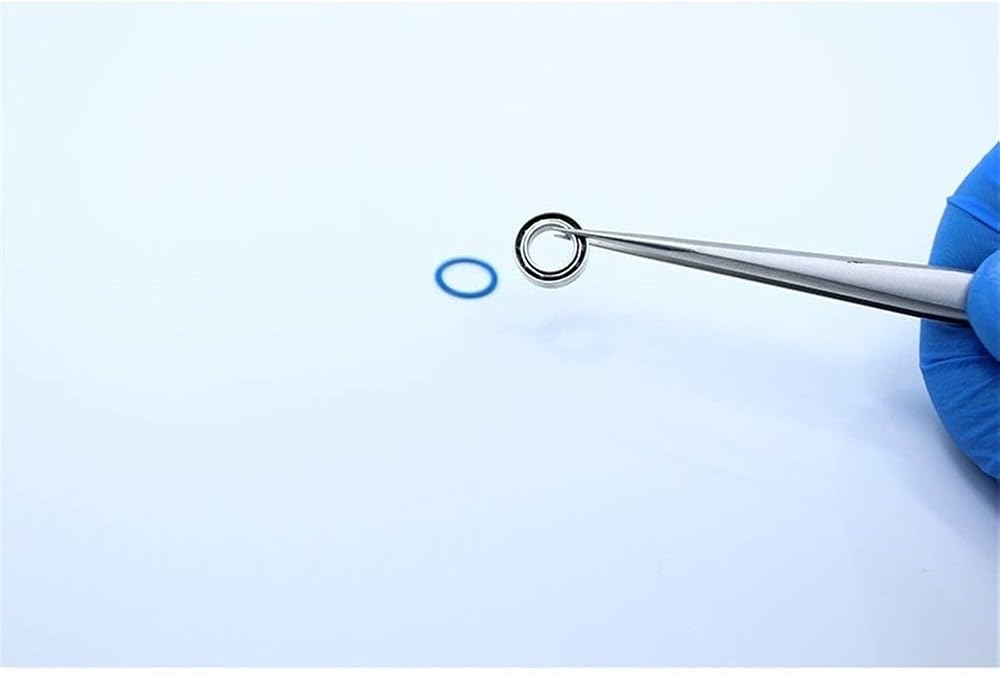

Shield Material: 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons): 322
Static Load Rating (Cor) (Newtons): 74
Max Speed (Grease) (X1000 RPM): 15
Max Speed (Oil) (X1000 RPM): 17
Lubrication: Grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 120
ABEC Rating: ABEC-3
Radial Clearance Trade No.: C0
Radial Clearance: 0.002mm to 0.013mm
Ball Qty: 10
Ball Dia: 1.2000mm

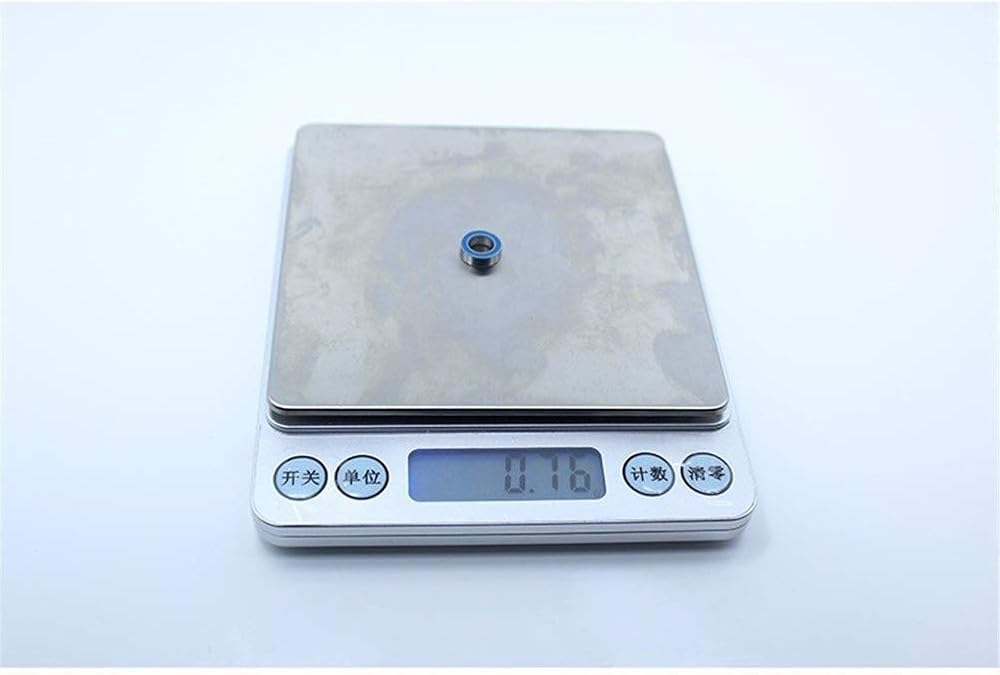

Weight (grams): 0.76
BEARINGS FEATURE
RC Ball bearings should always be your first upgrades, it reduces friction for less rolling resistance, and that means higher speed and longer the running times. RC Ball bearings hardly require maintenance and last a lot longer than stock bushings.
Yeah Racing RC Ball Bearings have the lowest
