مميزات خاصة

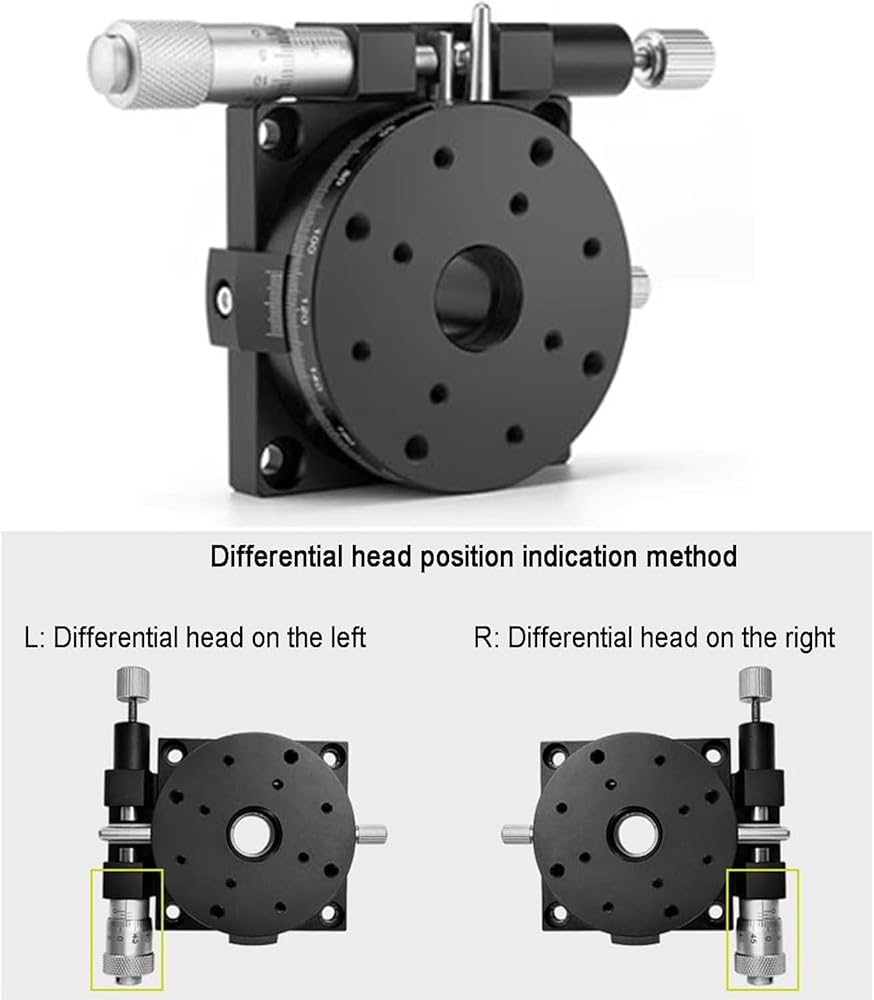

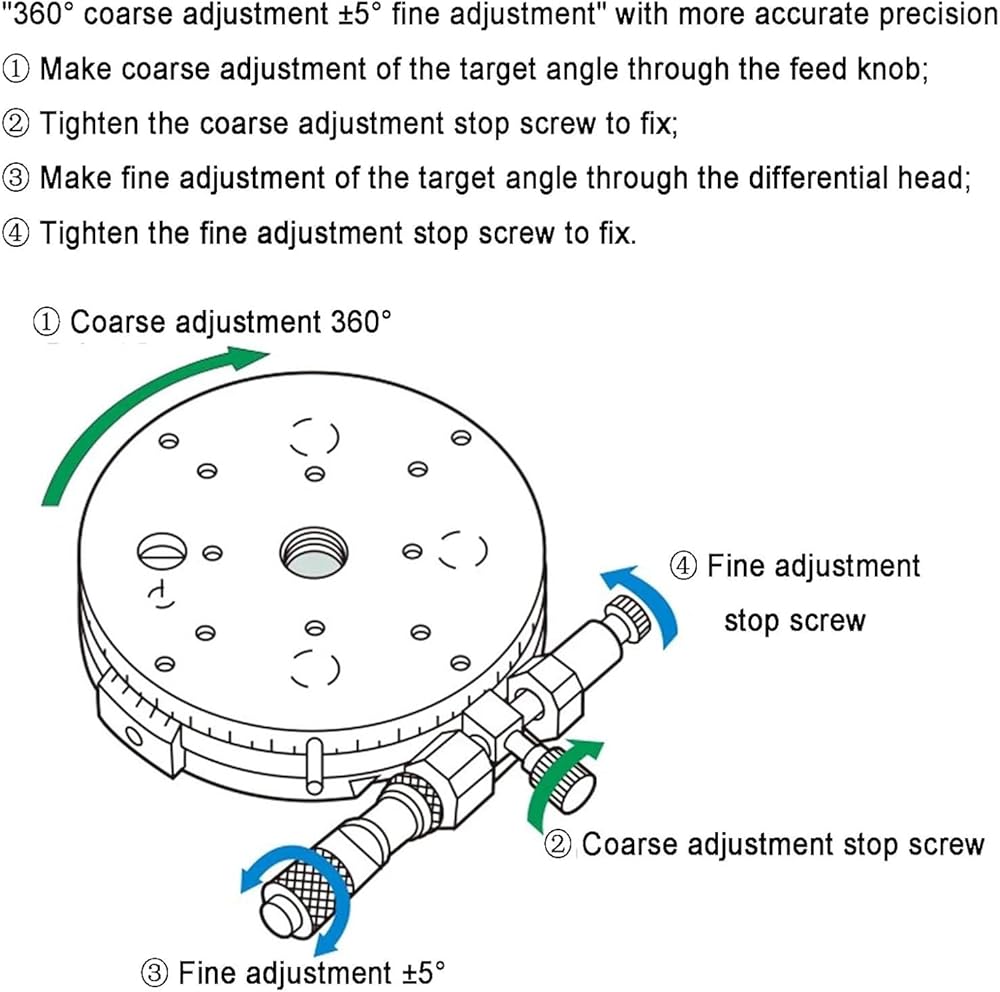

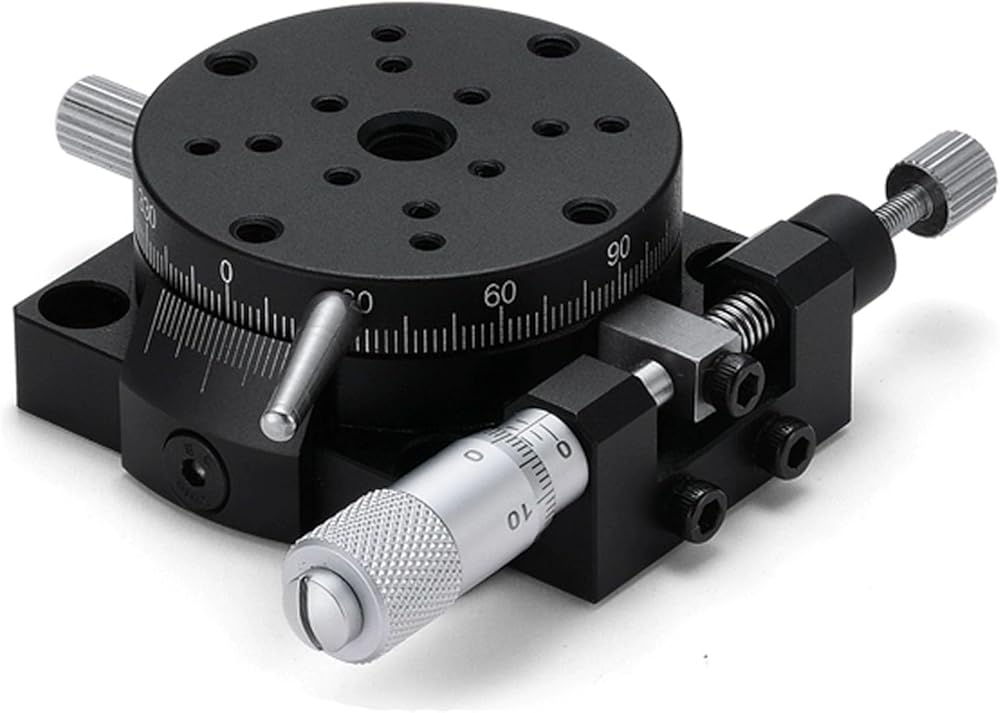

Exceptional Performance: The R Axis Trimming Station features a rotating platform that provides precise angle adjustments, allowing users to easily reach their desired position using coarse or fine tuning switch screws for differential head customization.
Premium Quality Construction: Made from high-grade aluminum alloy with a sleek black anodized finish, the R Axis Trimming Station includes through holes for efficient cable management and optimal placement of rotating polarizing elements.
High Precision Engineering: The R Axis Trimming Station is equipped with a cross roller guide, ensuring stable movement and high accuracy, enabling it to be firmly secured in any applicable position for customer-specific machines or instruments.

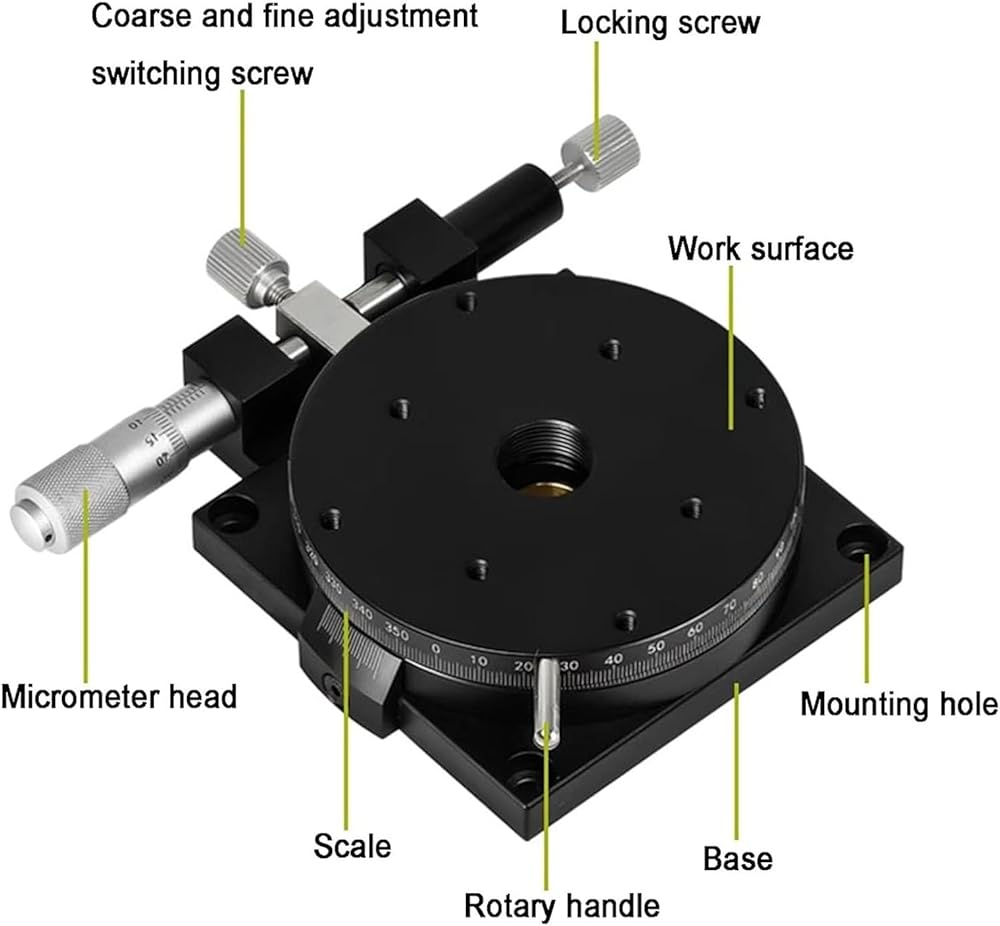

User-Friendly Design: Featuring an ultra-precise micrometer drive method, the R Axis Trimming Station facilitates accurate angular adjustments, while the thickness adjustment switch screw allows for easy and precise fine-tuning.
Versatile Applications: Ideal for various high-precision or medium-load production machinery, the R Axis Trimming Station is perfect for detection devices that require accurate positioning and quantitative movement in experimental measurements.

وصف

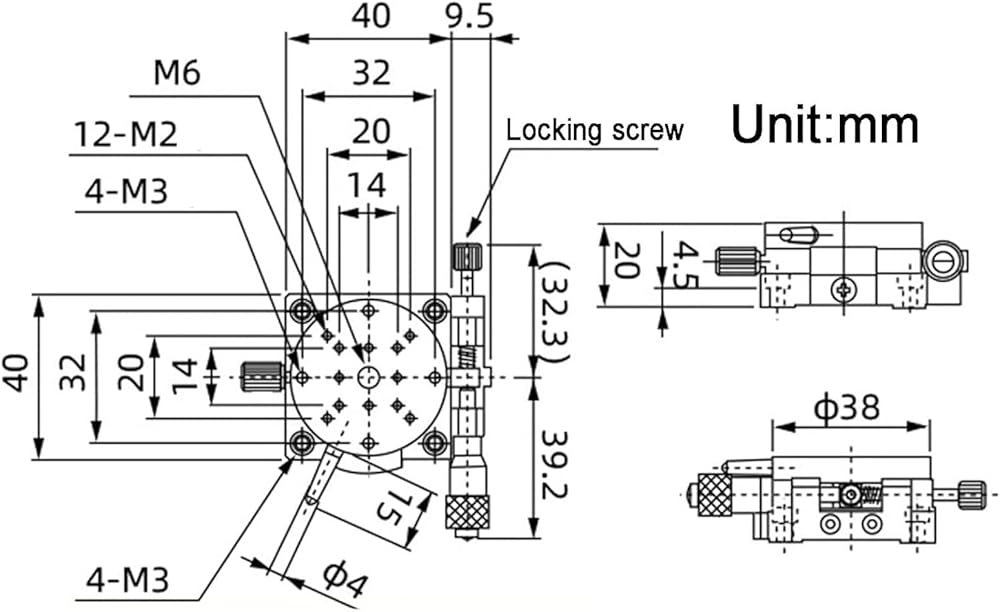

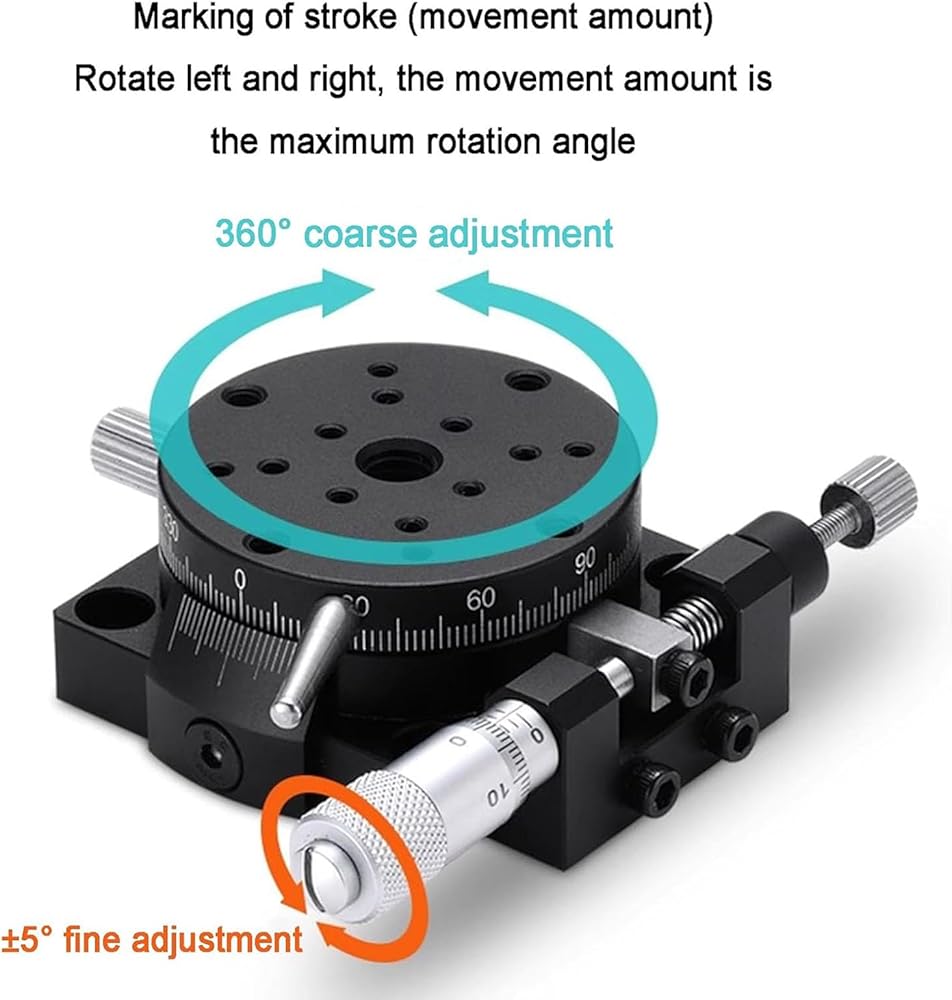

Specifications: Item Type: Trimming Station. Realise: 360° Coarse Rotation and Fine Rotation ±5°. Material: Aluminum Alloy with Black Surface Anodized finish. Station Diameter: 38mm. Table Thickness: 20mm. Minimum Scale: 0.2°. Differential Head Per Grid: approximately 1.44'. Driving Mode: Micrometer. Moving Direction: R Axis. Load Capacity: 9.8N (1kgf). Cursor Minimum Reading: Vernier Scale of 0.1mm. Concentricity: 0.05μm. Parallelism: 0.05mm. Package List: 1 piece of R Axis Trimming Station.
