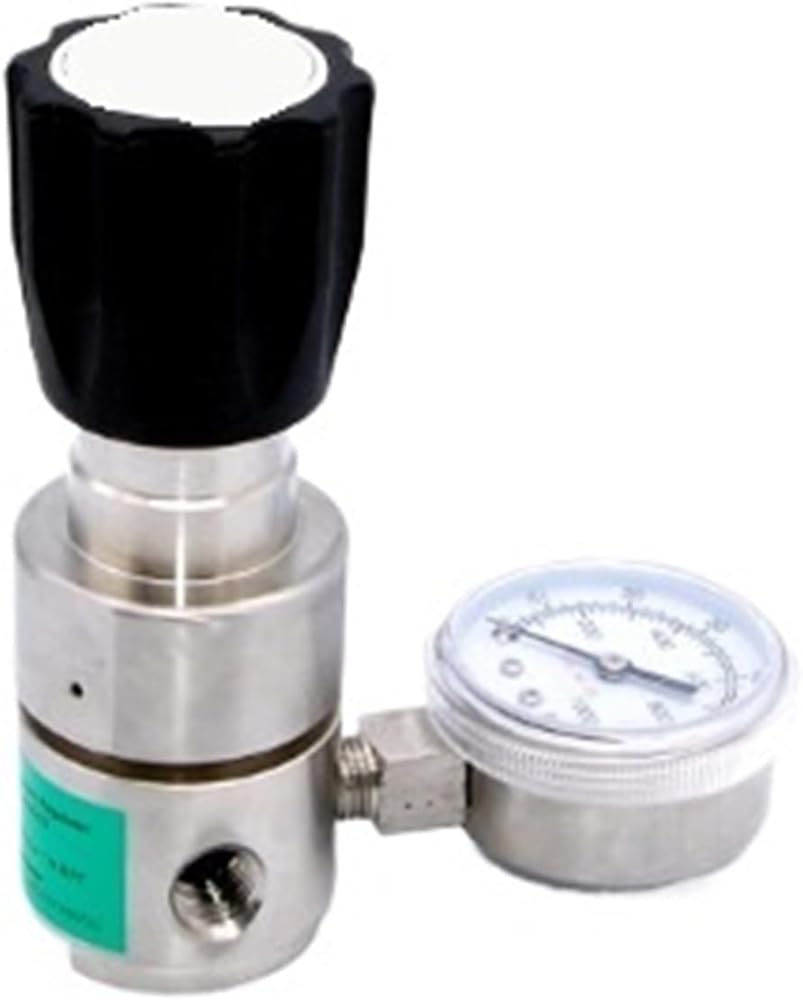

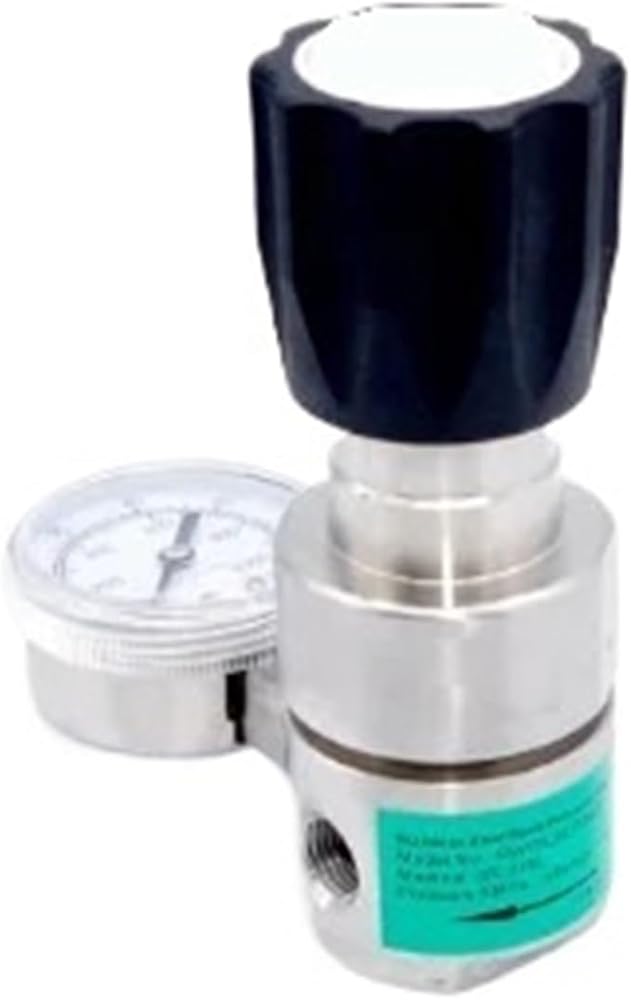

Name: RW75 back pressure regulator
Country of Origin: China
The RW75 series back pressure regulating valve is a piston-inductive single-stage pressure regulating valve, suitable for situations where small flow control is required. Available in stainless steel.
feature
* Piston sensing configuration
*Body port size: 1/4" NPT (F)
*2" pressure gauge
*Pressure resistance: 1.5 times the maximum inlet pressure
*Temperature range: -40 to 160 (-40 to 74)
*Leak rate: 2 X 10-8 atm. cubic centimeters/second He
*CV: 0.06
Material
* Body: 316L
* Valve seat: PCTFE, Vespel
* Piston: 316L
* O-ring: fluorine rubber
