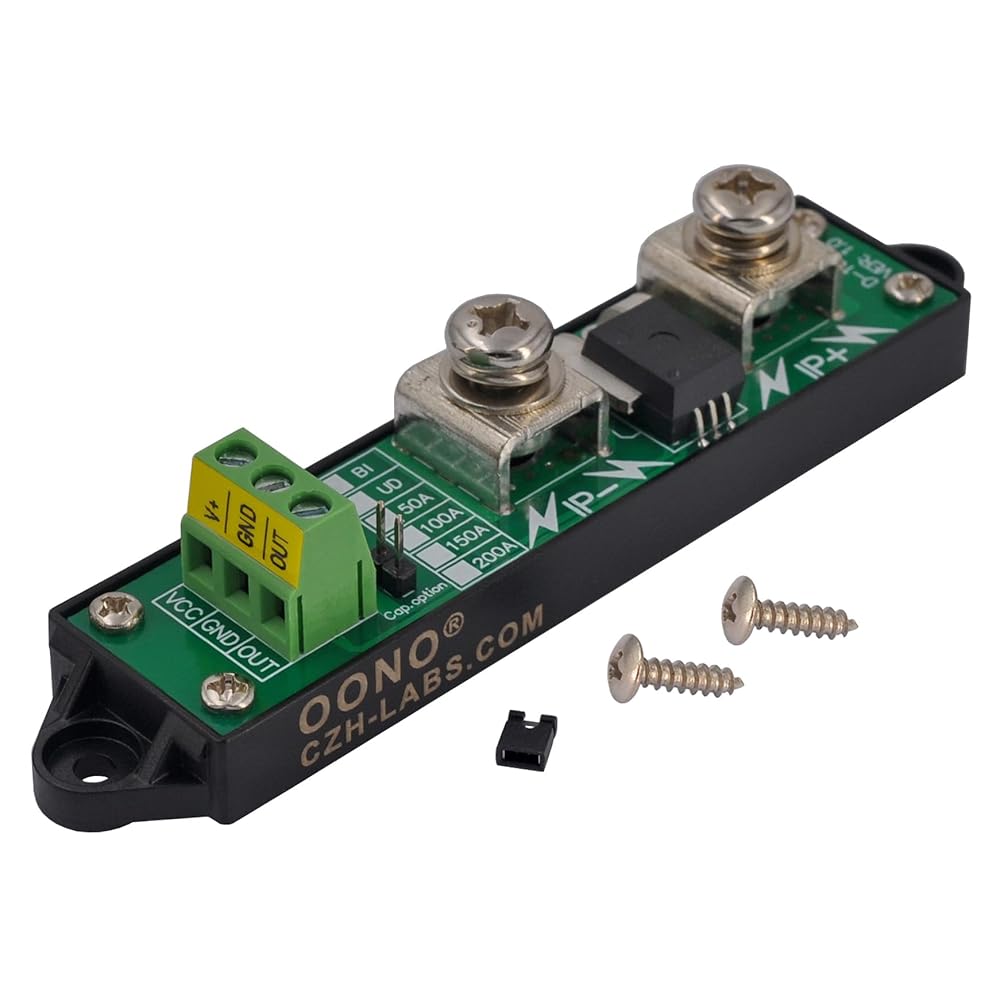

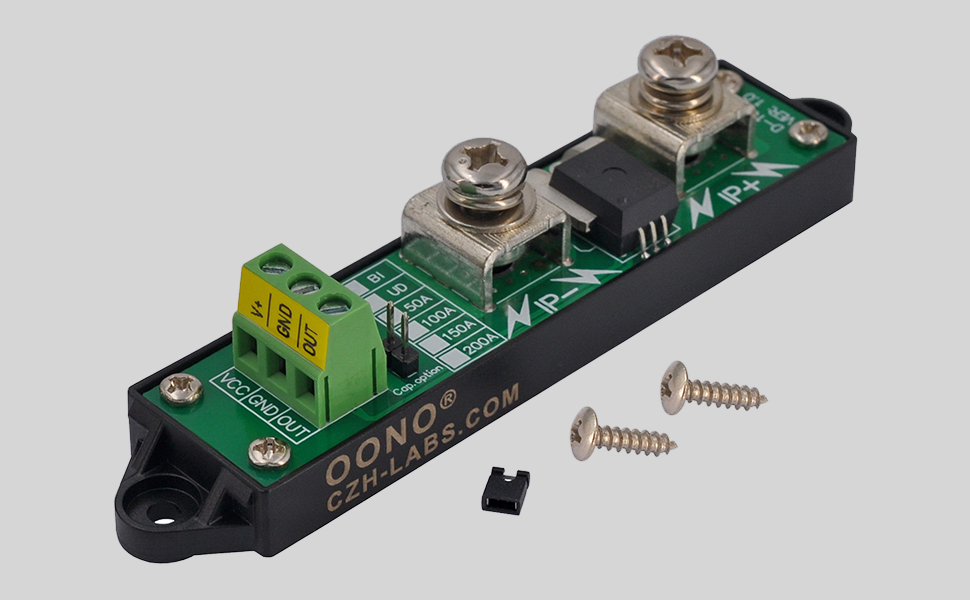

Bidirectional AC/DC +/-100 Amp Isolated Current Sensor Module, ACS758, +/-100A

SAR 152
Brand
OONO
Category
Sensors
– 1 +

Special Features

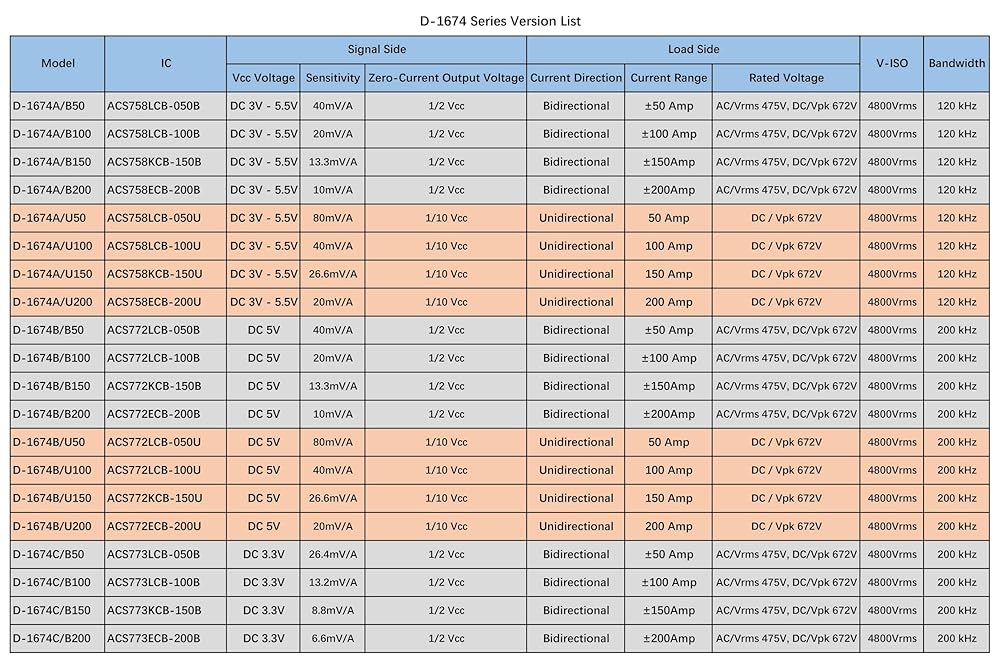

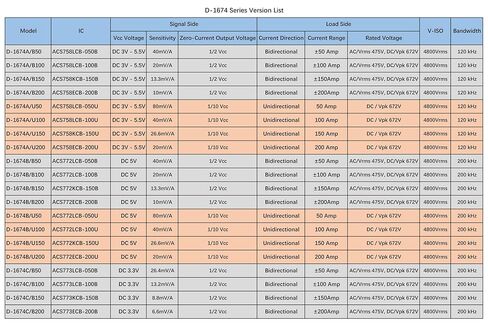

  • Model number: D-1674A/B100. Design based on IC ACS758LCB-100B.
  • Operating Voltage: DC 3 - 5.5V, Operating Current: 20mA (max).
  • Zero-current Output Signal Voltage: 1/2 Vcc (2.5V), Output Signal Sensitivity: 20mV/A (at Vcc 5V).
  • Load Side Maximum Current: +/- 100 Amp, Current Direction: Bidirectional (support AC and DC), Load Side Rated Voltage: AC/Vrms 475V, or DC/Vpk 672V.
  • Minimum Isolation Voltage: 4800Vrms. Load Frequency Bandwidth: DC to 120 kHz.
  • The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The device is not intended for automotive applications.

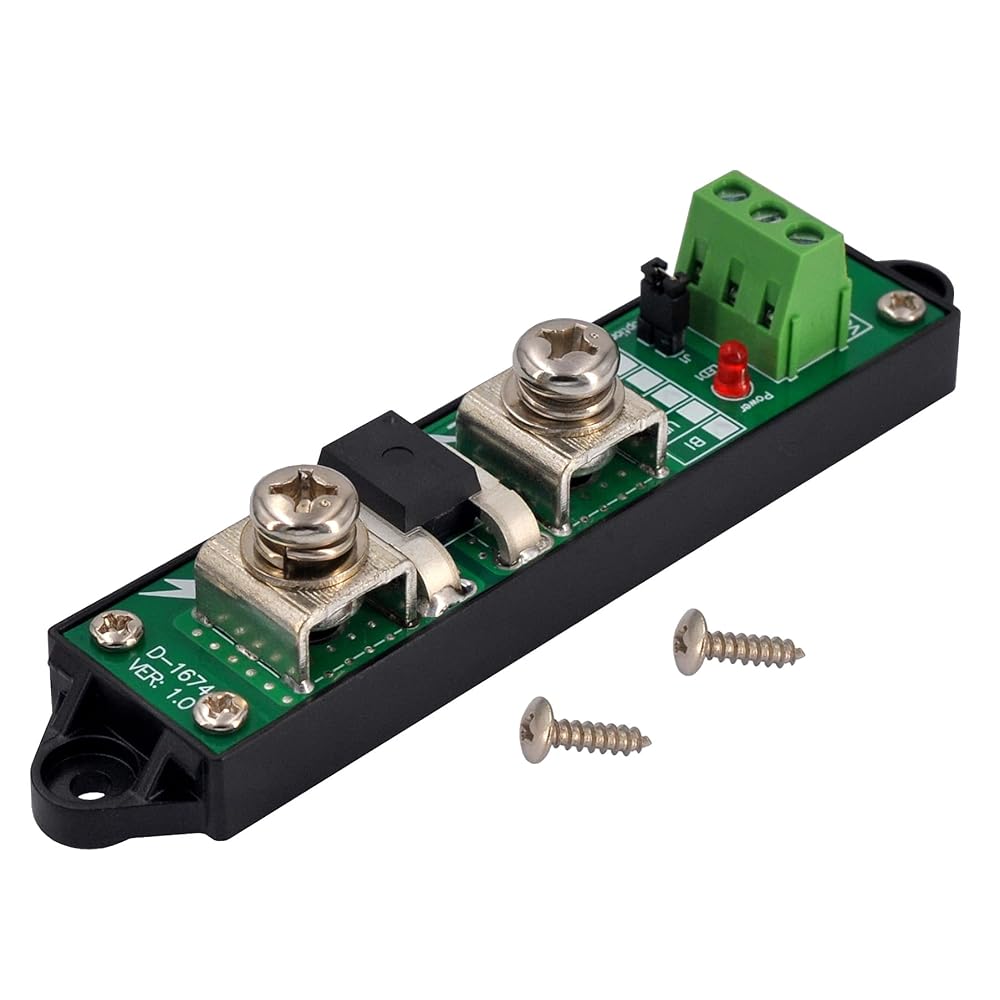

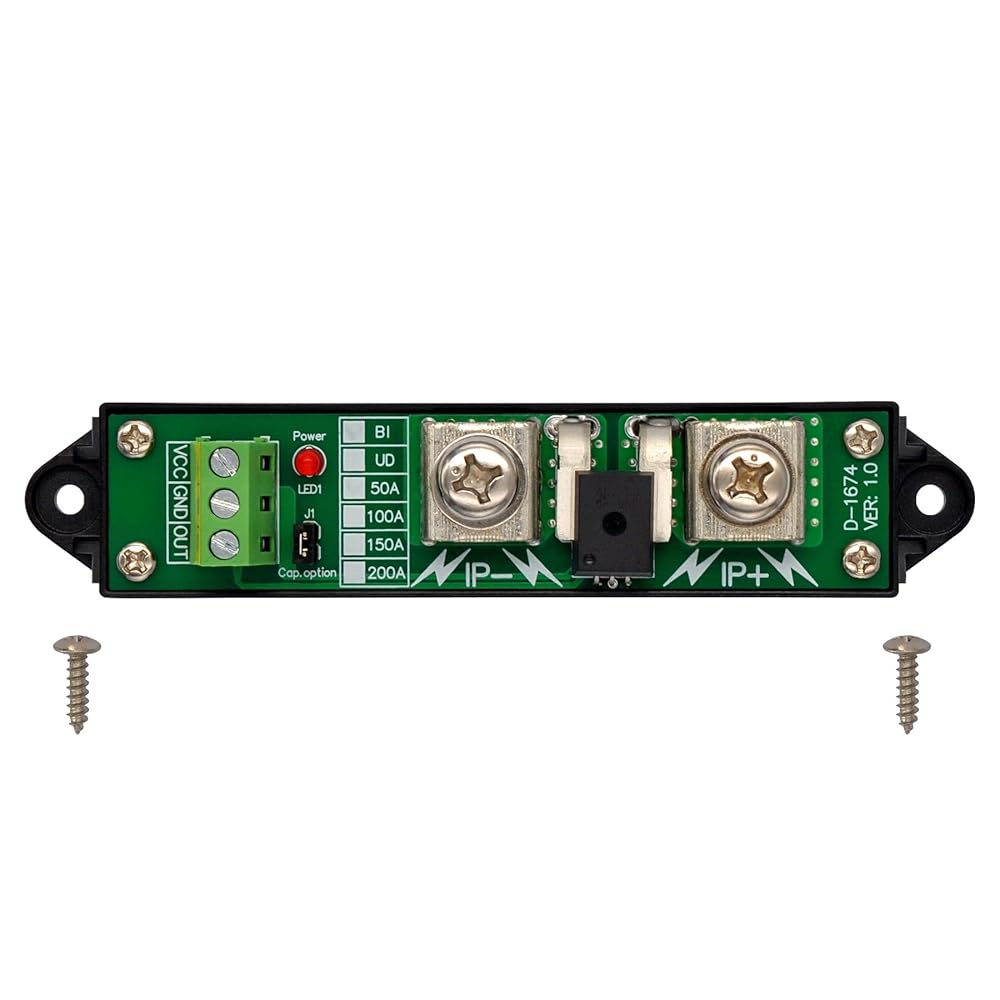

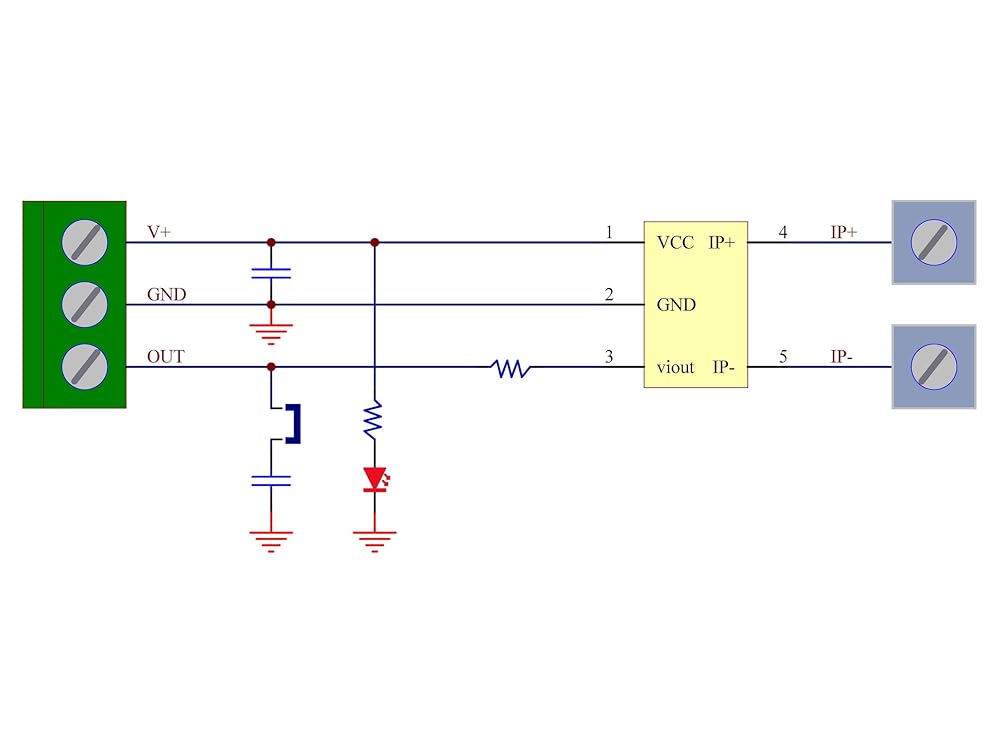

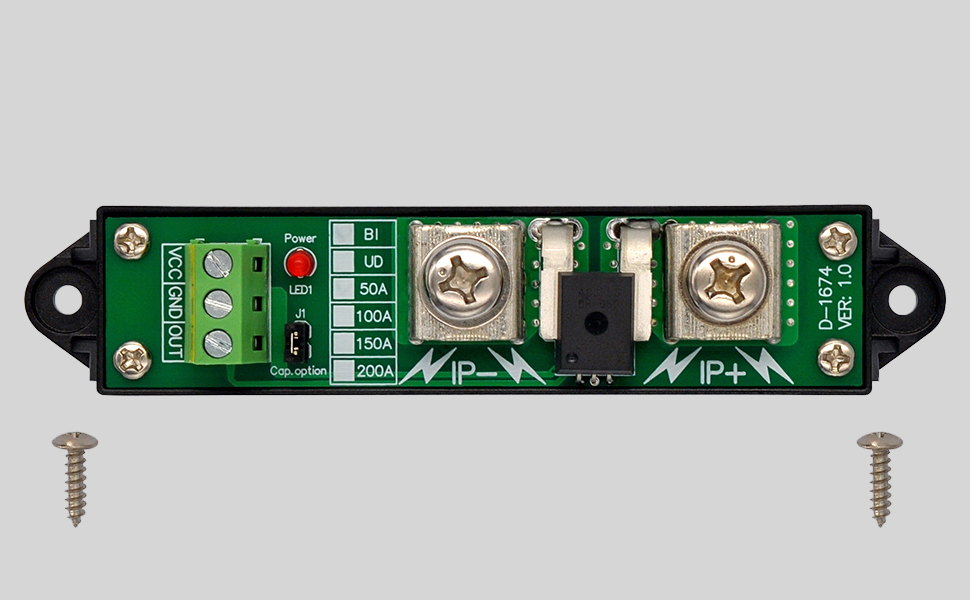

  • The red LED is used as an indicator of the operating voltage. The output signal terminal is connected to a 10nF load capacitor via a pin jumper, you can short-circuit or unplug it according to actual needs.

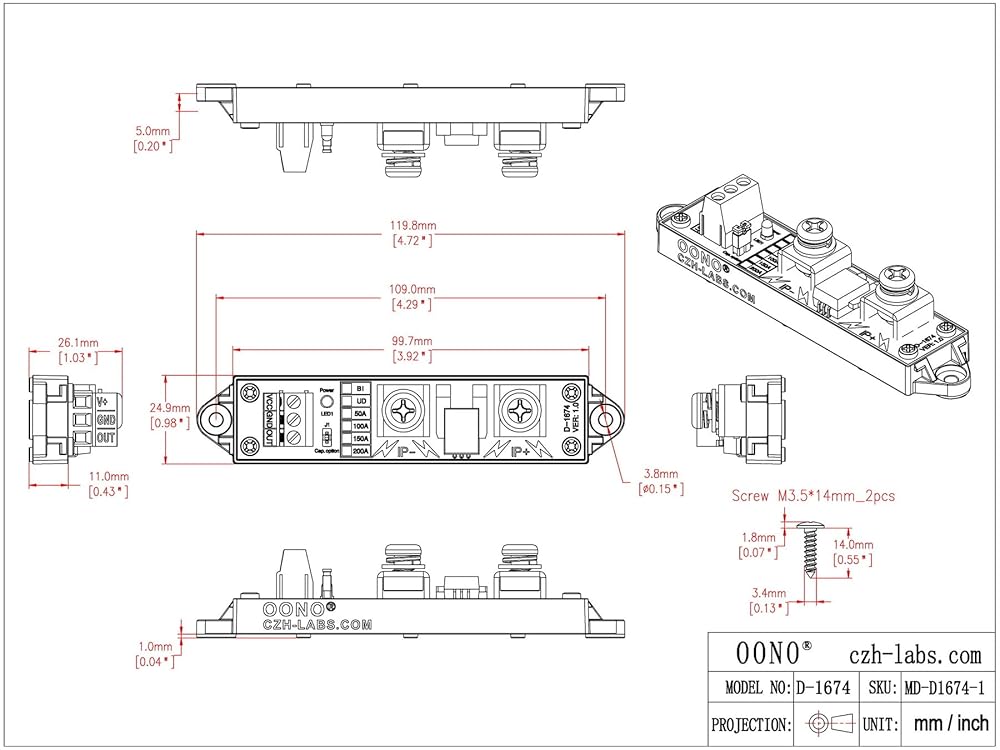

  • Signal side terminal: Pitch 5.0mm/0.197", Wire range 26 - 12AWG / 2.5mm square, Strip length 7mm, Screws - M3.
  • Load side terminal: M6 copper terminals, for M6 (US 1/4) ring or fork connectors.

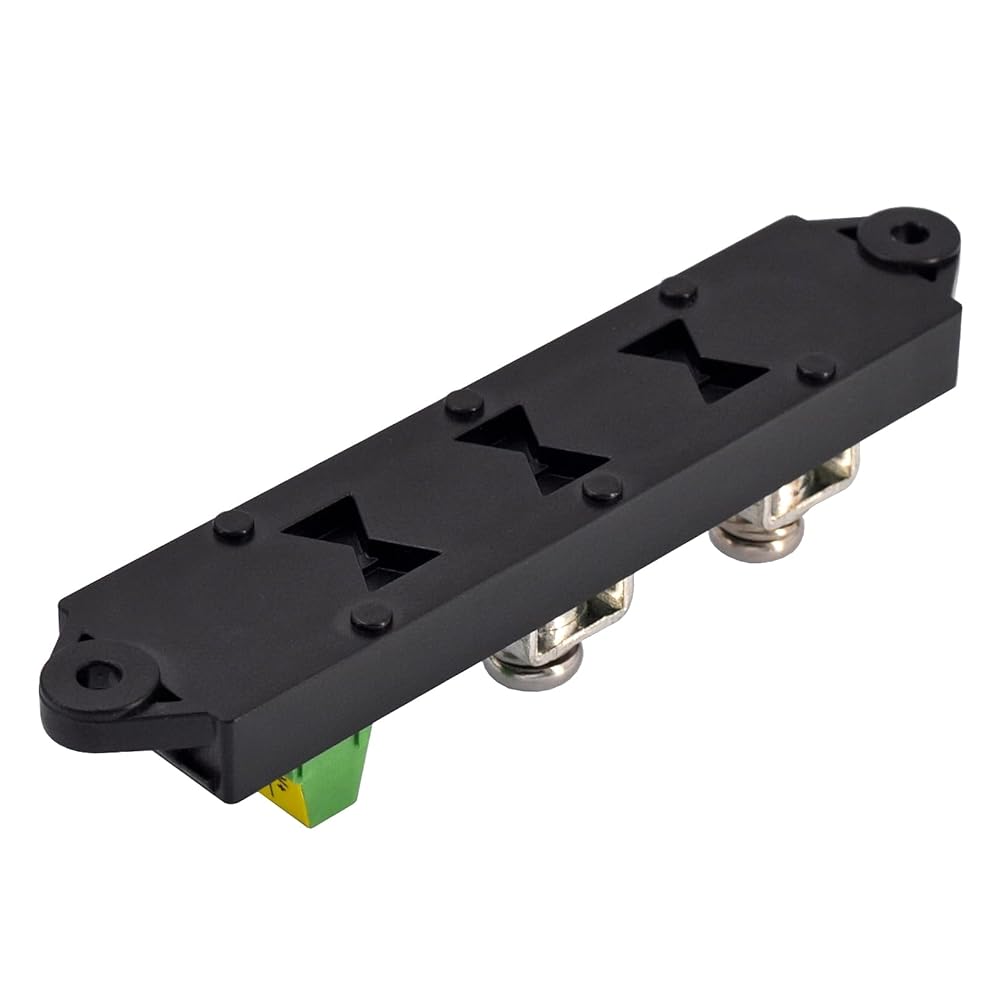

  • UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
