مميزات خاصة

【Powerful Steam System】: The core adopts a 24KW high-power steam generator, which can quickly produce steam within 2-3 minutes. Combined with a wide-range thermometer from 0 to 150℃ for real-time monitoring, it ensures uniform heat distribution inside the tunnel, providing a stable and precise heating environment for various types of shrink films

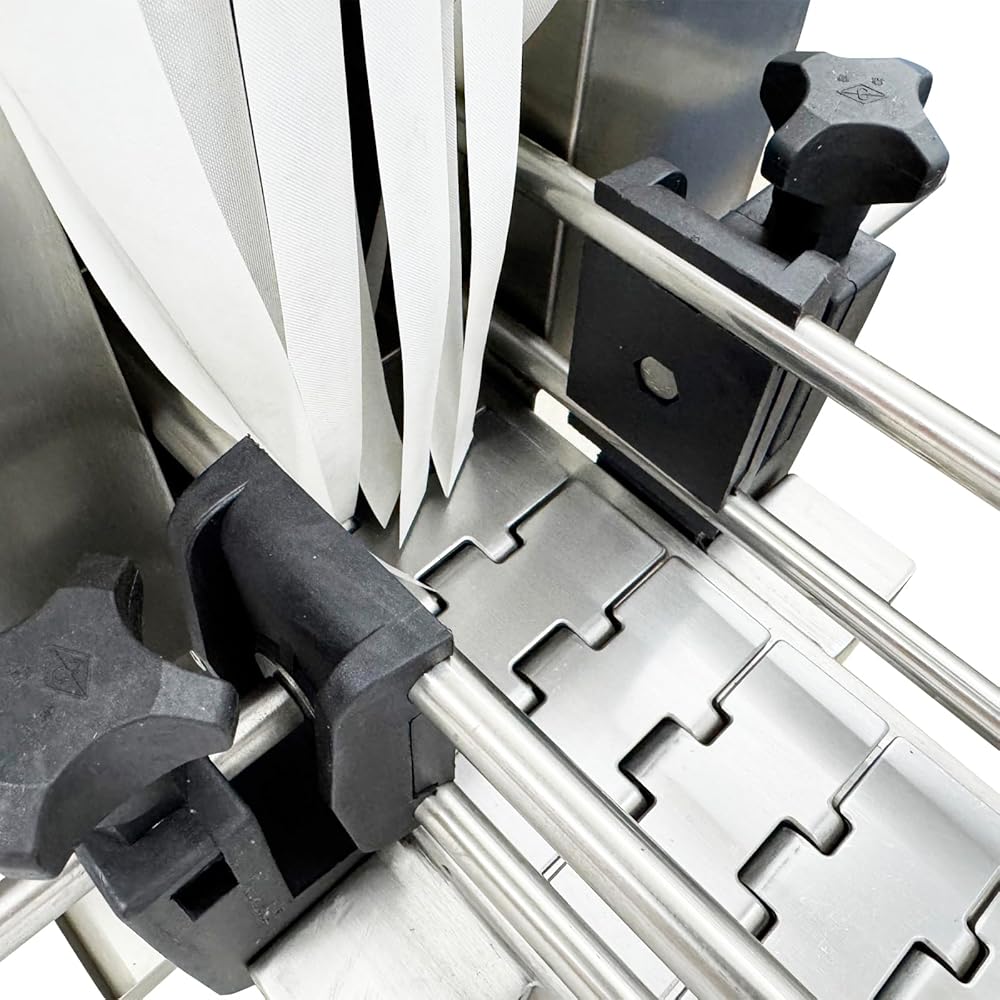

【High Productivity】: The maximum production efficiency of the equipment can reach 3,000 to 10,000 bottles per hour, and the conveying speed is 0 to 115ft/min. The double-layer adjustable guardrail can adapt to any bottle type with a maximum diameter of 4.3", ensuring that all kinds of packaging pass smoothly without the bottles falling over
【Dual Intelligent Control】: The conveying speed and steam temperature can both be independently and intelligently adjusted, perfectly matching various shrink films such as PVC/PP/POF/PE. The unique steam recovery system can achieve 80% steam reuse, saving 40% energy compared to the hot air system and significantly reducing packaging costs

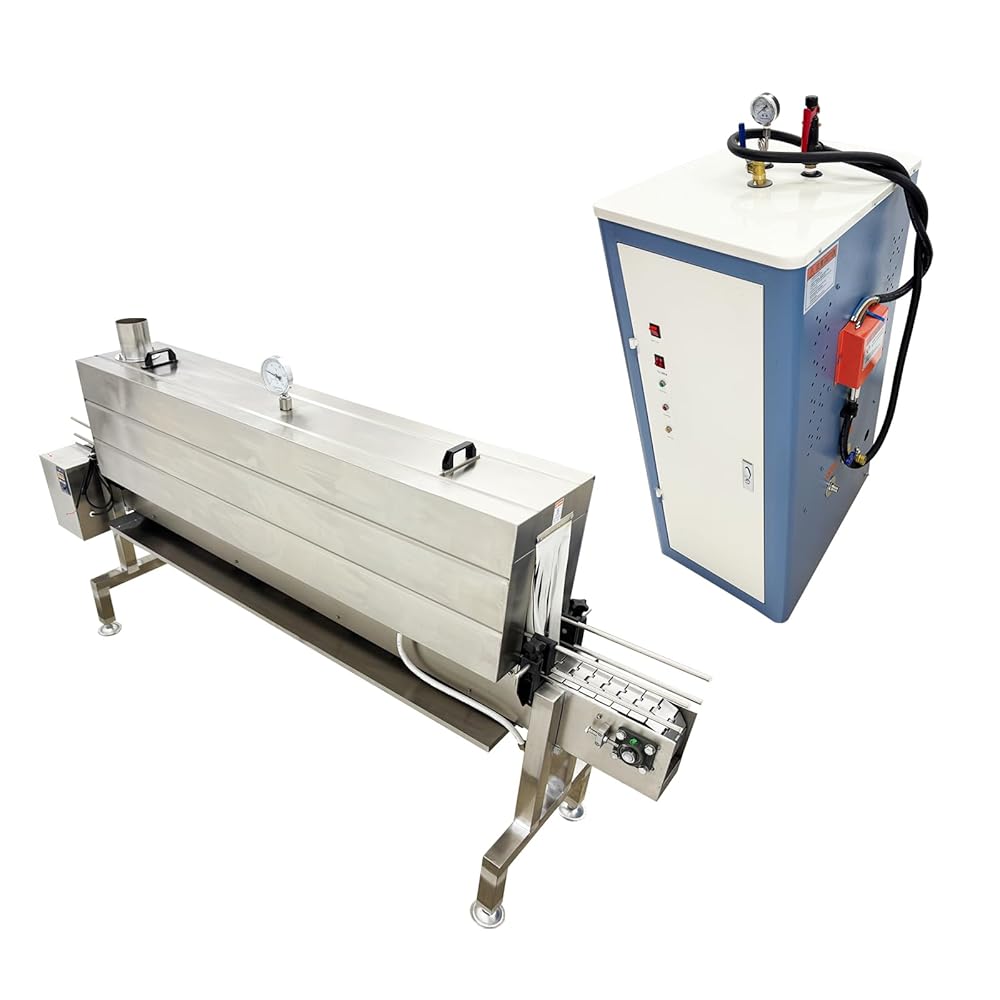

【Modular Structure】: It adopts a modular design where the steam generator and the shrink tunnel are separated. When the generator needs maintenance, there is no need to stop the entire production line. The bottom is equipped with a centralized liquid drainage system, which can effectively collect condensate water and keep the working environment dry and clean

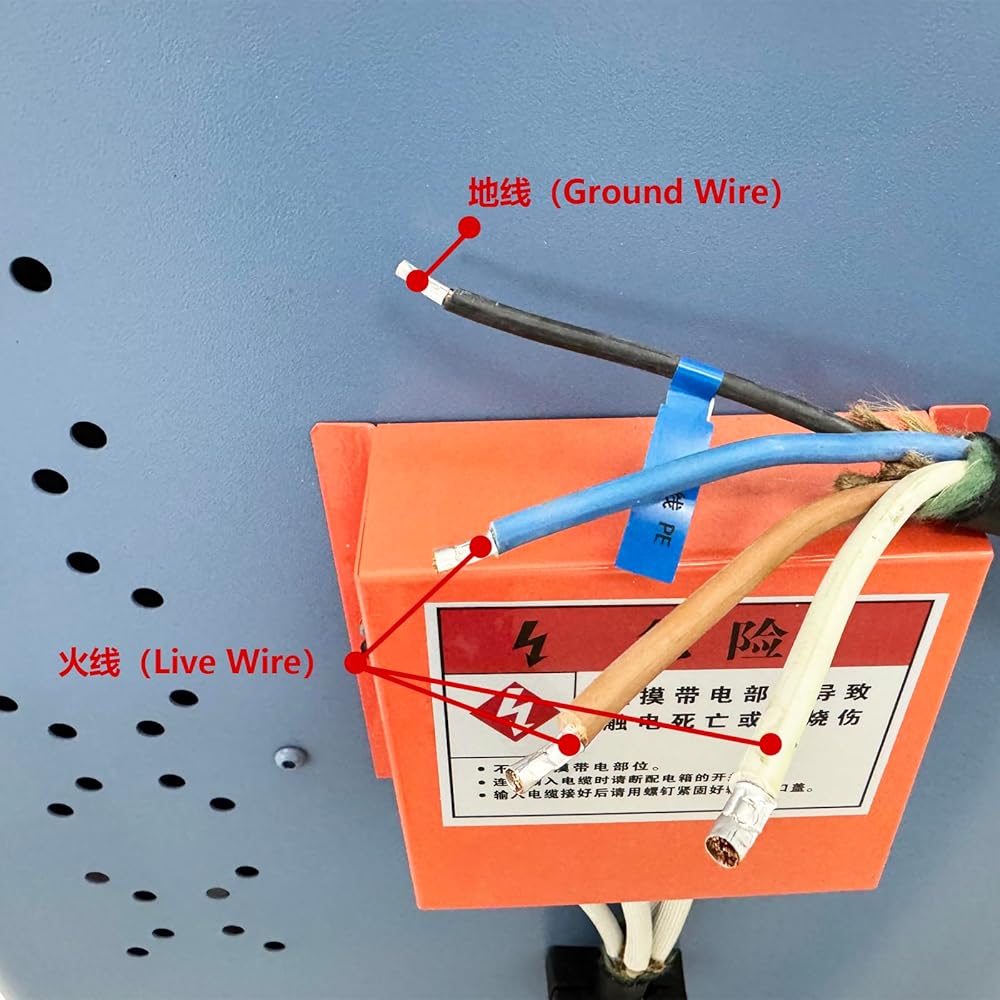

【Dual Safety Protection】: Equipped with a precision pressure gauge and a high-response safety valve, it forms a dual overpressure protection mechanism. Industrial-grade three-phase cables should be connected and fully grounded to ensure a stable output of 24KW high power while safeguarding the safety of the equipment and operators

وصف

Overview:
Steam label shrink machine has the advantages of high thermal efficiency, uniform temperature in the shrinkage chamber, stable and reliable performance, accurate temperature control. The packaged items are heated more uniformly, the surface is more flat after packaging, not easy to crease. It is the use of product labeling film wrapped around the outside of the product, after steam heating, so that the labeling film contraction wrapped tightly around the product, the full display of the appearance of the goods, to increase the aesthetic and the sense of value. Mainly used for daily chemicals, beverages and other products after the set of heat shrinkable labels. Any bottle type can be simply adjusted to achieve the effect of flat appearance and beautiful shrinkage.

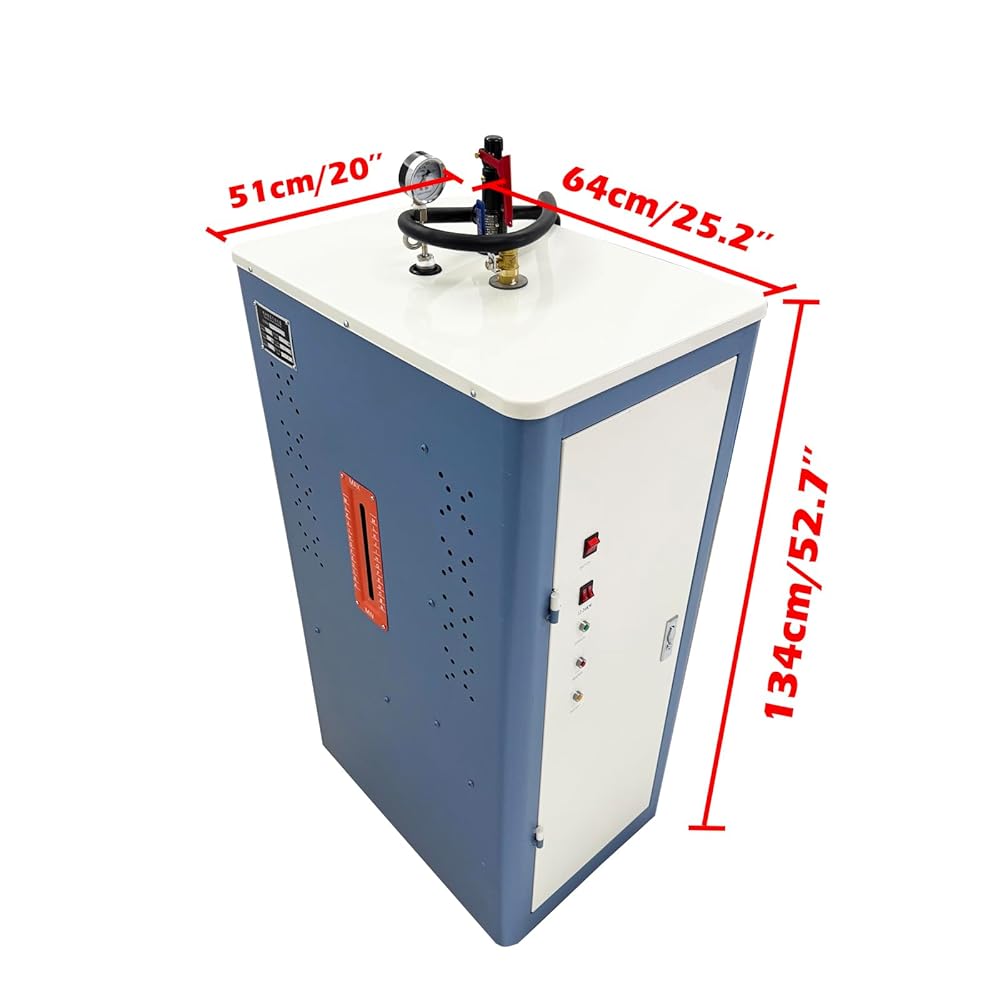

Product Parameters (Steam Generator)
Voltage:AC220V
Power:24kW
Phase number:3
Steam temperature:0-100℃(0-212℉)
Rated evaporation:70.5lbs/h(32kg/h)
Rated work pressure:0.5Mpa
Water volume:7.1gal(27L)
Package size:28.7"*23.6"*59.4" (73cm*60cm*151cm)
Net weight/Gross weight:164.2lbs(74.5kg) / 231.5lbs(105kg)

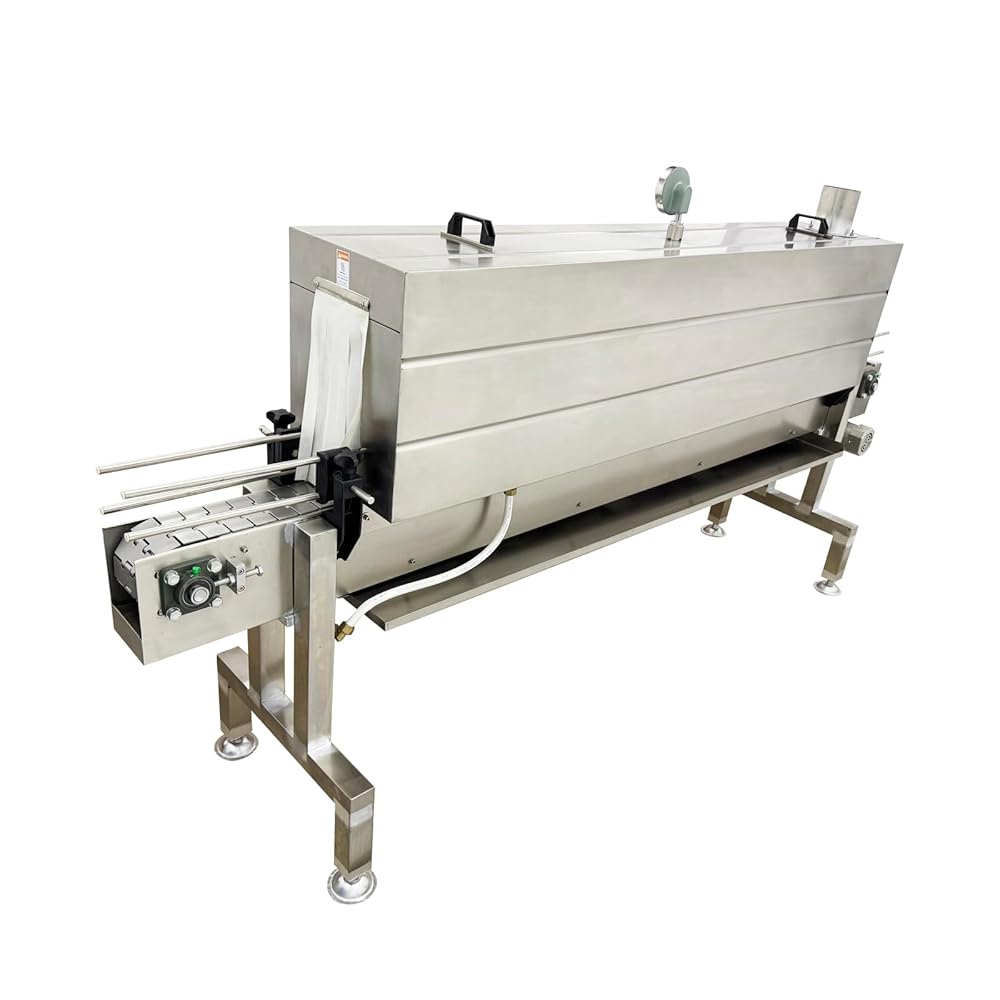

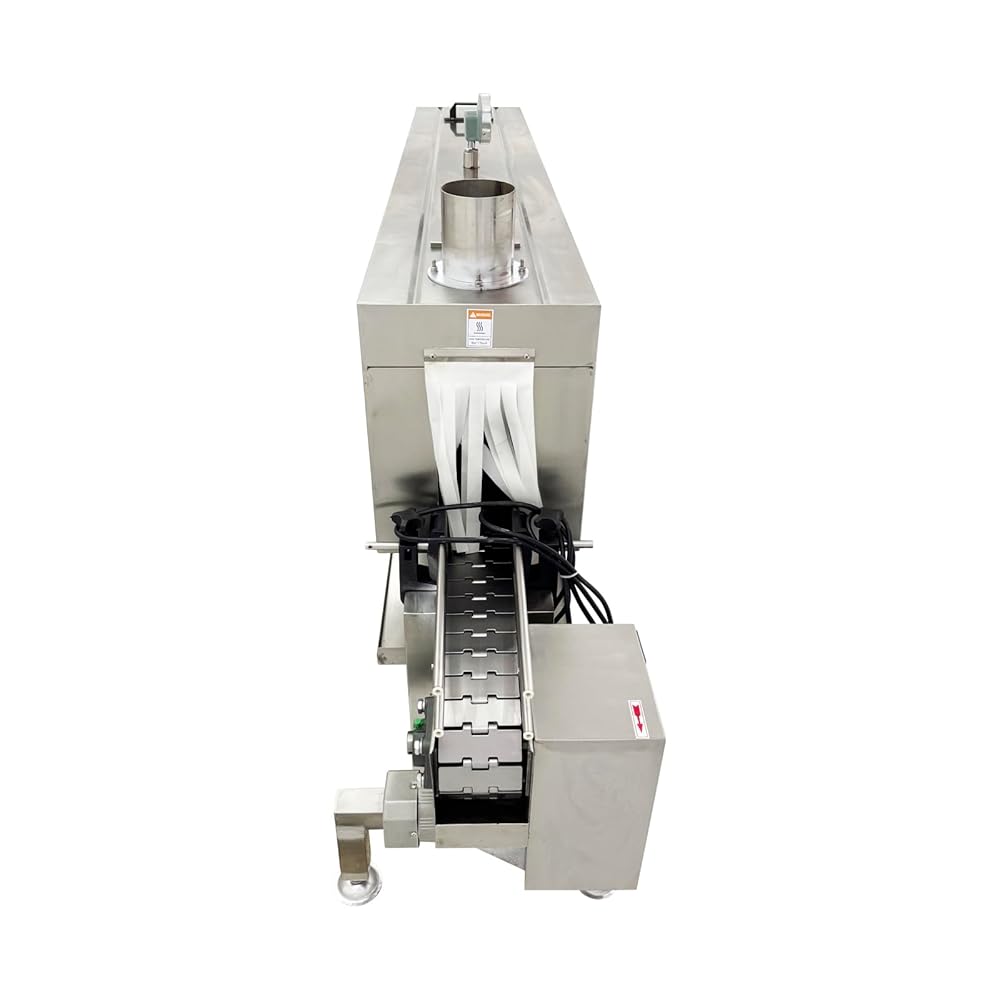

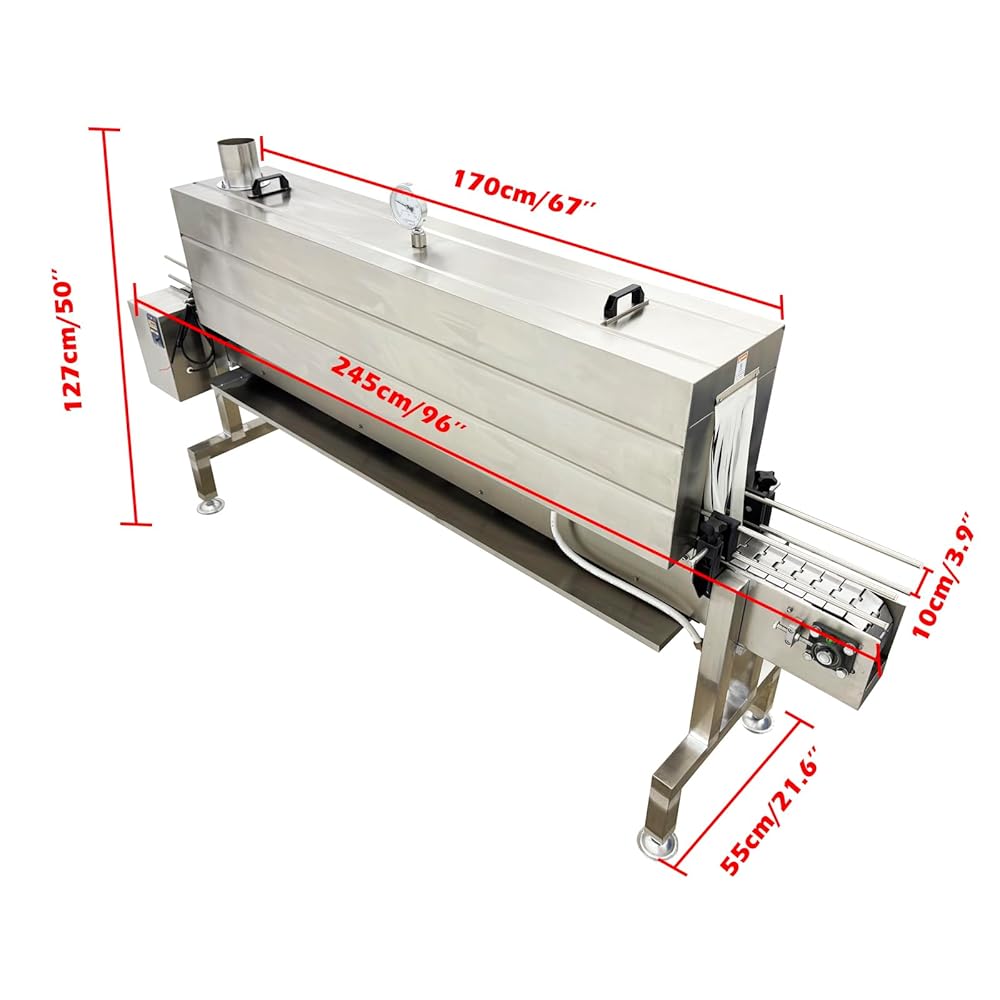

Product Parameters (Steam Shrink Machine)
Voltage:AC220V
Power:90W
Phase number:1
Length of the heat shrinkage chamber:5.6FT(1.7m)
Maximum bottle diameter:4.3"(11cm)
(There's no height requirement. Bottles can be laid down.)
Production:3000-10000 bottles/h
Conveyor speed: 0-115ft/min (0-35m/min)
Vapo tension:0.045Mpa
Steam dosage:70.5lbs/h(32kg/h)
Heating temperature:167-203℉(75-95℃)
Suitable shrink film:PVC/PP/POF/PE/ETC/PET
Machine material: Stainless steel
Label height:10.2"(26cm)

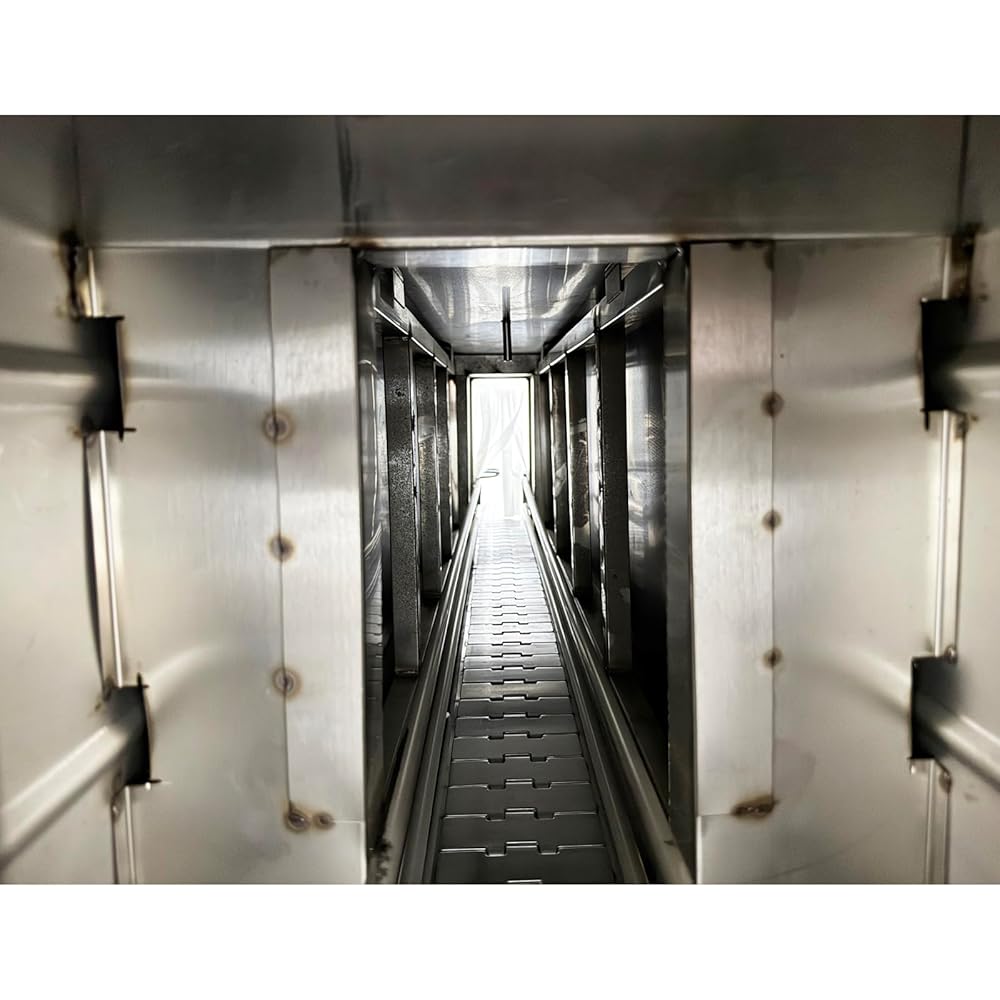

Tunnel size(LxWxH):
39"*3.9"*11.8"(100cm*10cm*30cm)
Package size:100.4"*25.6"*53.1" (255cm*65cm*135cm)
Net weight/Gross weight:212.7lbs(96.5kg) / 386.9lbs(175.5kg)

Item Included:
Steam Label Shrink Machine *1
Steam Generator *1
Accessory Kit *1
