Specification:

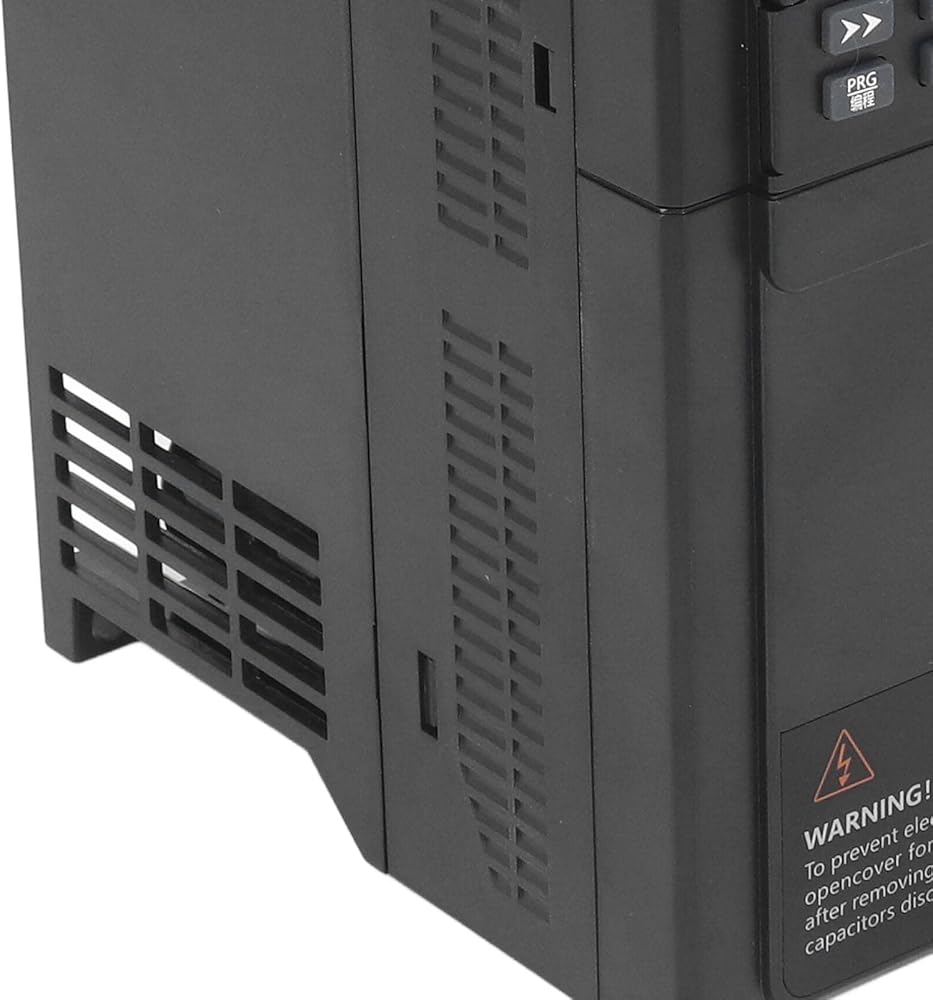

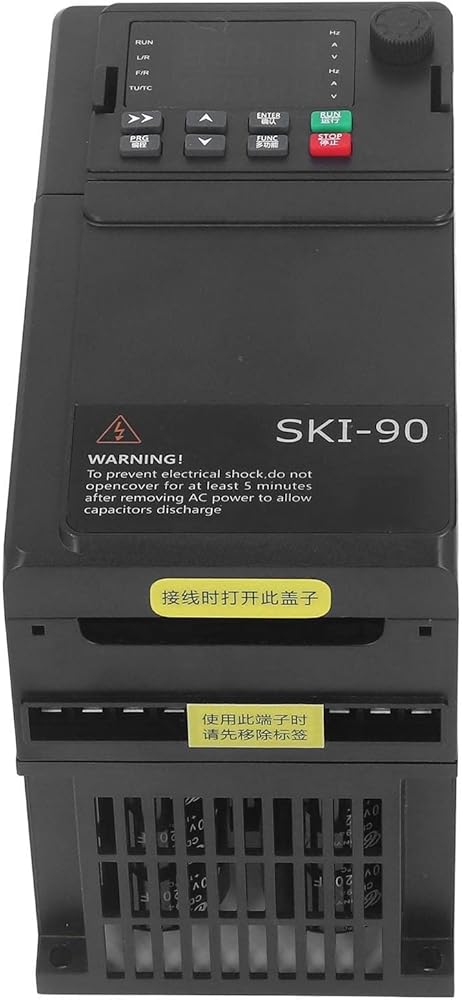

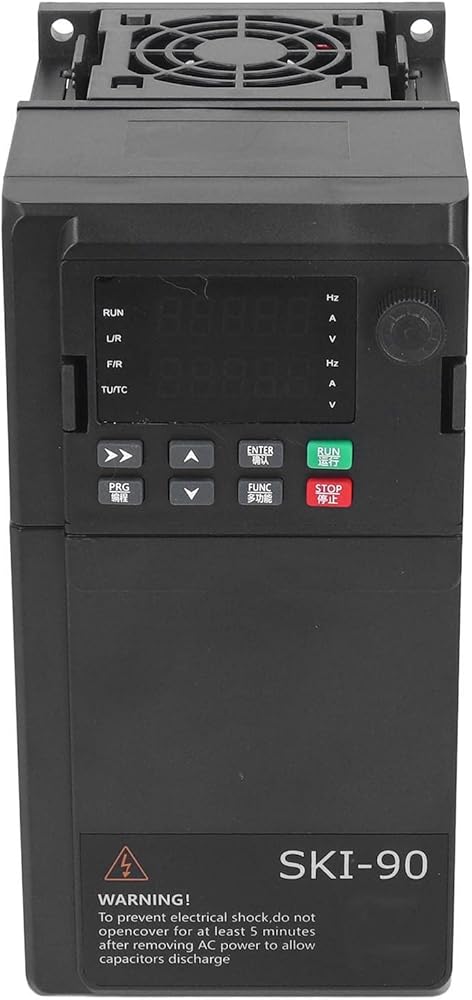

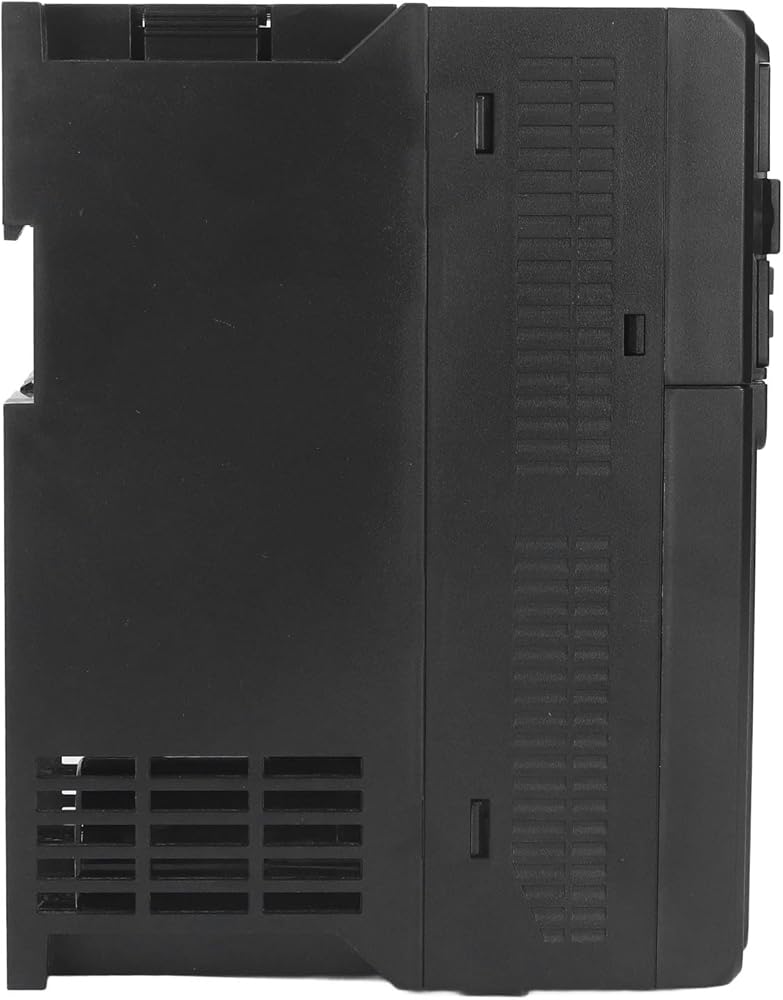

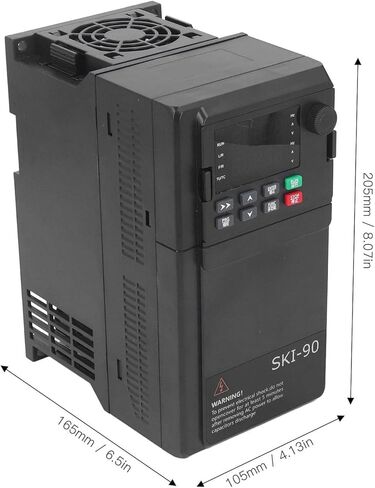

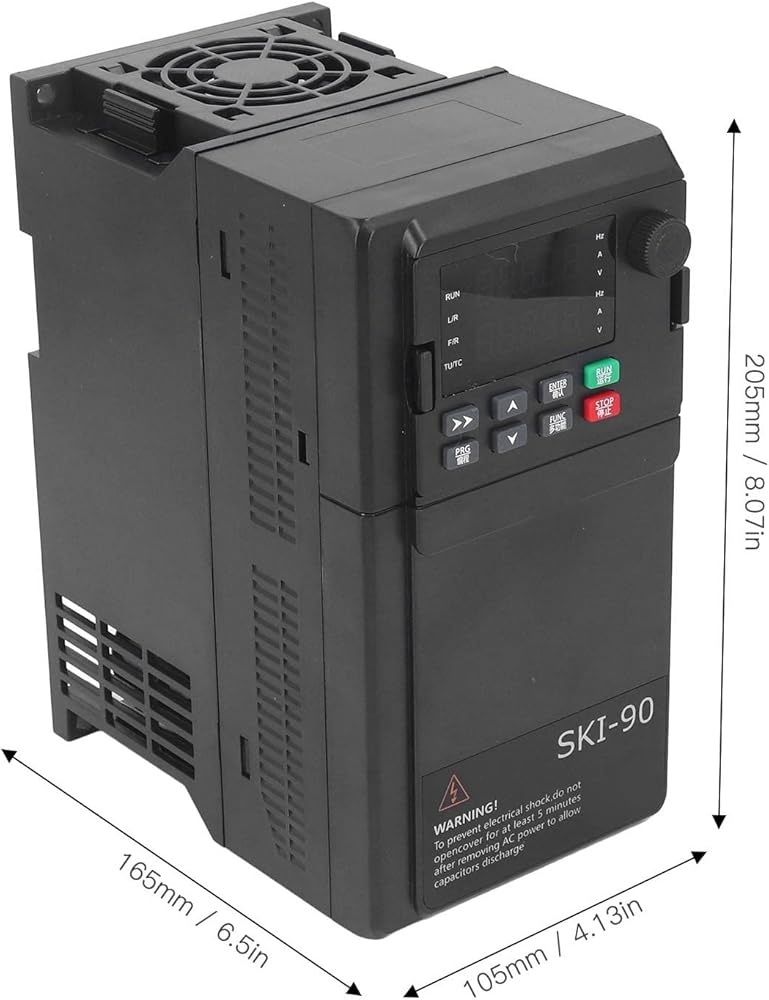

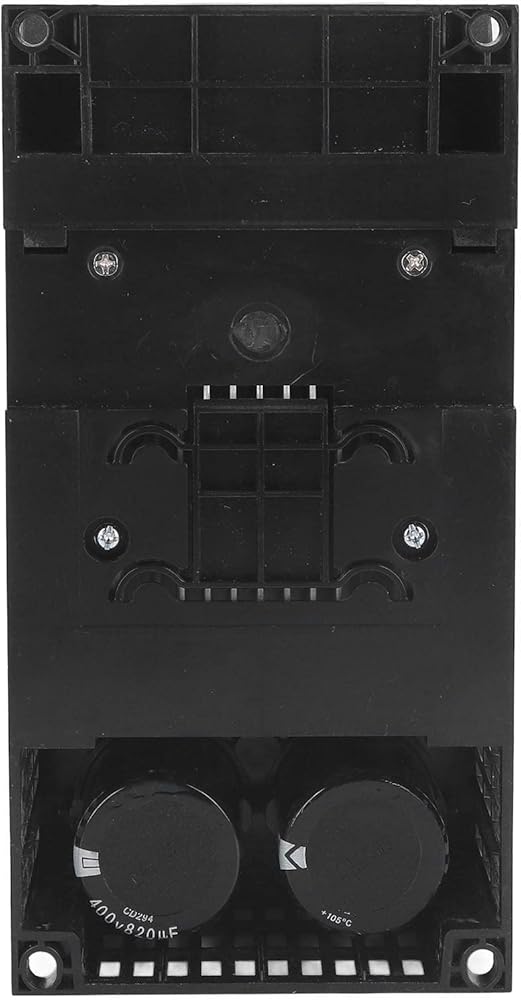

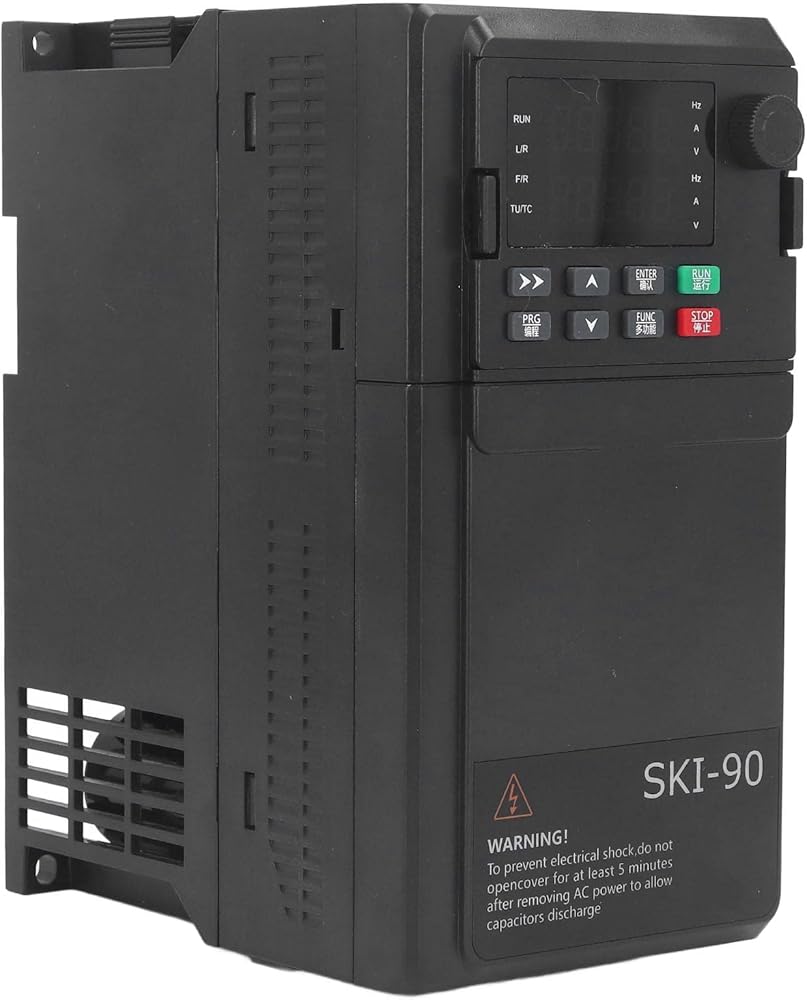

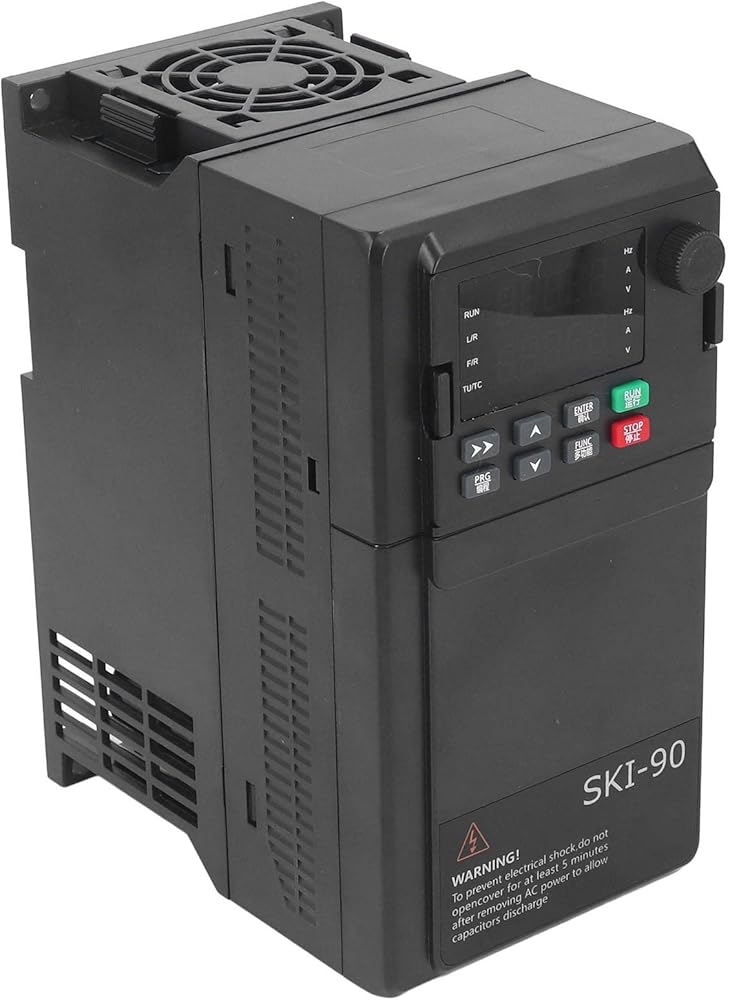

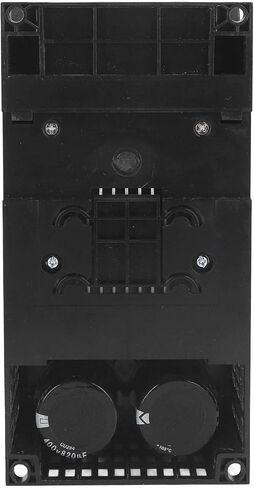

Item Type: Variable Frequency Drive
Material: ABS
Input: 3PH AC380V±15% 10.5A 50-60Hz
Output: 3PH AC0-380V 9.0A 0-400Hz
Power Supply Capacity: 5.9KVA
Applicable Motor: 4KWbr/>Item Type Terminal Symbol Terminal Name Function
Power 10V-GND External +10V power supply Provide external +10V power supply, maximum output current: 150mA (with short circuit protection), generally used as external potentiometer working power, potentiometer resistance range: 1kΩ-5kΩ
24V-COM​ External +24V power supply Provide external +24V power supply, generally used as digital input and output terminals, power supply and external sensor power supply, maximum output current: 200mA
Analog Terminal Al1-GND Analog input terminal 1 1. Input range: DC0-10V, 0-20mA, determined by parameter P4372. Input impedance: 22kΩ for voltage input, 500Ω for current input
AI2​​​-GND Analog input terminal 2 1. Input range: DC0-10V,0-20mA, determined by parameter P4 372. Input impedance: 22kΩ for voltage input, 500Ω for current input
AO1​​​-GND Analog output terminal 1 Output voltage range: 0V-10VOutput current range: 0mA-20mA, 4-20mA (P5-23 selectable)
AO2-GND Analog output terminal 2 Output voltage range: 0V-10VNo current output functionJ1 jumper cap on isolated main control board to AO2 position, non isolated main control board without this function
Digital Input X1-COM Digital Input 1 ​​ (X5) can be used as a high-speed pulse input channel in addition to the features of X1-X4.Maximum input frequency: 50kHz1.Input impedance: 1k02. Voltage range at level input: 5V-30V
X2-COM Digital Input 2
X3-COM Digital Input 3
X4-COM Digital Input 4
HDI-COM(X5terminal) Digital Input 5 High speed pulse input terminal
A+B- RS485 Communication A+ is the positive input of 485 communication differential signal, B- is the negative input of differential signal
Digital Output Y1-COM open collector output When used as an open collector output
