Features:
* Supports wide voltage input from AC85-265V or DC120-370V, making it adaptable for numerous power environments and voltage requirements.
* Utilizes advanced IC technology and 431 voltage regulation to deliver precise 5V DC output. Delivers dependable power and current for consistent performance a range of devices.
* Integrated overload, short circuit, and over-temperature protection ensures device safety, stable operation, and extended service life in demanding scenarios.
* Equipped with an filter circuit, featuring high and low voltage isolation between input and output, producing low ripple noise and efficient power conversion.
* Undergoes full load aging tests, offering compact dimensions, reliable operation, and limited interference—ideal for installations where space is at a prum.
* Offers a typical operating exceeding 26,000 hours to support continuous, reliable device operation.

Specifications:
Model: RH-K5W-5V1A
*Input characteristics:
AC input: 85-265V AC
DC input: 120-370V DC
Frequency range: 47-63Hz
Surge current: Cold start: 10A/220VAC
Leakage current:
Standby power consumption: ≤150mV/230VAC
*Output characteristics:
Output voltage: 5V DC
Rated current: 1A
Current range: 0-1000mA
Rated power: 5W
Efficiency: 77%
Output accuracy: ±1%
Voltage regulation: ±1%
Load regulation: ±1%
Ripple: 80-100mV
Switch overshoot: 10%
Leakage current:
Starting, rise, and hold time: 2000ms/30ms/115V AC; 1000ms/30ms/230V AC
DC short-circuit protection: Isolated, auto-recovery after fault removal
Overvoltage protection: >50%
Overload protection: 110%-170% of rated output power
Operating temperature & humidity: -20 to +70°C, 20%-90% non-condensing
Storage temperature & humidity: -40 to +85°C, 10%-95%RH

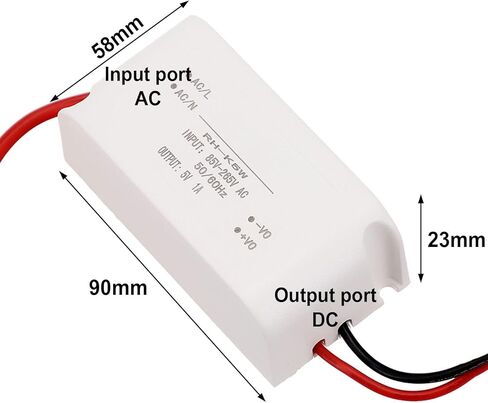

Dimensions (L*W*H): 58*30*23mm

Remarks:
1. Unless specified, all parameters are measured at 220VAC input, rated load, and 25°C ambient temperature.
2. Accuracy includes setting error, voltage regulation, and load regulation rates.
3. Ripple test: Connect power supply to load with a 30cm stranded wire. Measure at load end with 0.1uF and 47uF capacitors using a 20MHz oscilloscope.
4. Voltage regulation: Measured full input voltage range under rated load.
5. Load regulation: Measured as output varies from 0% to 100% load.

Package Content:
1 x Power module

Matters needing attention
1. Before using the power supply, confirm that input and output voltage specifications match your equipment requirements.
2. Double-check input and output connections prior to powering on, to avoid possible equipment damage or power supply failure.
3. As the component side on the board is conductive, do not touch the bottom during testing. Always place the board on an insulating pad, clean paper, or other non-conductive material to prevent electrical shock or damage.
