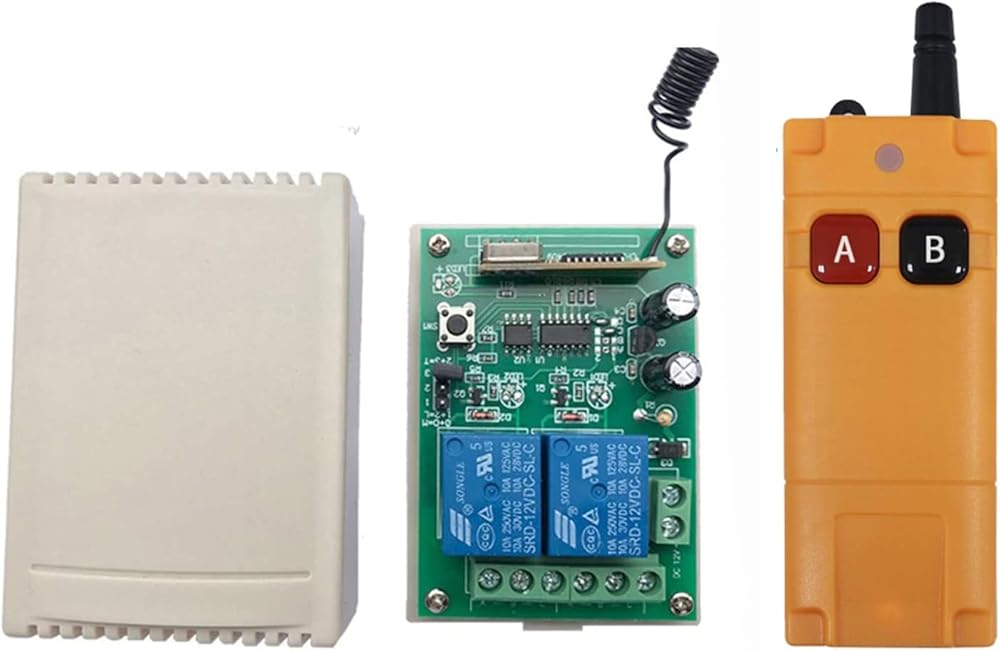

delivery
1 x receiver

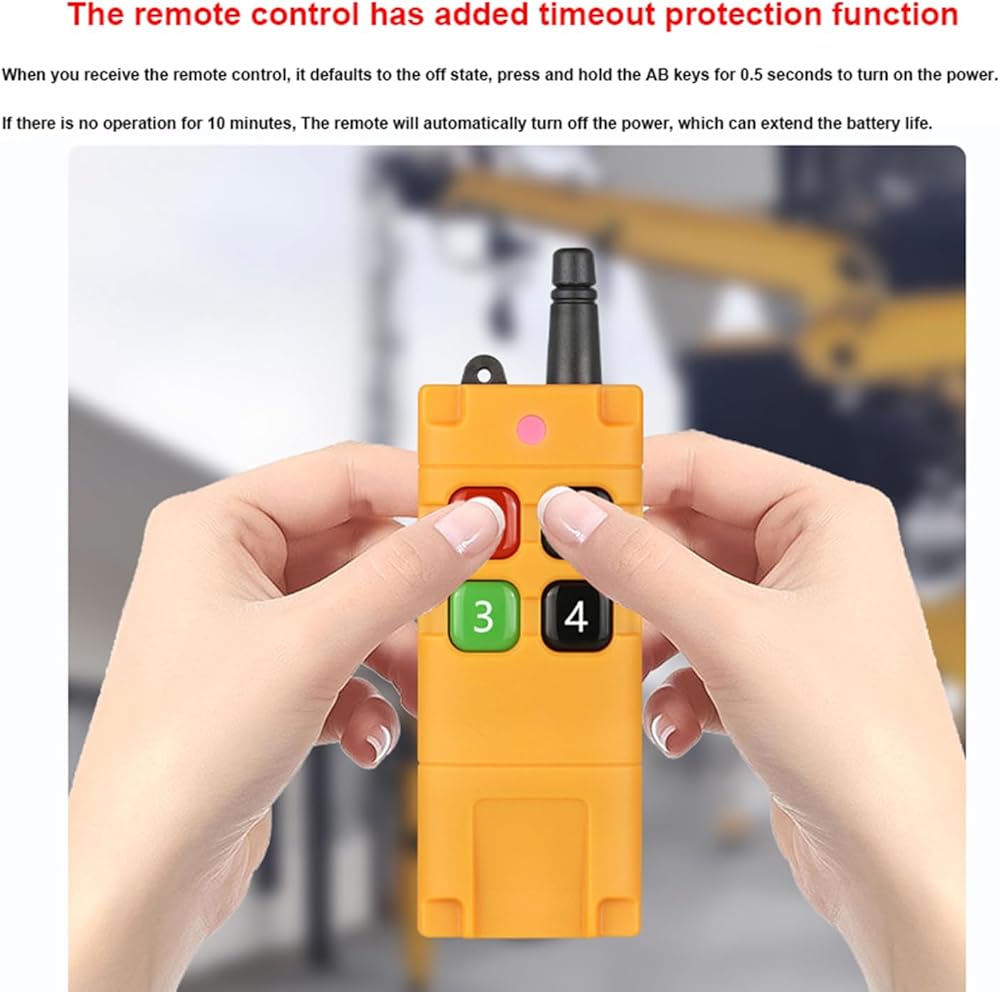

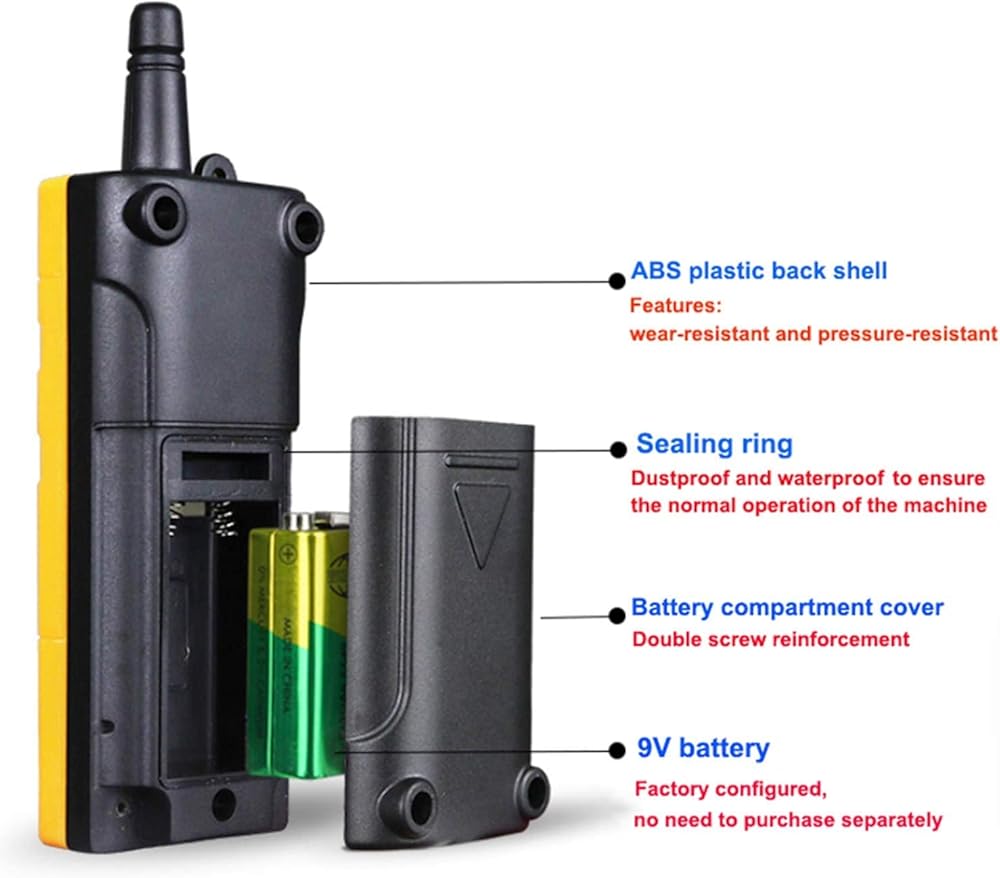

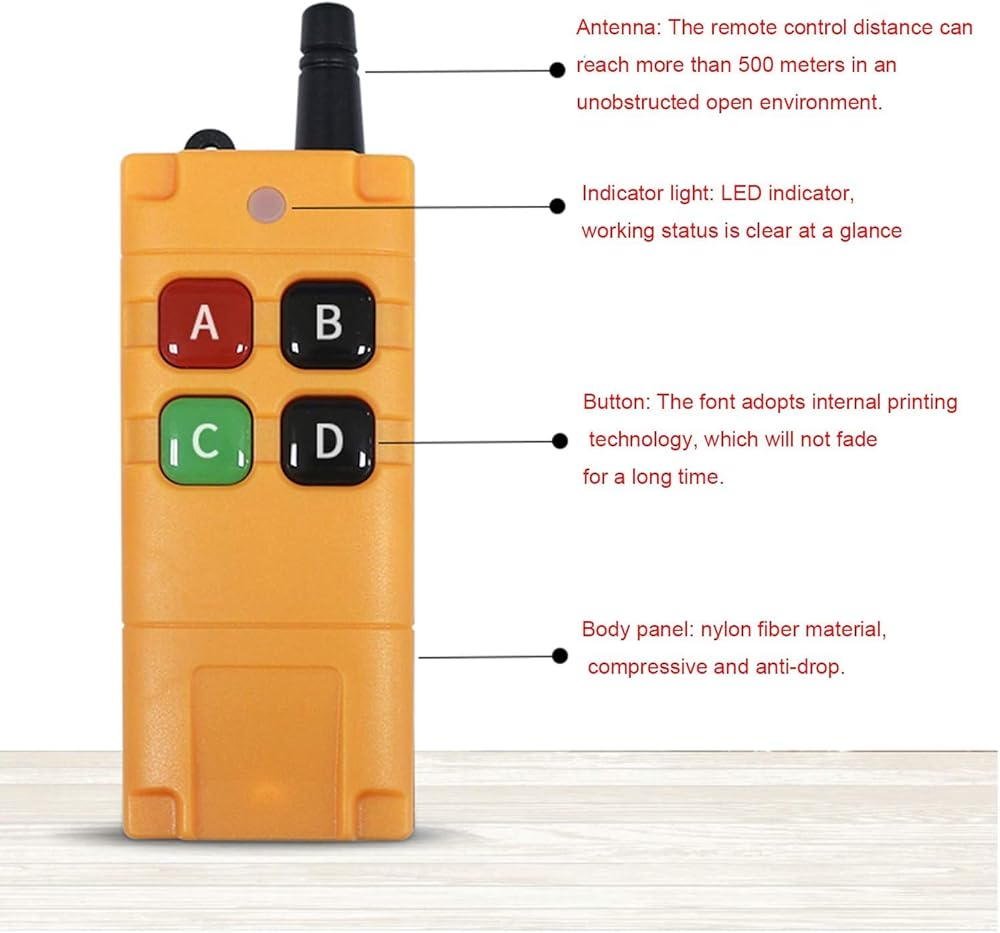

1x remote control with battery (If you need more remotes, please let us know)
This product is a wide voltage two-way multi-function remote
control switch; it adopts wide voltage design and can be applied
to 12-50 volt power supply, widely used in various equipment
control; unique working mode switching button facilitates the
controller to preset the jog , self-locking, interlocking, delay
switching between 5 seconds without using a soldering iron or
plug-in jumper cap; simple and practical software programming to
achieve two-way relay to learn separately, can match any type of
button control of the same frequency, greatly It is convenient for
the user to expand the application when using one or more controls.
About Receiver:

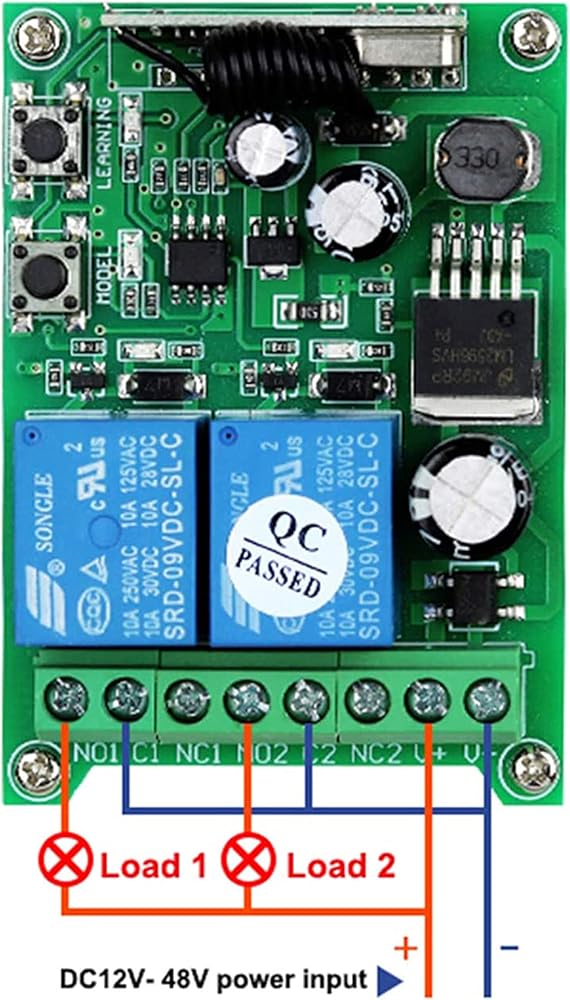

Working voltage: DC12-50V
Quiescent condition: Less than 6mA
Working temperature: -40 Degree +80 Degree
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz

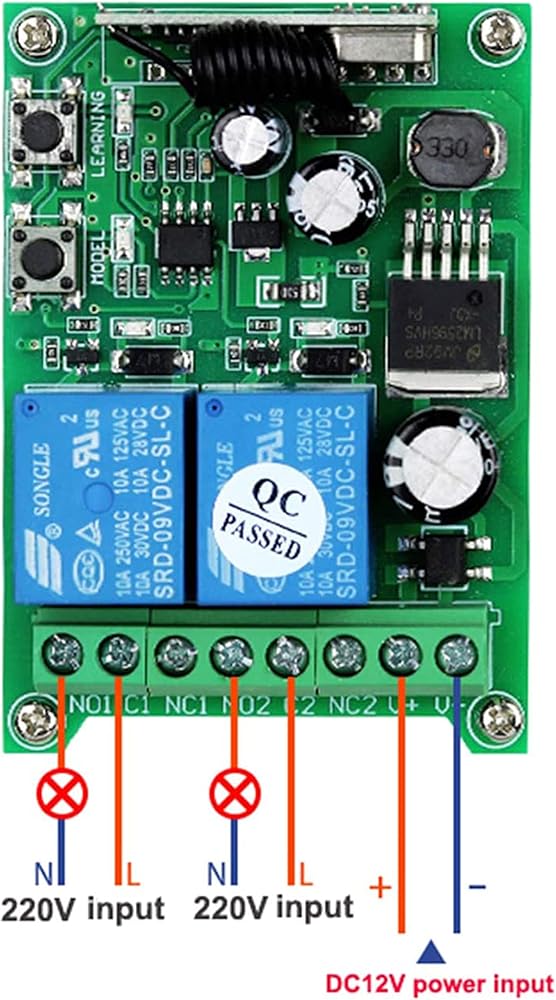

Output voltage: DC and Switch Signal is optional
Max load current: Less then 10A
Size: 8.5 x 5.7 x 2.6cm

About Working way
Toggle: Press -> On; Press same button again -> Off
Momentary: Press and hold -> On; Release -> Off.
Latched: Press -> On; Press other button -> Off.

Working way adjust
Momentary: press model button 1 time
Latched: press model button 2 times
Toggle: press model button 3 times
Delay 5 seconds: Press the four-down mode to switch the button;
the indicator flashes four times and then turns off to indicate that
the delay setting is successful.

learning, cleaning methods and steps

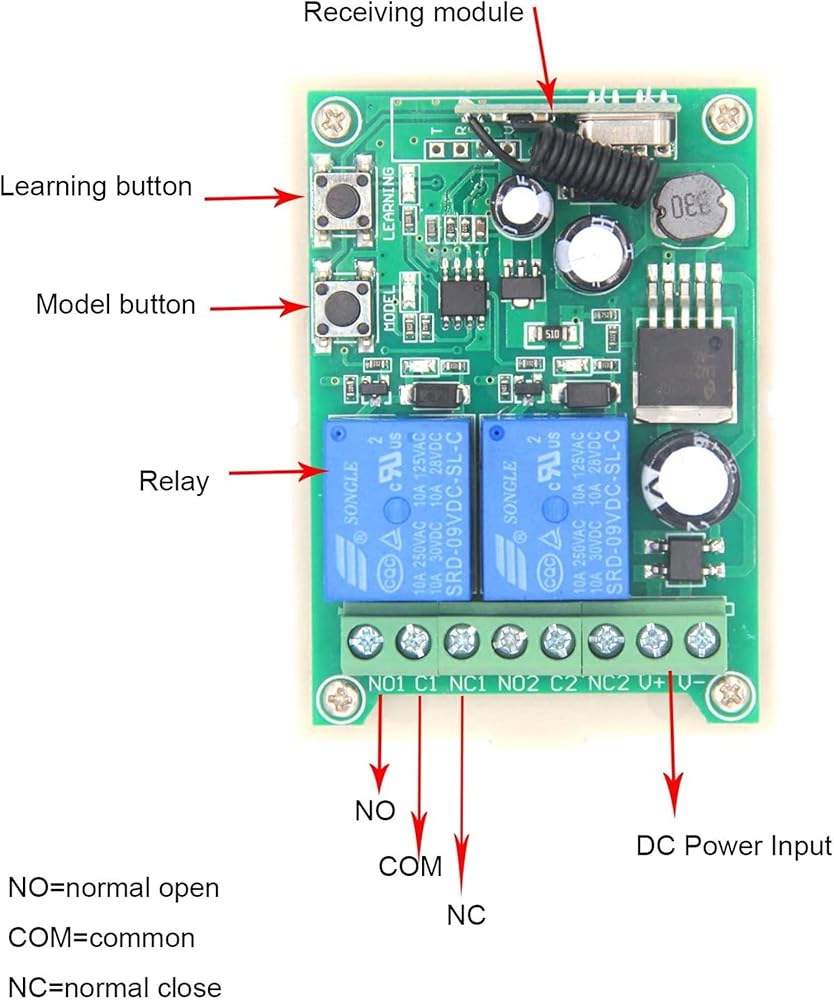

1. Button function:
The two buttons on the controller are the learning button
(LEARNING) and the mode switching button (MODEL);

2. Learning method:
Press the learning button once, the indicator light flashes (enter
learning status), pre
