Filter, Regulator & Lubricator Combos

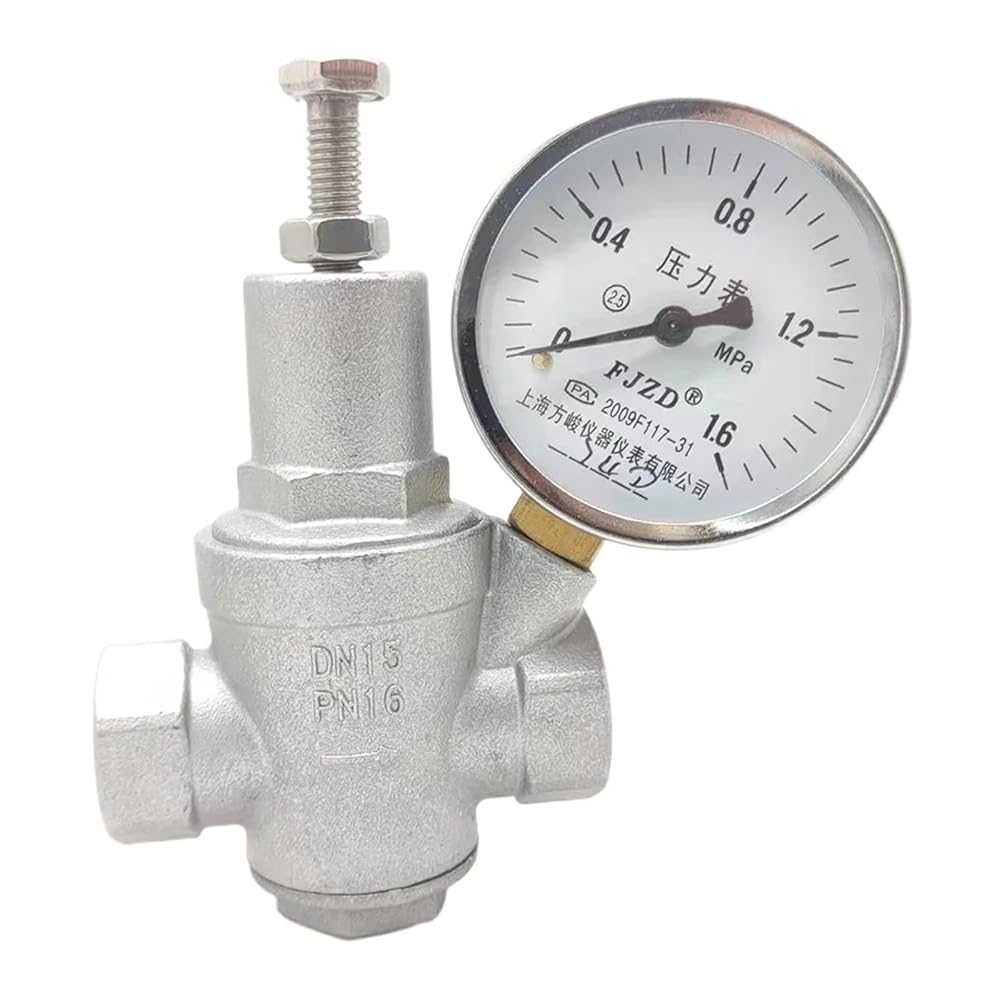

304 Stainless steel water pressure reducing valve with pressue gauge DN15-DN50 Water Pressure Regulator/Reducing/Relief Valve
Product's detials:
Size: 1/2"(DN15),3/4"(DN20),1"(DN25),1-1/4"(DN32),1-1/2"(DN40),2"(DN50)
Material:Stainless steel,
Water pressure adjustment(KPA):10-50,40-160,150-350,300-800
Working Temperature: -20 to 85'C degree
Description:
The simplest pressure reducing valve, direct acting pressure reducing valve with flat diaphragm or bellows. Because it is a stand-alone structure, there is no need to install an external sense line downstream. It is the smallest and most economical of the three pressure reducing valves and is designed for medium to low flow. The accuracy of the direct acting pressure reducing valve is typically +/- 10% of the downstream set point.
Package Listing:
1 x Water Pressure Reducing Valve
1 x Pressure Guag
==========
Structure : Pressure Reducing
Port Size : 1/2",3/4",1",1-1/4",1-1/2",2" inch thread
Media : Water
Material : STAINLESS STEEL
Temperature of Media : High Temperature
Power : HYDRAULIC
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : B381
Work Temperature : -20 to 85'C degree Celsius
Material : 304 stainless steel
