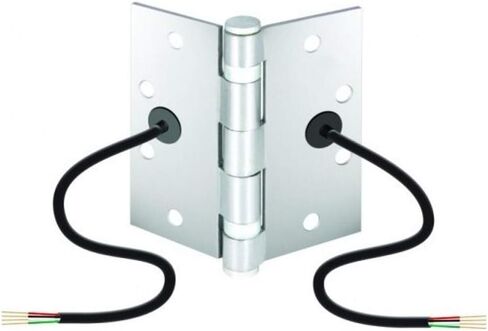

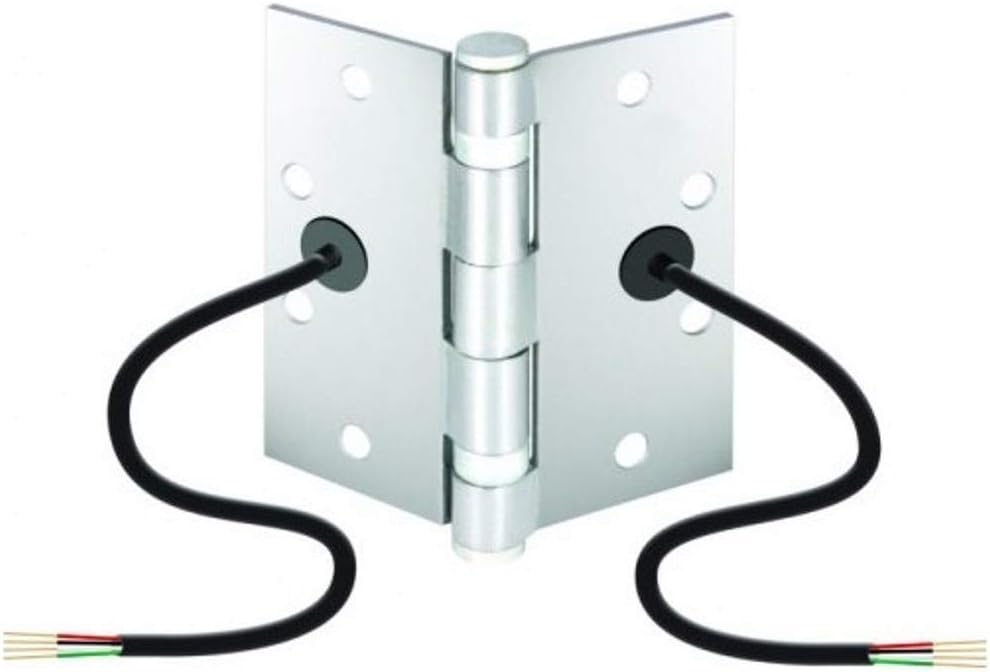

Seco-Larm SD-H412 Electric Transfer Hinge, Vandal-resistant Method For Protecting And Concealing Wires Between A Hollow Door And Door Frame, Dimensions 4.5"x4.5"x 0.125"
The ENFORCER SD-H412 Electric Transfer Hinge provides a vandal-resistant method for protecting and concealing wires between a hollow door and door frame. It is suitable for low-voltage, low-current applications such as electric door strikes, locksets, and deadbolts or other monitoring or exit devices and is easily installed, replacing the center hinge.

Key Features4 Conductive wires – 4x 28AWG wires, 0.5A@24VAC/VDC
Standard 5-knuckle hinge
12 or 24 VAC/VDC operation
Replaces one of the standard door hinges on a hollow door Heavy-duty, vandal-resistant steel housing protects and hides the wires
US26D (652)

SpecificationsType: 5-knuckle, 4-wire transfer hinge with concealed wiring
Operating Voltage: 12 to 24 VAC/VDC
Operating Temperature: -4° to 185° F (-20° to 85°C)
Current - 28AWG: 0.5@24VAC/VDC
Wires: 4x28AWG (red, black, white, green)
Dimensions: 4-1/2" x 4-1/2" x 1/8"
Weight: 16 oz (454g)
