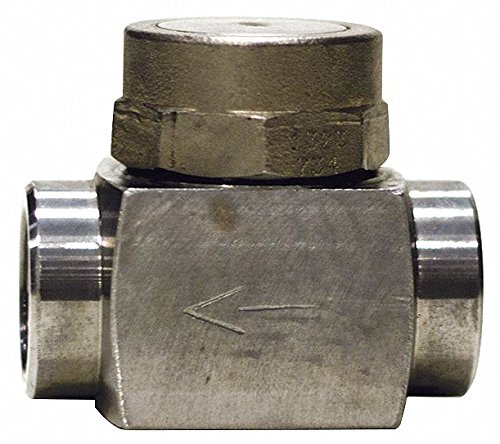

This compact and rugged MEPCO steam trap is designed to efficiently discharge condensate on drip leg, tracing, and process services. Simple design requires minimal maintenance for long life, and it allows you to perform easy inspection and maintenance without removing the trap from the line. Stainless steel construction resists corrosion and fatigue for long life, and the rugged design can withstand the effects of superheat, water hammer, and vibration.

Item: Steam Trap
(F)NPT Connections: 1"
Max. Operating PSI: 600 psi
End to End Length: 3-5/16"
Condensate Capacity Lbs/Hr: 1200
Max. Temp.: 800 Degrees F
Type: Disc
Downstream PSI Range: 0 to 595 psi
Body Material: Cast Iron
NPT Inlet: 1/2"
NPT Outlet: 1/2"
NPT Port: 1/2"
Disc Material: Stainless Steel
Pipe Configuration: Straight
Trap Position: Horizontal
Pressure Air Vent: Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
Application: Steam
