Sensors
Number of Beams
12/14/16pairs
Beams Spacing
40mm
Protection Height
440/520/600mm
Detection Distance
0.5-3m
Working Voltage
DC24V±10%; Max applicable voltage range: 10-30V
Power Consumption
5W
Power Consumption
NPN/PNP
Response Time
Housing Material
Aluminum Alloy (yellow)
Detection Method
Through beam
Ambient Temperature
Insulation Resistance
>100MQ
Anti-in terferance
WOOOLux (Angle of incidences 5°)
Connection
Emitter: M12 connector cable (3 pins with 3 wire)
Receiver: M12 connector cable (4 pins with 4 wire)
Protection
Reverse connection Protection/ Output short circuit protection
Dielectric Strength
AC1500V.60S
Working Temperature
-15°C + 65°C
Storage Temperature
-25°C + 75°C
Section Size
35*35mm
MODEL
NUMBER
OF BEAMS
SPACING
PROTECT
HEIGHT
UPPER COVER
HEIGHT
BLIND
ZONE
DOWN
COVER
HEIGHT
CONNECTOR
HEIGHT
TOTAL
HEIGHT
H (mm)
C (mm)
A (mm)
B (mm)
D (mm)
E (mm)
F (mm)
G (mm)
APS35-0440NB
4 40
120
9 20
35
13
7 204
APS35-0640NB
6 40
200
9 20
35
13
7 284
APS35-0840NB
8 40
280
9 20
35
13
7 364
APS35-1040NB
10
40
360
9 20
35
13
7 444
APS35-1240NB
12
40
440
9 20
35
13
7 524
APS35-1440NB
14
40
520
9 20
35
13
7 604
APS35-1640NB
16
40
600
9 20
35
13
7 684
APS35-1840NB
18
40
680
9 20
35
13
7 764
APS35-2040NB
20
40
760
9 20
35
13
7 844
APS35-2240NB
22
40
840
9 20
35
13
7 924
APS35-2440NB
24
40
920
9 20
35
13
7 1004
APS35-2640NB
26
40
1000
9 20
35
13
7 1084
APS35-2840NB
28
40
1080
9 20
35
13
7 1164
APS35-3040NB
30
40
1160
9 20
35
13
7 1244
APS35-3240NB
32
40
1240
9 20
35
13
7 1324
==========
Material : Aluminium alloy
Switch Type : Switch
Model Number : APS35-1640

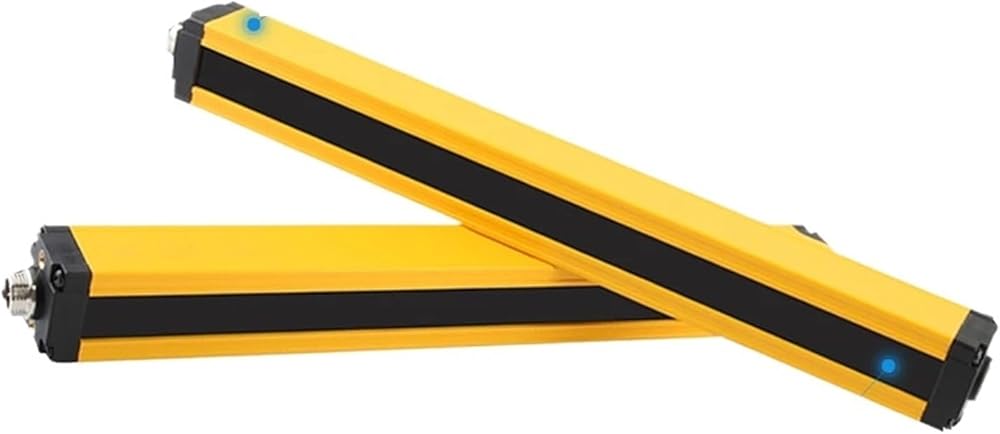

Features : Anti-sunlight through beam safety light curtains
Item Type : SWITCHES
Is Smart Device : No
Model1 : APS35-1240
Model2 : APS35-1440
Cable length : 2.8 meter
Detection distance : 0.5-3m
