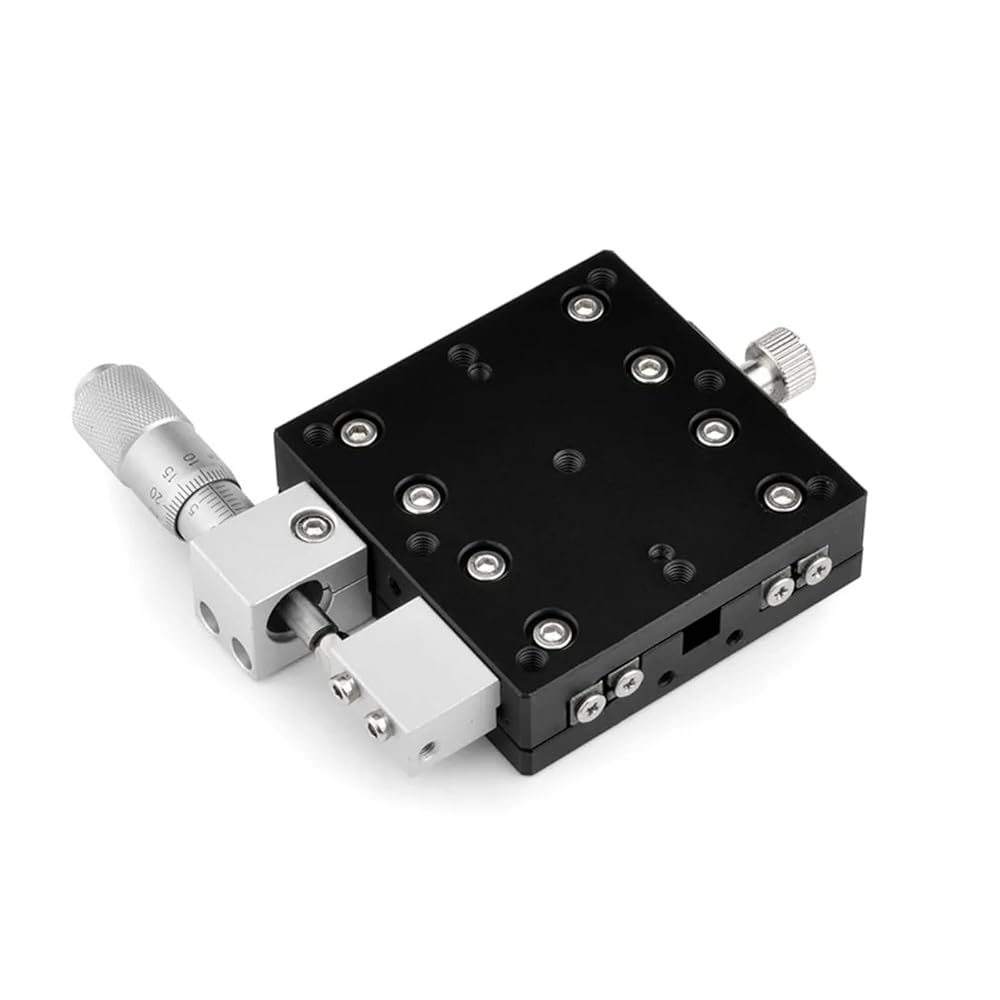

المحور X 70 * 70 مم منصة الإزاحة اليدوية البصرية الخطية (LX70-L)
مقاسLX70-L
مميزات خاصة
- Roller Tables
- Optimized stroke: Provide ±6.5mm stroke
- Versatile load capacity: supports loads up to 44N (4.5kgf)
- Lx70 C|Lx70 L|High precision: with 0.01mm accuracy and parallelism
- LIGHTWEIGHT DESIGN: This sliding table is made from durable aluminum alloy
وصف
Roller Tables
scope:
1.Moving direction: X-axis direction
2. Body material: aluminum
3. Driving mode: differential head
4. Workbench size: 70x70mm
5. Countertop thickness: 18mm
6. Stroke: ±6.5mm
7. Load: 44N (4.5kgf)
8.Minimum size: 0.01mm
9. Accuracy level: 0.01mm
10. Parallelism: 0.03mm
11. Weight: 0.3kg
