2 PCS Circuit Production Film, Photosensitive Dry Film Photoresist Sheet 30cm x 5m Photosensitive Plate for Producing Board

SAR 99
Brand
Eujgoov
Category
Lab Supplies
Weight
304 g
– 1 +

Special Features

  • for Various Processes: The Photosensitive Film is ideal for a variety of procedures like plating, hole covering, and etching, demonstrating its versatility in different applications.
  • Versatile Utility: Referred to as a dry film, this photosensitive Circuit Production Film is primarily used in the making of PCB boards. Stick it on top of the PCB to create a sensitive circuit board effortlessly.
  • Excellent Adhesion: This Film boasts excellent adhesion capabilities, allowing it to stick to virtually all surfaces with impressive adherence.
  • Superb Hole Coverage and Resolution: Possessing an astonishing ability for hole coverage and high resolution, this film ensures detailed and precise board production.
  • Clear Imaging: Upon exposure, the Photosensitive Dry Film provides clear and sharp images, making it instrumental in producing circuit boards.

Description

Specification:
Features:

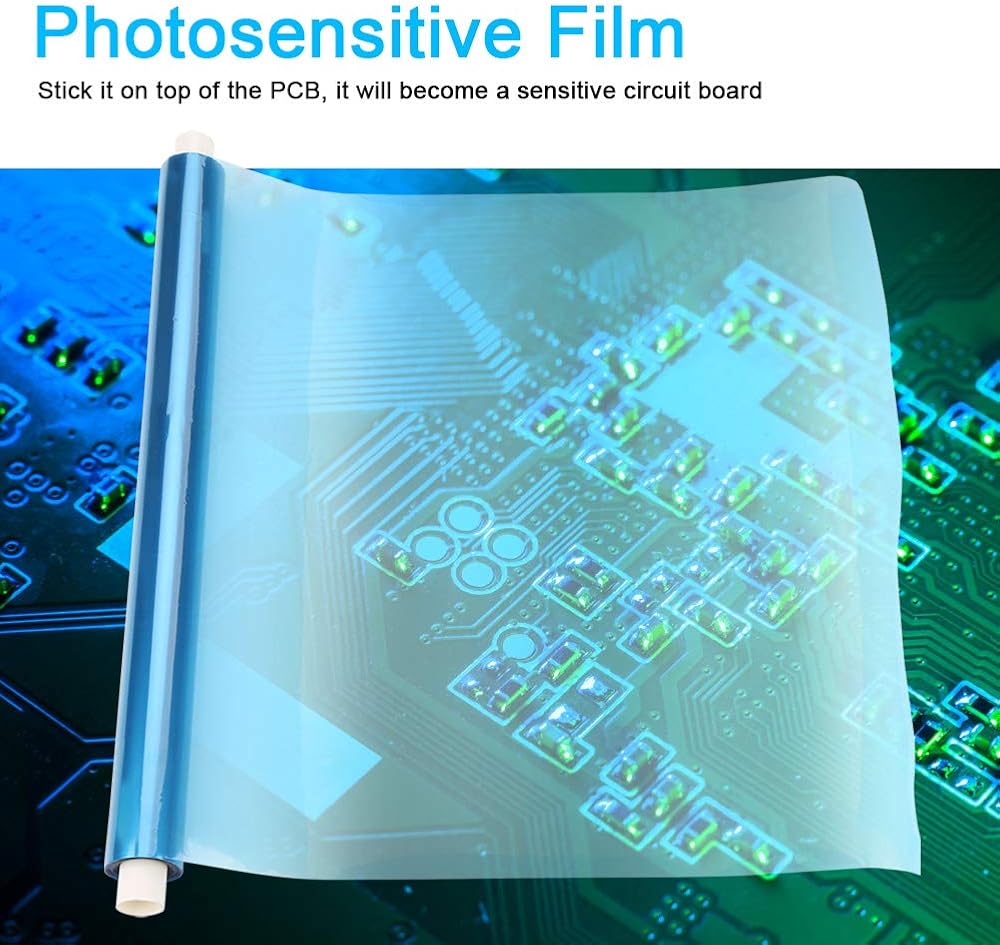

Photographic film, also known as dry film, is used to make PCB board, stick it on top of the PCB, it will become a sensitive circuit board.

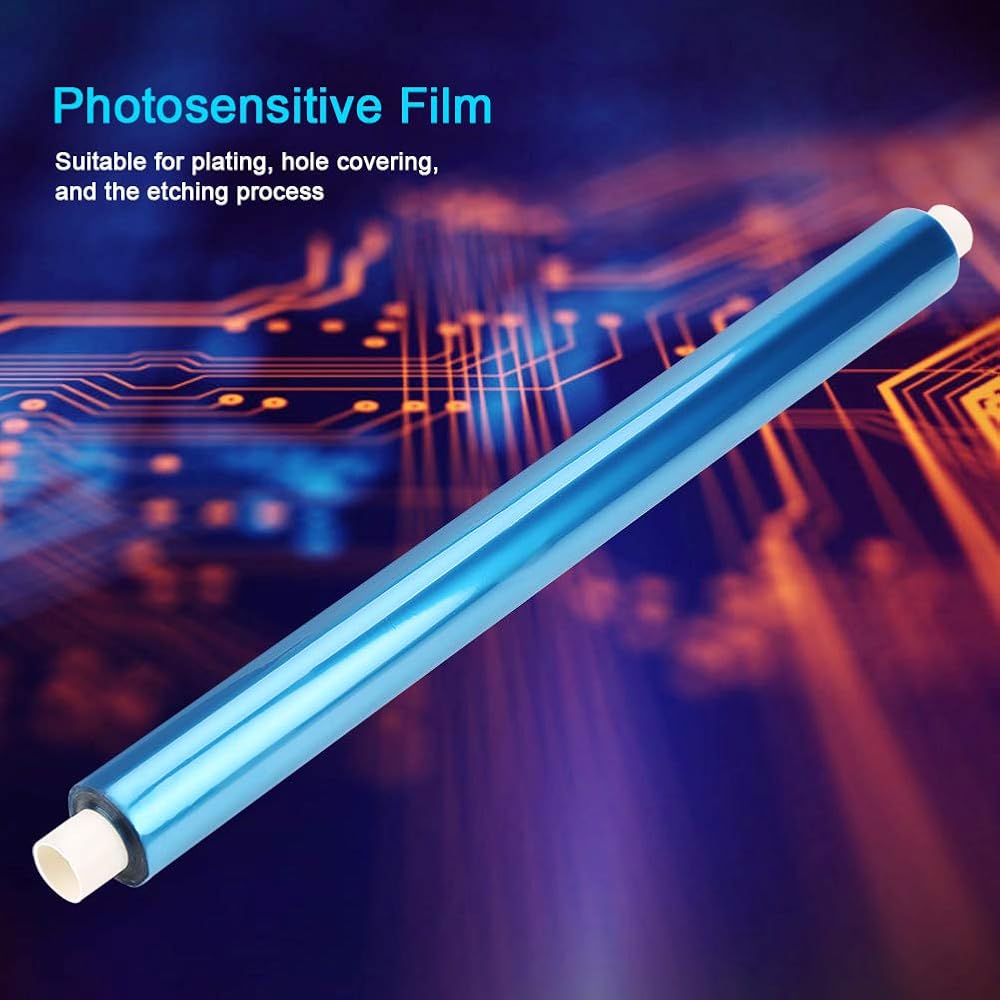

Suitable for plating, hole covering, and the etching process.
Excellent ability to cover holes, high resolution.
Excellent adhesion to almost all surfaces.
Image clarity after exposure.
Steps of use:
1. Film uncovering, the photographic film is sandwiched between two layers of films.
2. Film pasting, clean and paste flat.
3. Heat slightly to fix with electric iron.
4. Print circuit board film.
5. Exposure
6. Develop
7. Etch
8. Demould
Specification:
Color: black
Material: Plastic
Dimension: 30cm*500cm / 11.8*197in
Weight: approx. 150g
Package List:

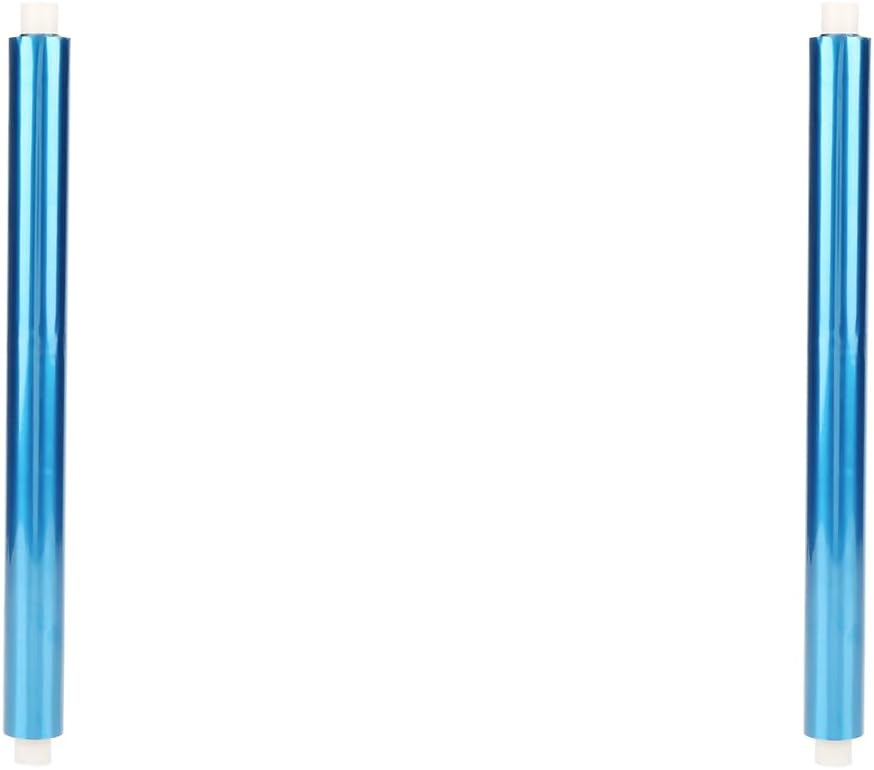

2 * Photosensitive film
