T-type Thermocouple wire for making thermocouple or extension wire
Copper / Constantan type T thermocouple wire with Standard Accuracy (whichever is greater): +/- 1.0 C or +/- .75%

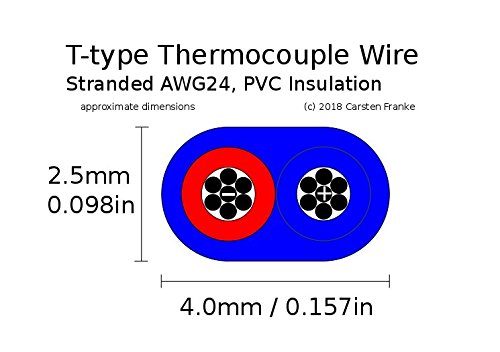

Stranded wire, AWG 24 (0.51 mm), 7 strands x0.2 mm

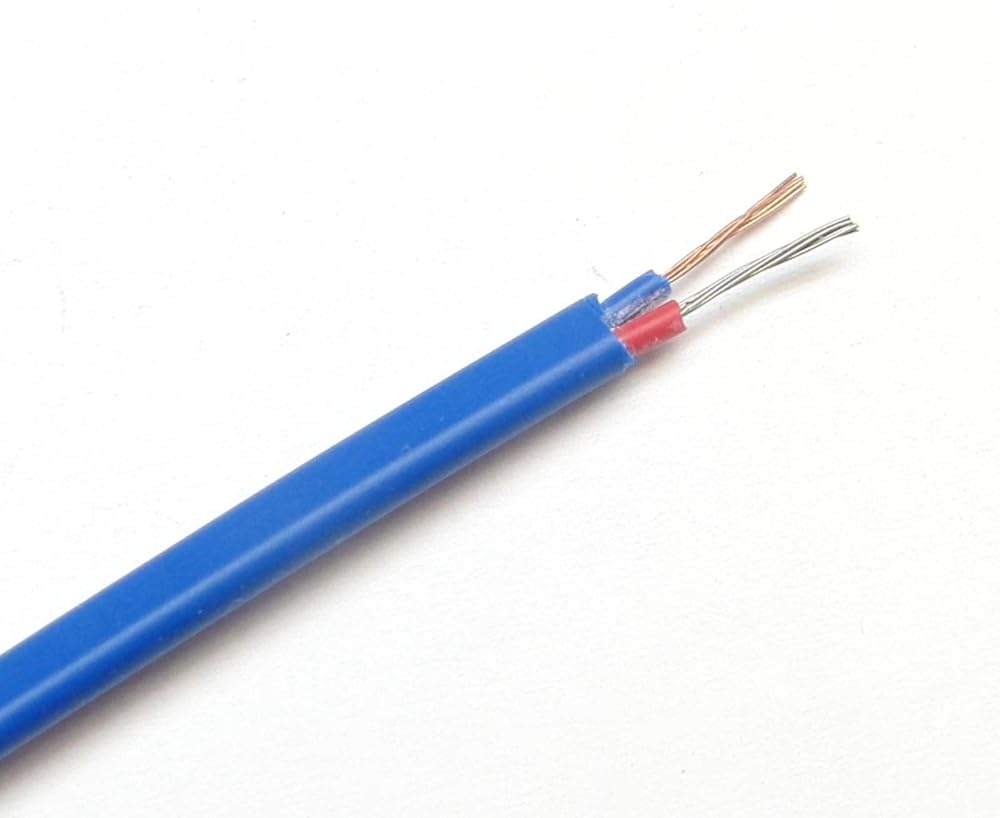

ANSI color coded PVC insulation, blue = + (positive), red = - (negative)

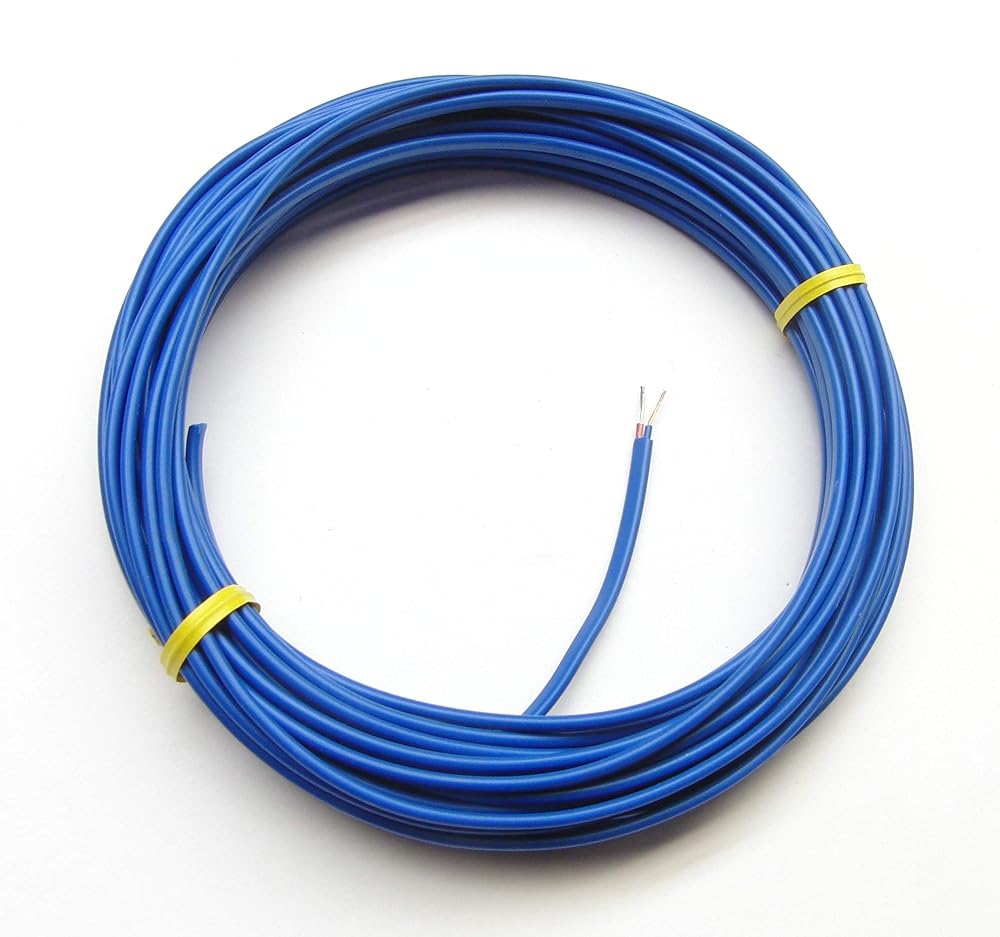

Sold in 10 yd precut increments, 1 unit = 10 yard
وصف
This is a t-type thermocouple wire with blue PVC insulation, which is good up to about 105 °C or 221 °F. This t-type thermocouple wire can be used to make your own thermocouples for a wide range of applications, or to make your own extension wire. If this Type T wire is used to make an extension or to hook up a Type T thermocouple, it can correcty transmit the signal over the full measurement range, -270° to 370°C (-450° to 700°F). But the wire needs to be kept below about 211 °F so that the insulation does not melt. The copper constantan wire is made to standard t-type thermocouple specifications. This is a stranded wire with 7 filaments, it is more flexible than a solid wire and therefore especially useful for t-type extension wires. It is sold in 10 yard spools.
