ZJchao PWM MOS FET Module 4 Channel High Power DC Motor Driver Board with Optocoupler Isolation for PLC Amplifier Circuit DIY Projects 3.7V to 27VDC 10A

SAR 39
– 1 +

Special Features

  • [Visual Signal Indication] Equipped with clear input/output signal indicators this module allows for real-time monitoring of signal status. the intuitive led indicators help troubleshoot connections quickly and efficiently saving valuable time during setup and operation.
  • [Versatile High Power Control] Capable of handling up to 10a per channel this robust module can control diverse high-power devices including dc motors led strips bulbs micro pumps and solenoid valves. its wide voltage range of 3.7v to 27vdc makes it suitable for numerous applications.
  • [Quick Wiring Convenience] Featuring onboard screw terminal blocks this module enables fast and secure connections without soldering. the sturdy terminals accommodate various wire sizes making installation effortless for both beginners and professionals.
  • [ Optocoupler Isolation] This pwm mos fet module features a premium ultra-small optocoupler that ensures strong anti-interference capability and . the complete isolation between input and output signals guarantees reliable operation even in noisy environments.
  • [Complete Signal Isolation] Designed with advanced technology this module provides complete electrical isolation between input and output signals. this safeguards your control system from potential damage caused by high power loads making it ideal for sensitive applications.

Description

Spec:
Model: YYNMOS-4
Input signal: 3~20V PWM signal
PWM frequency: 0~1kHz
Output capacity: DC 3.7V~27V, current of each channel ≤ 10A

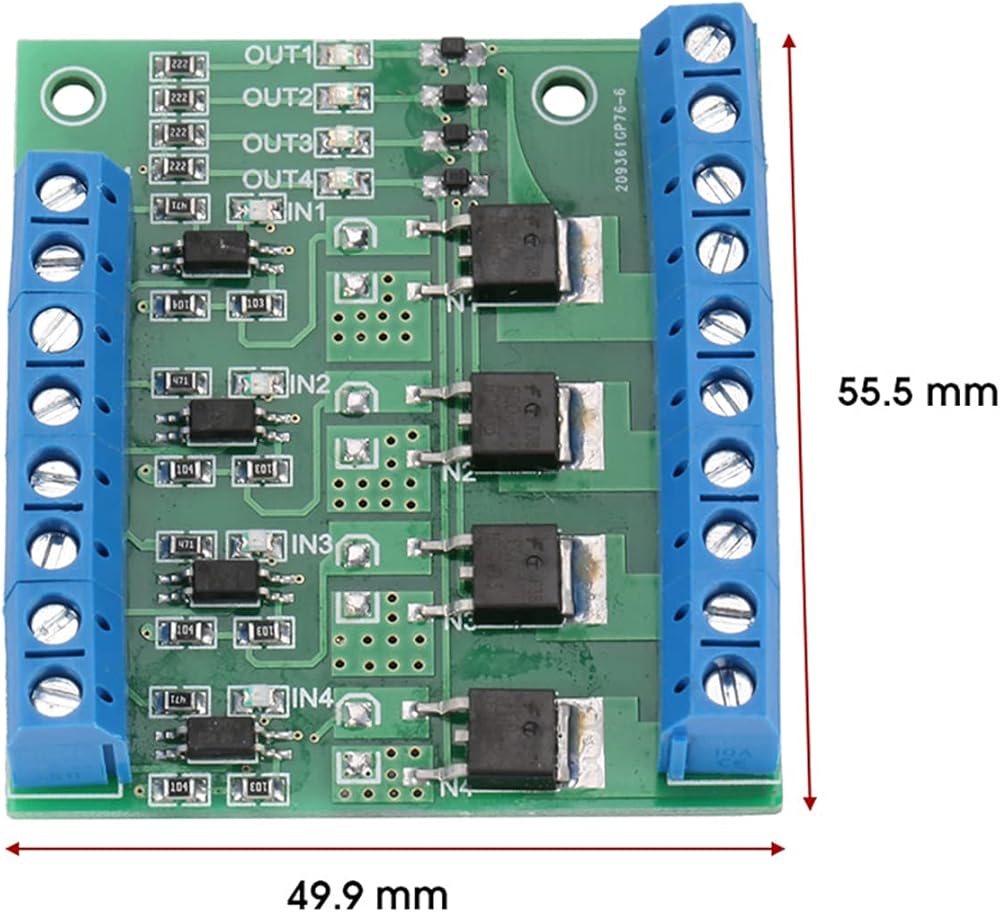

Weight: 27g (approx.)

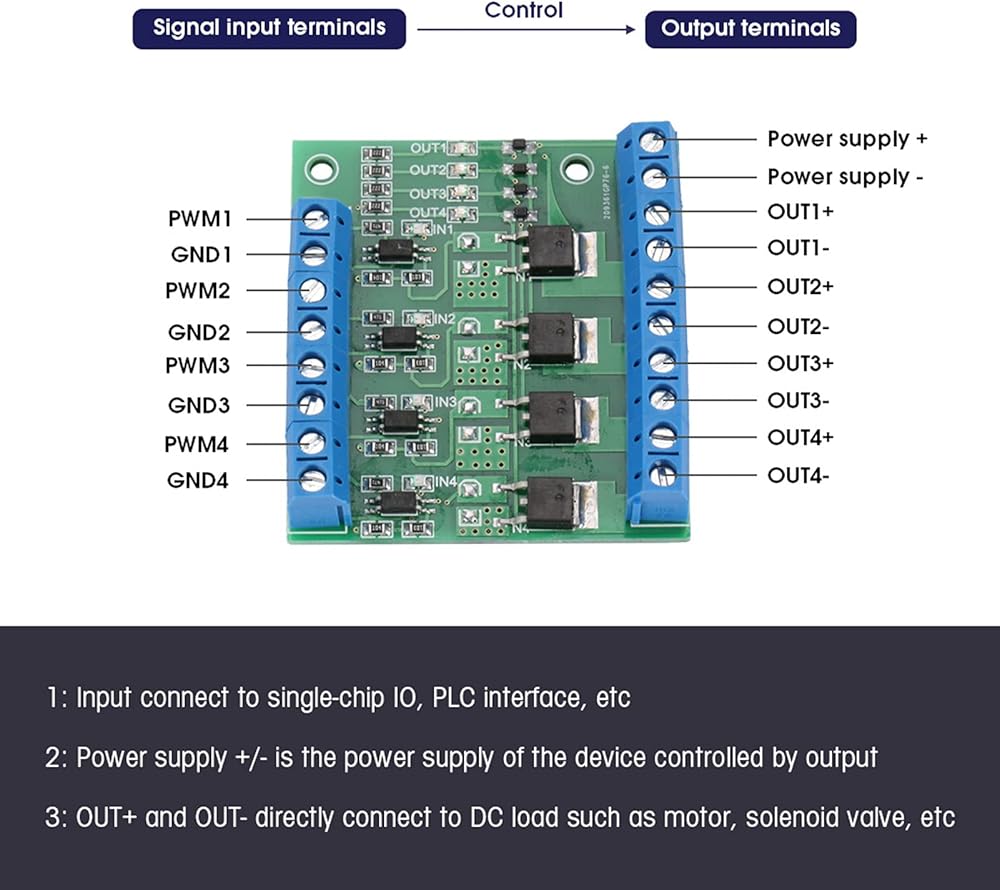

Wiring terminal description:
1. DC+: DC power supply positive
2. DC-: DC power supply negative
3. PWM: Signal input terminal (connected to the single-chip IO port, PLC interface, DC power supply, etc.)
4. GND: Signal negative terminal
5. OUT+: Output positive terminal (connected to the device positive)
6. OUT-: Output negative terminal (connected to the device negative)

Package list:
1 * PLC Amplifier Circuit Board

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
